Split-Ring Hypocyclic Compound gearbox
IP Report
Print Profile(1)
0.24mm layer, 2 walls, 25% infill
Designer
4 h
2 plates
Open in Bambu Studio
Boost
3
12
0
0
3
1
Released
Description

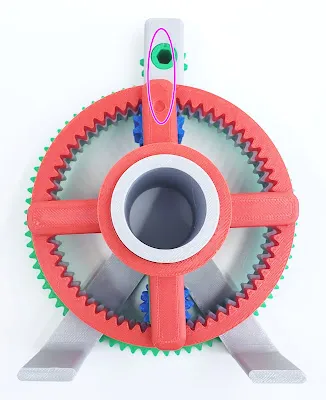

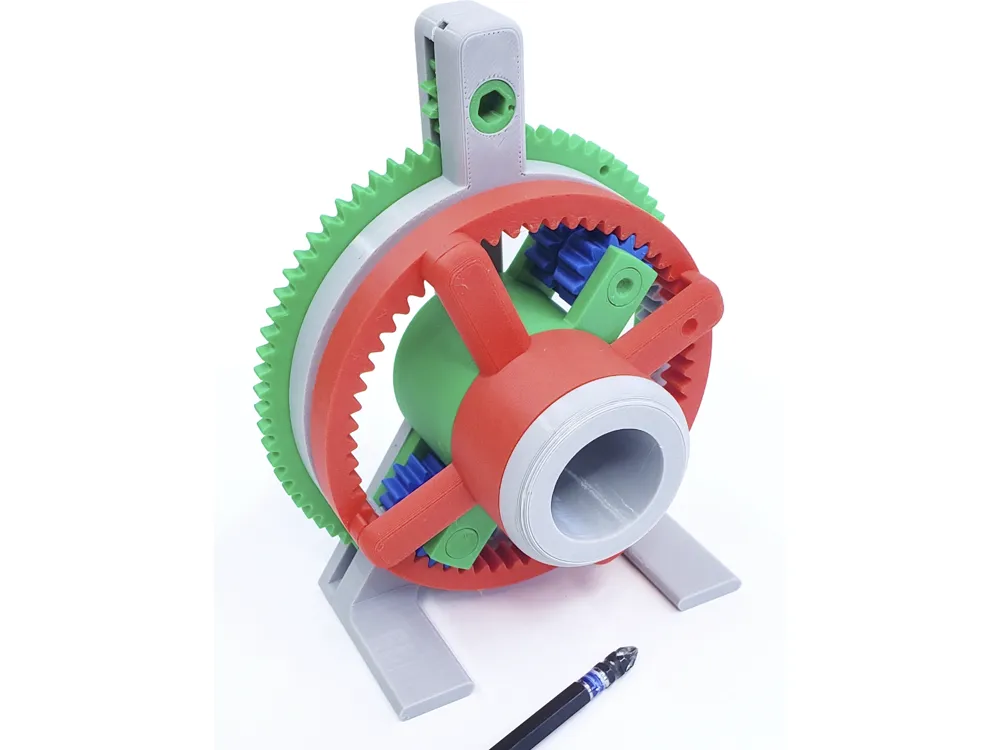

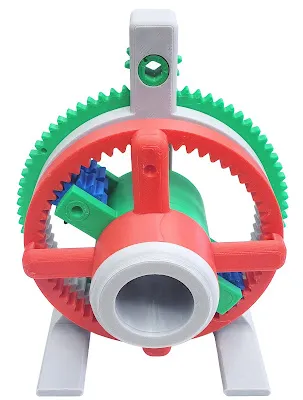

Seeing the potential for high load torque in a Carrier-Driven Split-Ring Hypocyclic Compound gearbox, I made a toy model to familiarise myself with its principle.

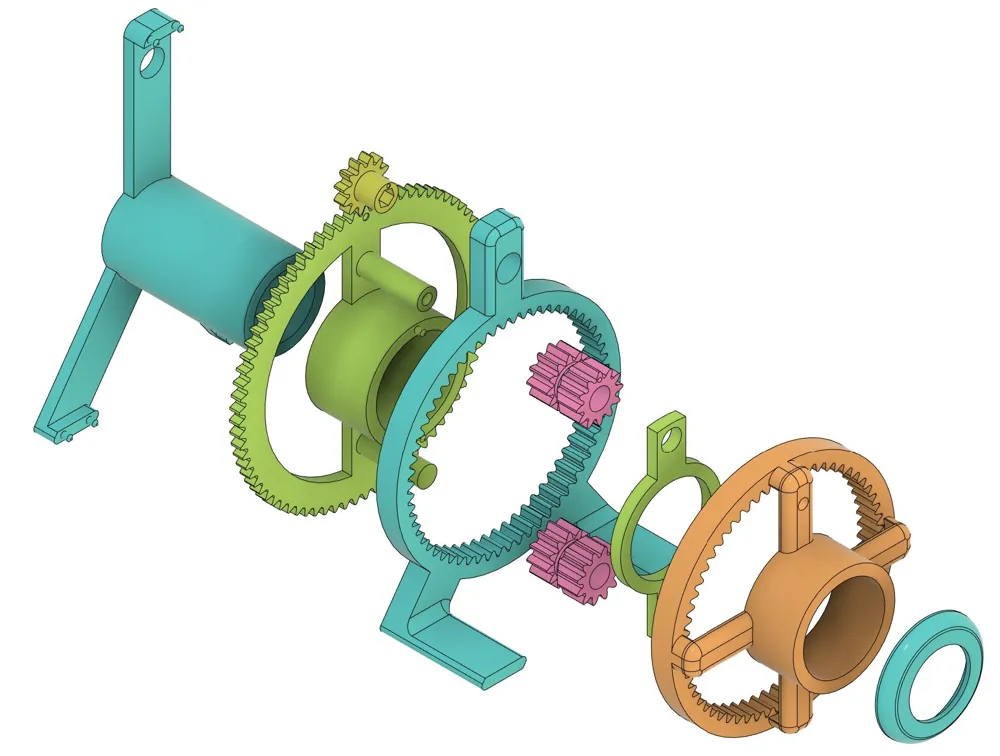

The Fusion360 CAD (very messy), STEP and 3MF files are attached and on Github
Video of it in action and working principles in this post: https://raphtronic.blogspot.com/2026/03/diy-split-ring-hypocyclic-compound.html
Feel free to copy, remix, whatever (non-commercially)
______________________________________________

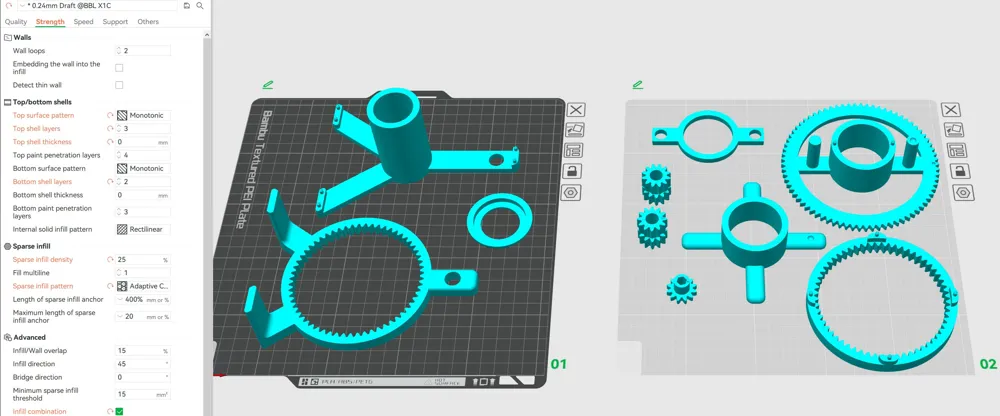

Settings
- 0.4mm nozzle, 0.24 layer height
- 2 walls, 3 top, 2 bottom
- 25% Adaptive Cubic infill
- no support

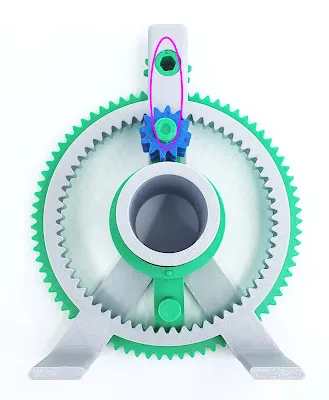

Align the dimples before gluing the parts together:
Done. Et c'est parti manège !
