IKEA BESTA Filament Storage System (21–24 Spools)
Print Profile(1)
Bill of Materials
- 6,3 x 16 Euroschraube x 1: https://www.amazon.de/dp/B01LWCC7B5?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- Rundrohr Stahl 12mm x 1: https://www.hornbach.de/p/rundrohr-stahl-o-12-mm-2-m/799553/
Description
🧰 IKEA BESTA Filament Storage System (21–24 Spools)
Turn your IKEA BESTA into a high-capacity filament storage – up to 24 spools, no drilling, full access, and compatible with original hinges.
Turn your IKEA BESTA cabinet into a high-capacity, clean, and practical filament storage solution – designed specifically to maximize space while keeping everything easily accessible. Most existing BESTA solutions either waste space, bad access, or require major modifications.
This design focuses on maximum capacity, usability, and full compatibility with the original furniture.
If you like it → please give it a BOOST!
🔥 Features

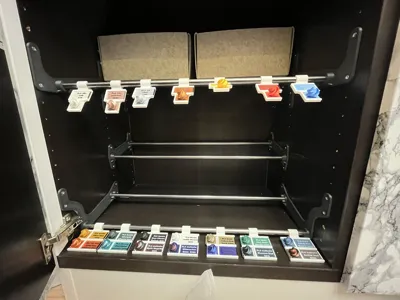

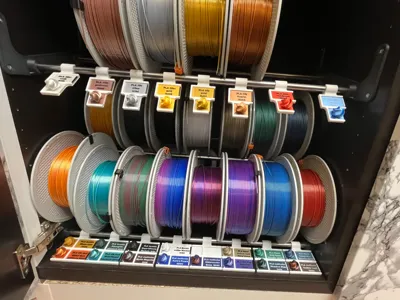

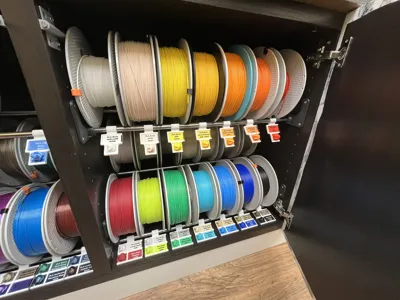

- 📦 Holds 21–24 filament spools in a 64 cm BESTA compartment
- 🔩 Uses original mounting positions (no new hole placement required)
- 🚪 Fully compatible with original hinges – doors remain usable
- 🧵 Designed for 12 mm rods
- 📐 Easy installation – no measuring needed
- 🧵 Vertical spool storage for better visibility and organization

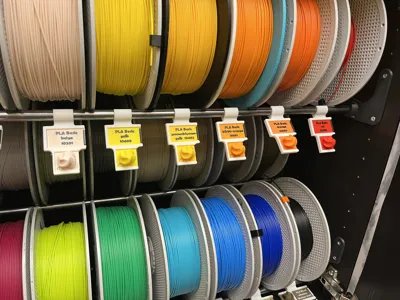

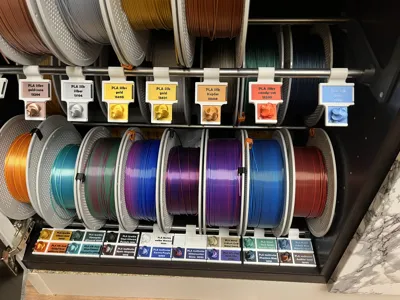

- 🏷️ Integrated label slots for each position

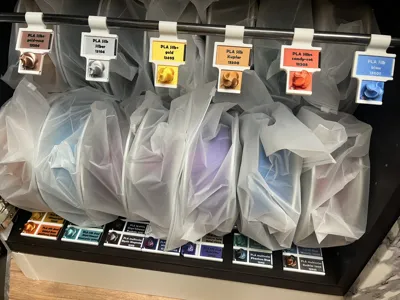

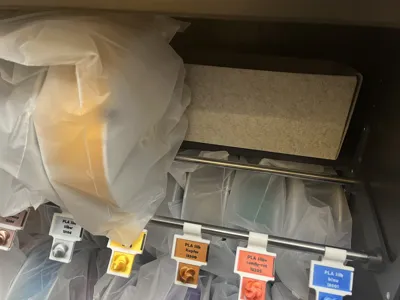

- 🧪 Dedicated space for filament samples
Labeling System can be found here:
Clip-On Filament-Beschriftungs- & Mustersystem – Kostenloses 3D-Druckmodell – MakerWorld
There is also a model that has been adapted on request for use with IKEA RACKA curtain rods. The brackets on the left side are designed for the 19mm diameter, while those on the right side are intended for the 16mm diameter. This model can be found here:
IKEA BESTA Filament-Lagersystem / RACKA-Version – Kostenloses 3D-Druckmodell – MakerWorld
⚡ Accessibility & Handling

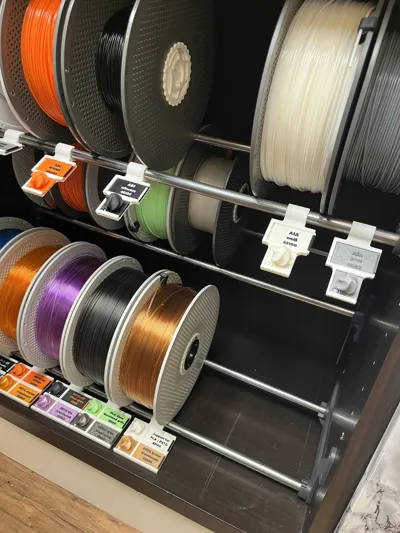

- Upper and lower row are direct acessible
middle row is quickly accessible: 👉 Simply remove one spool from the bottom row
➡️ This gives you full and comfortable access to the middle level
A deliberate design choice to balance high density storage and usability
🔧 Installation Notes

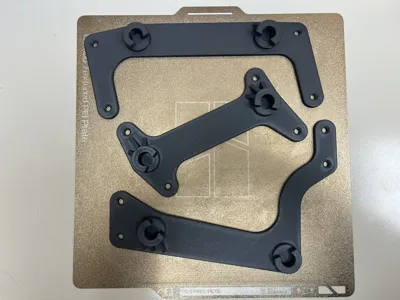

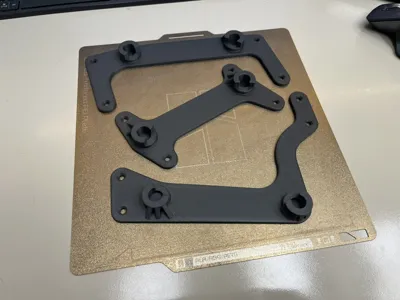

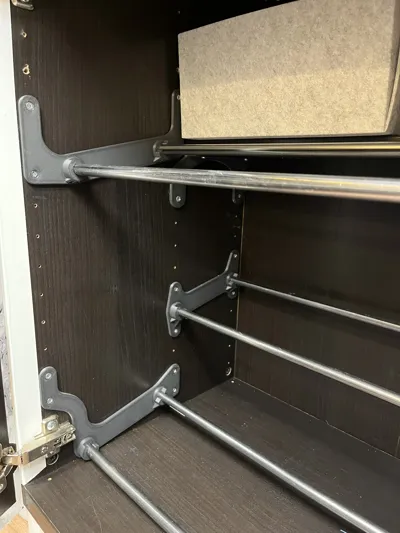

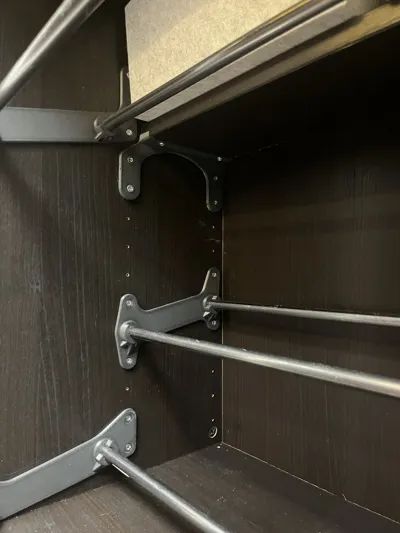

The system is designed to use the original BESTA mounting positions.
For installation with 6.3 × 16 mm Euro screws, the existing holes need to be slightly enlarged.
➡️ No new holes required – only diameter adjustment
➡️ Please see Installation Drawing for correct mounting positions!
🔩 Required Material

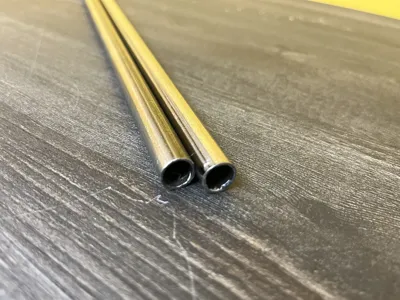

- 12 mm rods (see additional material)
- 6.3 × 16 mm Euro screws (see additional material)
💡 Why this design?
Many existing solutions:
- don’t fully utilize the available space
- make access difficult or impossible
- or require permanent modifications
Some even block the use of the original hinges.
This design solves those issues by combining:
➡️ High capacity
➡️ Smart accessibility
➡️ Full furniture compatibility
➡️ Clean and simple installation
🛠️ Ideal for
- 3D printing enthusiasts with growing filament collections
- Clean and organized workspaces
- Efficient storage in compact setups
If you like it → please give it a BOOST!
