Working Differential For RC car - Free 3D Print Model

Search models, users, collections, and posts

PrintingLAB

Hobby & DIY>Robotics

IP Report

Print Profile(1)

All

H2D

A1 mini

X1 Carbon

P1P

P2S

H2D Pro

P1S

X1E

H2C

H2S

X2D

A2L

0.2mm layer, 2 walls, 15% infill

Designer

1.9 h

1 plate

5.0(2)

Open in Bambu Studio

Boost

105

Released

Description

Hello, I'm a designer in high school from belgium.

I make models in fusion and try to make as complex and bautiful models as possible.

I would really appreciate it if you would consider following me and giving me a boost.

Boost Me (for free)

I would really appreciate it if you would boost me it really helps me to keep making these models.

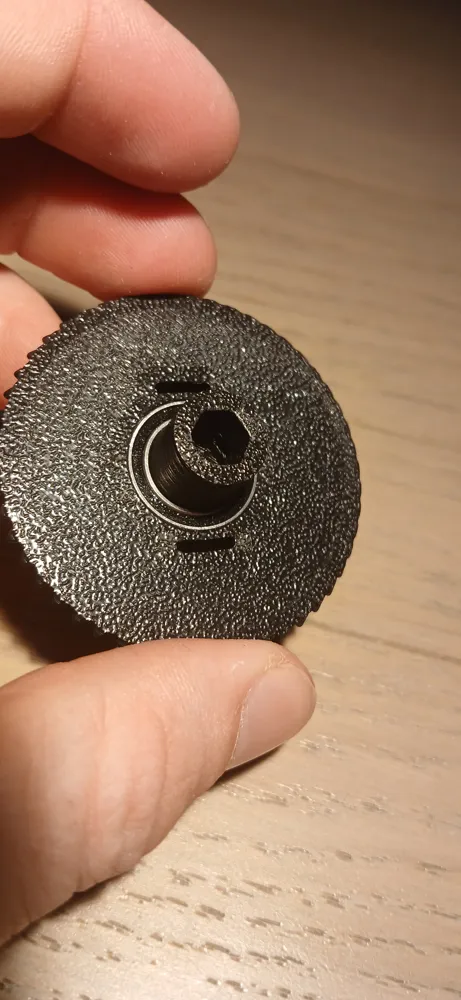

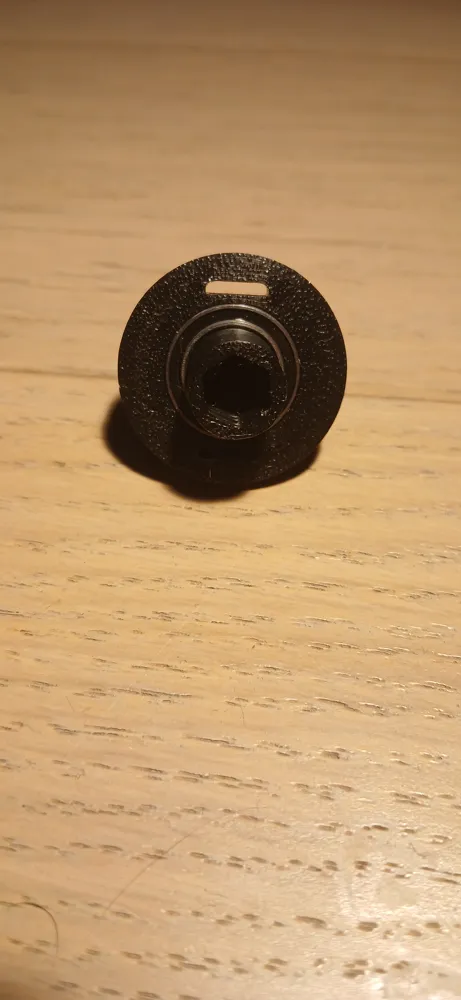

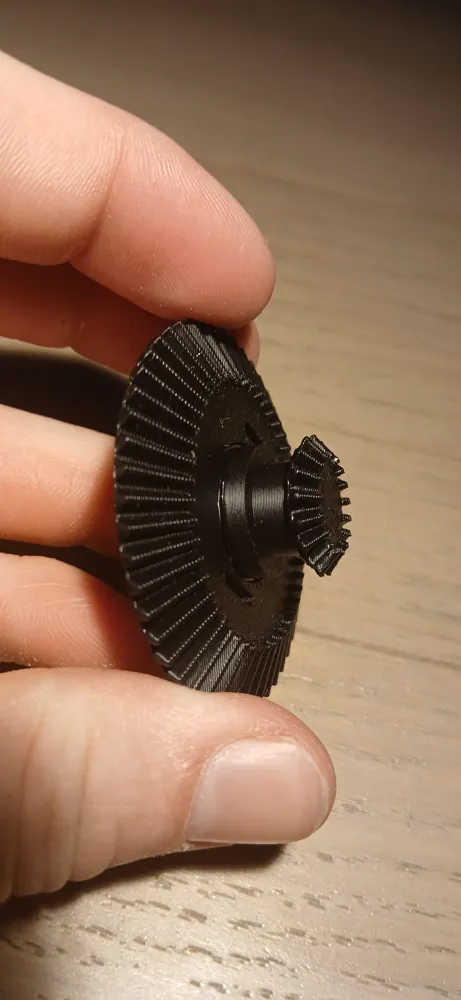

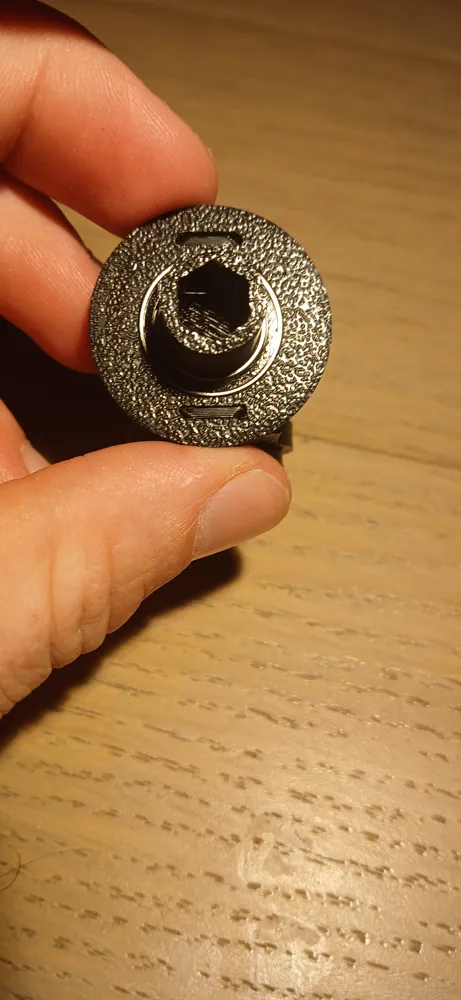

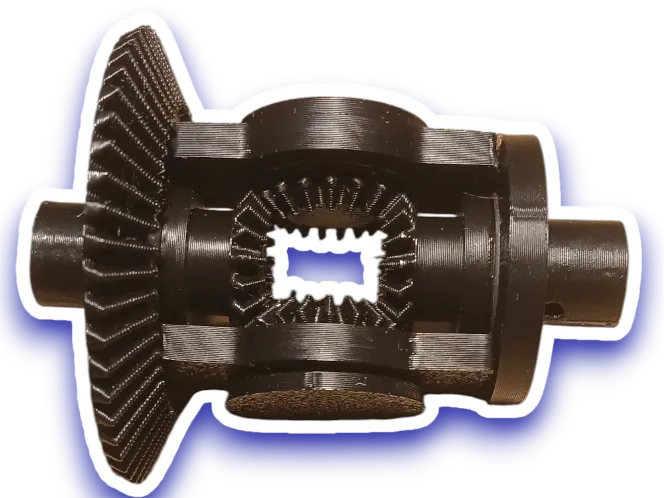

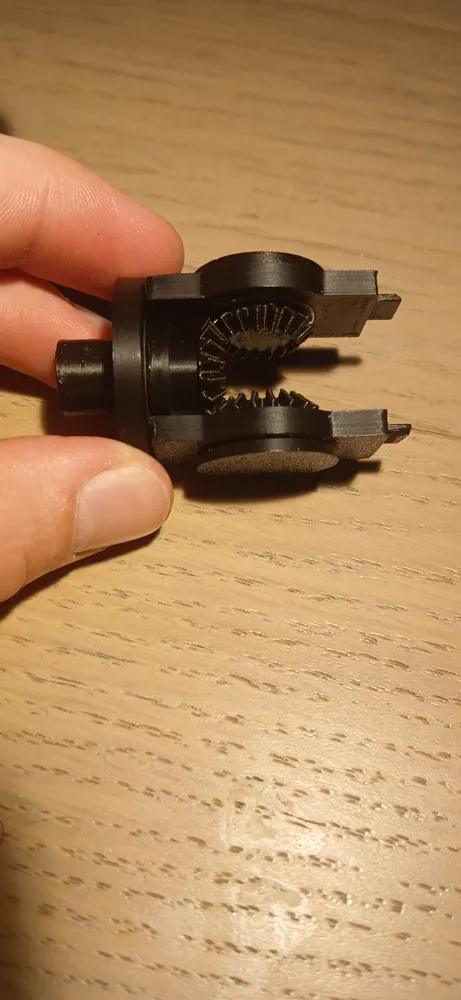

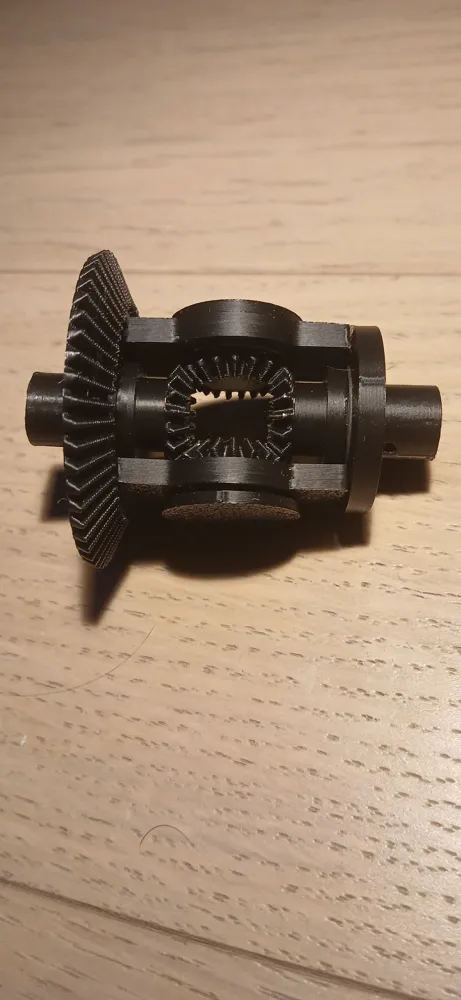

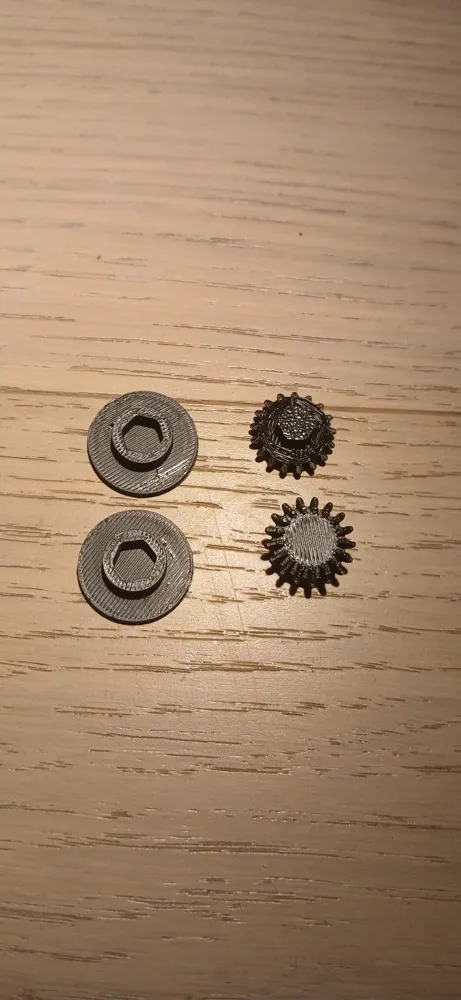

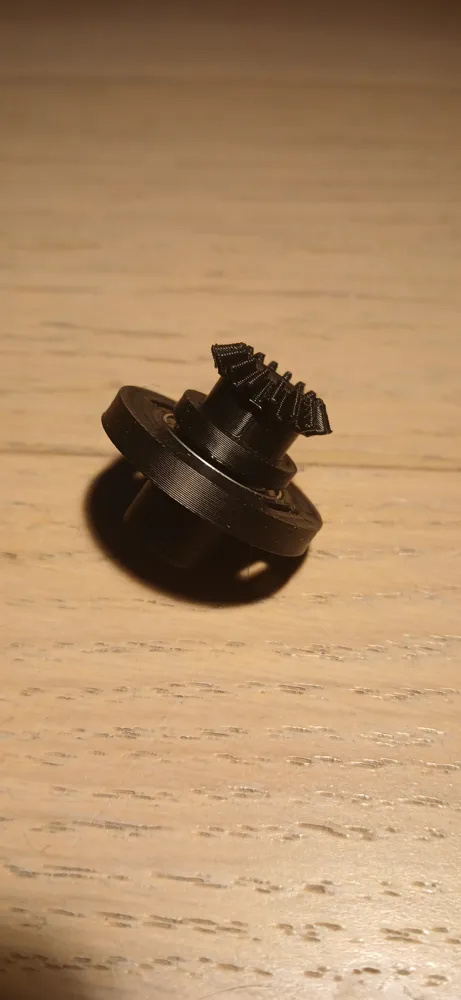

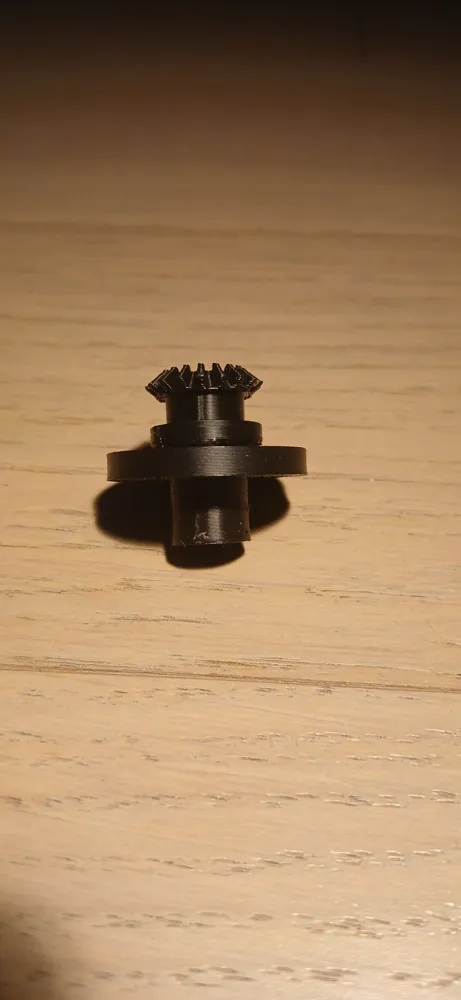

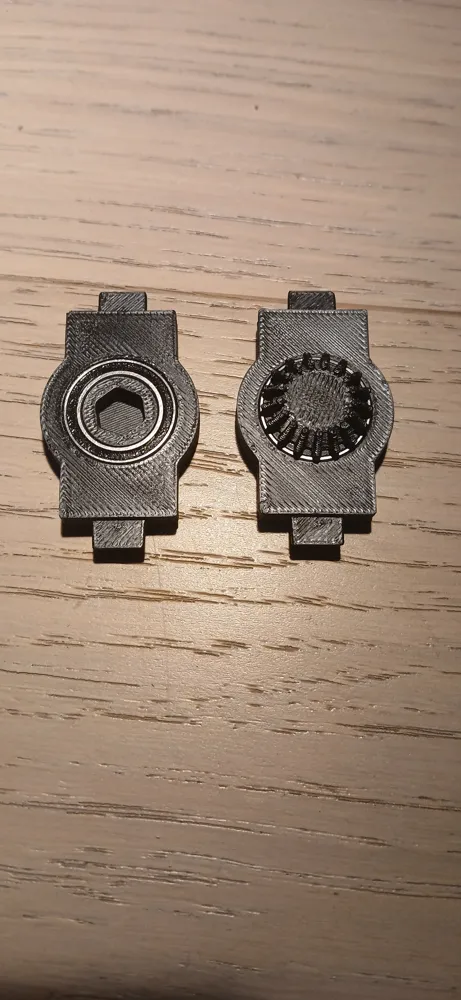

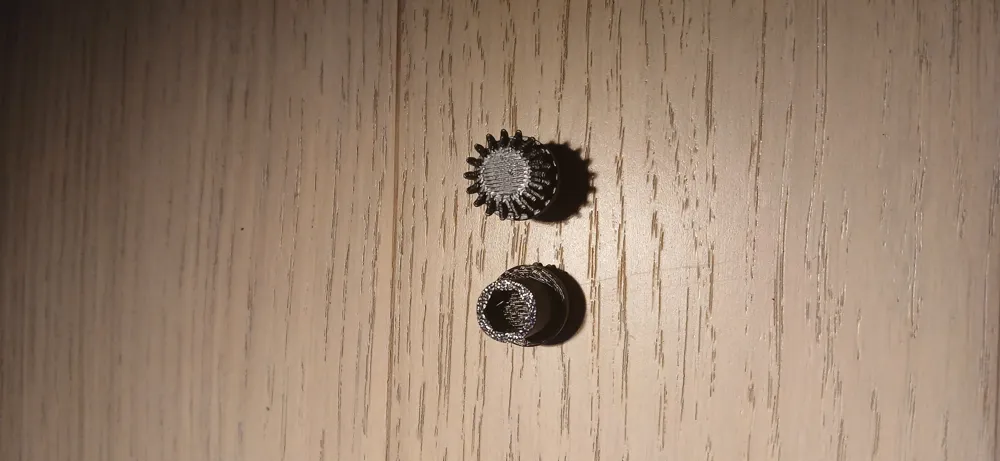

This is the differential that i made for a project that i have going on. I'm making an rc car with as much as possible 3d printed parts. I found this to be a difficult part to start with and figure out how to make it wich is the same for the other people out there that are doing the same project as me or maybe you can just print this to figure out how a real differential works.

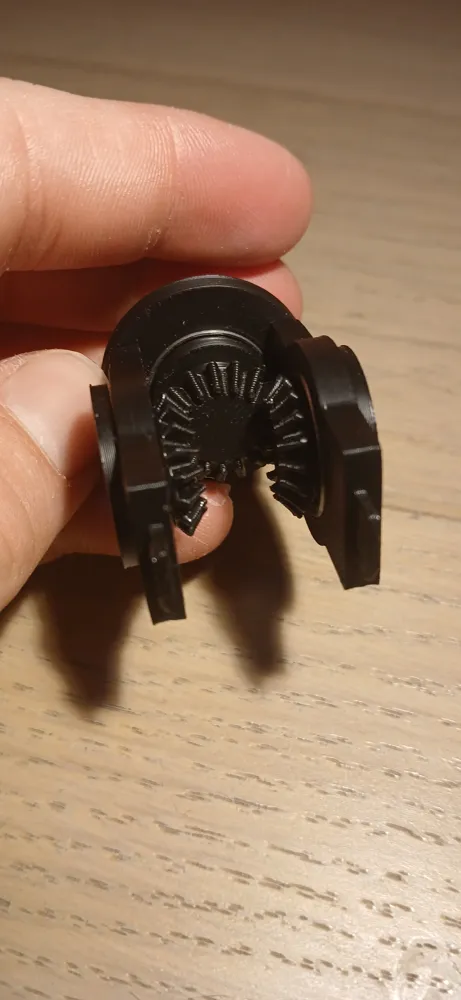

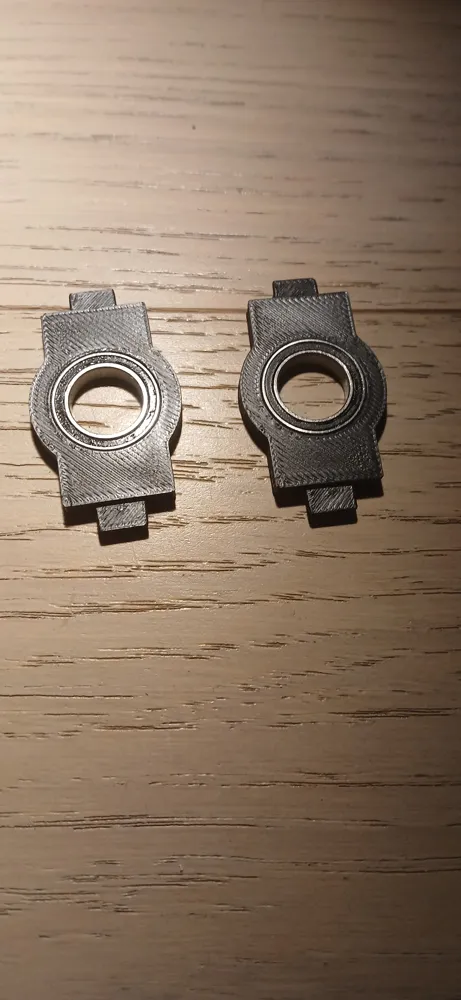

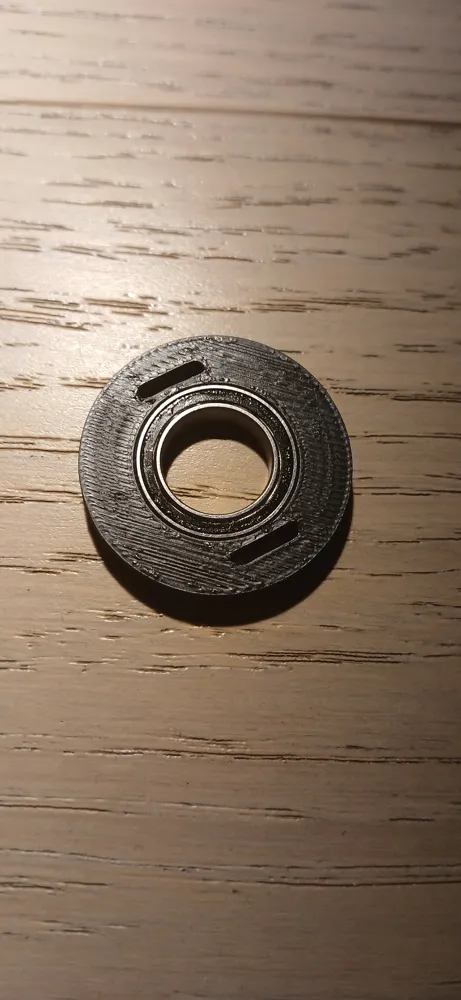

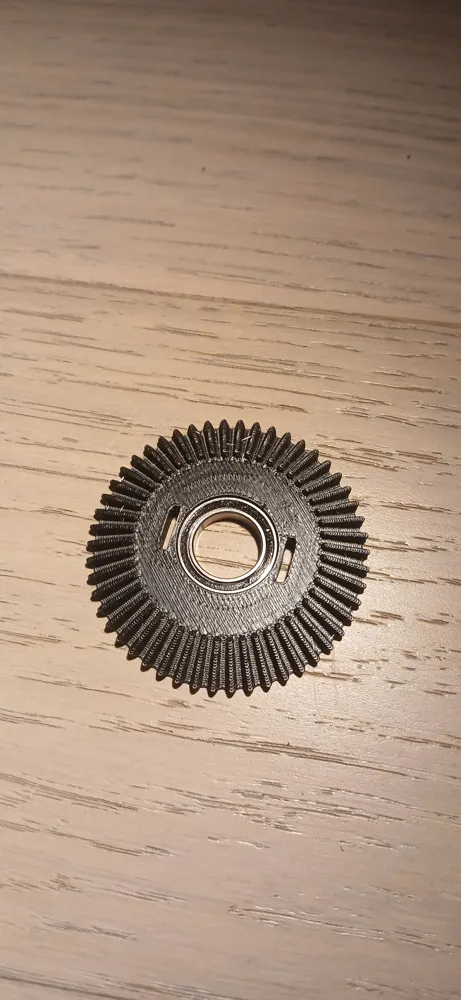

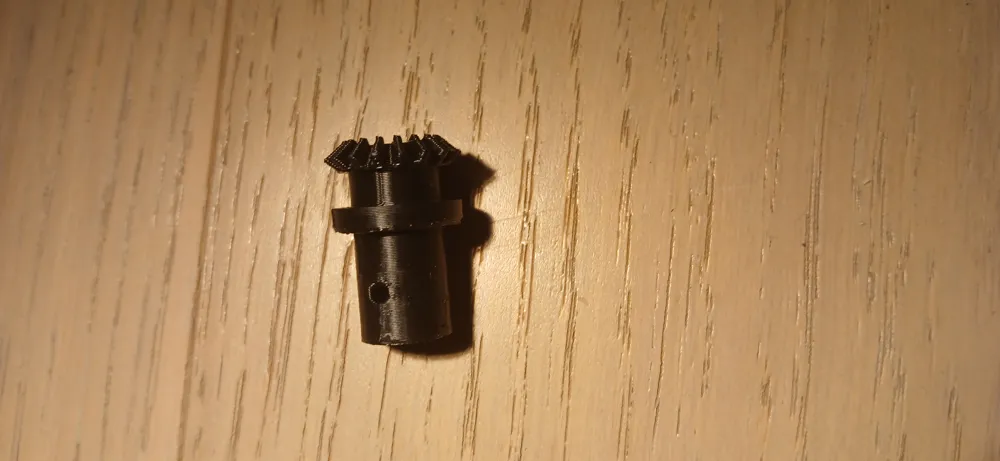

YOU NEED 4 BAIRINGS: OUTSIDE DIAMETER,18 INSIDE DIAMETER,12 LENGHT,4

You can modify the drawings to make your bairing's fit.

Thanks for all the support and followers it's realy appreciated!

Comment & Rating (8)

@JeffPrint

Print Profile

0.2mm layer, 2 walls, 15% infill

This thing rips! I had it in my little testing rig for the 1:18 scale rc car that i am planning on building and I was trying to get it to break but it wouldn't budge. 10/10 great model!

The profile uploader has replied

@jonas.engineer

thanks i'm modeled it to fit in my 1:8 car i want to print as much as possible of the car but i don't know if it will hold 4S

@JeffPrint

would scaling it down 75% keep it strong enough?

@JeffPrint

Can I ask if there is any ratio involved here or is it a 1 input 1 output?

The designer has replied

@jonas.engineer

now it's 1 to 1 but when i designed it for my own rc car project i used an interfering gear with 3 times les tooth than the big one so thats a 3 to 1 ratio. so it depends on what you make yourself.

@JeffPrint

alright that is very useful thankyou!

@RhoadsLabs

Print Profile

0.2mm layer, 2 walls, 15% infill

The profile uploader has replied

@jonas.engineer

thankyou verry much!!

No more

License

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
