Description

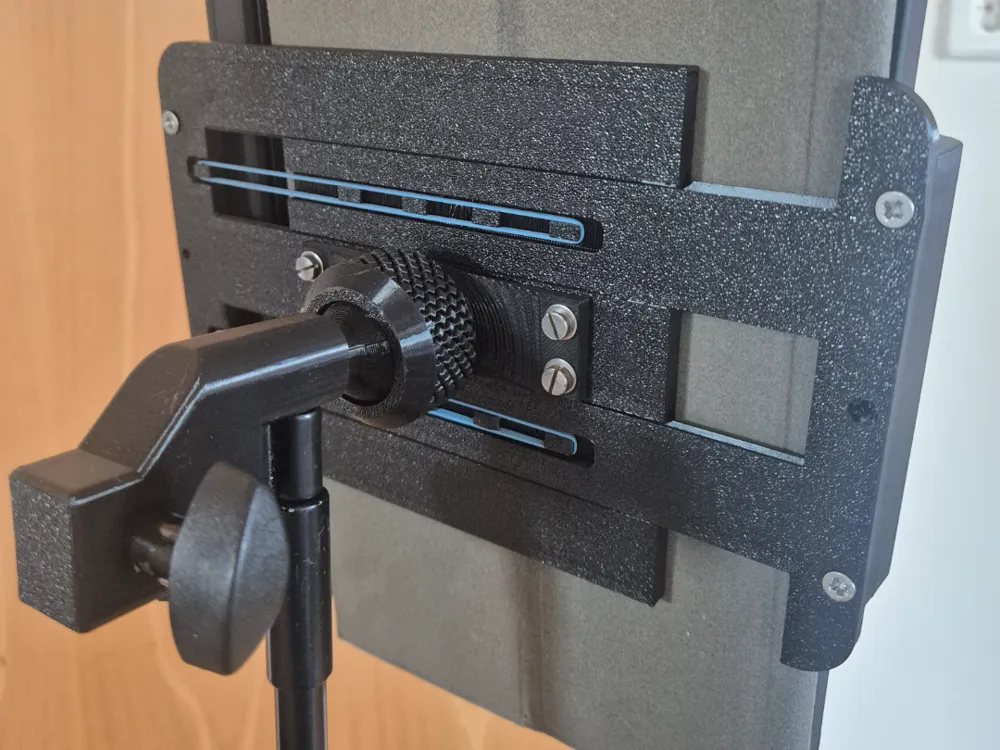

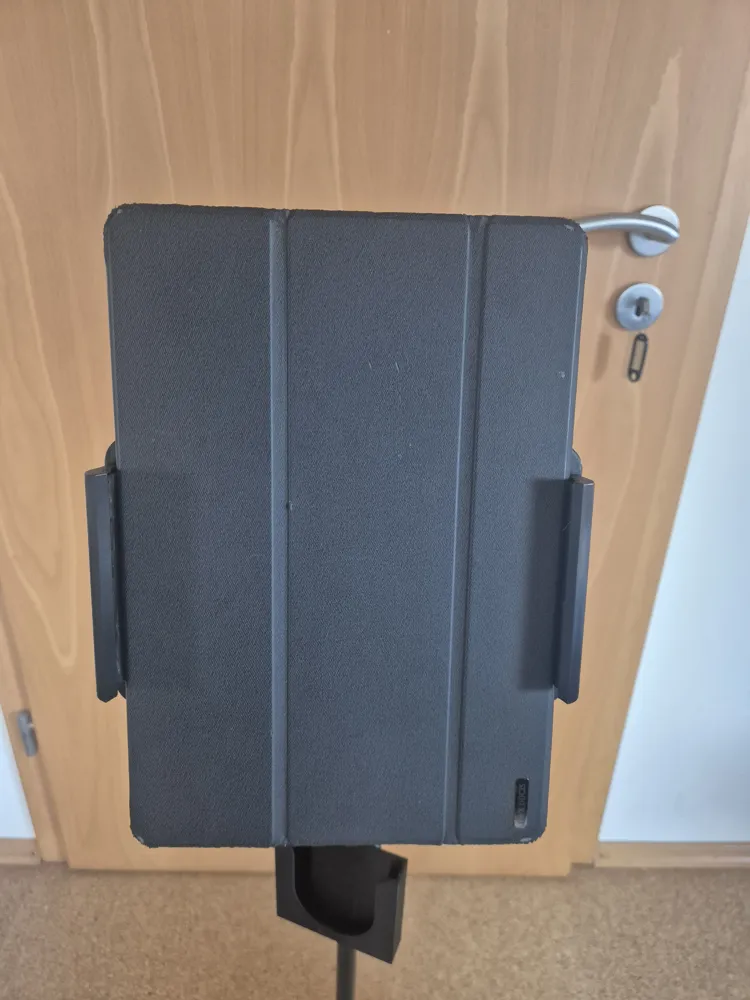

I've been playing an instrument for a while and use my tablet as a digital sheet music. Until now, the tablet always sat loosely on a regular music stand, which was quite wobbly. That's why I developed a sturdy holder that securely fastens the tablet.
Features
- Secure Hold: The firm fastening prevents the tablet from slipping or tipping over.
- Compatibility: The holder has a minimum width of approx. 17 cm. This means that all tablets of this size or larger will fit easily.

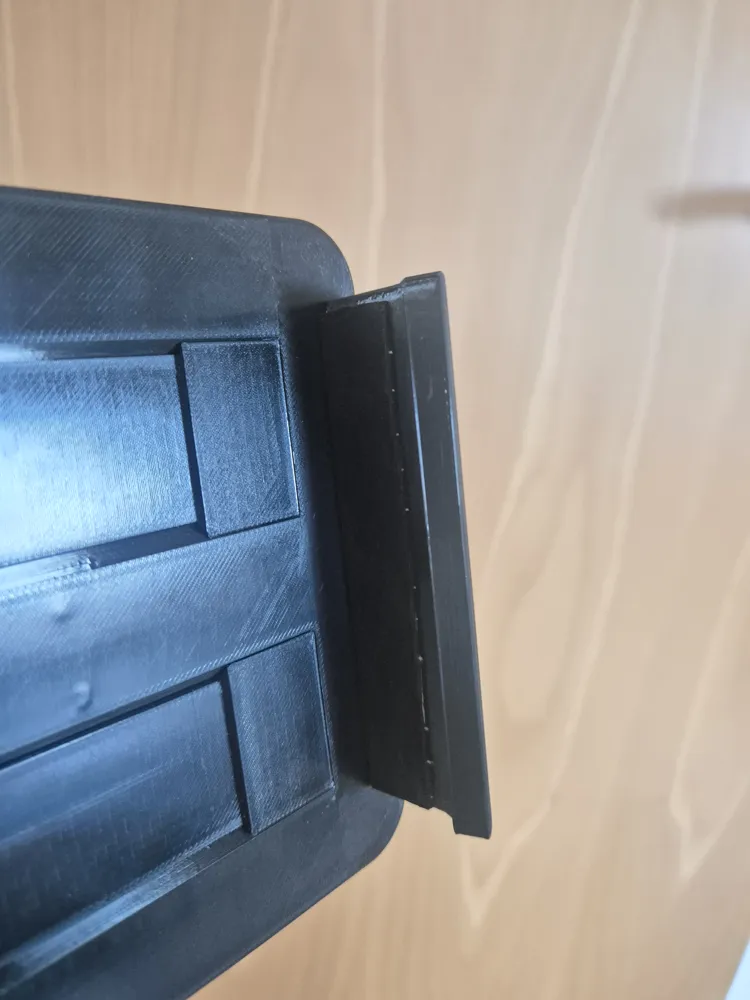

- Anti-slip Protection: Since the 3D-printed surface alone is somewhat smooth, I glued in a thin rubber mat. This makes the device sit very securely.
- Optimized for K&M: The holder is precisely designed for common K&M music stands.
- Print Material: I used PETG for all parts.
Required Material (hardware kit)
The following small parts are required for assembly:
- 4x 3D Print Inserts (M4 x 4 x 6 mm)
- 4x M4 screws (8 mm length) – for attaching the ball joint to the holder.
- 4x countersunk wood screws (3.3 x 25 mm) – to secure the handles to the holder.
Adjustments

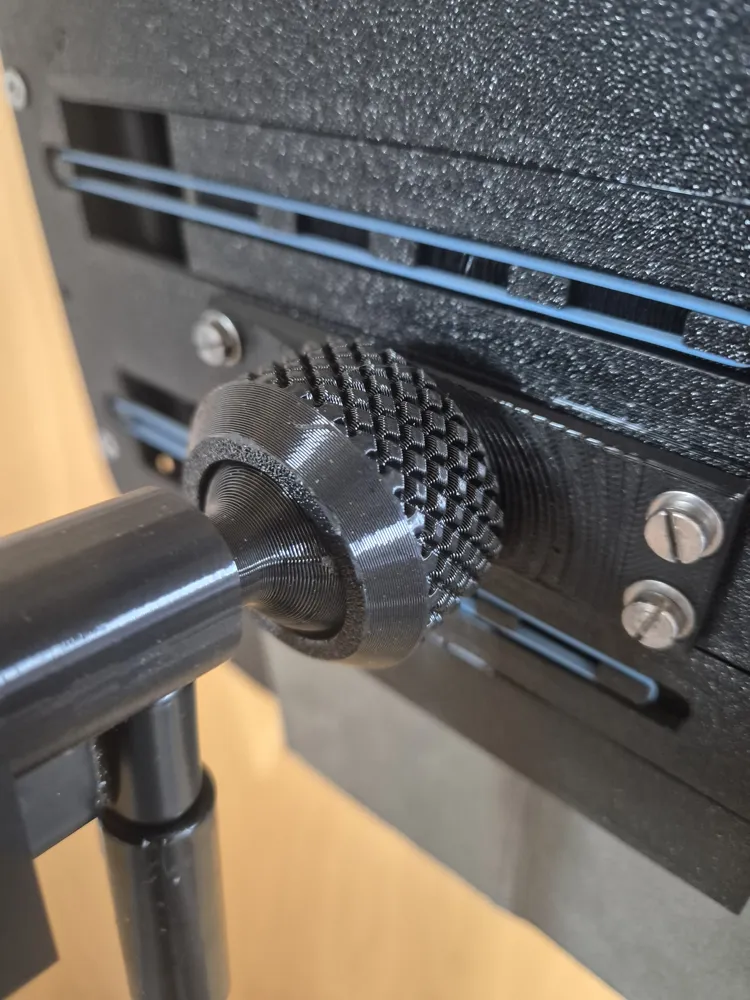

If you use a different music stand, you can easily design your own mount: The ball of the joint is fastened in a bore of M15 x 13.5 mm.
Since I only recently printed the music stand, I will still test it and possibly add small adjustments. If you have any suggestions for improvements, I would be happy to hear them.
