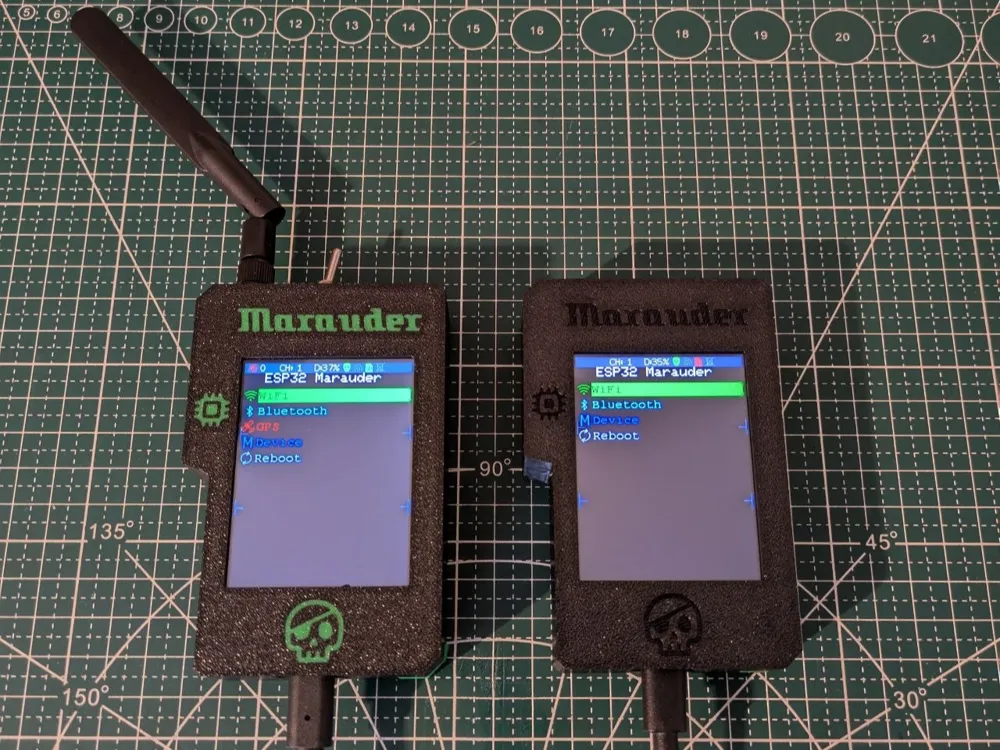

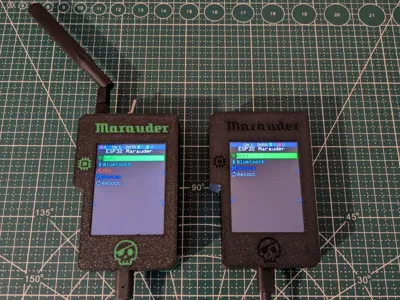

Marauder CYD 2.8 Inch Case

Marauder CYD 2.8 Inch Case

• Snap-fit design, no screws required
• Multicolor (AMS), single-color and Clean (no front logos) versions
• Includes a printable stylus
• Includes plugs for unused openings
• Includes a simple display cover**

• Two different case versions (see Compatibility Notice)



Marauder project GitHub by JustCallMeKoko
Marauder Wiki GitHub

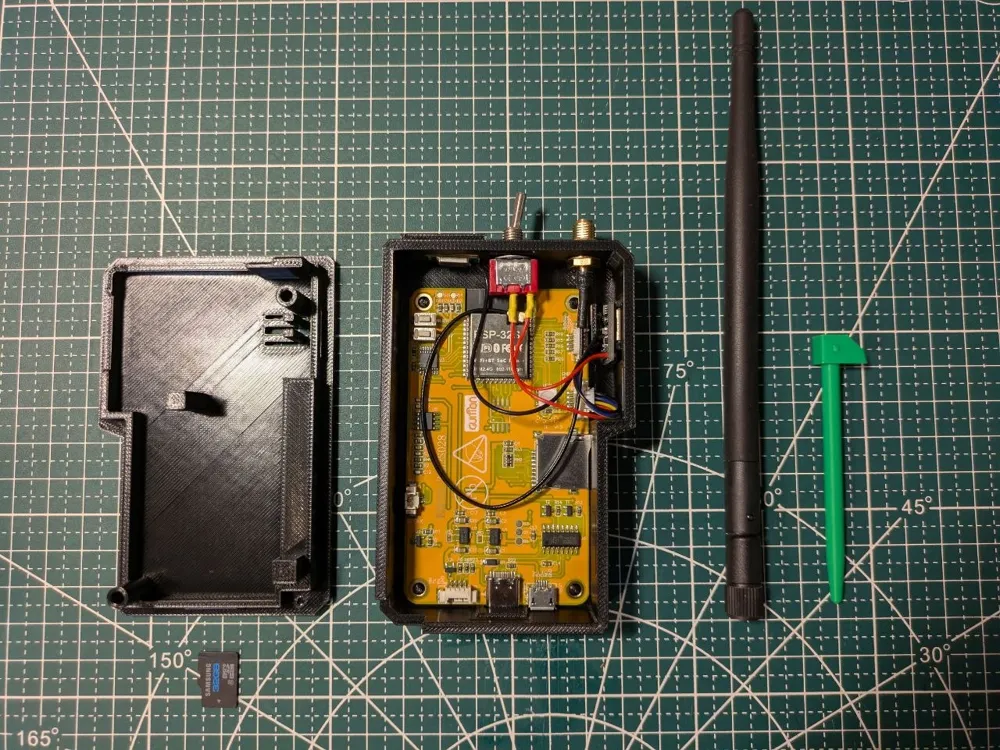

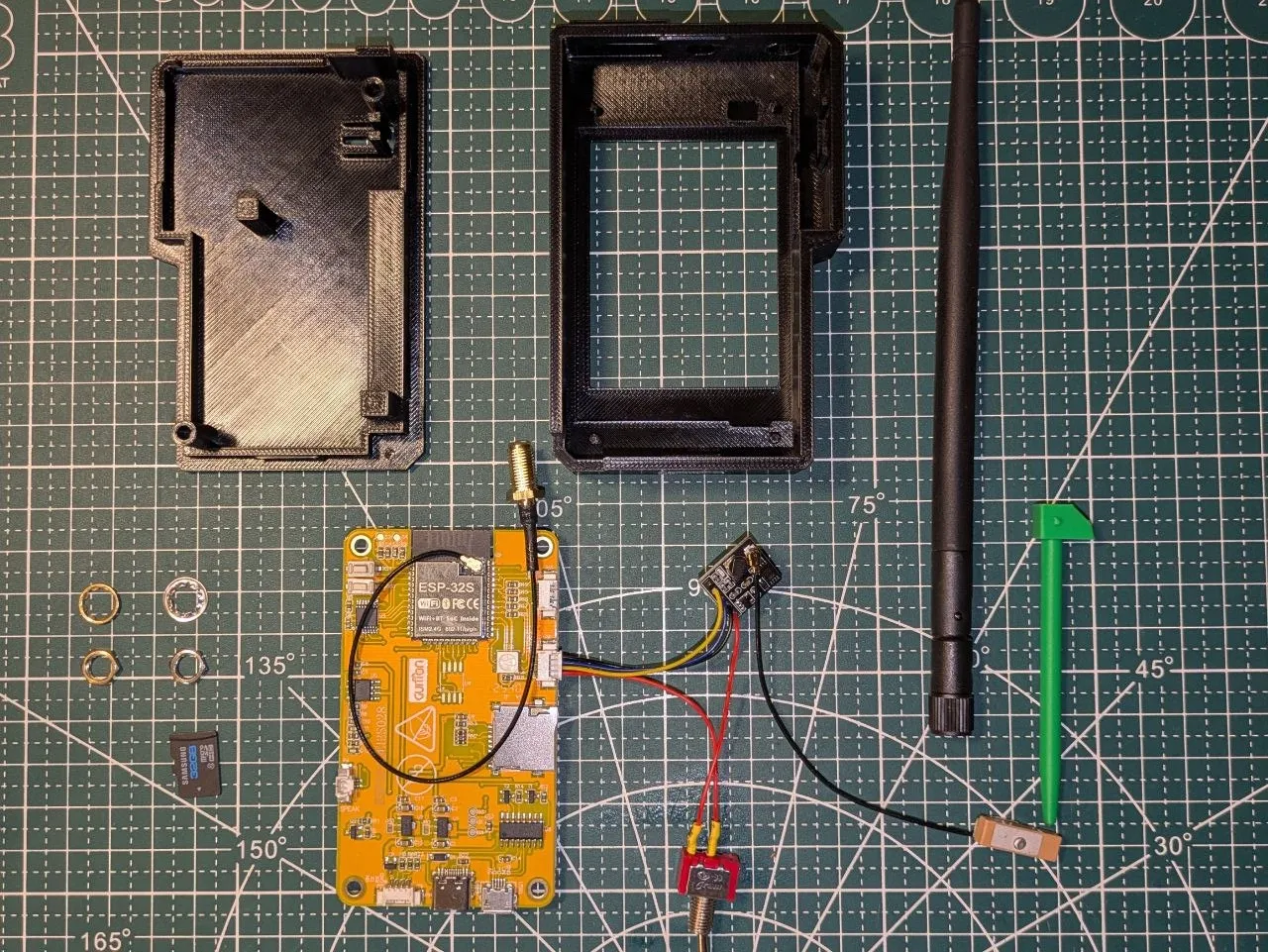

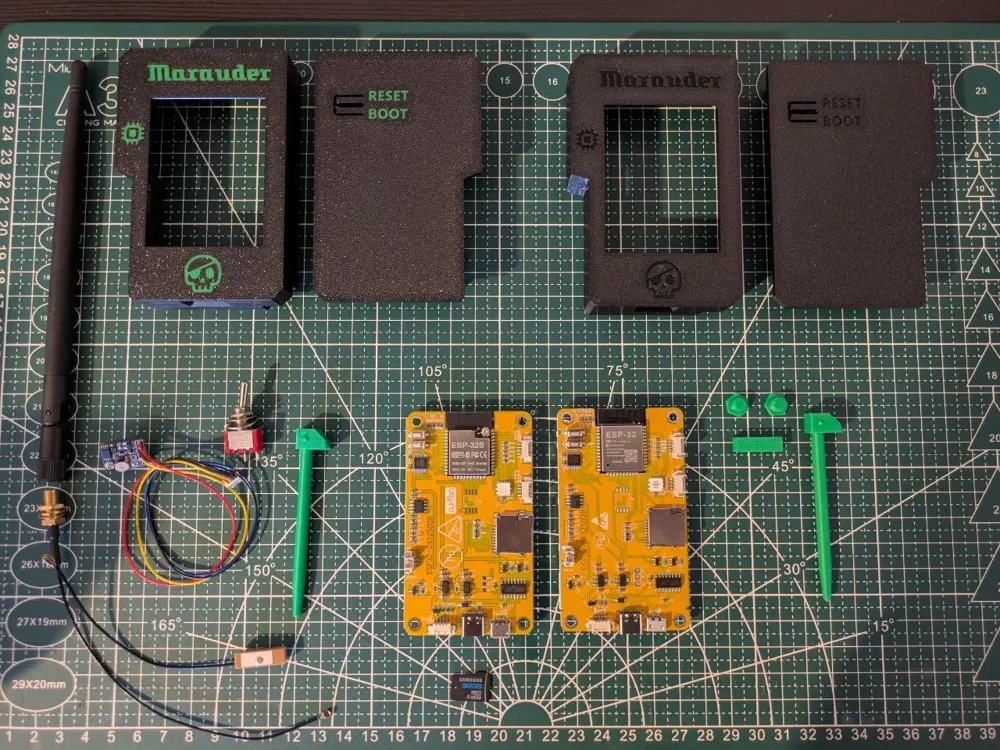

Full Marauder Build Requires:
1x CYD 2.8 inch (with USB-C/2USB + IPEX / U.FL antenna connector*)

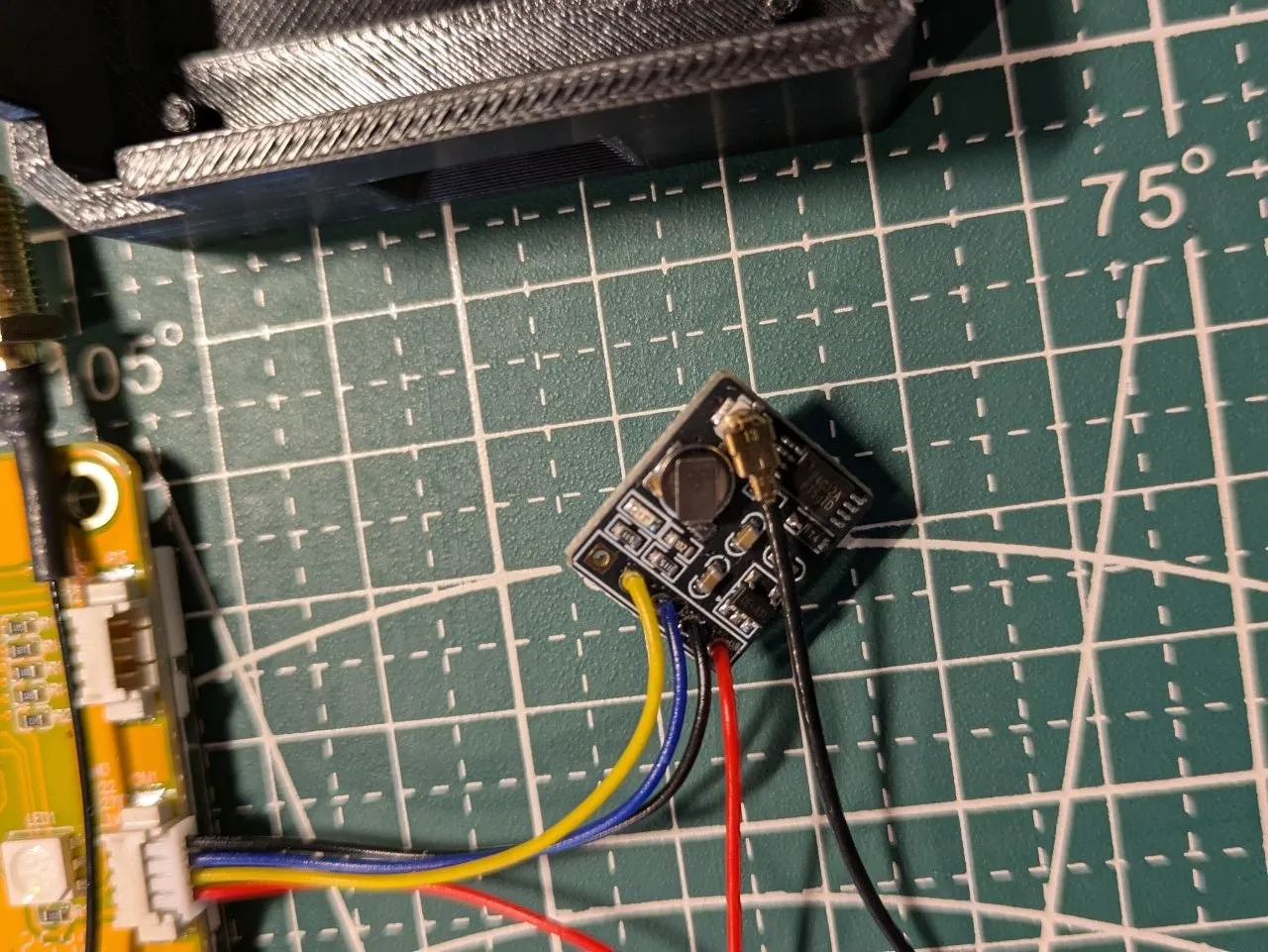

1x ATGM336H GPS + BDS module
1x toggle switch (optional, GPS ON/OFF)

1x IPX-to-SMA cable + 2.4 GHz WiFi antenna

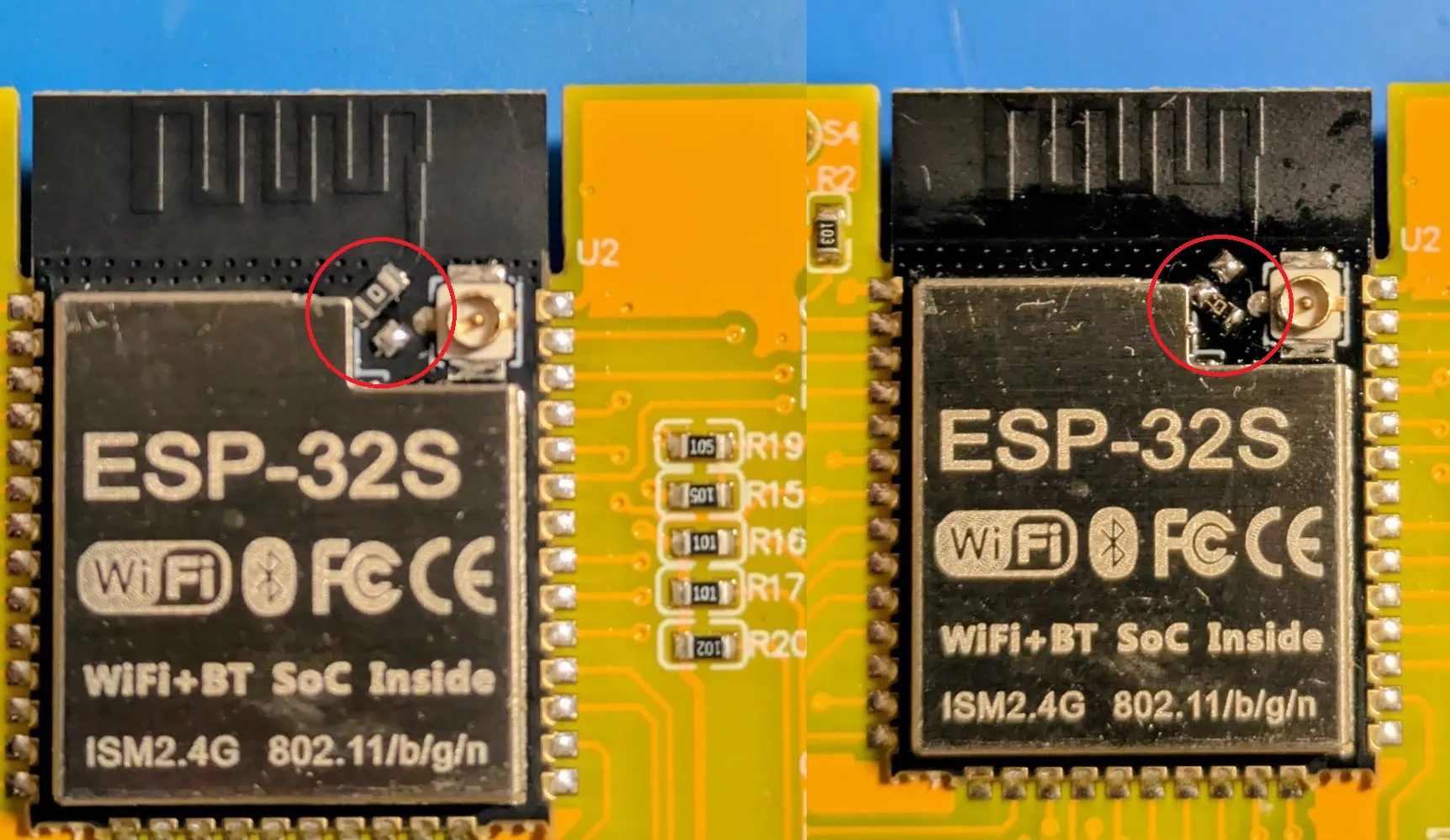

*IPEX / U.FL antenna connector

To use the IPEX / U.FL connector, you may need to re-solder the 0 ohm resistor on the board.

Pro tip: Make sure everything works before assembly

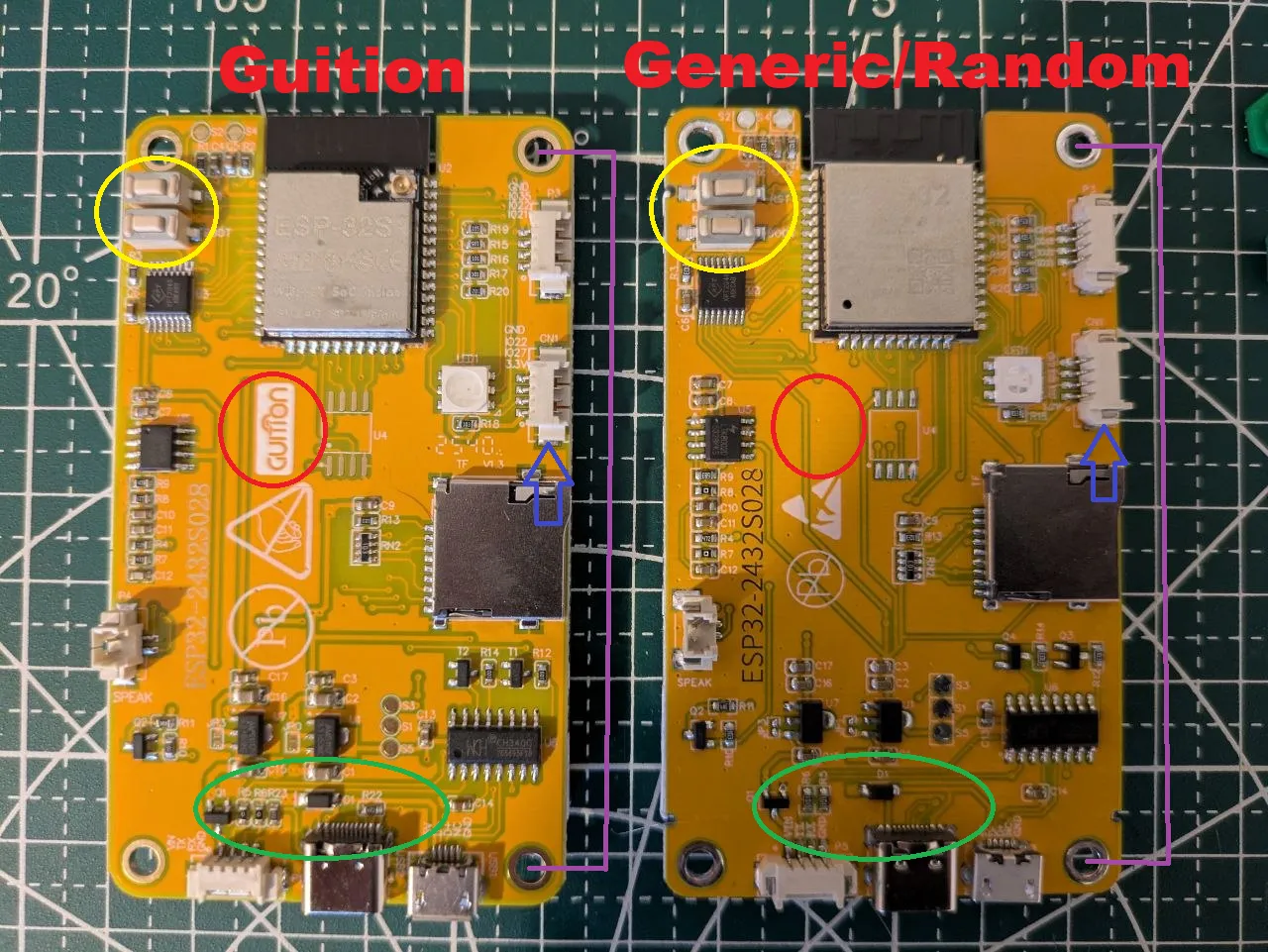

Compatibility Notice:

ESP32-2432S028 ≠ ESP32-2432S028

Please note that not all ESP32-2432S028 boards are identical.
Even boards with the same model name can have small mechanical differences depending on the manufacturer. These differences can include:

• PCB height
• Mounting hole spacing
• SD card slot height/position
• Button height
• Other small mechanical differences

Because of this, two different case versions are provided:

• Version 1: for a Guition ESP32-2432S028 CYD board
• Version 2: for a generic / no-name ESP32-2432S028 CYD board

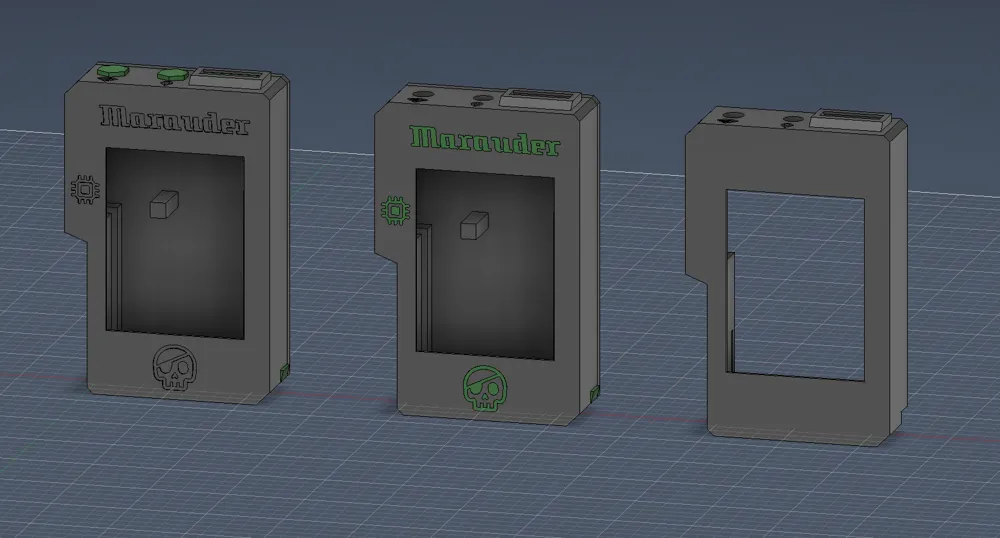

Both versions are available as:

• Multicolor (AMS)
• Single-color
• Clean (no front logos)

File Explanations:
[Version 1] Marauder_G_Front_MC = Marauder Guition Front Multicolor (AMS)
[Version 1] Marauder_G_Front_SC = Marauder Guition Front Single-color

[Version 2] Marauder_R_Front_MC = Marauder Random/Generic Front Multicolor (AMS)
[Version 2] Marauder_R_Front_SC = Marauder Random/Generic Front Single-color

Update - 24.03.2026

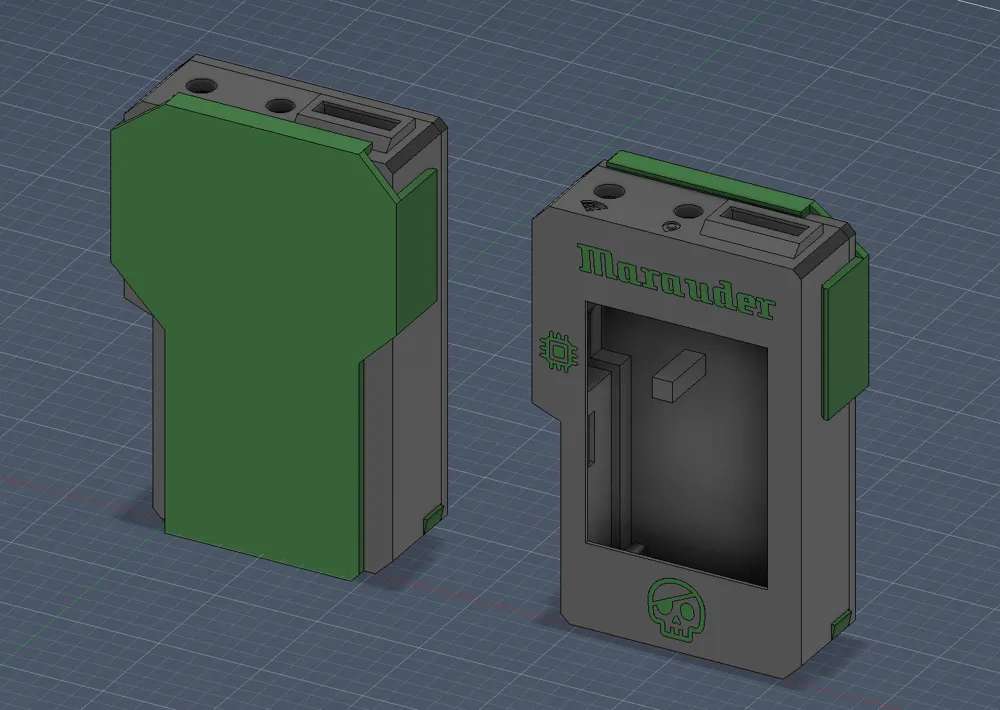

**Added a simple display cover to prevent accidental touches when carried in a pocket or backpack.
