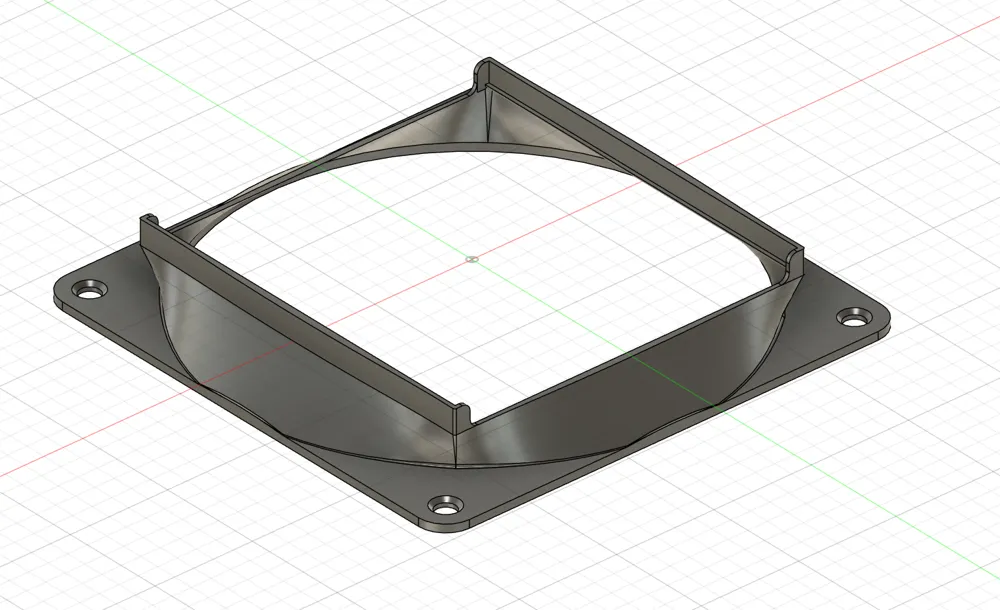

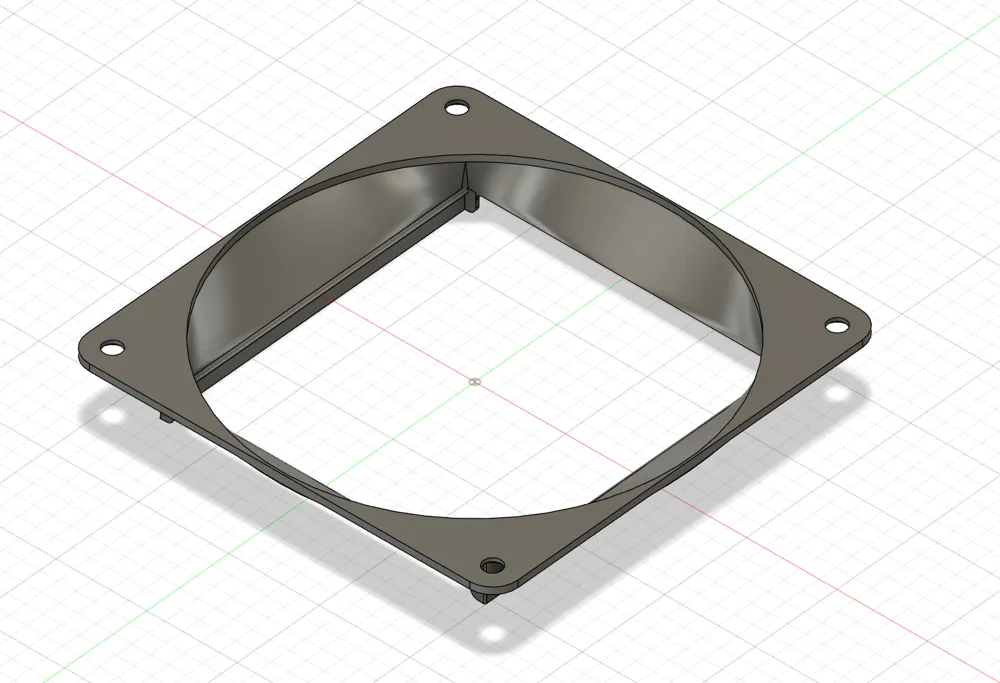

120mm fan adapter for Lattepanda IOTA

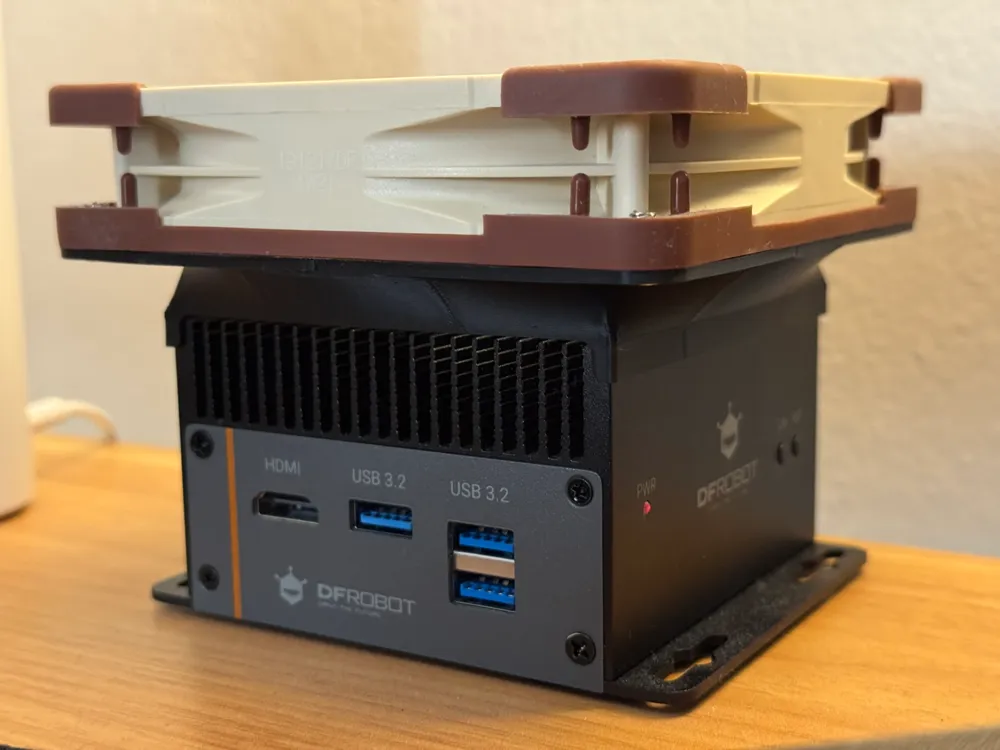

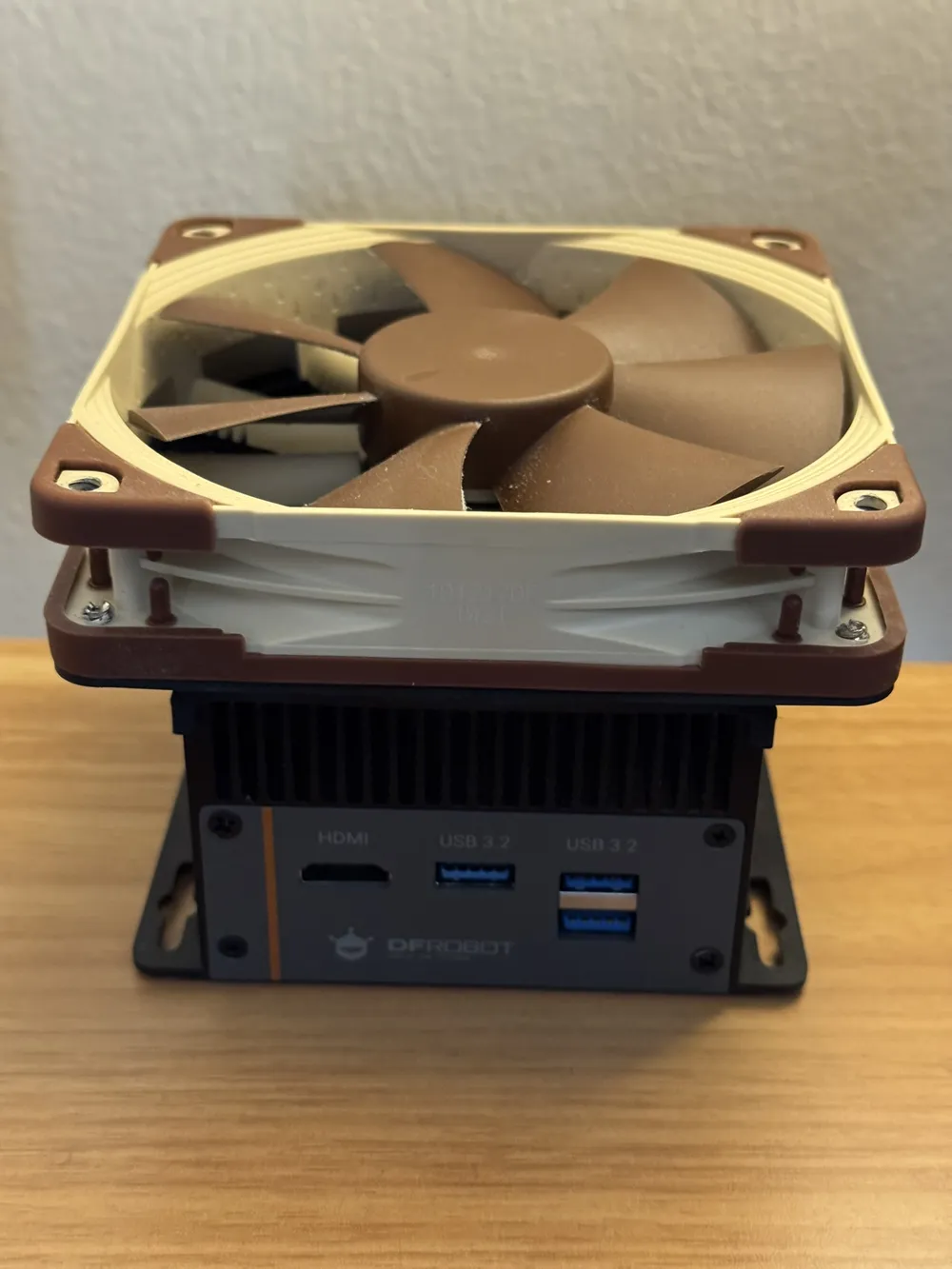

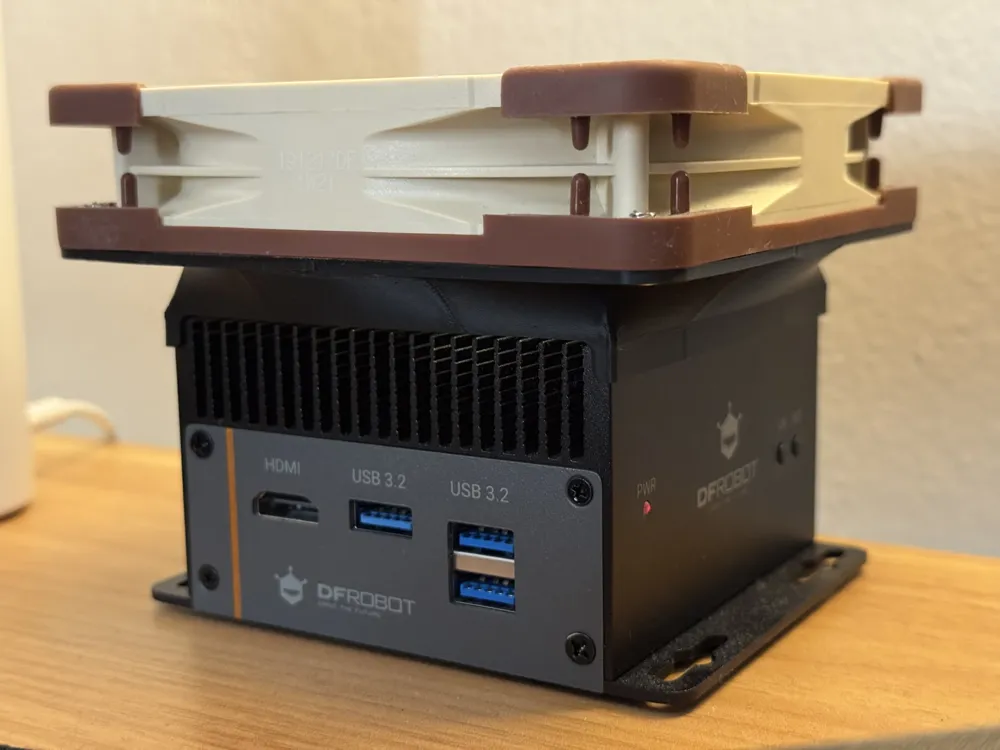

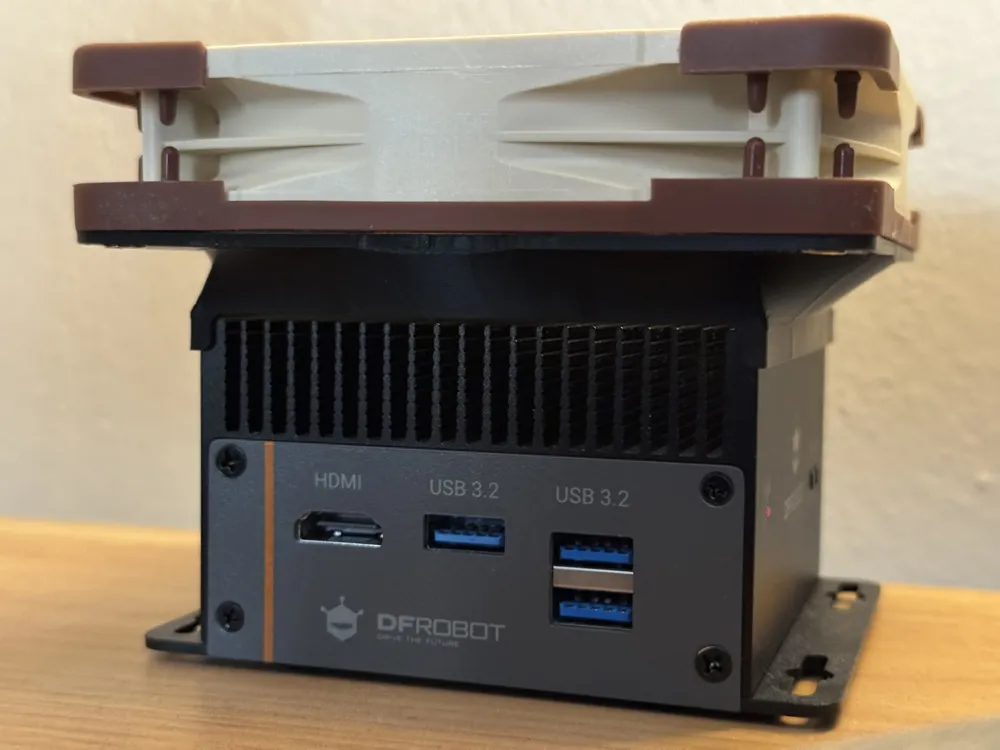

A 120mm fan adapter for Lattepanda IOTA that goes on top of the SBC, allows better and silent cooling.
Requirements:
- 1x Lattepanda IOTA
- 1x DF Robot Aluminum Heatsink Case for LattePanda IOTA
- 1x 5V USB 120mm pc fan
- 4x fan screws
Instructions:
- Print the adapter (with fan CPU temperatures are in 30-40°C range, so it is possible to print it with PLA)
- Mount the fan to the adapter with 4x PC fan screws
- Install the adapter on top of Lattepanda IOTA
- Conncet the fan internally to 5V or use a USB connector for the fan
No supports needed to print
