Baby Apex 2.5 - HDZero Nano V3 Cam 35

HDZero Nano V3 Camera Mount – Apex 2.5" (35°)

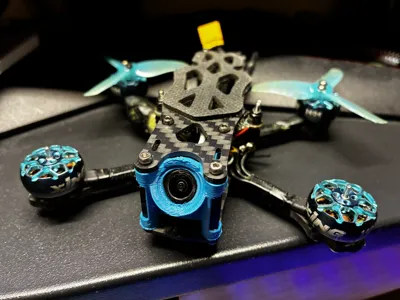

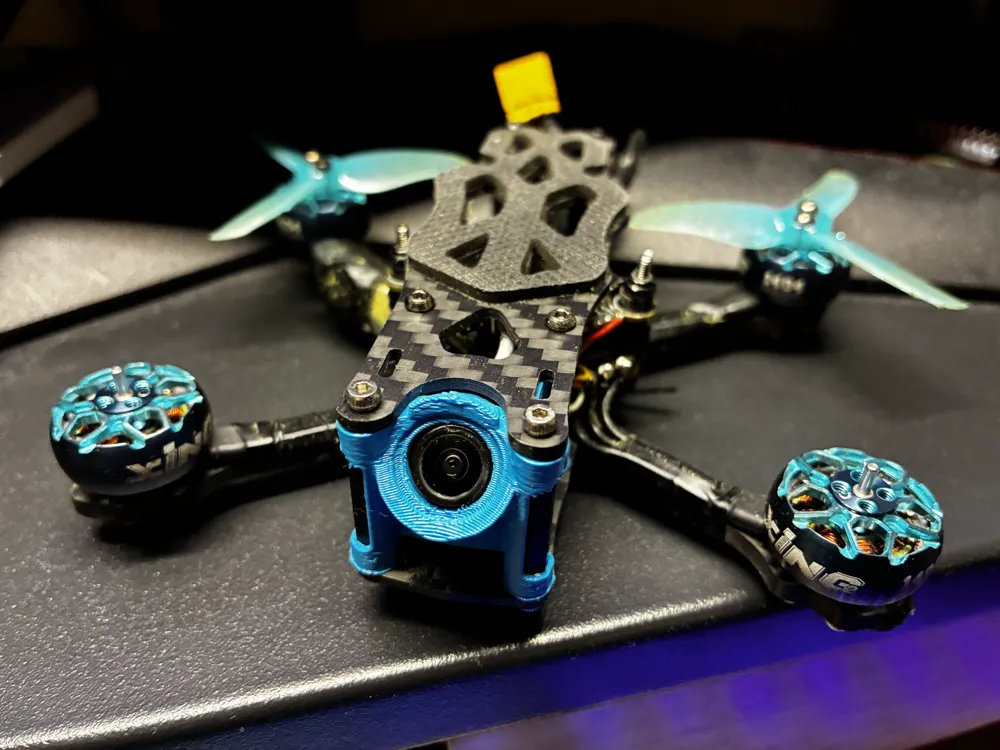

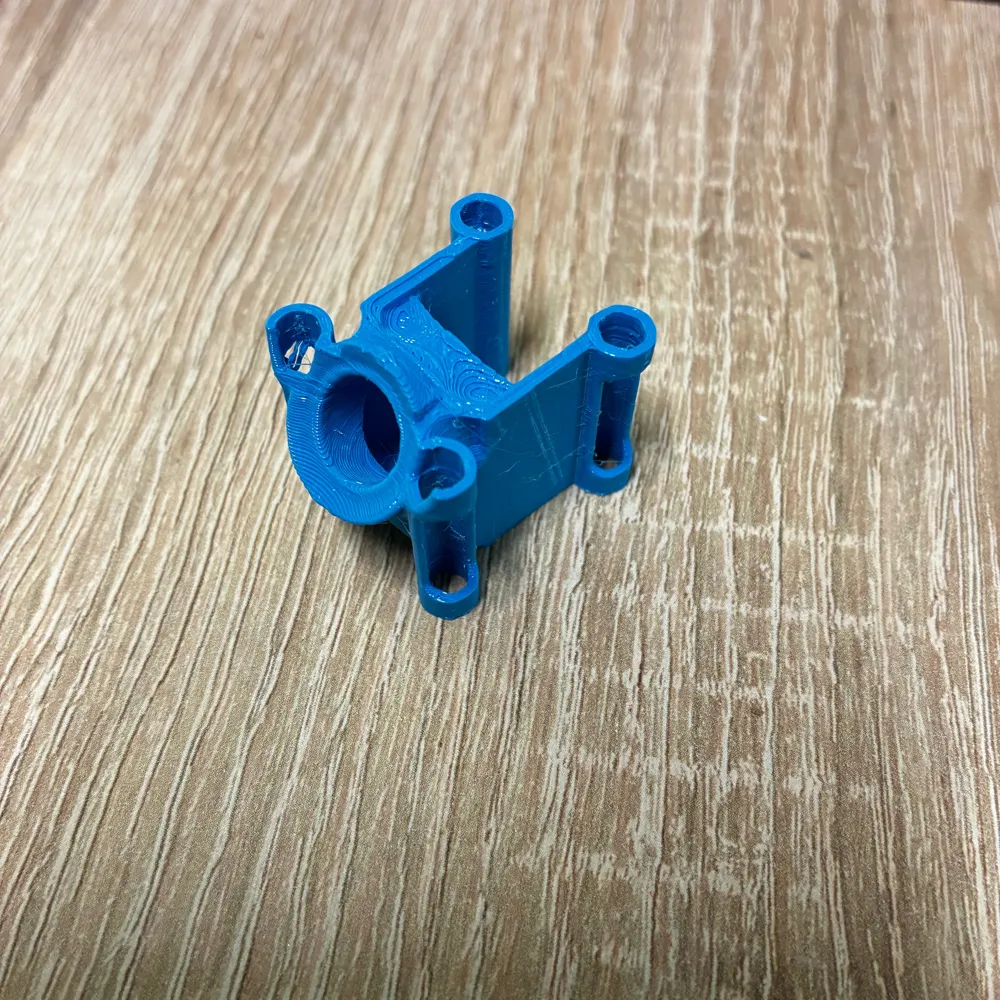

This is a precision-engineered camera mount specifically for the HDZero Nano V3, designed to fit perfectly into the Apex 2.5-inch FPV frame. It combines a lightweight profile with the durability needed for micro-freestyle and racing.

Key Features:

• Update V5: Moved camera slightly to the front to get rid of black corners from standoffs.
• Fixed 35° Angle: The "sweet spot" for 2.5-inch builds, offering a great balance between high-speed forward flight and manageable proximity maneuvering.
• Perfect Fit: Tailored specifically for the Nano V3 dimensions to ensure zero "jello" or camera shake in your feed.
• Lens Protection: The mount geometry provides a protective buffer around the camera to shield the lens during crashes.

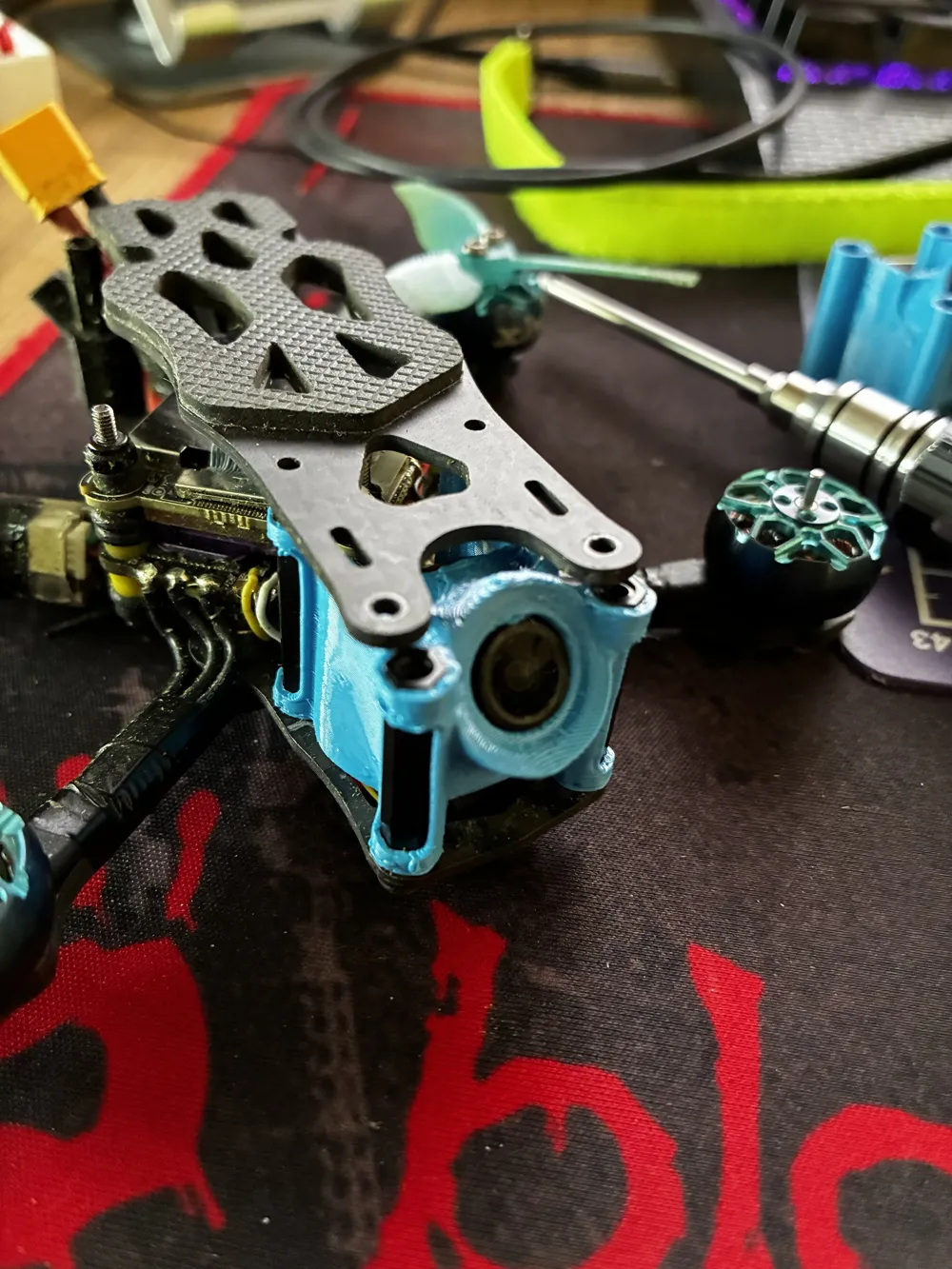

• Apex Compatibility: Designed to slot directly into the front of the Apex 2.5" frame without interfering with the flight controller stack.

Recommended Print Settings:

To ensure the mount can survive crashes and dampen vibrations, use the following settings:

• Material: TPU (95A is the gold standard for FPV). Avoid PLA/PETG as they are too brittle for camera mounts.
• Infill: 100% (for maximum durability).
• Walls: 3 lines.
• Supports: Yes (Tree/Organic supports recommended for easier removal).
• Orientation: Print on its side for the best structural integrity and cleanest finish.

Technical Specs:

• Camera: HDZero Nano V3
• Frame: Apex 2.5"
• Tilt Angle: 35 Degrees
• Hardware: Uses standard M2 screws provided with the camera/frame are not needed. Camera holds in without screws.

If you find this model helpful, please consider leaving a review or posting a photo of your build! Happy flying!
