Lily58 x Manta58 V1 - Split Ergo Keyboard

Lily58 x Manta58 V1 - Split Ergo Keyboard

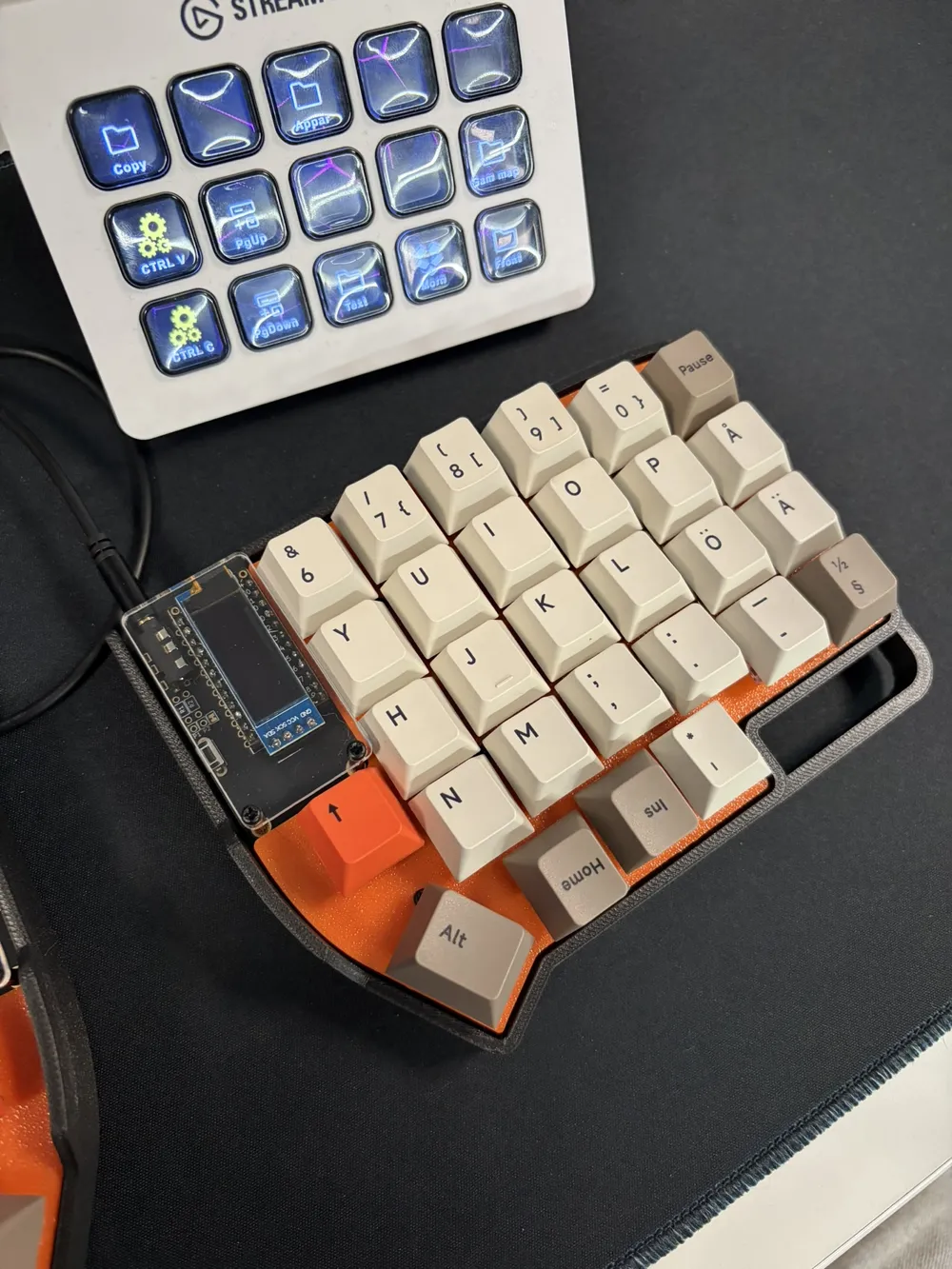

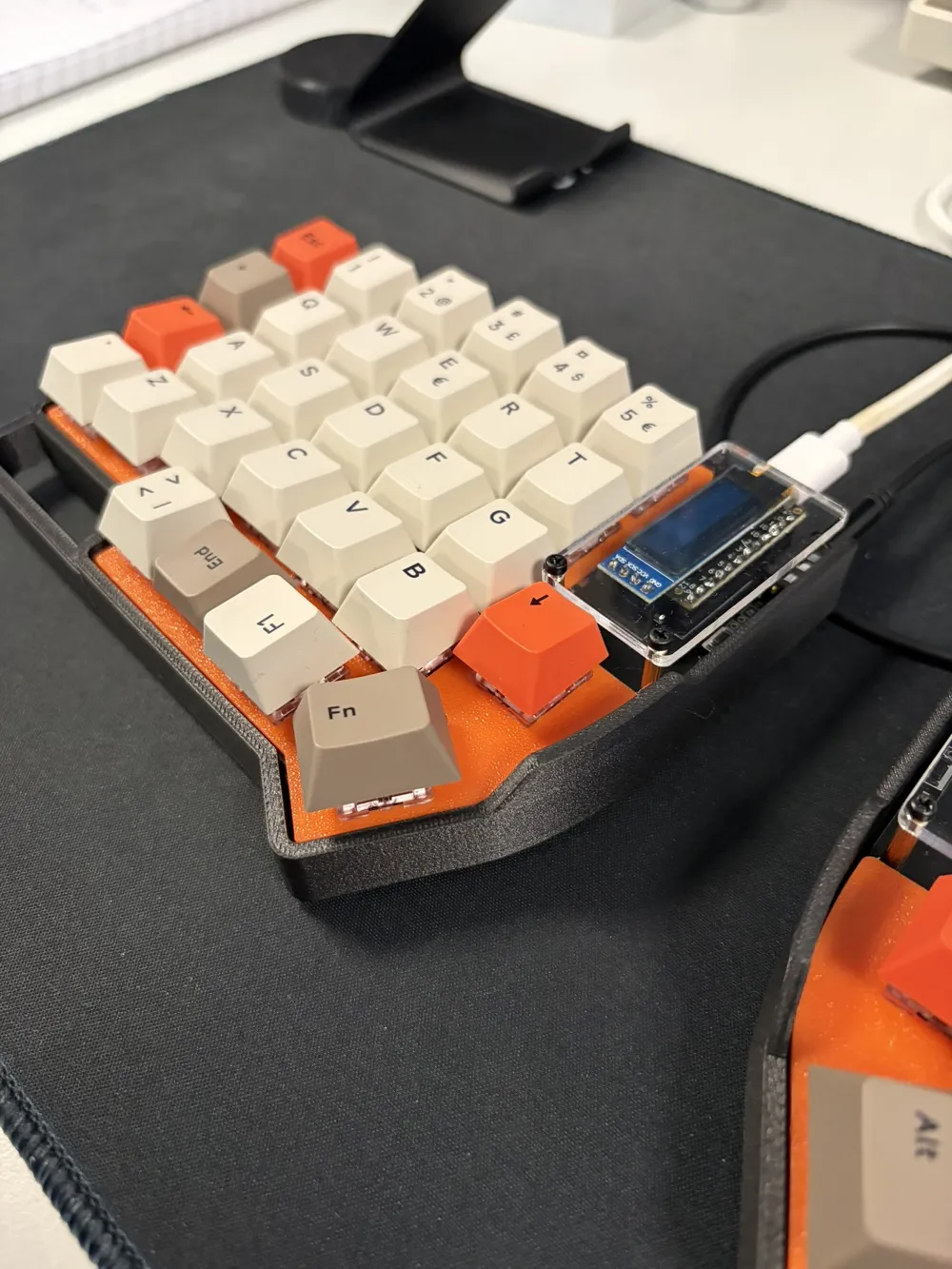

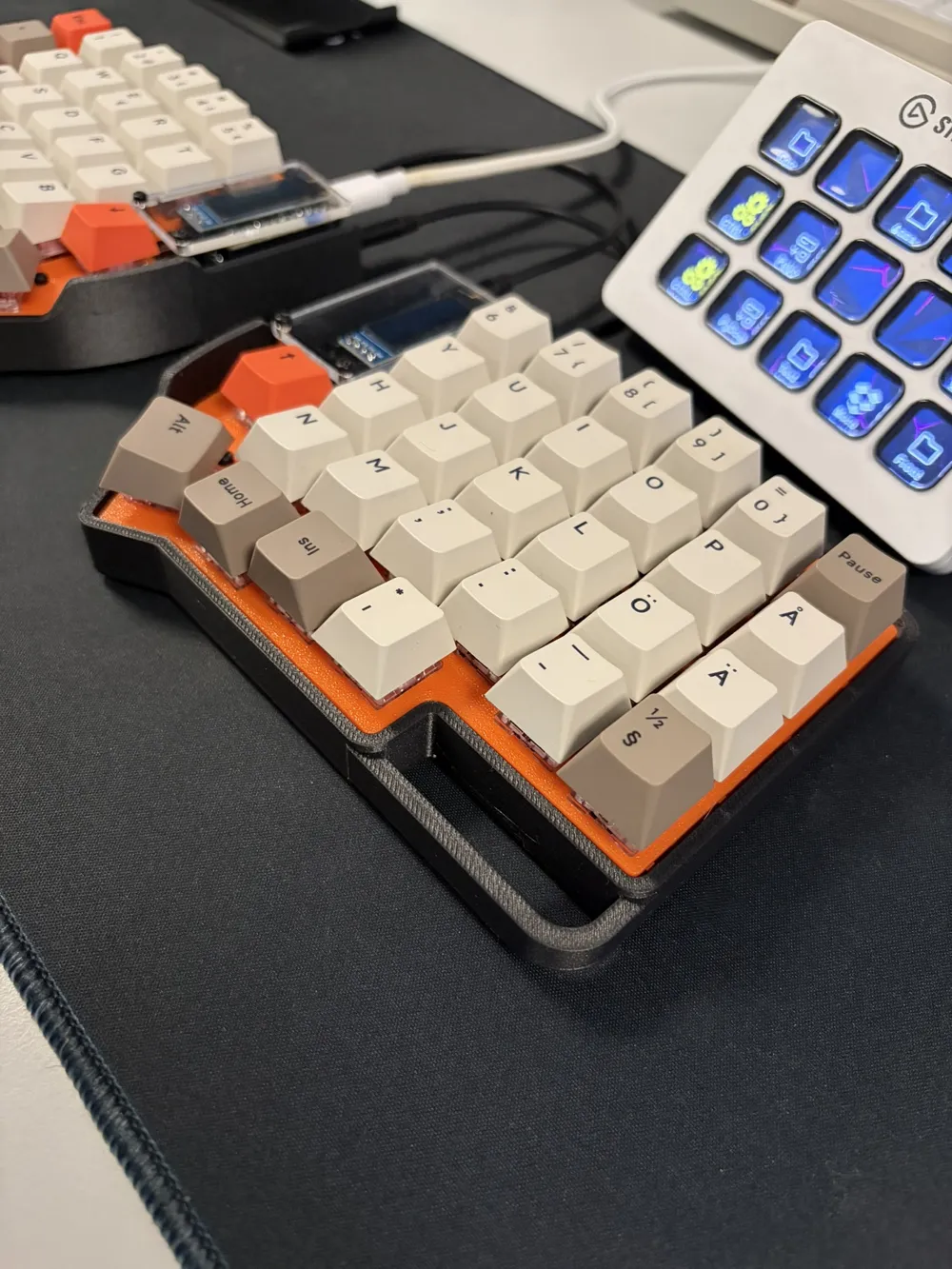

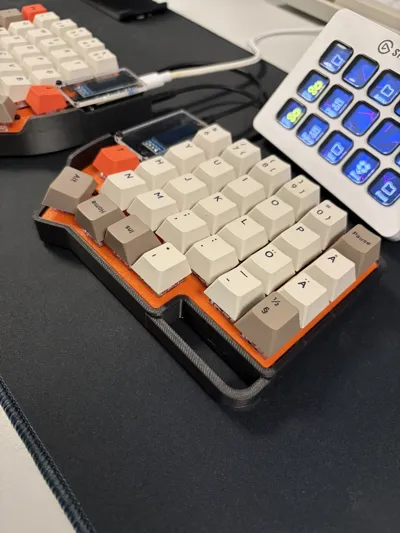

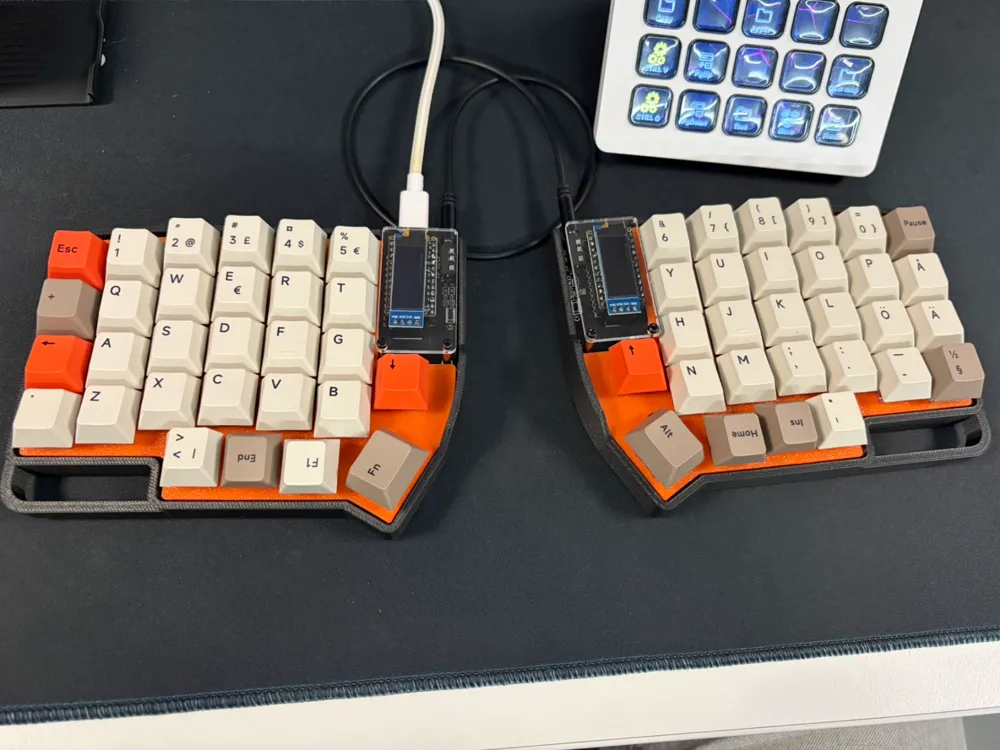

As the title implies, this is a split keyboard based on the Manta58 base plate and a 3D Printed Switchplate for Lily58

The reason I created this was because I wanted to 3D print my own case, meaning not buy a pre-made one, but I couldn't find anything that suited me. After some searching, I found the Manta58, which I loved immediately, but after printing it, it didn't fit exactly, as my display and controller sat a bit too high

That's why I created this! It is nothing more than the base plate from Manta58 V1 and the top switch plate from a 3D Printed version of Lily58. These parts should fit all versions of Lily58 PCBs, as long as they use the same layout as the creator: https://github.com/kata0510/Lily58

Link to Manta58 V1: https://makerworld.com/sv/models/670330-manta58-v1-split-keyboard-case-for-lily58-pcbs#profileId-598004

Link to 3D Printed version of Lily58: https://www.printables.com/model/730538-aurora-lily58-mx-style-switch-case

What is required to build this:

• Lily58 PCB - assembled and ready. I used this one: https://shop.beekeeb.com/products/lily58-pro-lily-58-mx-pg1511-kailh-choc-pg1350-hotswap-split-ergonomic-mechanical-keyboard-pcb-kit?_pos=2&_sid=39d4c770c&_ss=r
• 10x M2 Standoff 10mm
• 20x M2x5/6 mm screws
• Rubber feet / silicone pads
