Data Power Mounting Block – 25mm Conduit Entry

Mounting Block with 25mm Conduit Entry – Designed for Standard Type I Face Plates

Australian plates use the Type I standard. Several countries use this same standard or very close variants.

Countries That Use Australian-Style (Type I)

Primary Users (Same Standard as Australia)

These countries commonly use the same plate type as Australia:

• 🇦🇺 Australia
• 🇳🇿 New Zealand
• 🇨🇳 China
• 🇦🇷 Argentina
• 🇫🇯 Fiji
• 🇵🇬 Papua New Guinea

Also Common / Widely Compatible

These countries use Type I plates alongside other standards:

• 🇼🇸 Samoa
• 🇹🇴 Tonga
• 🇻🇺 Vanuatu
• 🇰🇮 Kiribati
• 🇸🇧 Solomon Islands
• 🇹🇻 Tuvalu
• 🇳🇷 Nauru

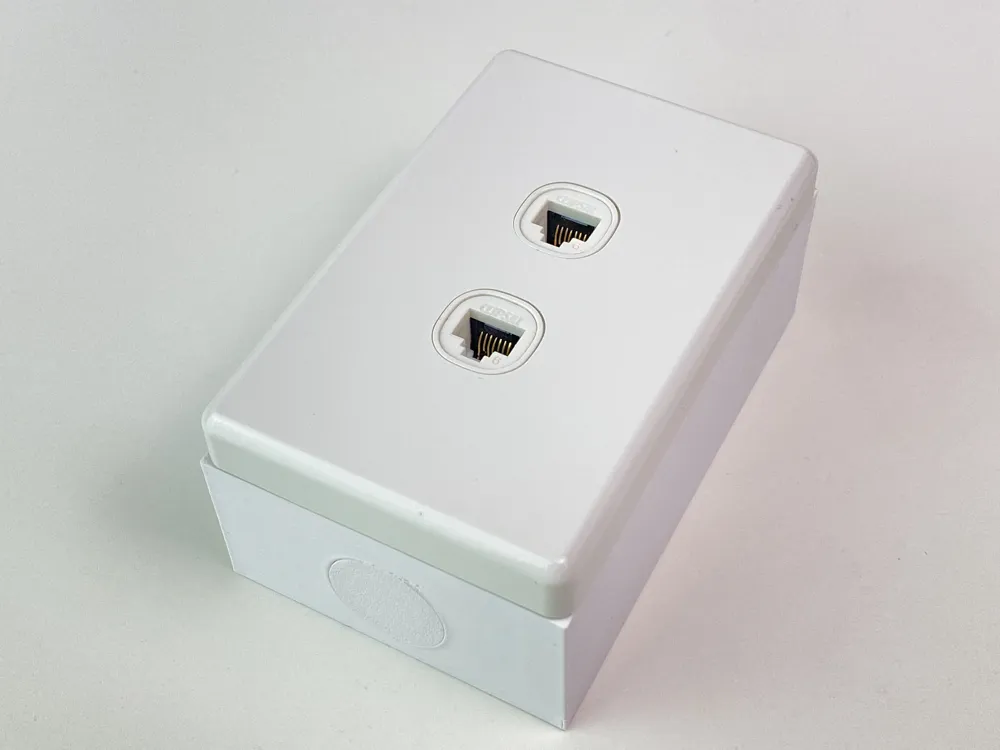

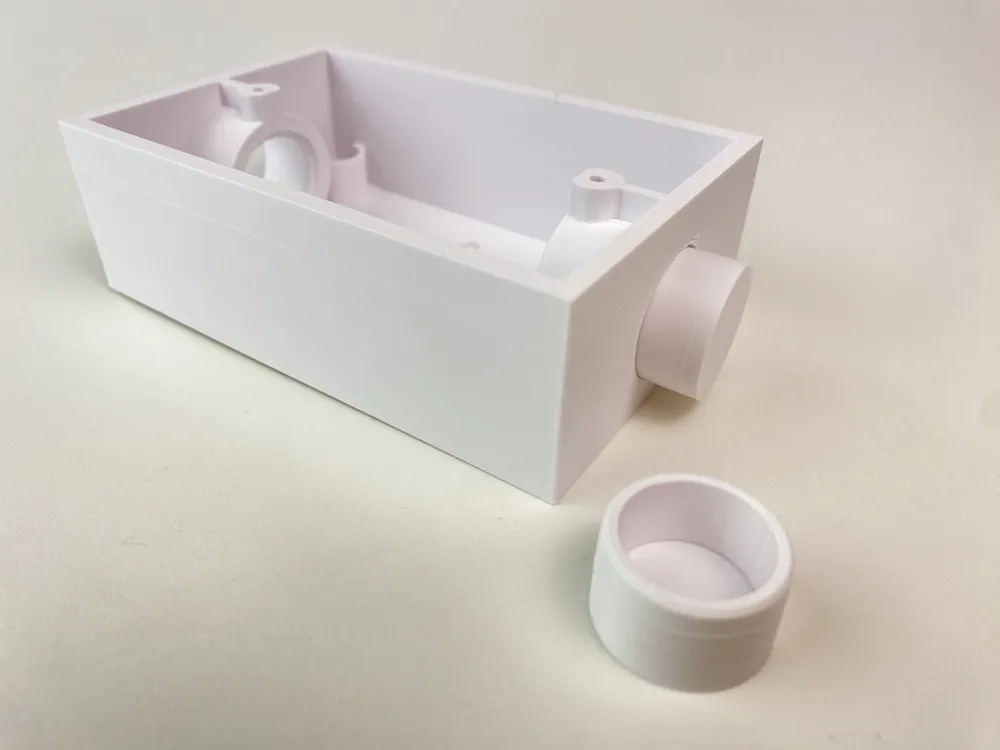

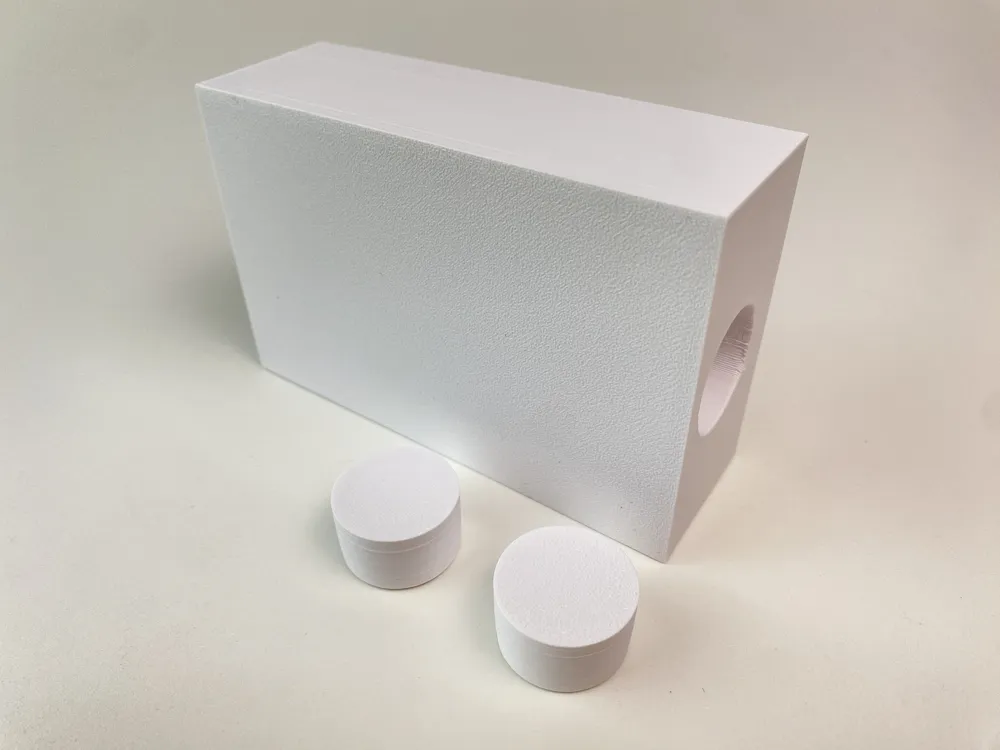

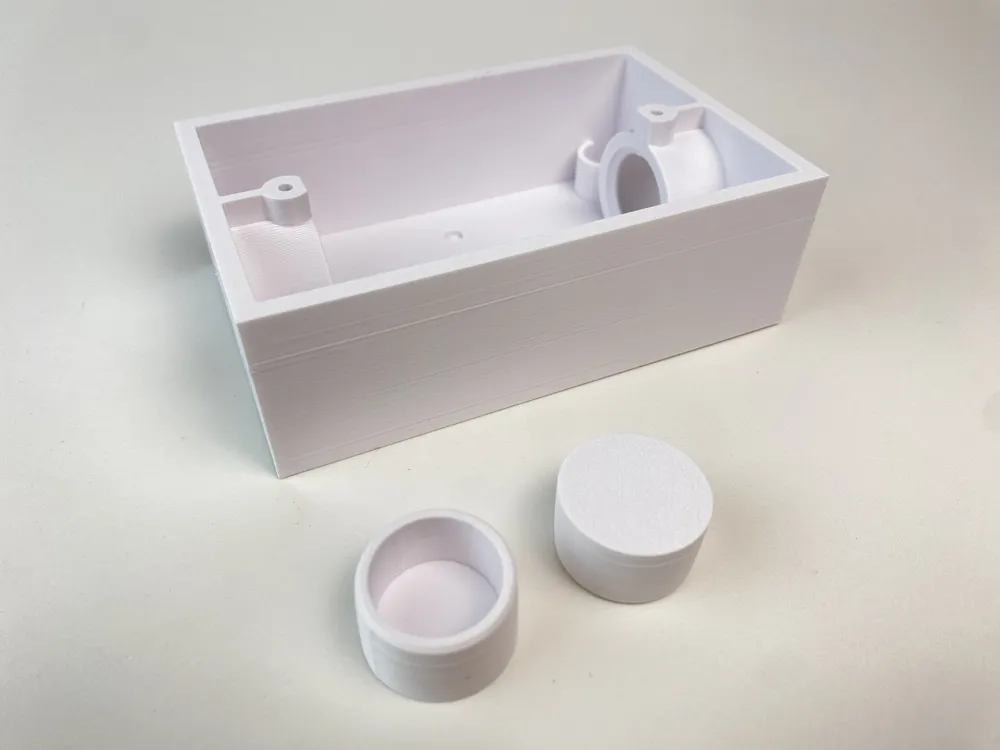

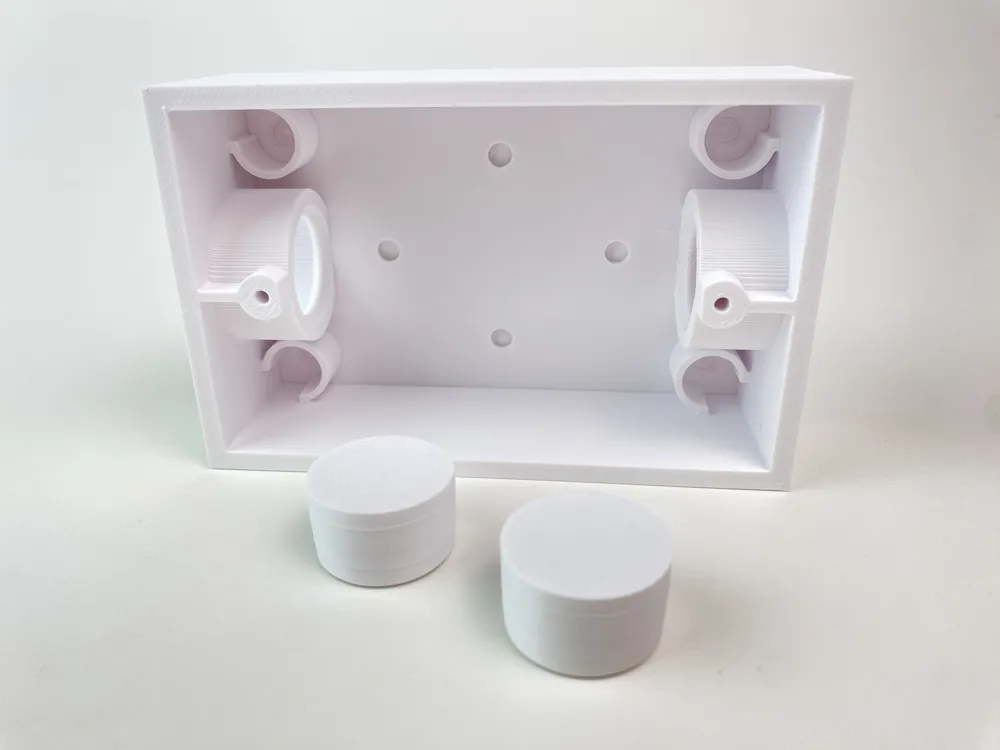

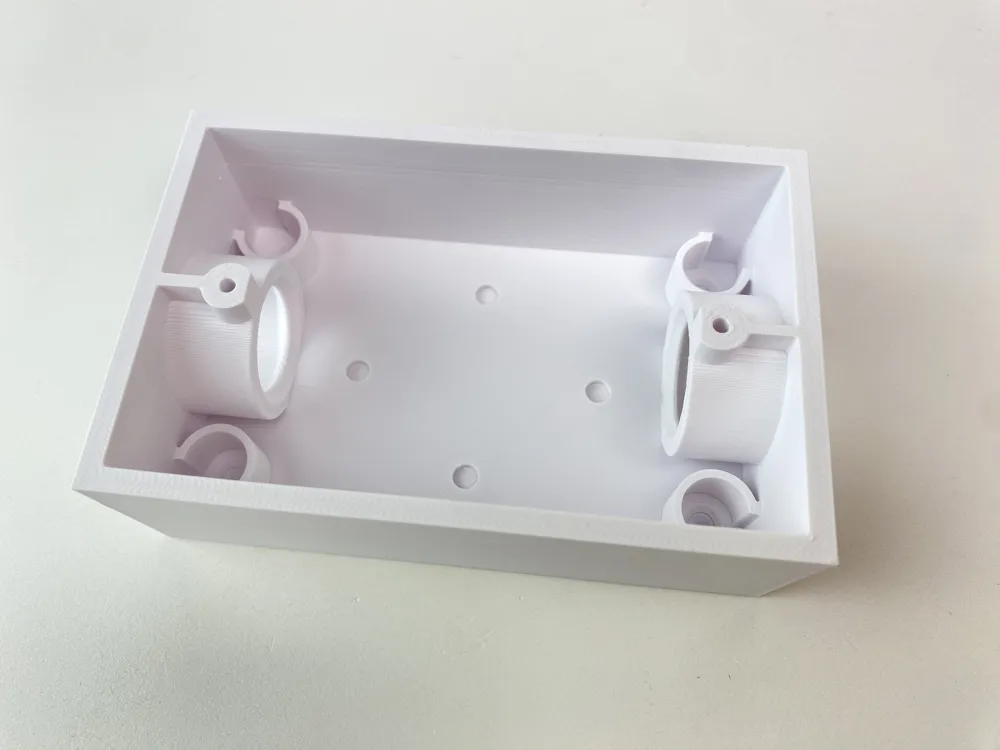

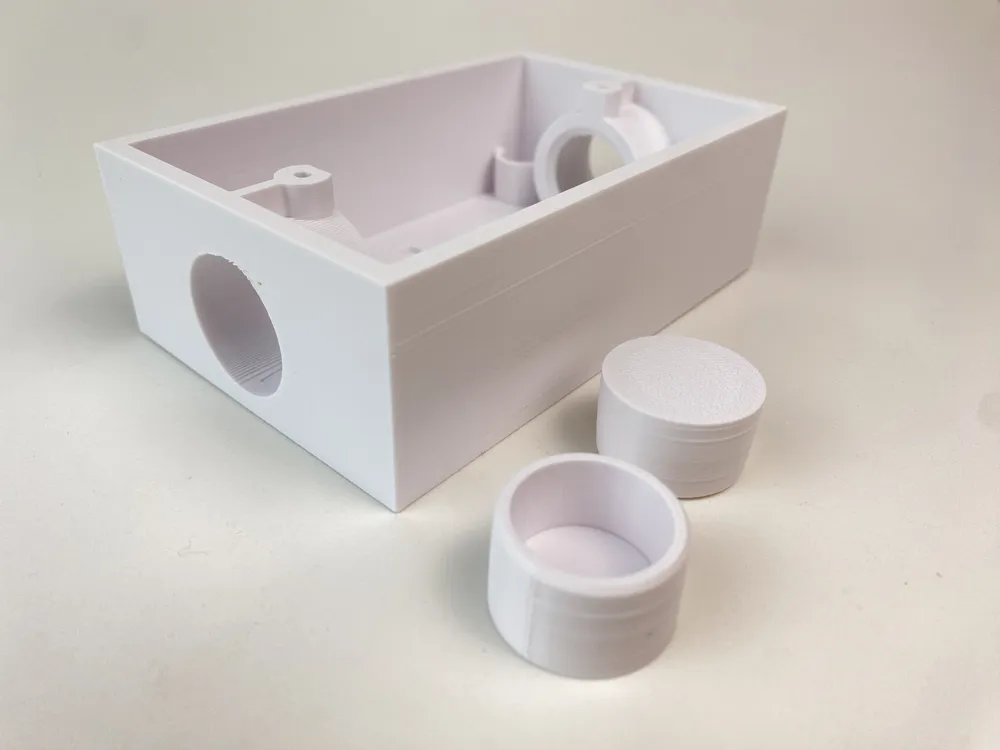

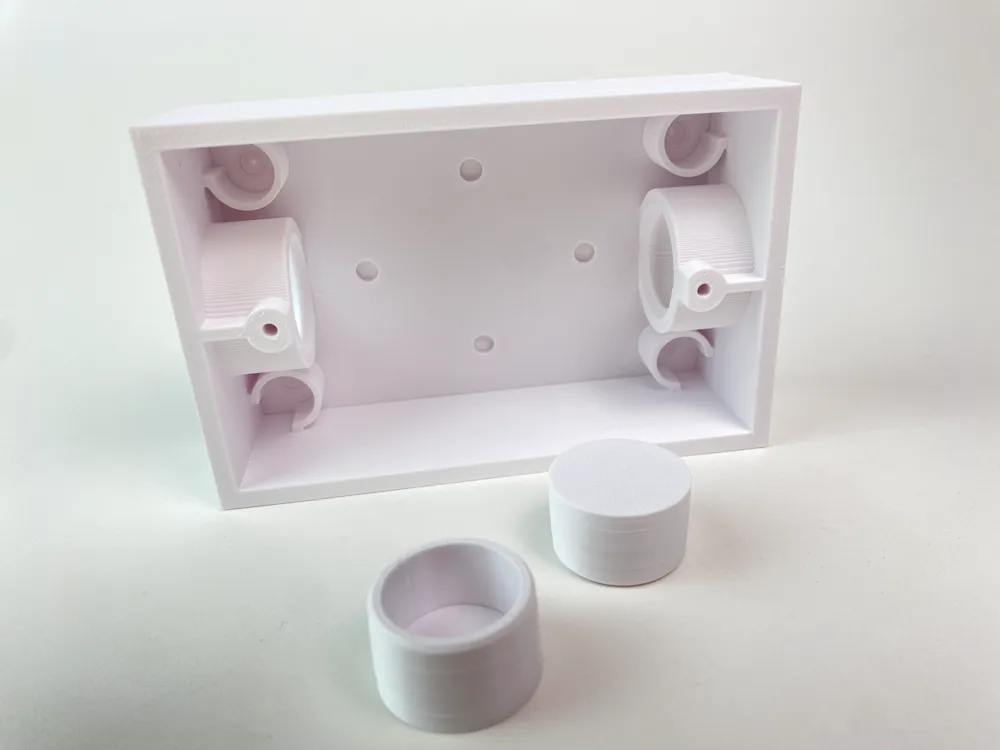

This Mounting Block is designed to make installing standard Type I outlets simple, clean, and reliable. It features 25mm conduit entry points, making it ideal for common conduit systems.

The block is designed to fit standard Australian plates, including:

• Single & double outlets
• Switch plates

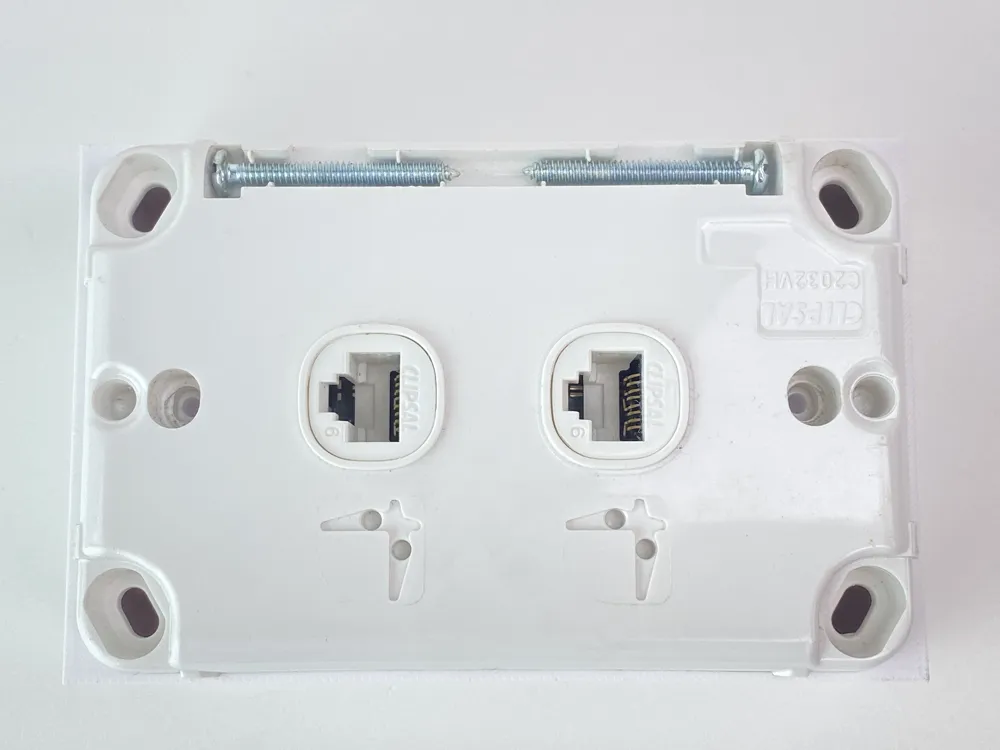

• Data (cctv) plates
• Audio plates

This makes it perfect for shed builds, workshops, garage installs, site boxes, temporary setups, and DIY projects where a fast and solid mounting solution is needed.

The design provides a strong and stable mounting surface while keeping conduit entry aligned and tidy.

Features

• Designed for Australian plates
• 25mm conduit entry compatible with common AU conduit
• Works with single, double, switch and data plates
• Strong mounting block for walls, boards, and panels
• Ideal for workshops, sheds, garages
• Simple and fast installation

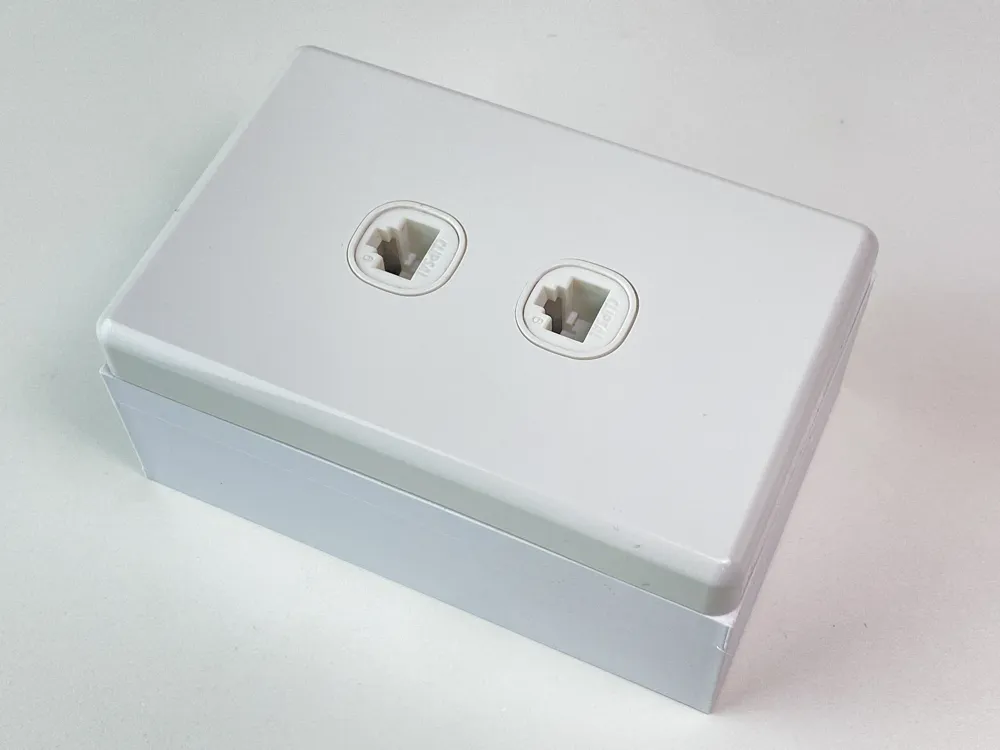

• Clean professional look once installed

Installation

1. Mount the block to your surface (timber, wall panel, or board).
2. Run 25mm conduit into the entry points.
3. Pull cables through the conduit.

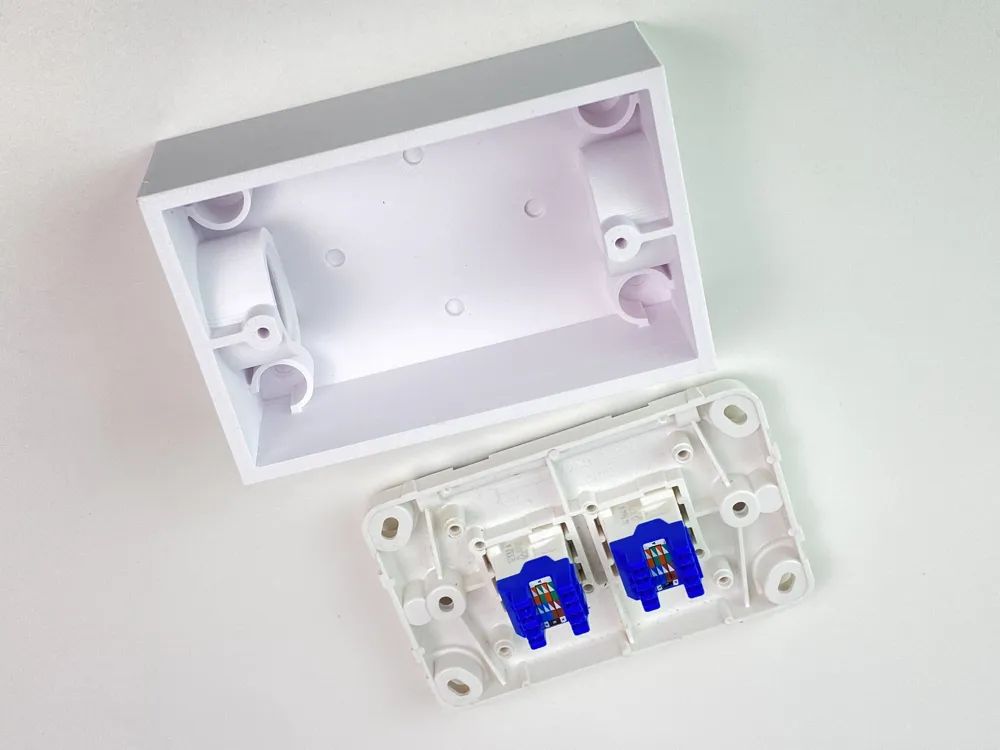

4. Attach your plate to the mounting block using standard screws.

Always ensure electrical work complies with local regulations and is installed by a licensed electrician where required.

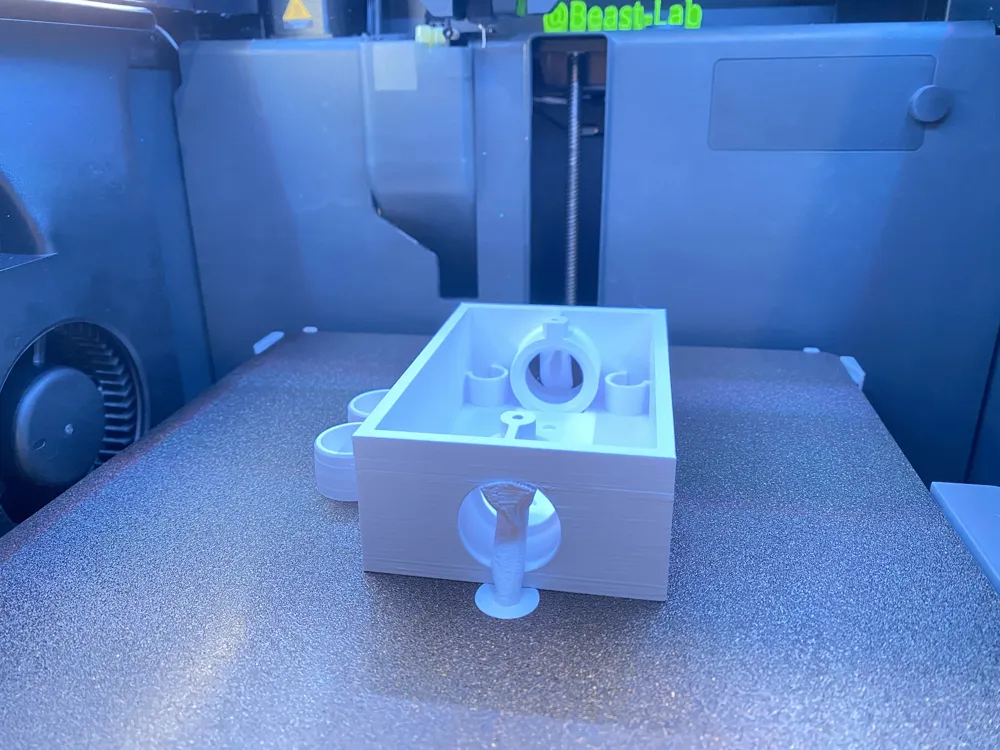

Printing Recommendations

• Material: PETG, ABS, or ASA recommended
• PLA works for indoor use but PETG is preferred

Perfect For

• Workshop installs
• Shed setups
• DIY projects
• Portable boards
• Custom enclosures
