Add Wheels to the DeWalt T-Stak Base adaptor plate

Create a T-Stak wheeled base starting from a Tough System 2.0 Adapter plate part number DWST08017C and by adding a set of 4x swivel casters (2” wheels).

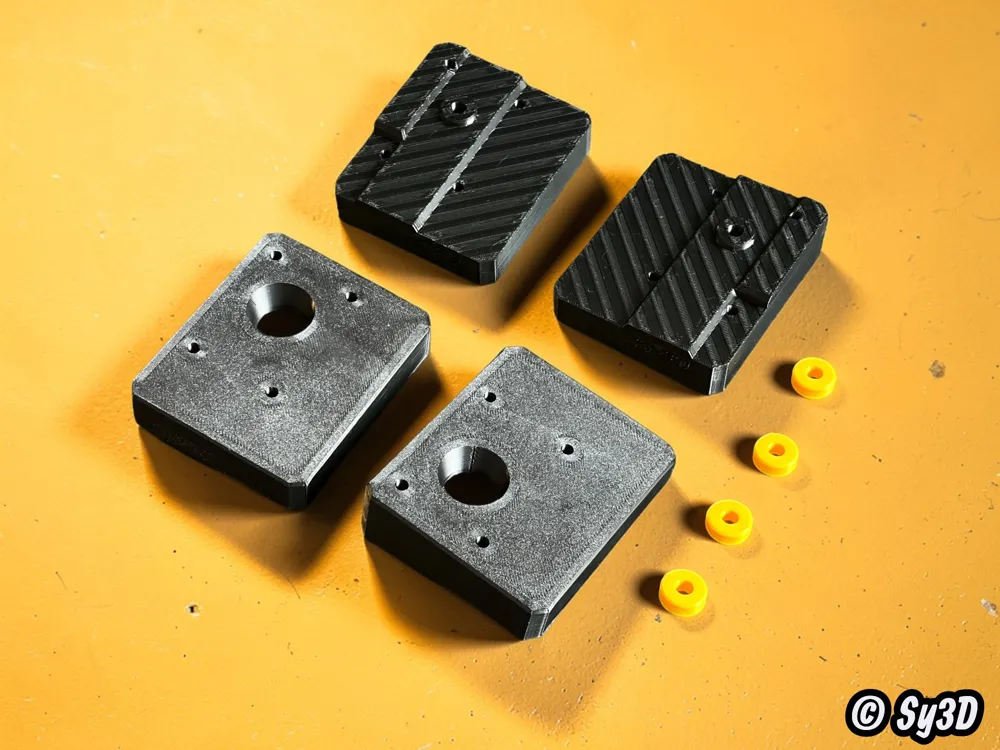

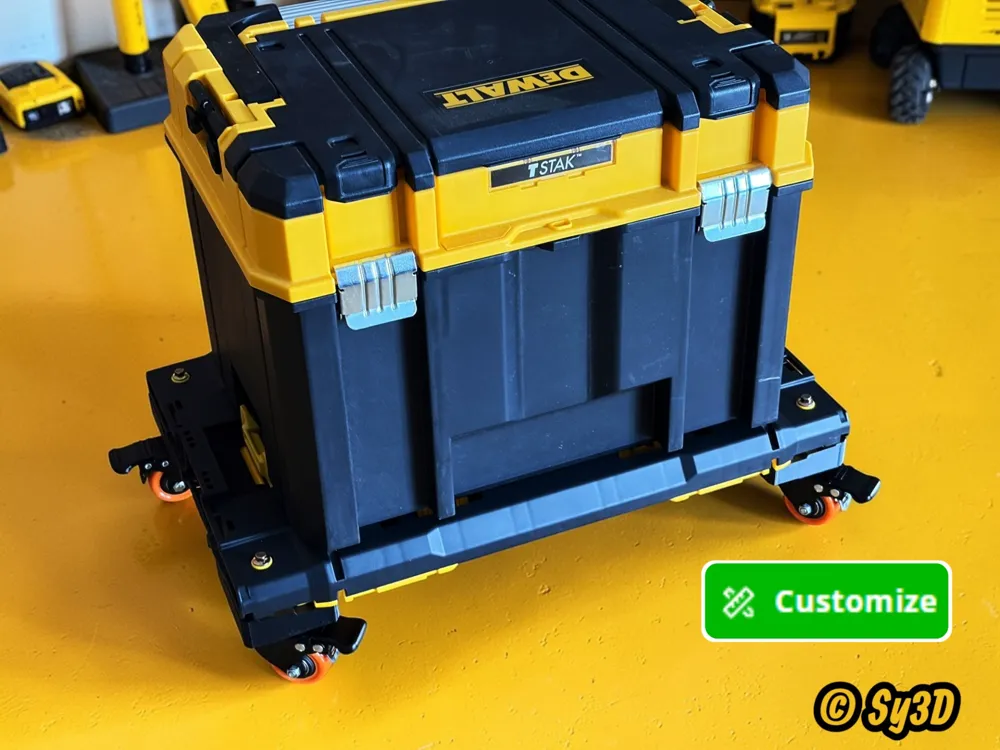

This model is a set of 4x spacers-levelers to add casters (wheels) at the bottom of the Tough System 2.0 Adapter plate DWST08017C. This plate will create a bottom base for T-Stak boxes and by adding your wheels, you can get a movable tool storage organizer cart for way less money then the similar DeWalt DWST17889.

Parts required to complete the build :

1 x Tough System 2.0 Adapter plate part number DWST08017C ;

4 x Wheels (2" inch caster wheels shown from Mofeetools p/n AB2 ) ;

16 x Screws for the casters ;

4 x Bolts and nuts to clamp the levelers to the plate (M6 shown on pictures).

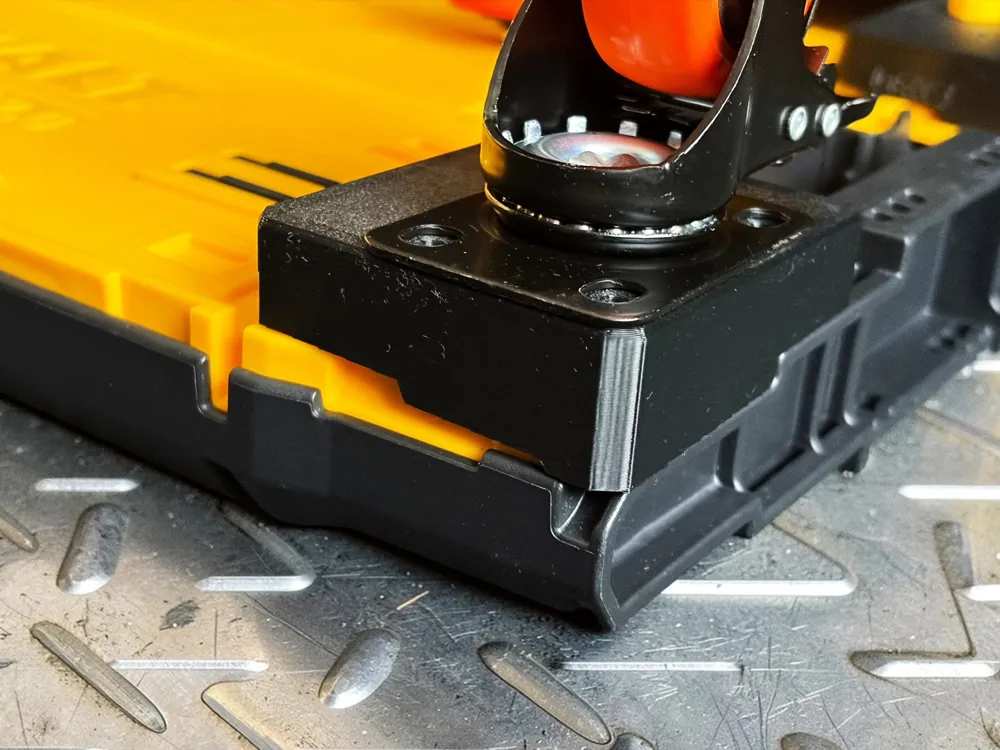

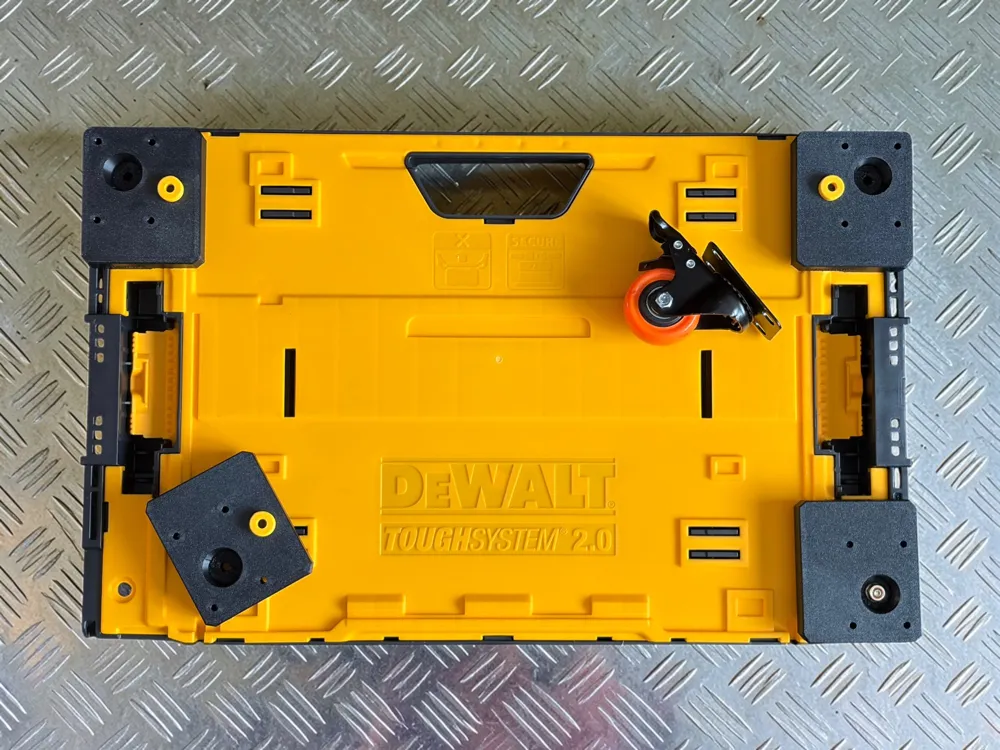

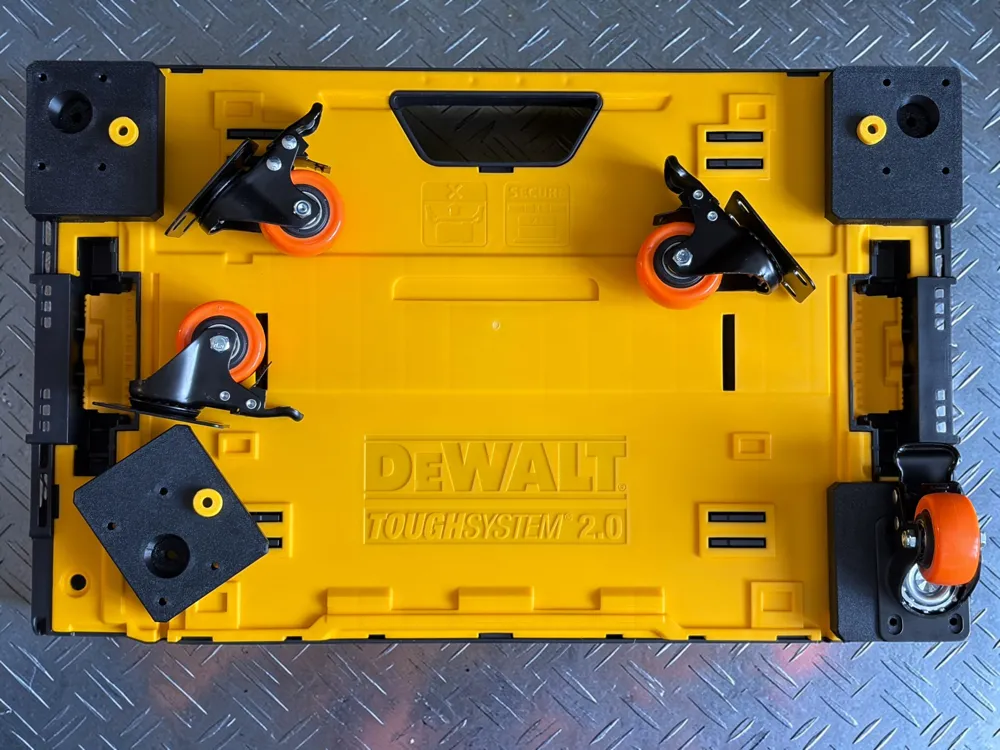

The “Spacers-levelers” must be installed on the yellow side of the DWST08017C plate to allow T-Stak cases or a ToughCase+ to be clipped on the base.  The spacers-levelers will not work on the other side for the Pro Organizers from DeWalt.

The model can also be used to create flat feet on the adaptor for T-Stak wall mounting (for 1 shallow case).

📐 [ Create your own spacers ]

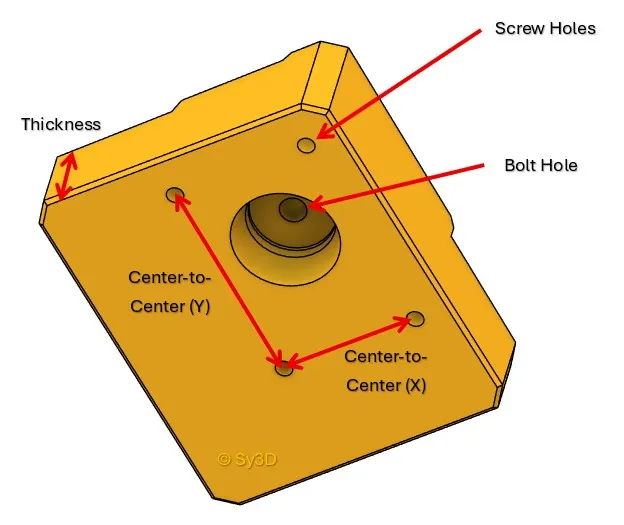

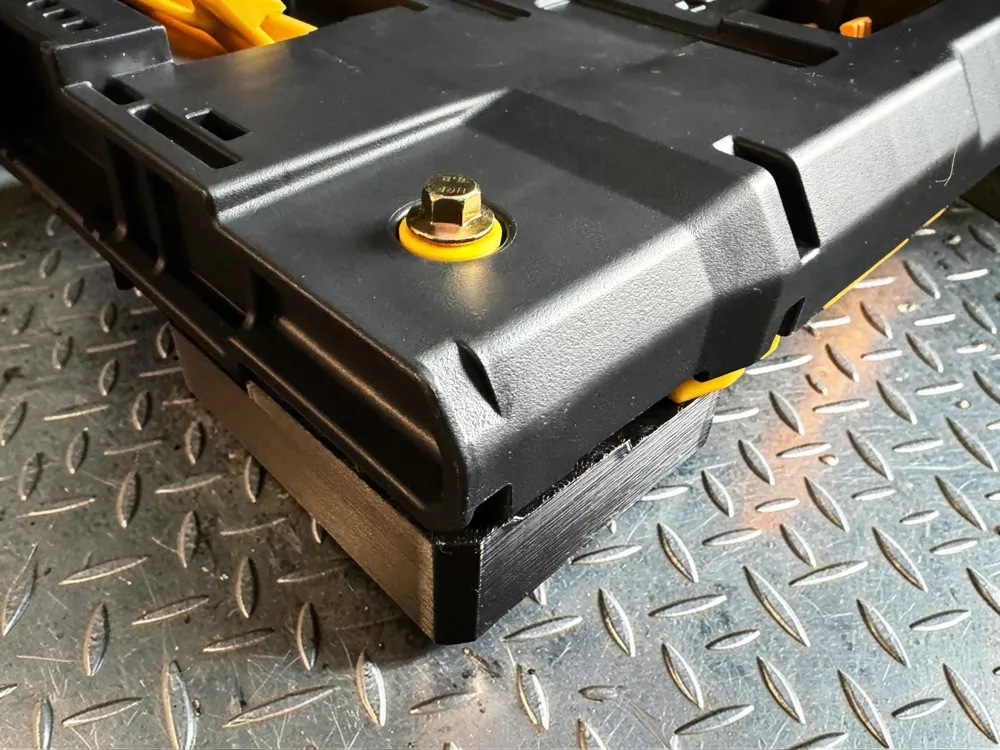

Use the customize button to adapt the spacers-levellers thickness and hole diameter / spacing for your casters.     The casters holes will always be in set of 4 and will be placed close to the outside corners of the levellers for the best wheel stance possible.   The washers are optional, they are intended to fill the build-in hole recess pockets of the DWST08017C from the top when you bolt the levellers to the base.

📇[ Printing ]

Temporary supports are required for main bolt holes, but shall be invisible after the installation of the casters.
