Description

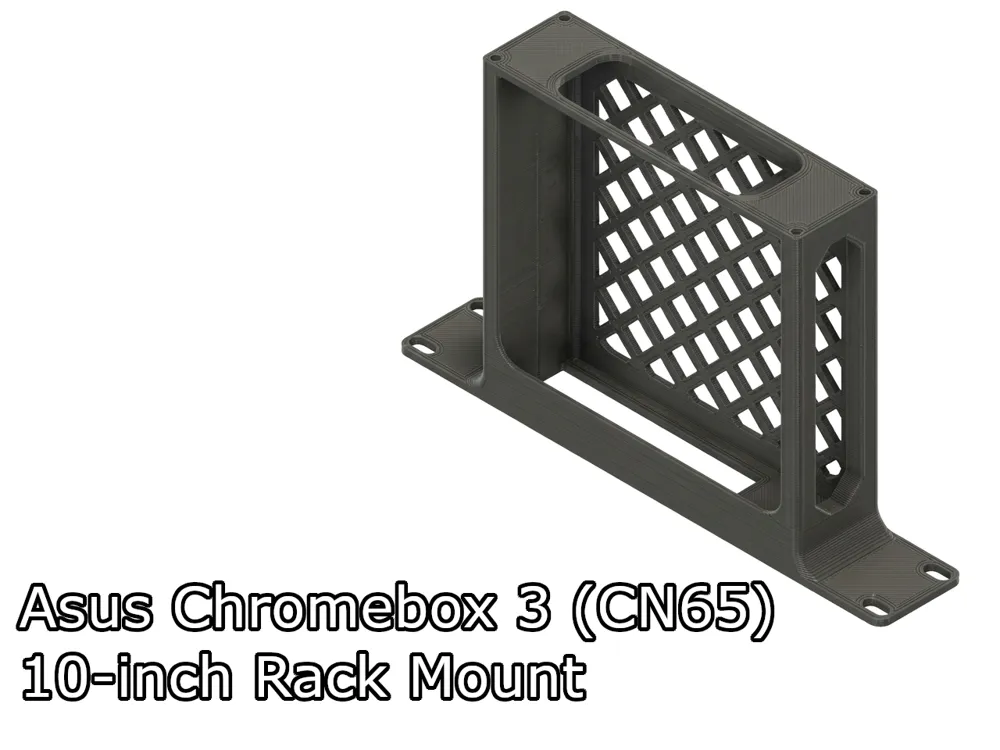

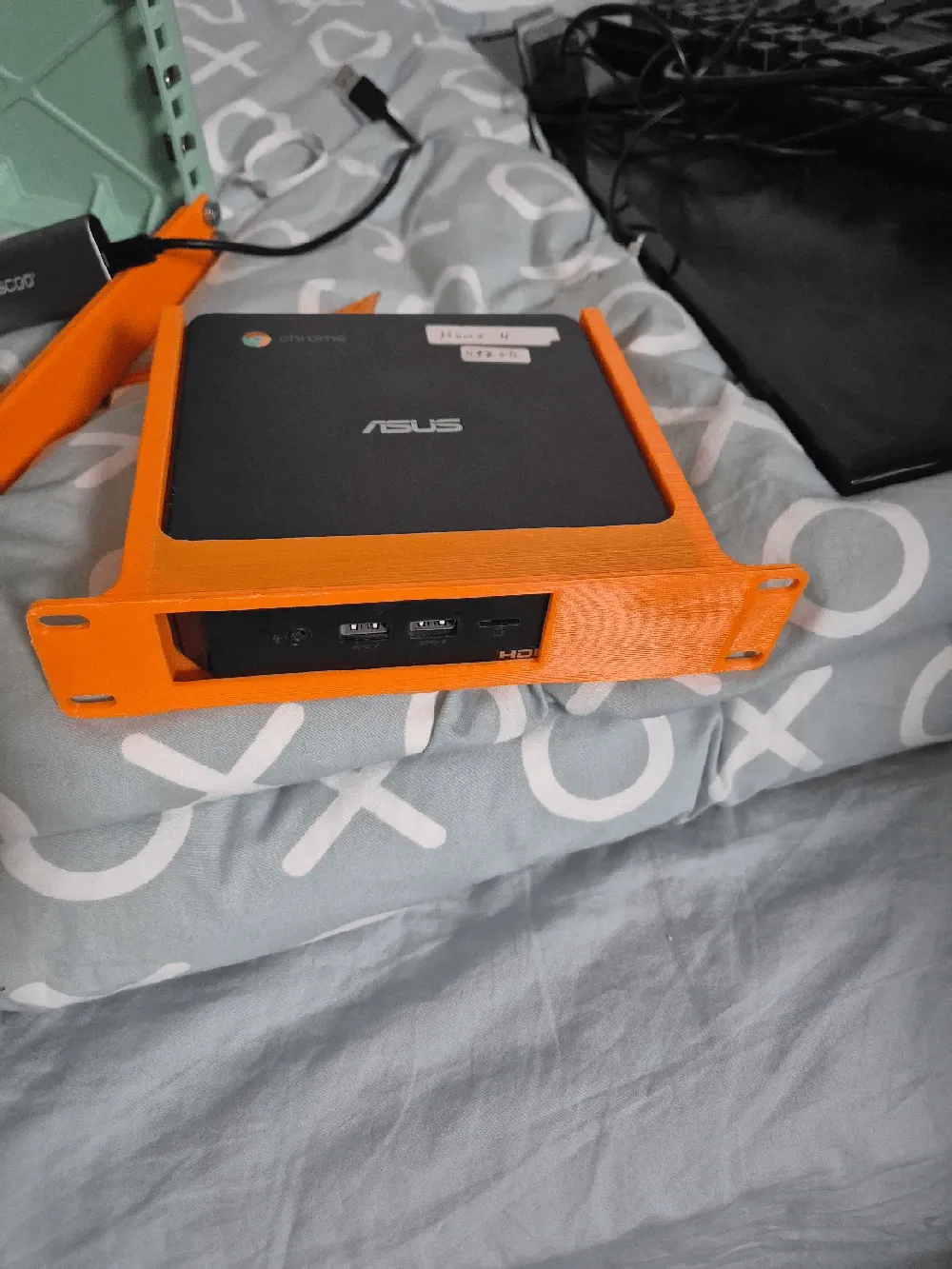

A clean 10-inch rack mount designed for the ASUS Chromebox 3 (CN65), letting you mount the mini PC neatly in a compact rack setup. Perfect for repurposing a Chromebox 3 as a small server for services like Home Assistant, Docker, Pi-hole, or general lightweight self-hosting.
I've included two versions of the backplate for this model.
- For M3 screws, if you want to use thread inserts in the main body.
- For self-tapping M4 screws, if you want to use the screws directly into the plastic.
If you wish to know how to remove Chrome OS on this device, please follow the steps here: https://docs.mrchromebox.tech/
This model is part of a series of 10-inch rack mounts I've designed. You can check out the others here.
Boost Me (for free)
I make these models for free, and it takes time and material to test them out. Your boost will help me keep releasing new models! Thank you!
Membership
Want to support me further? Or sell my prints? Please consider one of my membership tiers. Thank you!
Do you like my models? Consider buying me a coffee ;)
Required parts
Using thread inserts
- Printed: Backplate M3.
- 4x M3x10 or 4x M3x12 for the back plate.
- 4x M3 thread inserts.
The thread inserts are as follows:
Using self-tapping screws
- Printed: Backplate M4.
- 4x self-tapping M4x10 or 4x M4x12 for the back plate.
Print Settings
Supports:
No.
Resolution:
0.2 or 0.24
Walls/Perimeters:
4 or more.
Infill:
20% or more.
Filament:
Any.
