Description

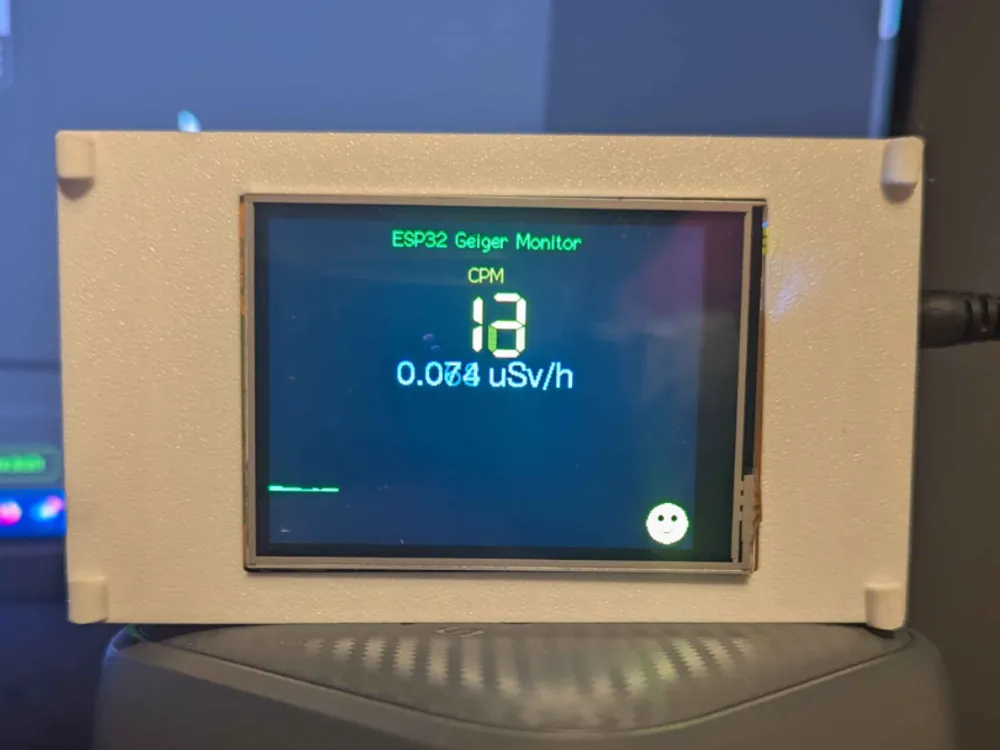

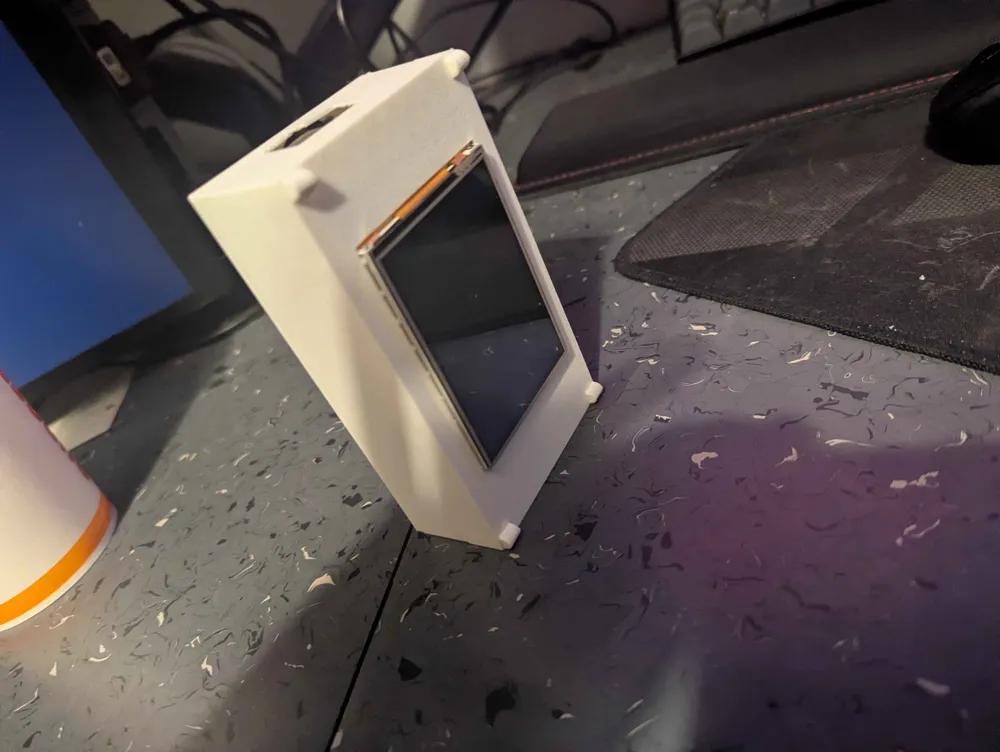

Hello, please check out my Geiger counter made for the esp32 cyd and cajoe v1.1 Geiger counter kit.

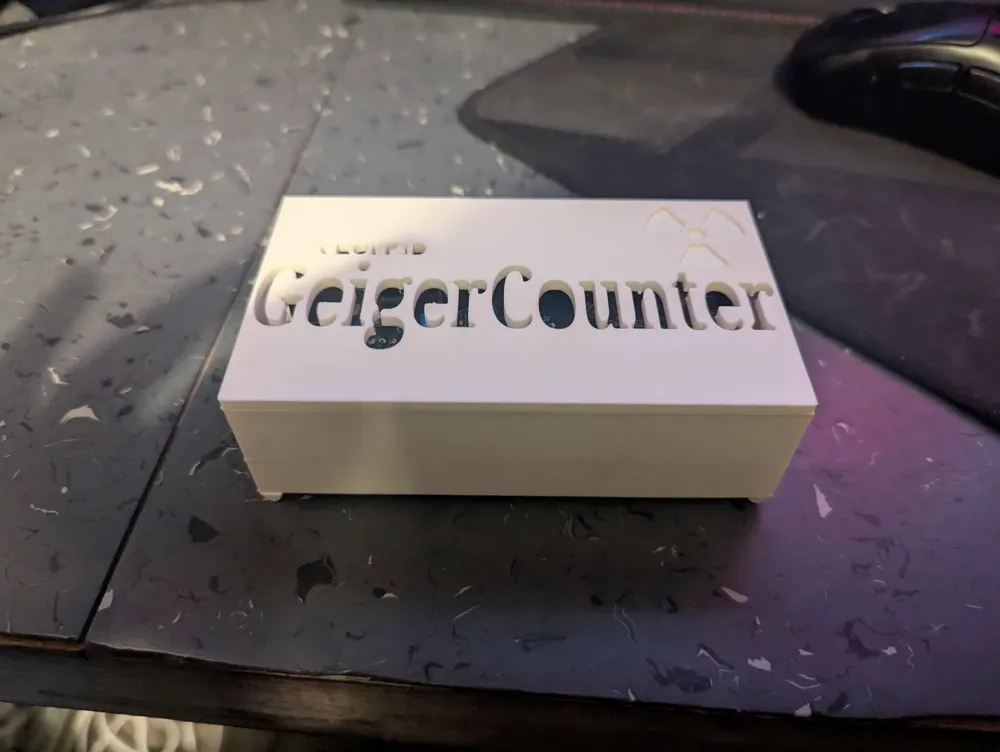

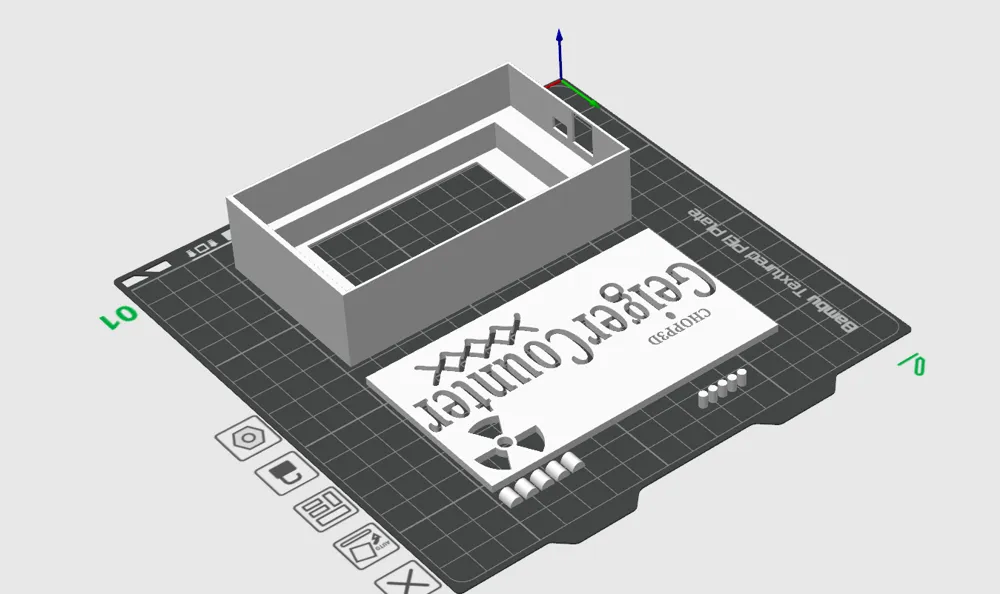

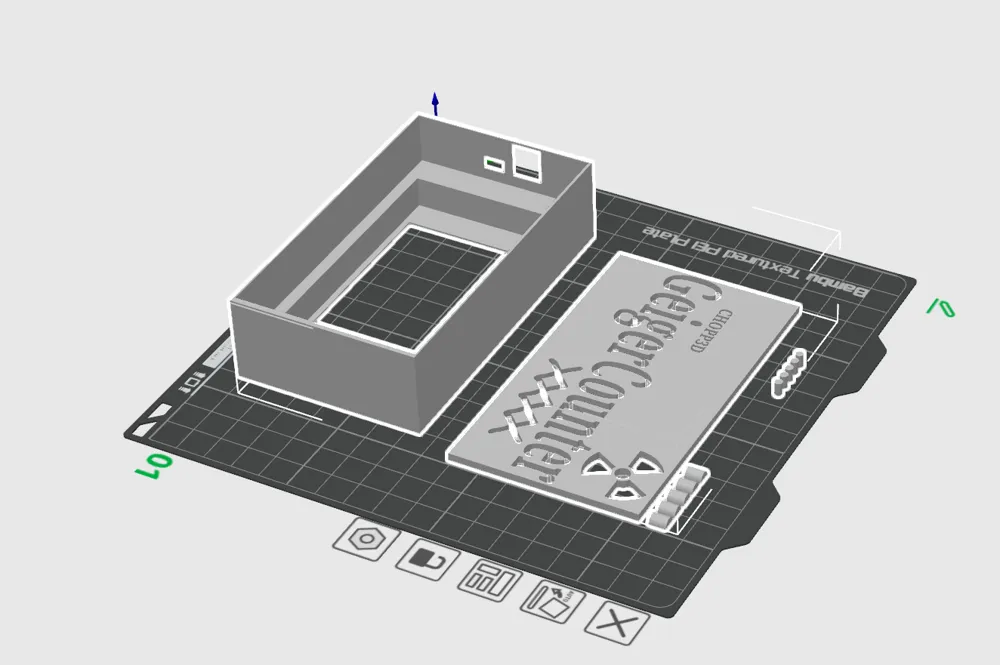

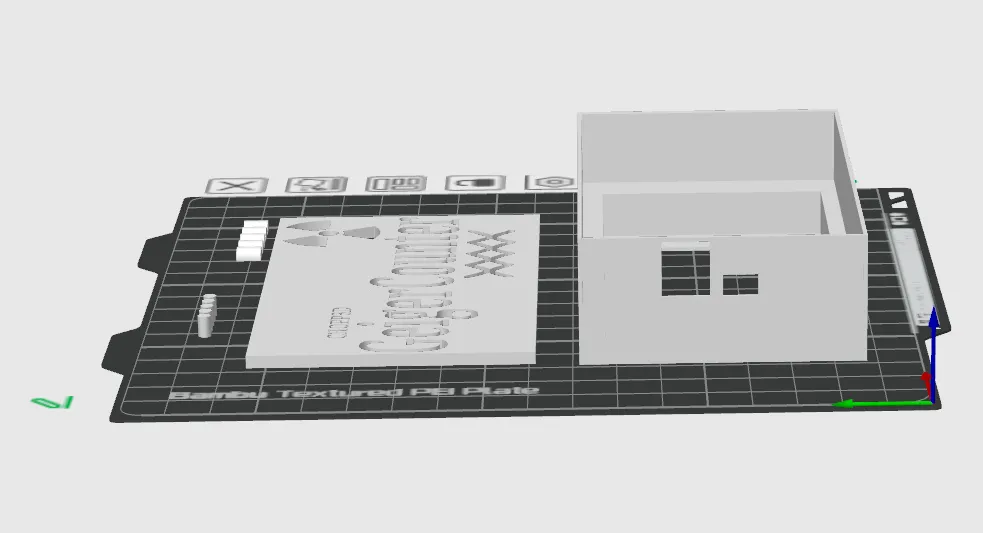

The housing is made in 4 parts, main body, lid, screen supports and internal supports. (Glue Needed)

Here is a link to my cad file if you want to make any changes, objects are available in sperate files for editing.

This is to be used in the creative workspace and not to be sold/ edited to sell.

Code used is vibecoded and easily re-creatable using some basic knowledge from cajoe videos online. I use a free GPIO pin for counts (VIN Pin(Be sure to check your model first before connecting)) and connect ground between the ESP and Geiger counter.

Cheers 😎
