Jaguar XK / XKR X150 boot/parcel shelf clip

The Jaguar XK / XKR X150 is notorious for the parcel shelf clips in the boot snapping

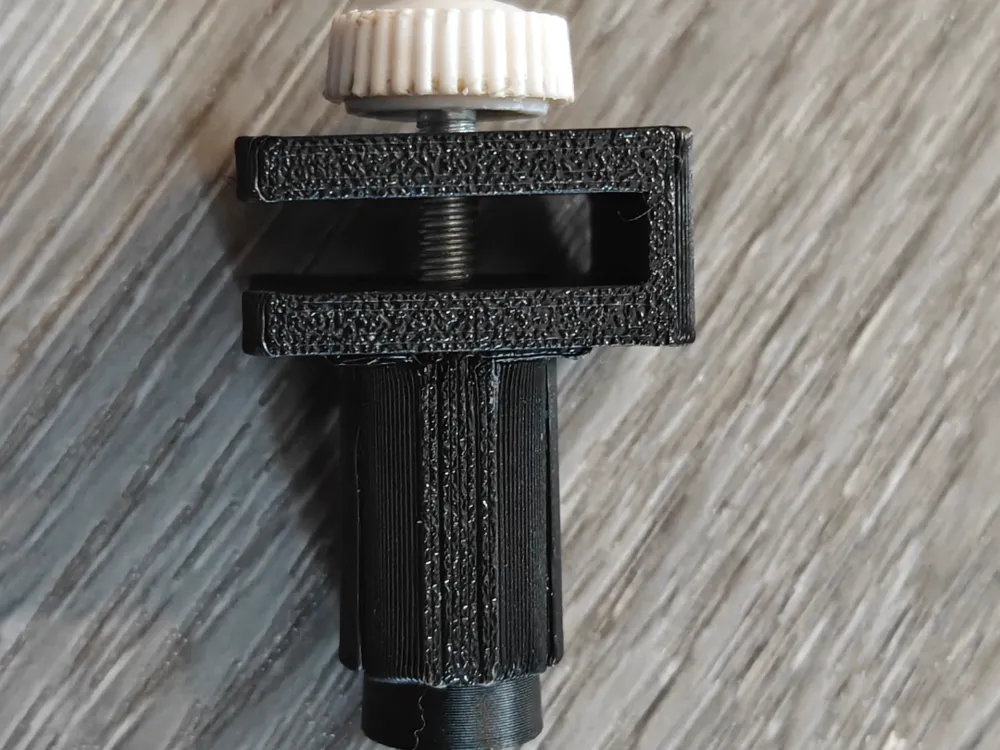

I created a simple mechanism, the plastic nut pulls down when you tighten, expanding the 3 wings

You will want to use a sharp knife just to split the top wing, as the slicer ends up joining them

The print orientation is important to maintain strength, so no layer lines are the axis of the puling forces. The brim I found was needed on the wings, with my p1s, there's too little surface area to stick to the print bed otherwise

M4 bolt, coarse thread

You will need to drill a small 4.5mm hole in the parcel shelf for the bolt to pass through, but this is invisible once the clip is attached
