Infill Test Map V.2
Print Profile(3)
Description
đ ď¸ Infill Test Map: The Ultimate Guide to 3D Patterns - Version 2
Stop guessing how the internal structure of your next project will look by viewing a small 2D preview on your slicer screenÂ
The Infill Test Map transforms abstract settings into an indispensable tactile and visual resource for every Maker striving for structural and aesthetic perfection
Your New Rosetta Stone of Printing

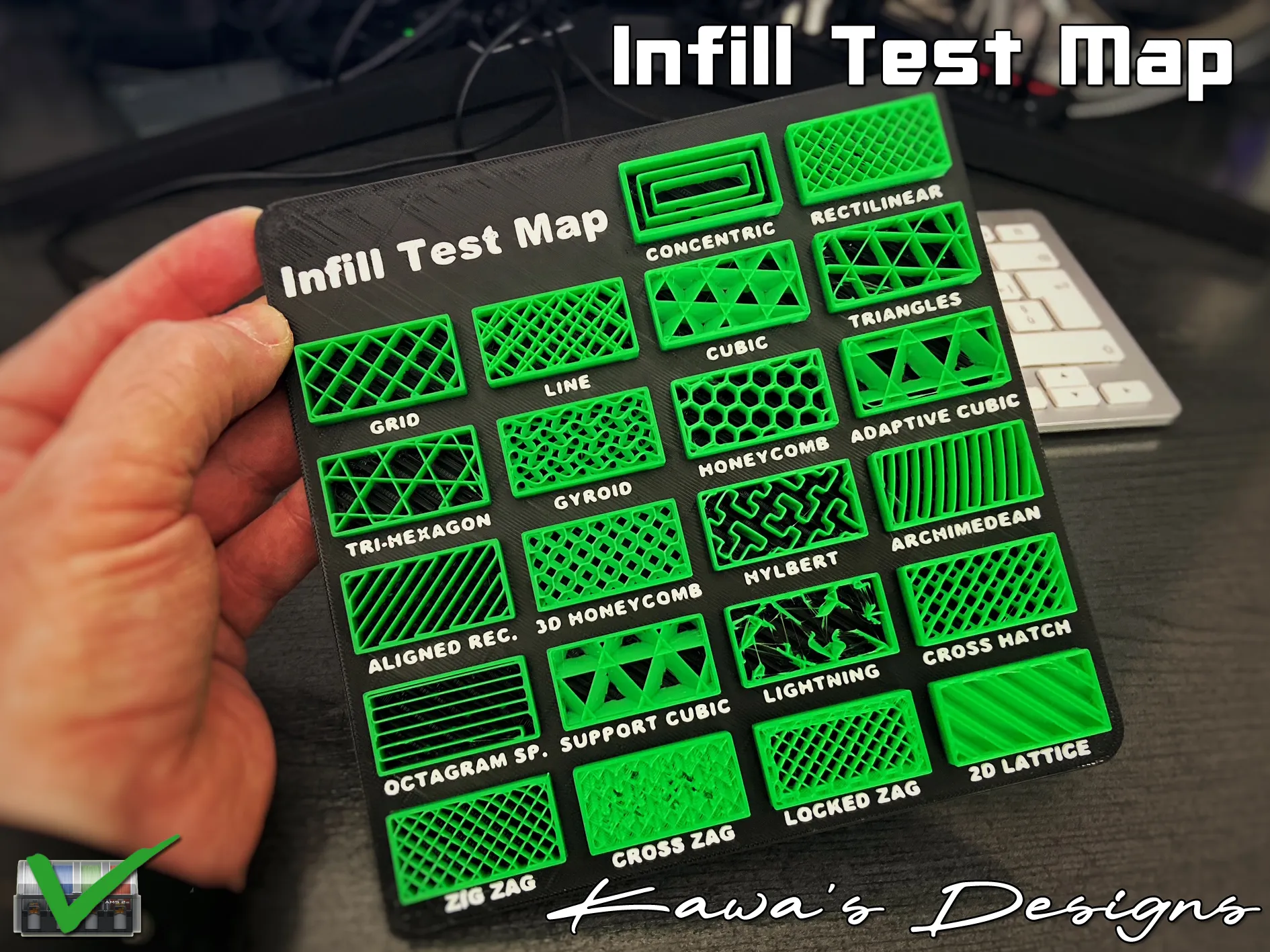

This model was designed to be the ultimate desk companion for anyone who 3D prints, offering a comprehensive overview of 22 different infill patterns created with millimeter precisionÂ
From the classic Grid to the efficient Lightning, up to complex geometries like Gyroid or Archimedean, each piece is a real-world example of how the material behaves in space, allowing you to assess strength, flexibility, and upper layer support before even starting an important print
Why You Can't Do Without It
Beyond being a clean and professionally designed object, this map is a saving tool: it drastically reduces filament and time waste, eliminating failed tests due to incorrect infill selectionÂ
Thanks to the strong contrast between the dark base and colored infills, every geometric detail emerges with clarity, also making it perfect as an educational tool to explain how 3D printing works to non-experts
What's New in Version 2
After several requests, I created this 'improved' version

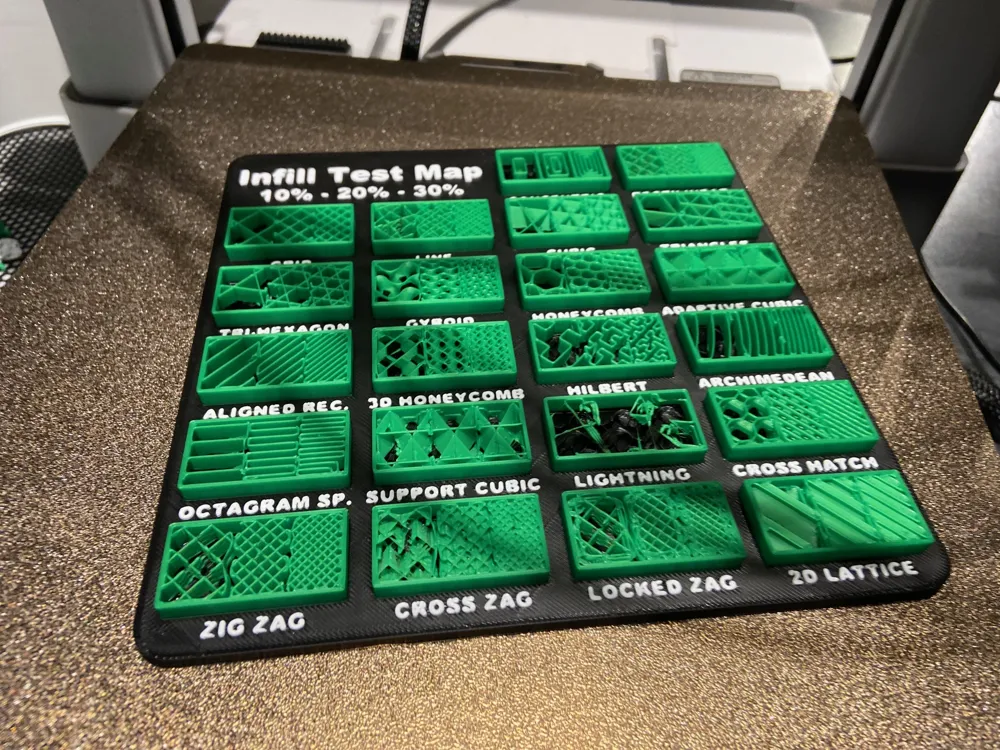

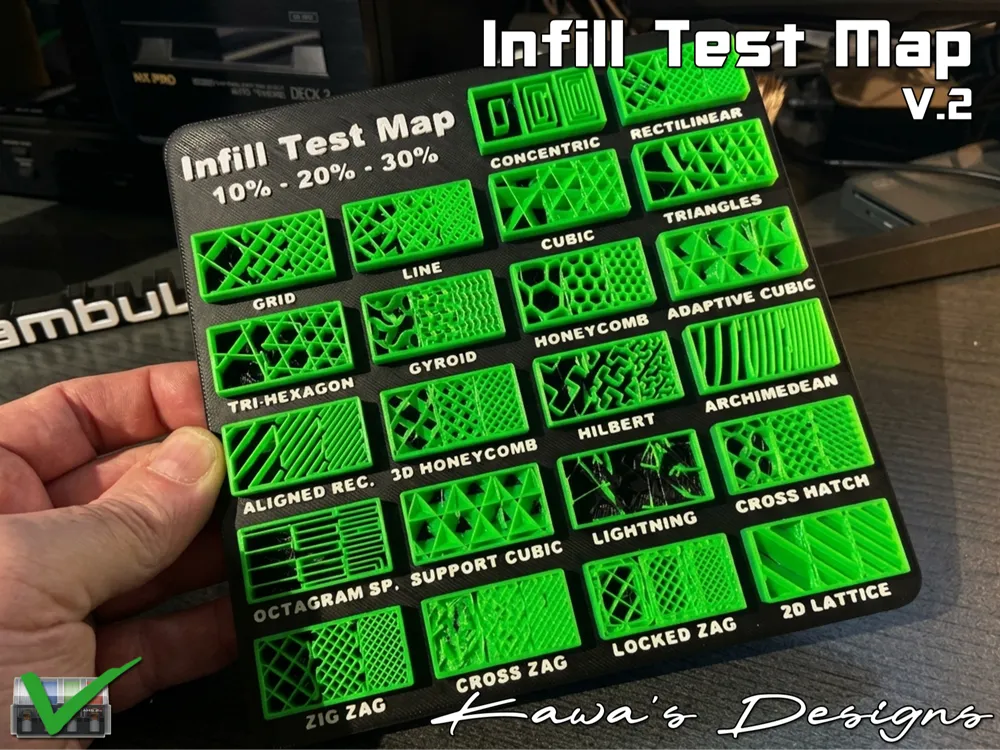

Now you not only have the opportunity to experience the various possible infills firsthand, but I have also divided each box into 3 different infill percentages: 10%, 20%, and 30%, to maximize the 'visual' selection possibilities
You will never use more than 30%, trust me
Technical Details for Printing
The model is optimized for Multi-Color (AMS/MMU) printing but can also be easily achieved with a simple manual filament change at the correct layerÂ
It is designed to show the internal structure without top walls, exposing the pattern's architectureÂ
Download it now, print it once, and use it forever as a technical reference to elevate the quality of your projects
If you prefer the âStandardâ version with a fixed 15% infill for each box, you can download it here:
