Infill Test Map
Print Profile(3)
Description
đ ď¸ Infill Test Map: The Ultimate Guide to 3D Patterns
Stop guessing how the internal structure of your next project will look by observing a small 2D preview on the slicer screen
The Infill Test Map transforms abstract settings into an indispensable tactile and visual resource for every Maker aiming for structural and aesthetic perfection
Your New Rosetta Stone of printing

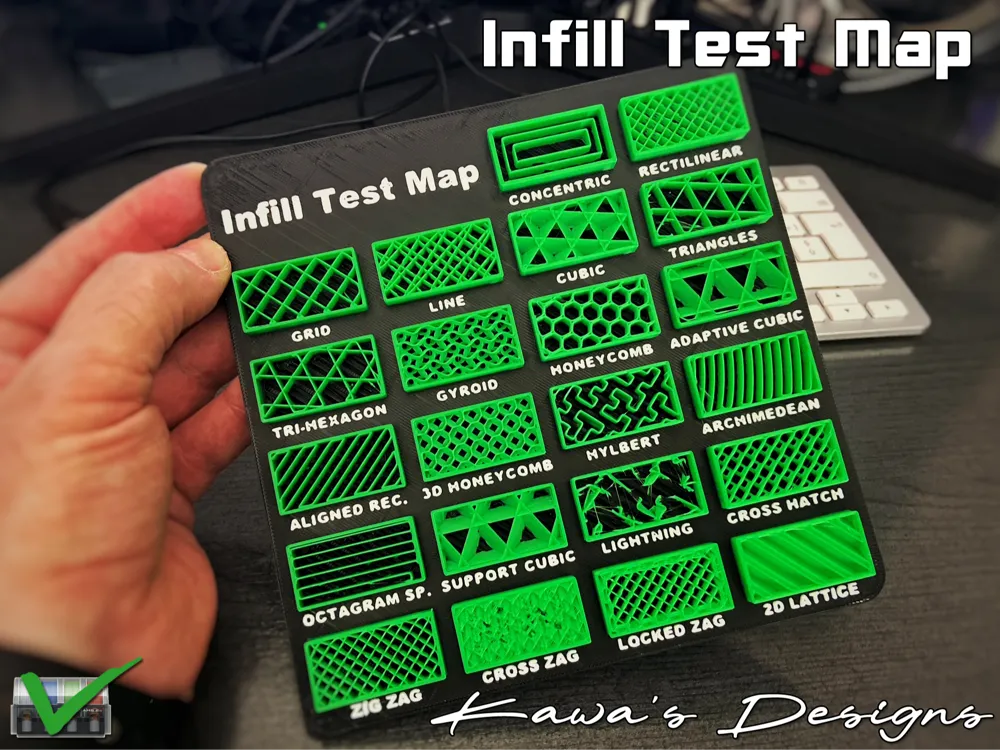

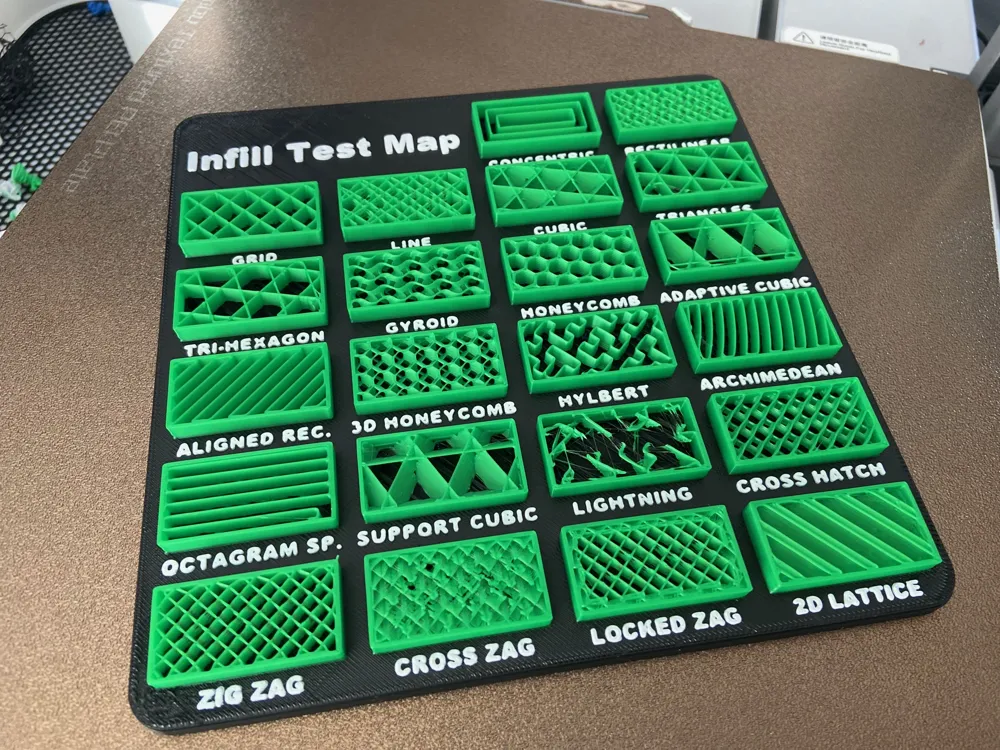

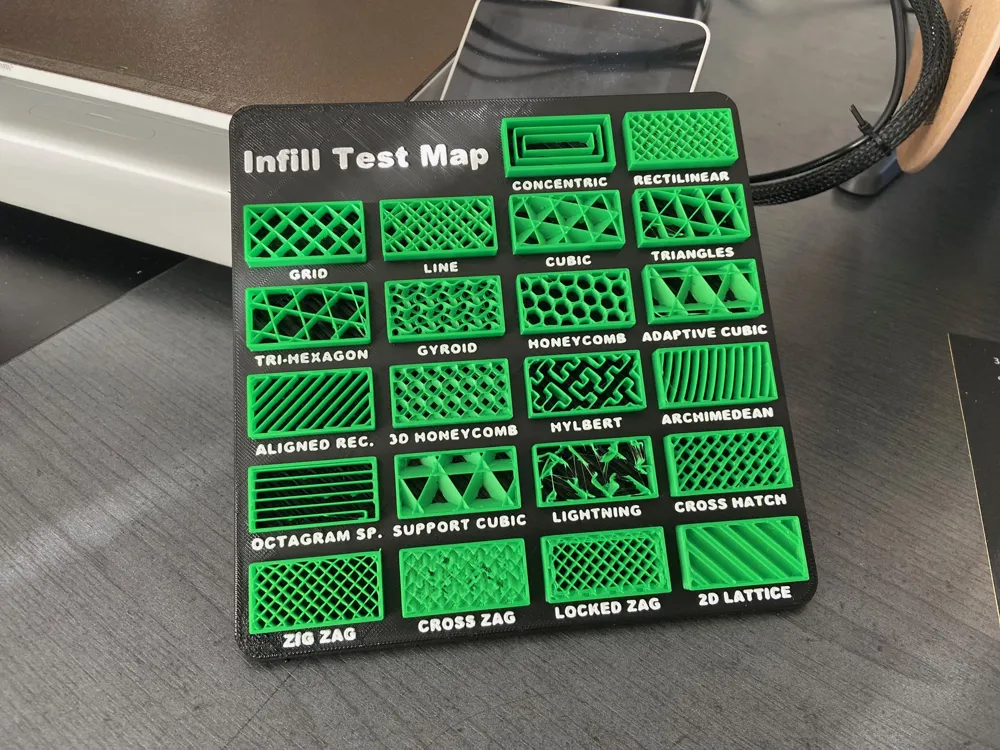

This model is designed to be the ultimate desk companion for 3D printing enthusiasts, offering a comprehensive overview of 22 different infill patterns crafted with millimeter precision
From the classic Grid to the efficient Lightning, up to complex geometries like Gyroid or Archimedean, each segment is a real-world example of how the material behaves in space, allowing you to assess strength, flexibility, and upper layer support before even starting an important print
Why You Can't Do Without It
Besides being an object with a clean and professional design, this map is a money-saver: it drastically reduces filament and time waste, eliminating failed tests due to an incorrect infill choice
Thanks to the strong contrast between the dark base and the colorful infills, every geometric detail emerges clearly, also making it perfect as an educational tool to explain how 3D printing works to those unfamiliar with it
Technical Details for printing
The model is optimized for Multi-Color printing (AMS/MMU) but can also be easily achieved with a simple manual filament change at the correct layer
It is designed to show the internal structure without top walls, exposing the architecture of the pattern
Download it now, print it once, and use it forever as a technical reference to elevate the quality of your projects
UPDATE AS OF 12/03/2026
After several requests, I created this âimprovedâ version

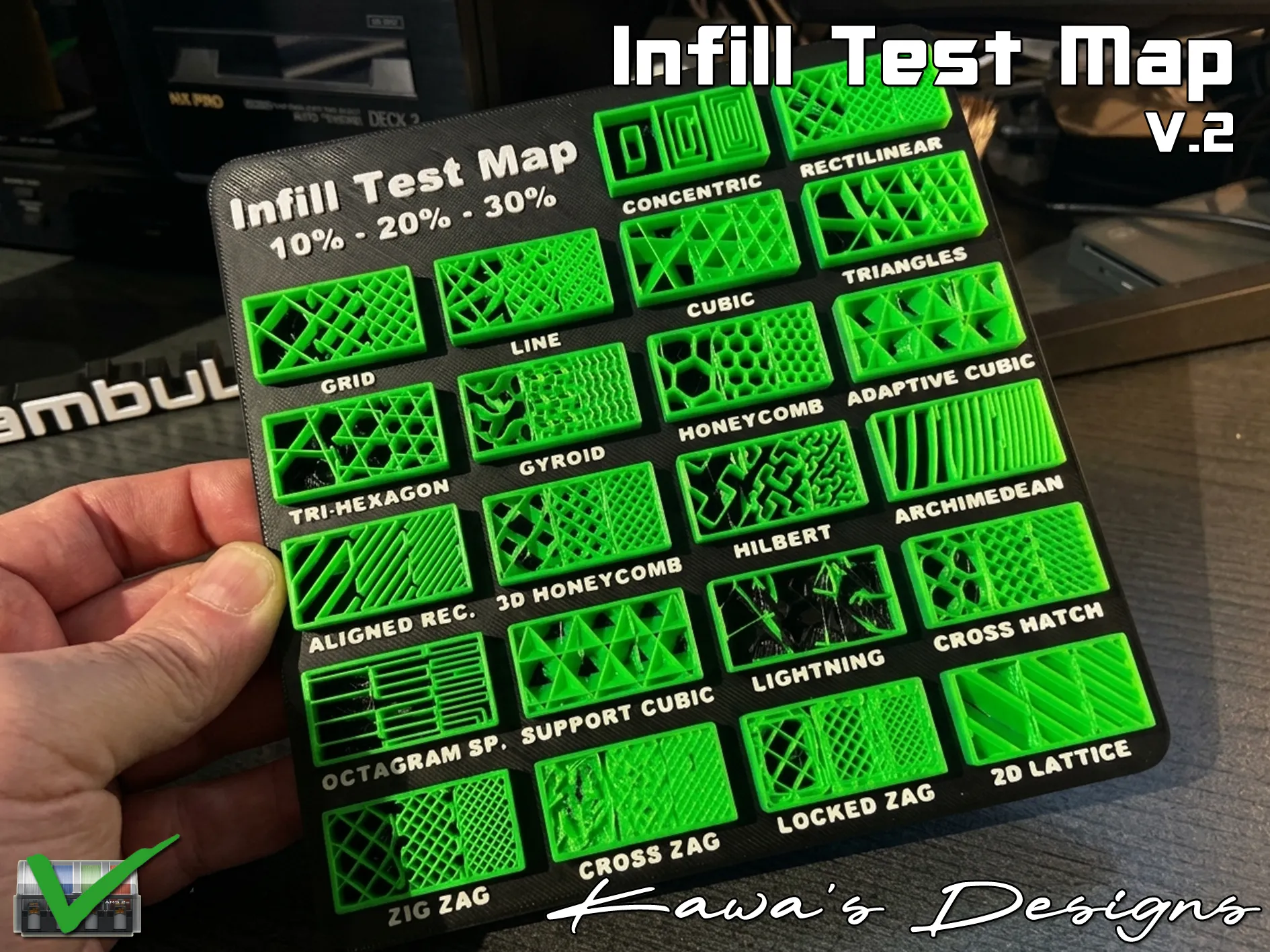

Now you not only have the opportunity to physically experience the various possible infills, but I have also divided each cell with 3 different infill percentages: 10%, 20%, and 30%, to maximize the âvisualâ selection possibilities
You will never use more than 30%, trust me
You can download **Version 2** from here:
