Holder for Faster P206 Hydraulic Coupling
Print Profile(1)

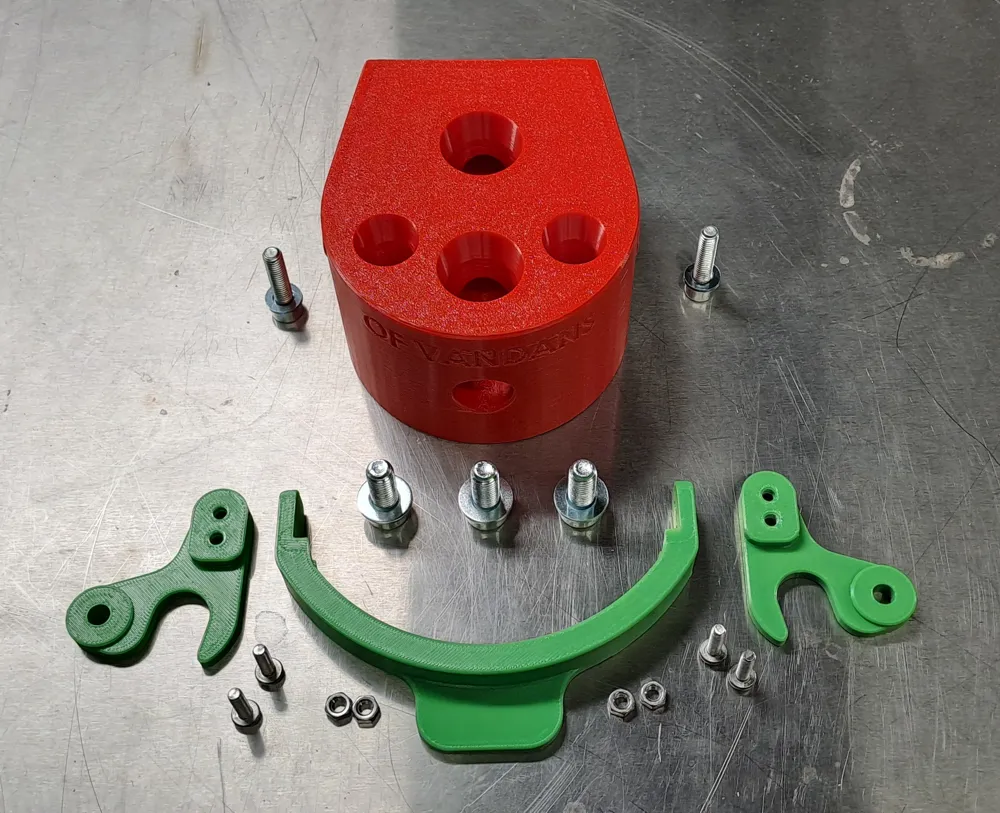

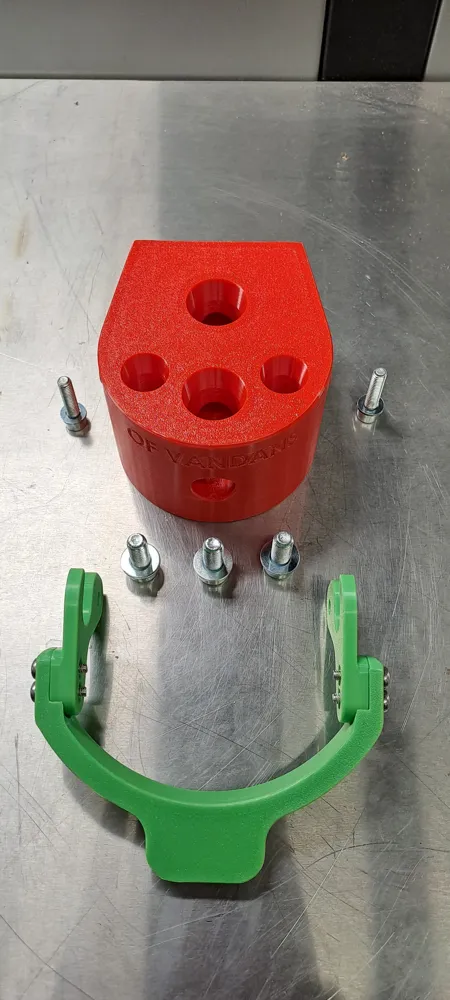

Bill of Materials

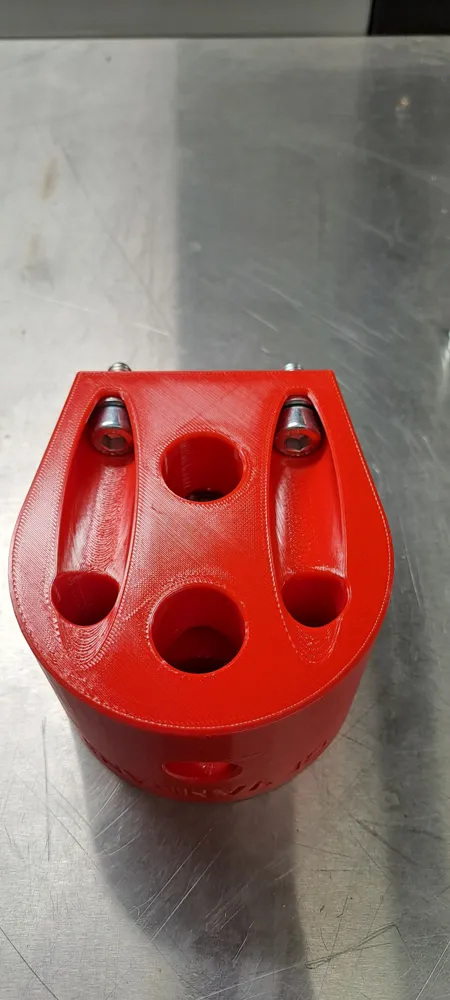

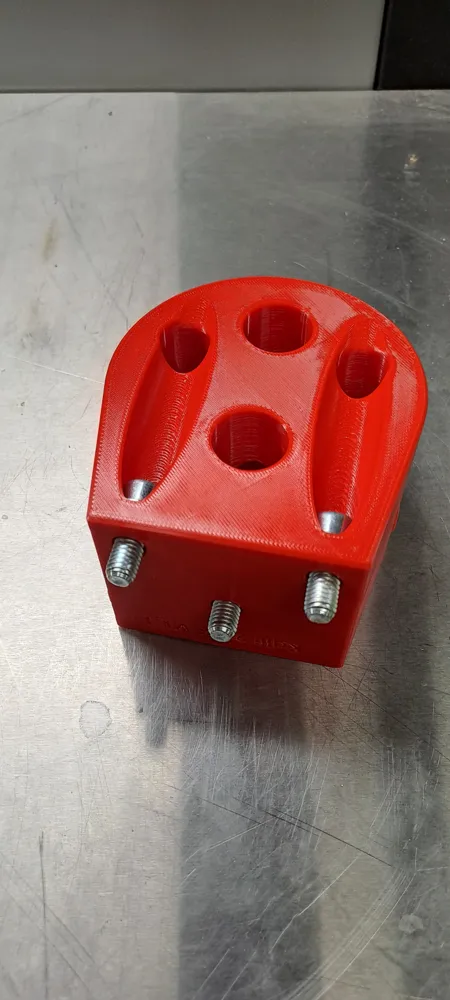

- Schraube M8x20 Zylinderkopf Innensechskant x 3: Montage an Gerät
- Unterlegscheibe M8-16mm x 3: Montage an Gerät
- Schraube M6x20 Zylinderkopf Innensechskant x 2: Montage Verriegelung
- Unterlegscheibe M6-12mm x 2: Montage Verriegelung
- Schraube M4x14 Linsenkopf Torx x 4: Verbindung Verriegelung
- Mutter M4 x 4: Verbindung Verriegelung
Description

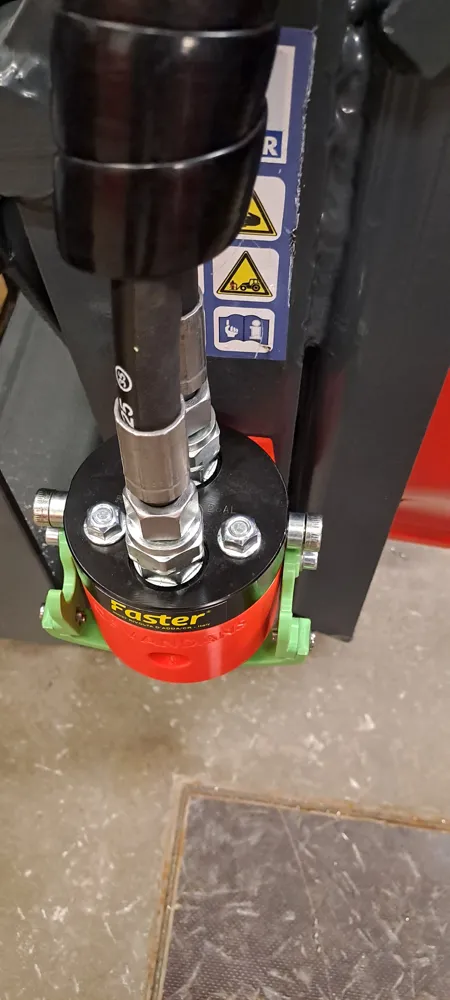

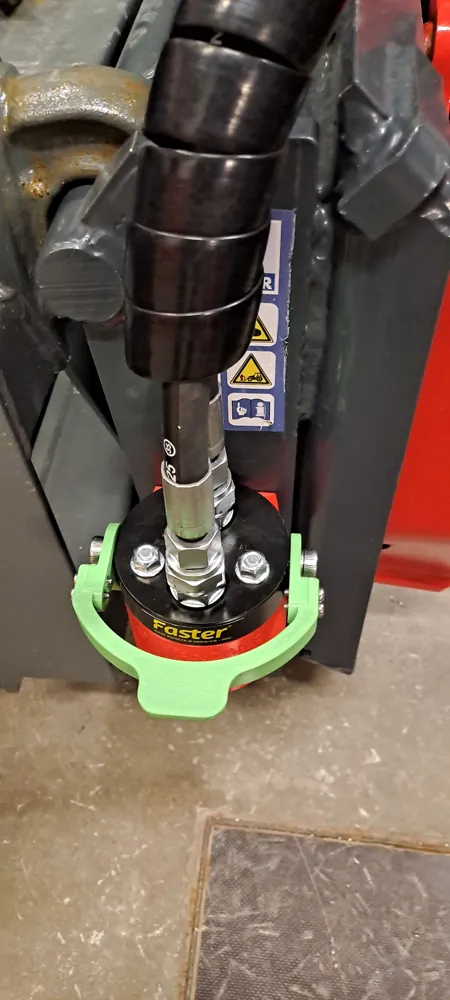

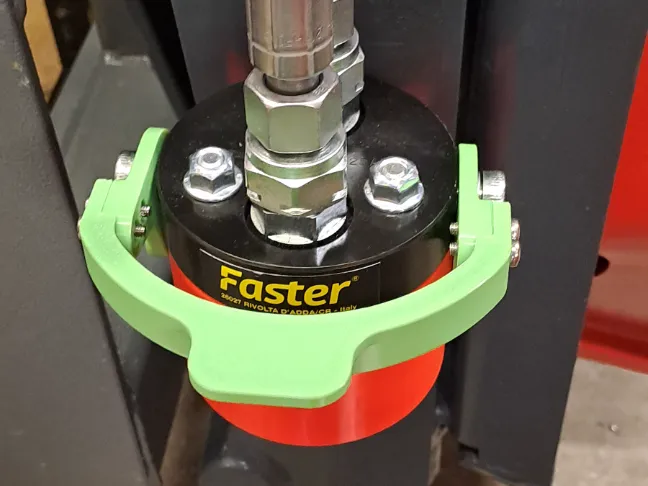

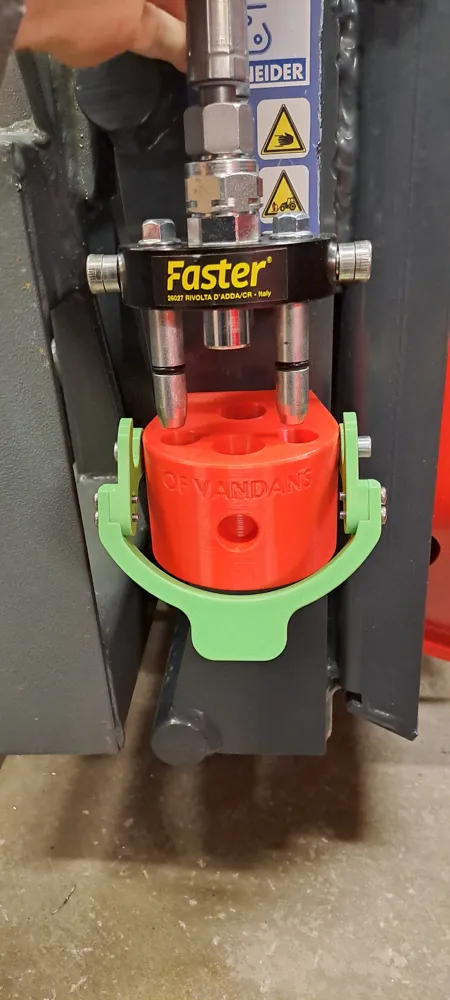

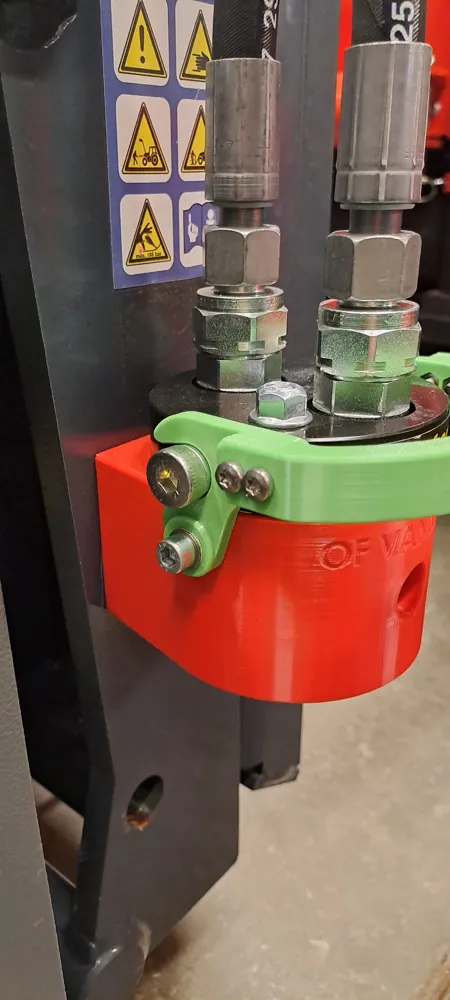

Mount for Faster P206 hydraulic quick coupler so that it can be securely mounted and protected when not in use. Can be used, for example, on attachments for wheel loaders, telehandlers, or agricultural machinery.

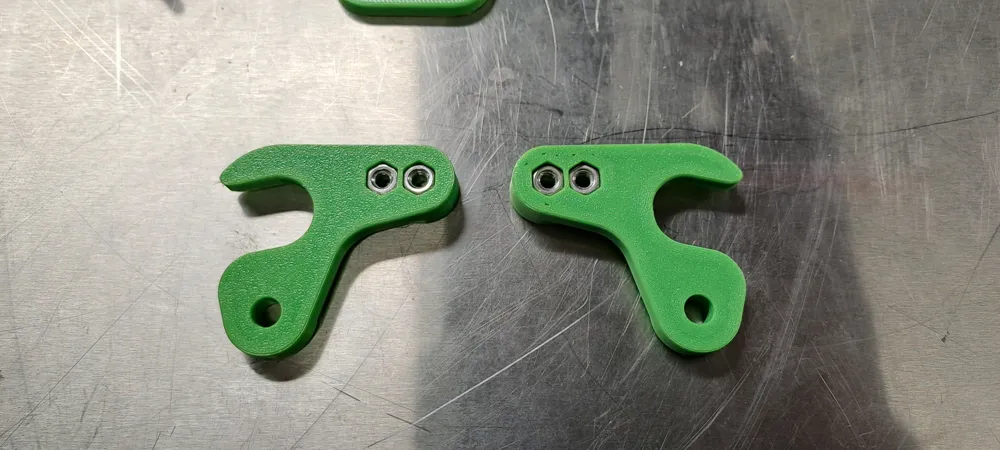

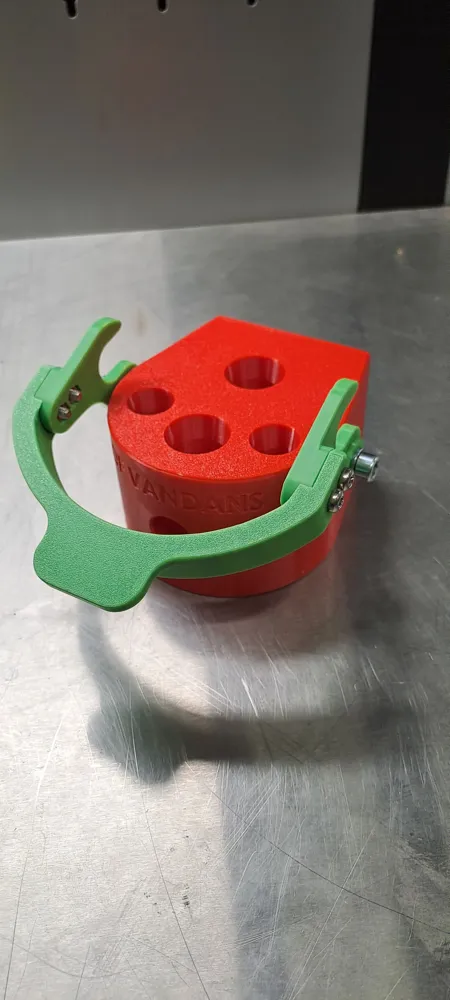

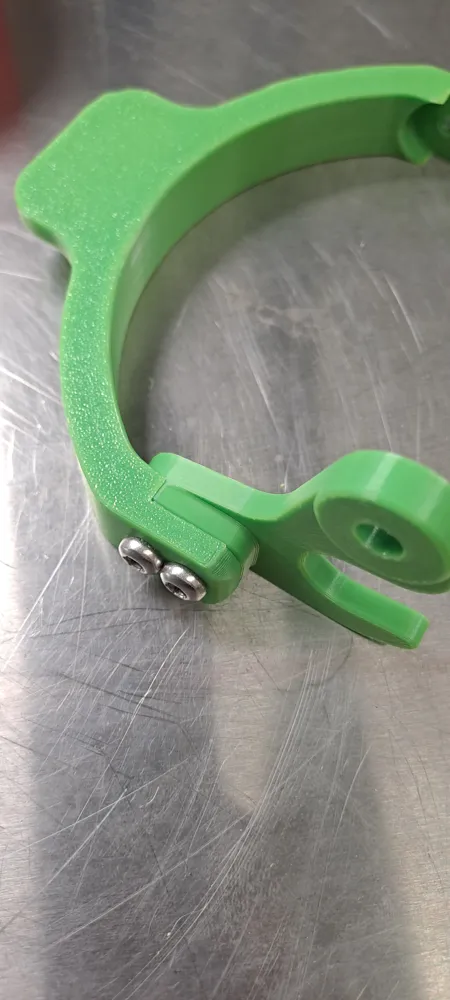

Open at the bottom so water and dirt can fall through. With optional locking mechanism.
Slight clamping of the coupler in the holes, so that it holds even without a locking mechanism.
To make it durable, stable, and high-quality, I recommend ASA as the print material.

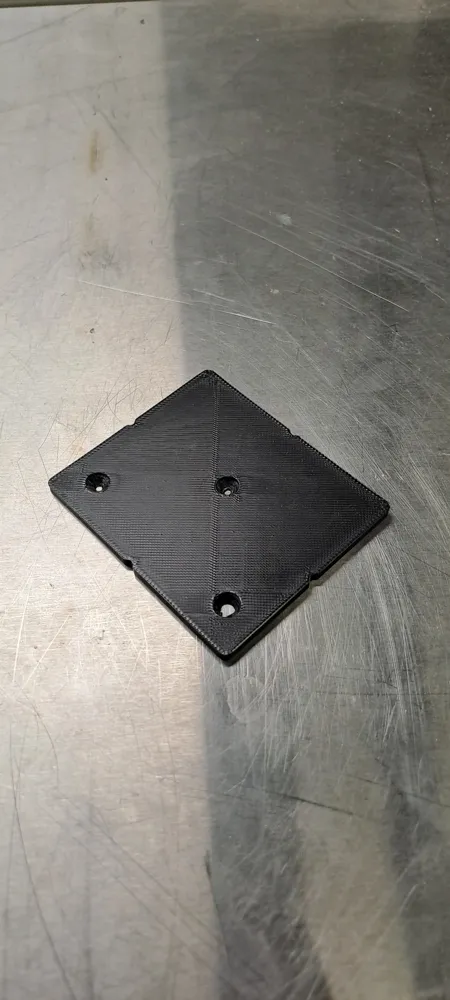

Print a drilling template for the holes from PLA, and easily and precisely transfer the positions using a center punch.
