Furniture Wall Bracket 10cm Offset + Cover

Universal Furniture Wall Bracket with Cover (10 cm Offset)

This 3D printable furniture wall bracket is designed for secure and flexible wall mounting of cabinets, shelves, and furniture.

The 10 cm long base allows mounting even when there is a larger gap between furniture and wall, which often happens with exterior walls, insulation, or baseboards. A snap-on cover hides the screws after installation, creating a clean and professional look.

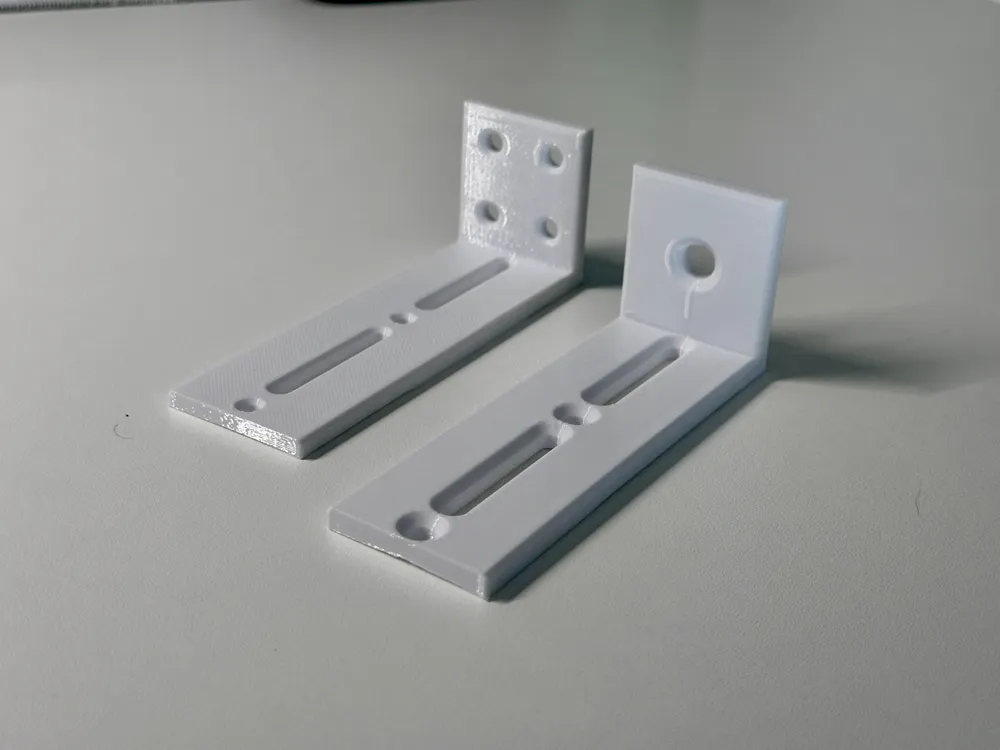

Included Variants

Two bracket versions are included for different mounting needs.

• 1 × 8 mm hole
• 2 × 5 mm holes

Perfect for installations where fine adjustment is required.

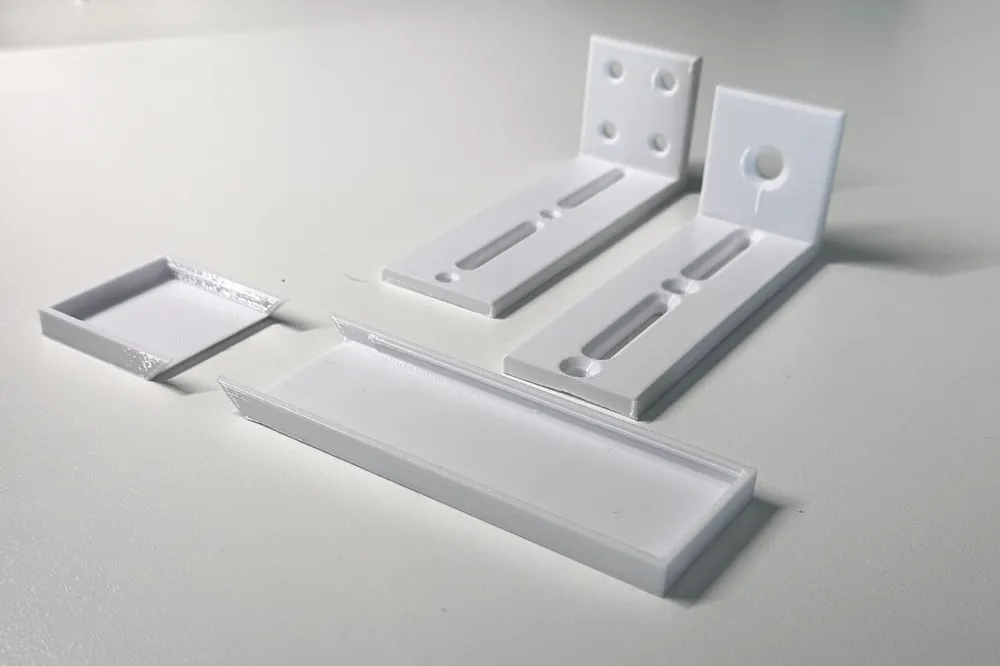

Both versions include a matching cover that hides all mounting screws.

Features

• 10 cm offset – ideal for difficult wall distances
• adjustable mounting slots
• chamfered holes for clean screw seating
• snap-on cover hides screws
• easy to print
• strong PETG design

Perfect for:

• cabinets
• shelves
• sideboards
• DIY furniture builds
• workshop furniture

Printsettings:

Material: PETG
Layer: 0.2
Walls: 3
Infill: 25 - 50%
Supports: no

PETG offers excellent layer adhesion and durability, making it ideal for load-bearing parts.

Installation

1. Attach bracket to furniture
2. Mark the wall position
3. Install wall anchors and screws
4. Snap on the cover

Done — strong and clean furniture mounting.

Community

If you print it, please post your Make and share your setup.
Feedback and improvements are always welcome!
