4-Pod / Quadpod (tripod with 4 legs)
Print Profile(1)

Description

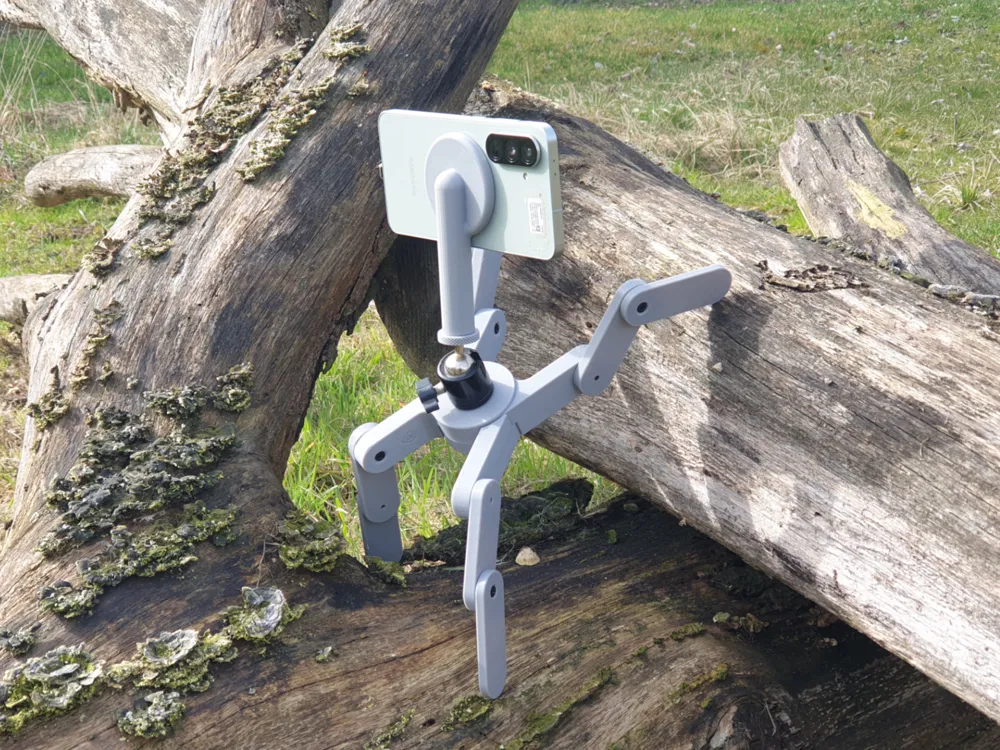

A versatile mini 4-pod / quadpod.
4 Legs that can be adjusted independently to any uneven surface in any angle.

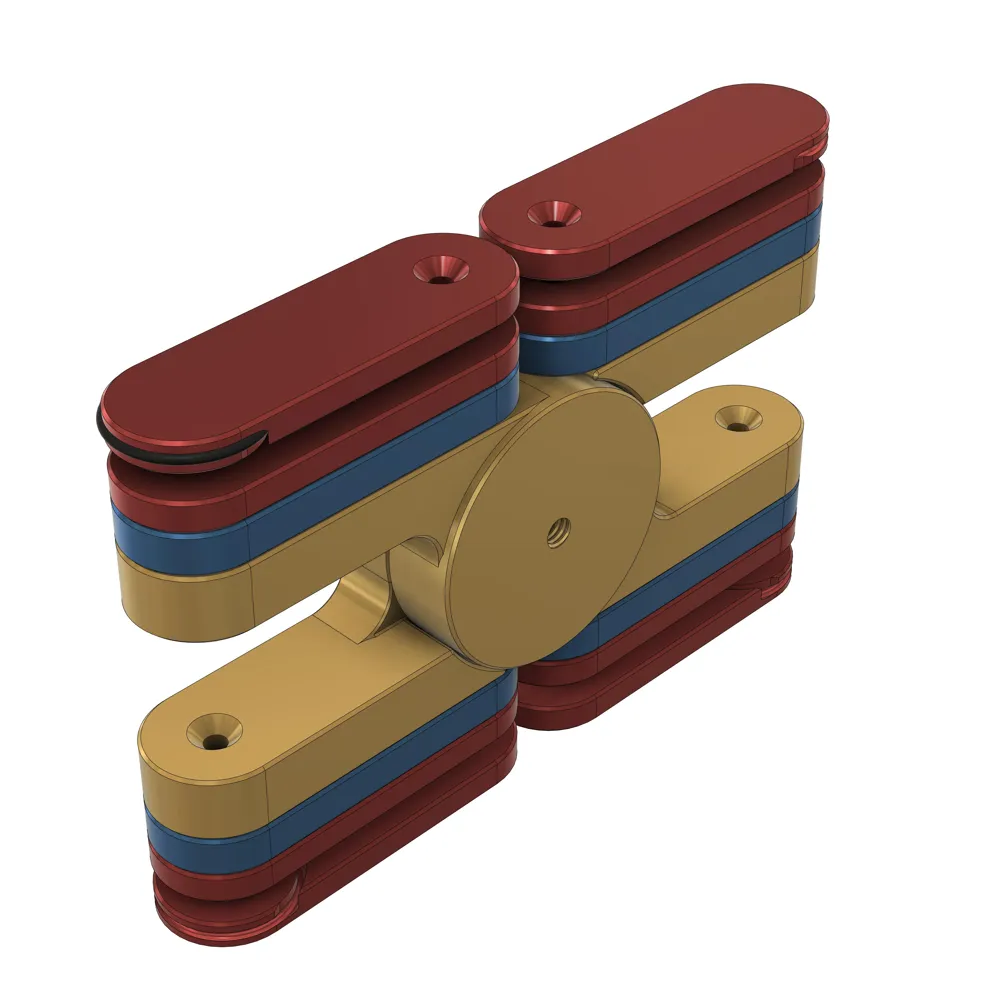

Completely folded: 164 x 95 x 33mm.
There are 2 versions of the 4 outer legs (Legs-b in Red):
1 version without an O-ring at the end
1 version with an O-ring (OD26-CS1.8mm) at the end, these provide extra stability on a slippery surface.

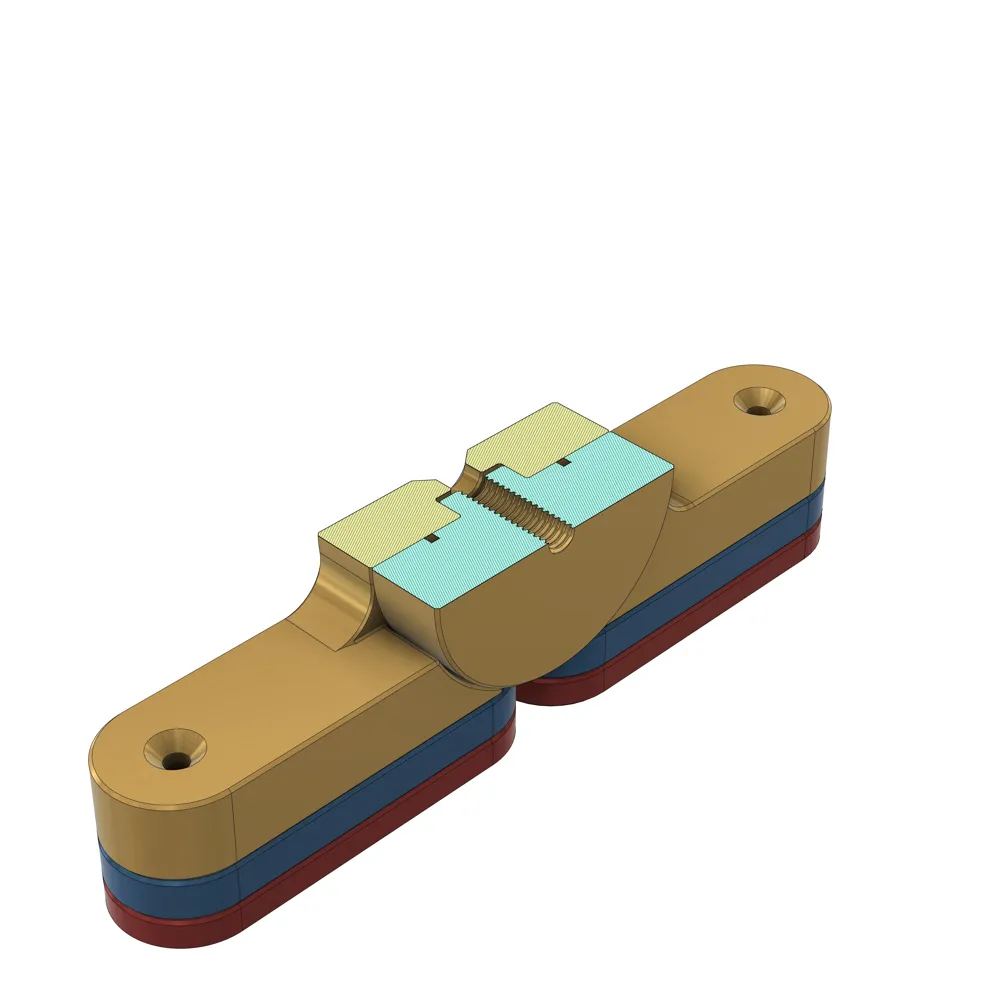

There are 2 versions of the Middle pieces:
1 version for a flat head screw 1/4-20 UNC L=5/8"
1 version for a flat head screw M4x14mm (not recommended)
You can optionally print the rubber gaskets in TPU (plate #8, not recommended))
Choose from the following 8 Plates:
Plate #1: Middle pieces for 1/4-20 UNC L=5/8" screw
Plate #7: Middle pieces for M4x14 screw
Plate #2: All Legs a & b
Plate #3: All Legs a & b for O-ring
Plate #4: All Legs a
Plate #5: All Legs b
Plate #6: All Legs b for O-ring
Plate #8: All TPU Gaskets
Hardware:
4 or 5 pcs Flat Head Screw M4x14
4 pcs Flat Head Screw M4x20
1 pc
10pc UNC/UNF 10#-24/32 1/4-20/28 to 1/2-13 304 Stainless 12.9 Black Steel Hex Hexagon Socket Allen Cup Point Grub Bolt Set Screw
https://aliexpress.com/item/1005005148074518.html
Size: 1/4-20
Length: 5/16" (10pcs)
Color: 304 stainless steel
1 pc (depends on middle pieces)
2/50pcs UNC/UNF 2 3 4 6 8# 10# 12# 5/32-32 1/4-20 5/16-18 3/8-16 Stainless Steel Cross Phillips Flat Countersunk Head Screw Bolt
https://aliexpress.com/item/1005007907930075.html
Size: 10pcs 1/4-20
Length: 5/8
Black Flat Washer 2-42mm Rubber Flat Gaskets Anti Oil Seal Washers Waterproof O-Ring Shock-absorbing for Faucet Pipe Water Hose
https://aliexpress.com/item/1005008449924339.html
3 pcs
Size: 5x17x2mm-20pcs
8 pcs
Size: 6x20x2mm-20pcs
Optional:
10/50Pcs NBR O Ring Gasket CS 1.8mm ID 1.6mm ~ 71mm Automobile Nitrile Rubber Round O Type Corrosion Oil Resistant Seal Washer
https://aliexpress.com/item/1005004043815039.html
4 pcs
Size: ID 22.4mm OD 26mm
Color: 10pcs
Thickness: CS 1.8mm
