PL18-Ultra Retrofit Crossfire Self-Powered Remote Control

A near-perfect PL18U add-on Crossfire solution

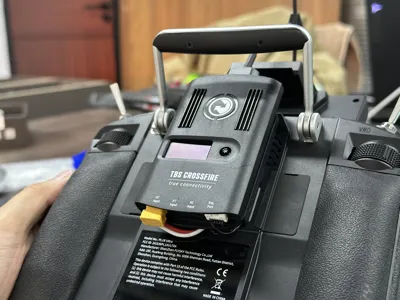

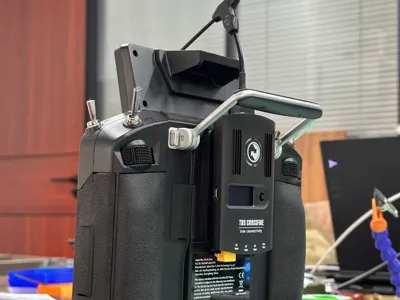

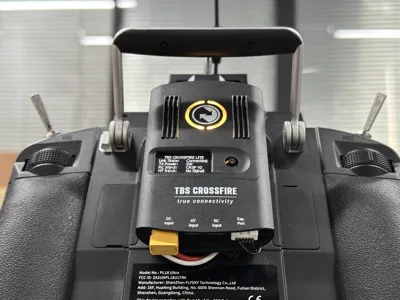

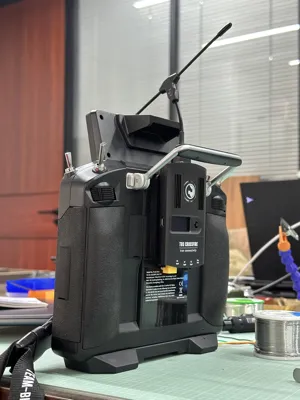

The wires are almost hidden, and no external battery is required, the Crossfire is powered directly using a blade connector

The high-frequency module powers on and off with the remote control, making it extremely convenient for outdoor use

The control battery can be upgraded to Yuandong 4000mah 1s3p

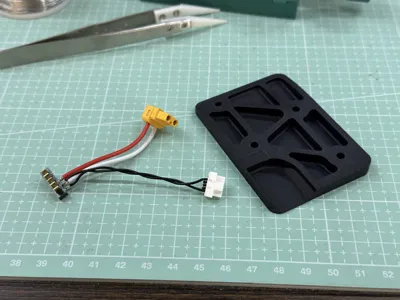

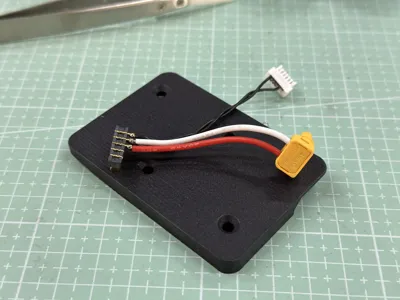

accessories:
——5pin horizontal blade connector

——90-degree elbow XT30

——【502380-0600 MOLEX 1.25mmCLIK-MATE】Crossfire high-frequency module plug

!!Attention!!

The PL18U power supply currently has a bug; when charging the remote control via USBC, the high-frequency module power supply will turn on

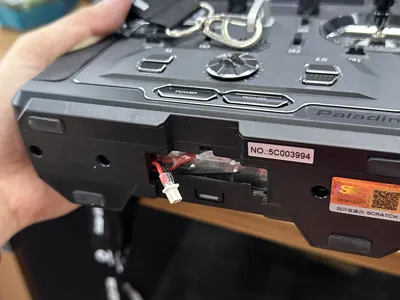

My current solution is to remove the metal plate from the PL18U's bottom panel and route a BT2.0 plug from the control battery to charge the battery directly, so the high-frequency module doesn't need to be turned on

You can also unplug the high-frequency module power port every time you charge, but I don't like it
