Standoff for a 5mm magnet for PCB, motherboard

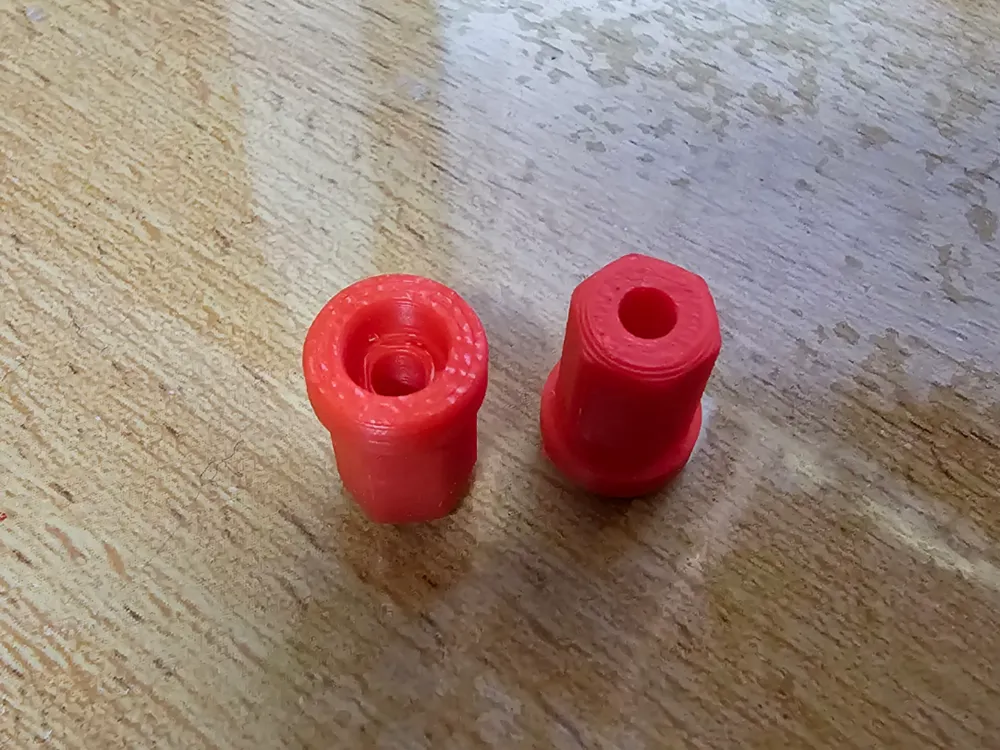

Another standoff/PCB holder with an M3 hole and a slot for a 5x3mm magnet.

The 3mm hole goes through the whole stud so that you can use it to remove the magnet.

The hex is 7mm so you can use a wrench to hold it in place while screwing.

Solidworks file is included if you need to modify it to fit different magnets.

The standoff is intentionally weak at the connection between the hex and magnet holder part so that you can cut off the hex more easily if you can't remove the magnet!

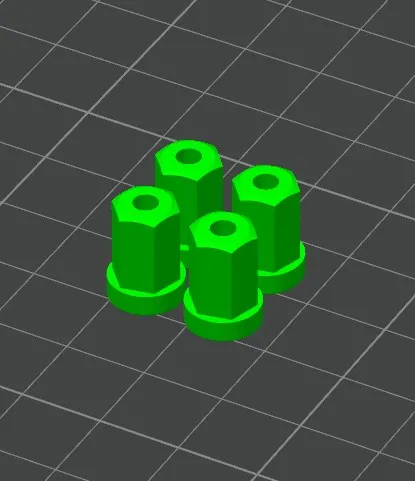

I used PLA, it can be printed with or without supports but I prefer using them. Keep the Override filament scarf seam setting so that your magnets fit better.

Happy printing!
