Housing for Si4732 radio and ILI9341 2.8" LCD ESP
Print Profile(1)
Description

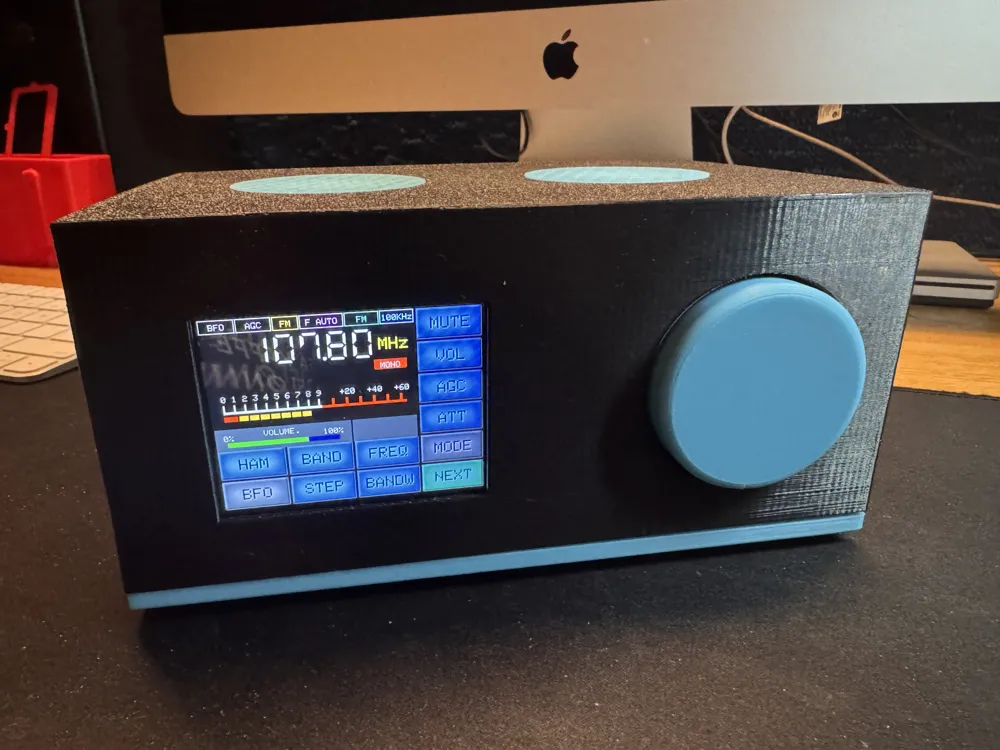

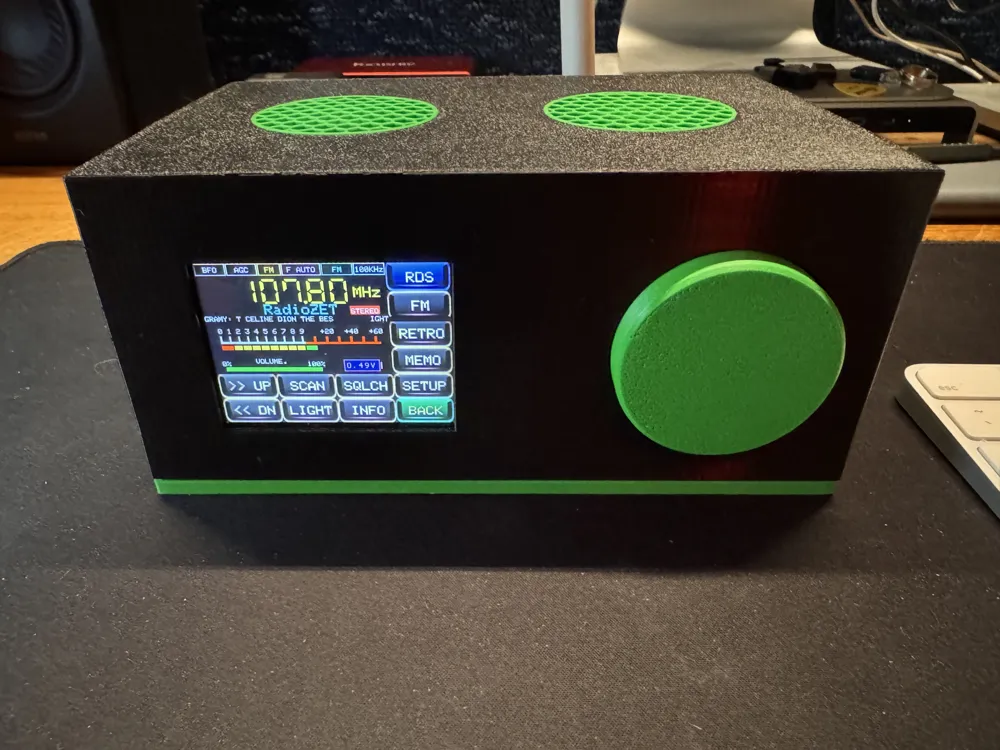

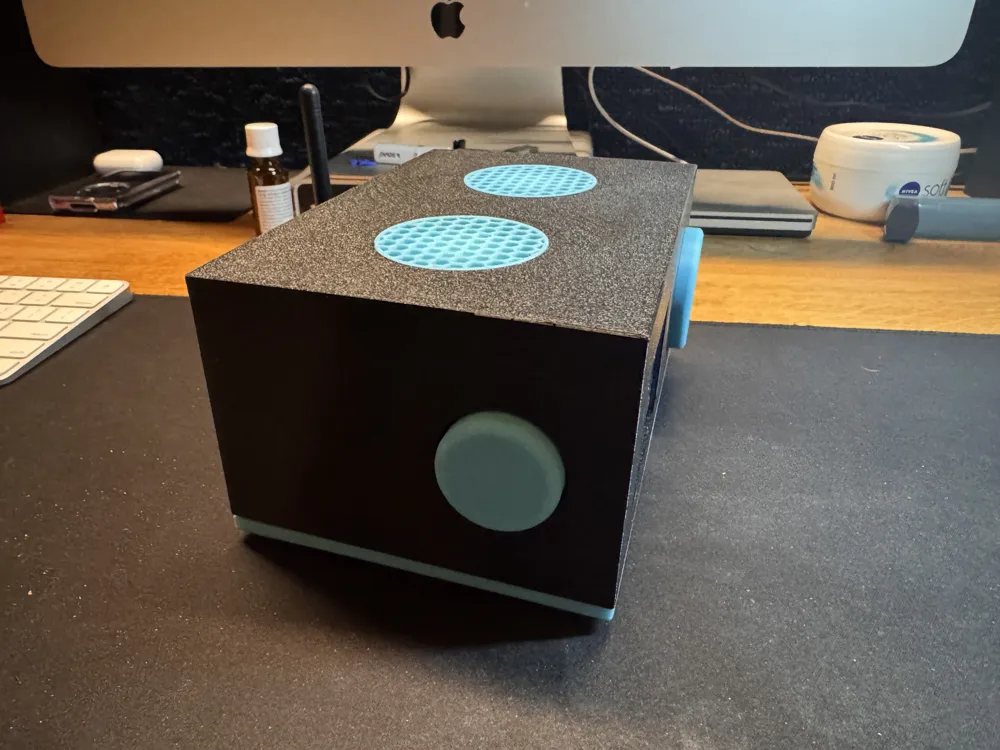

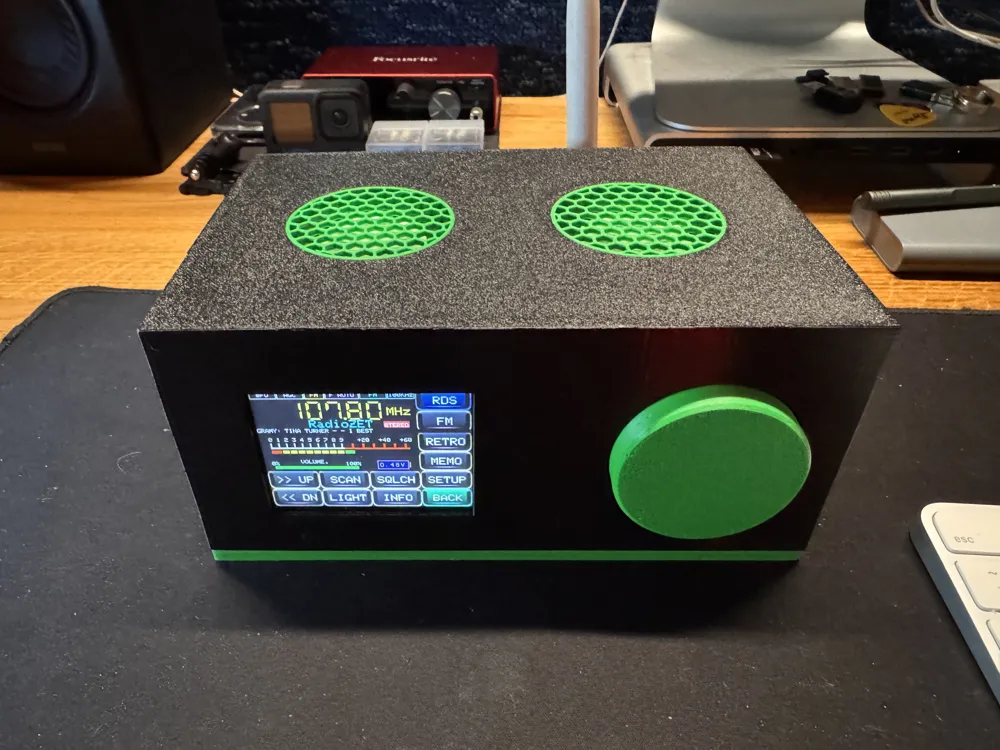

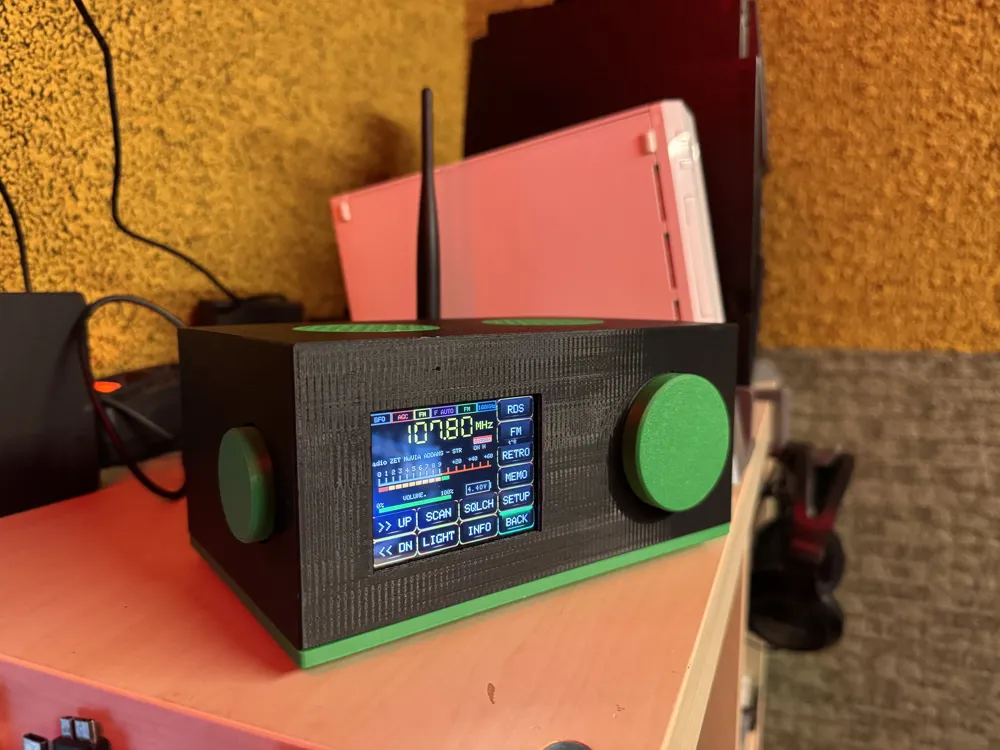

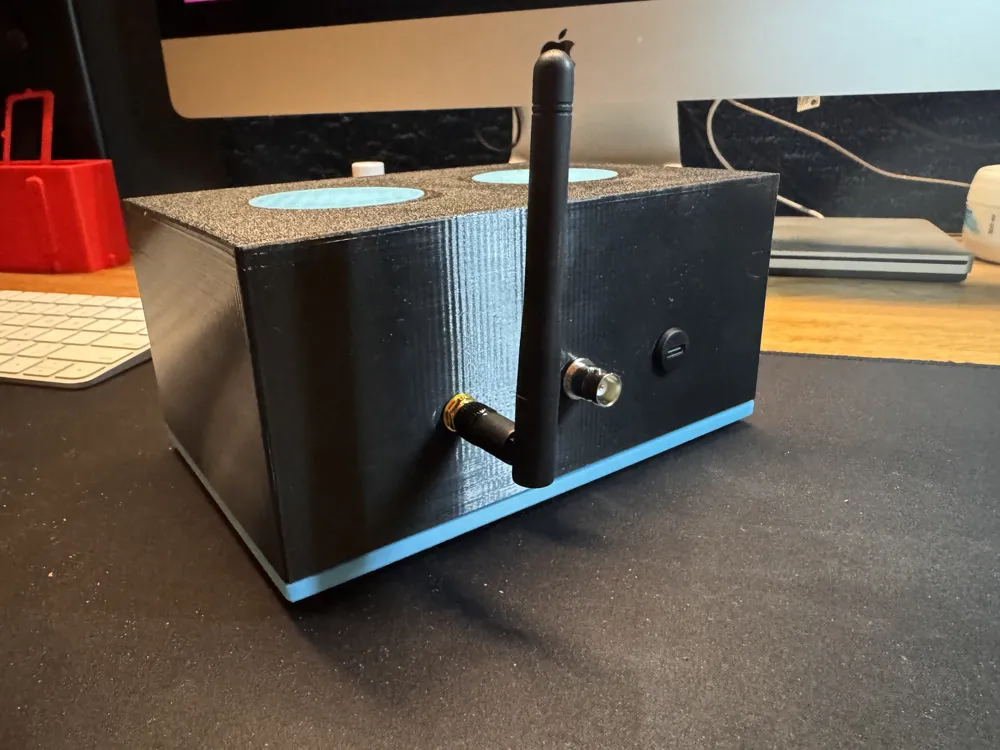

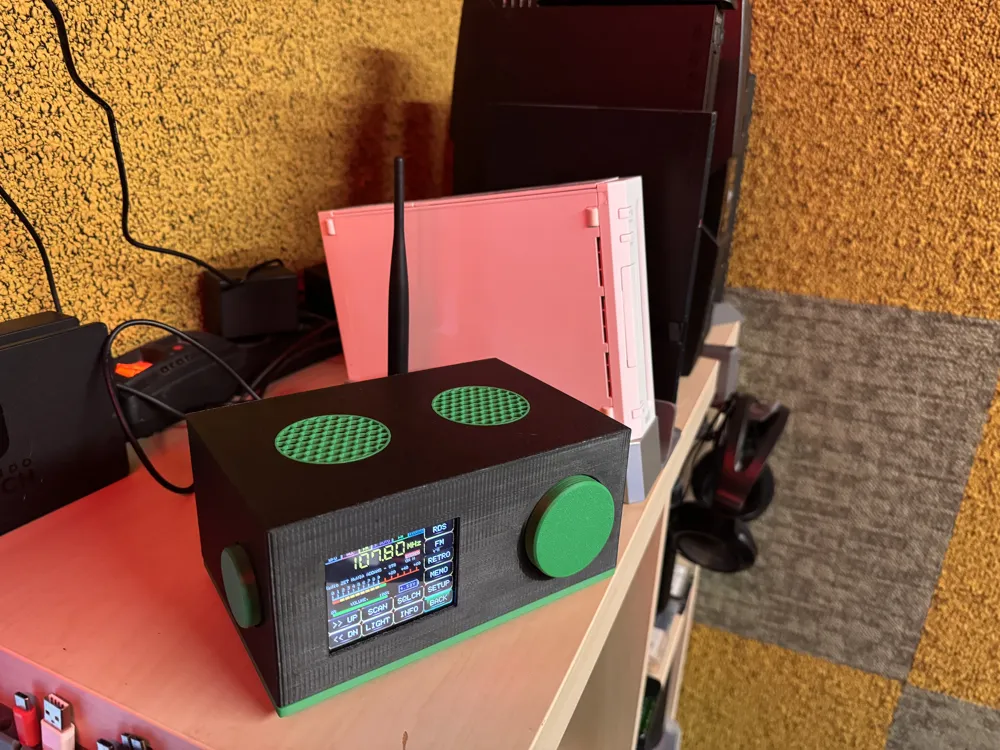

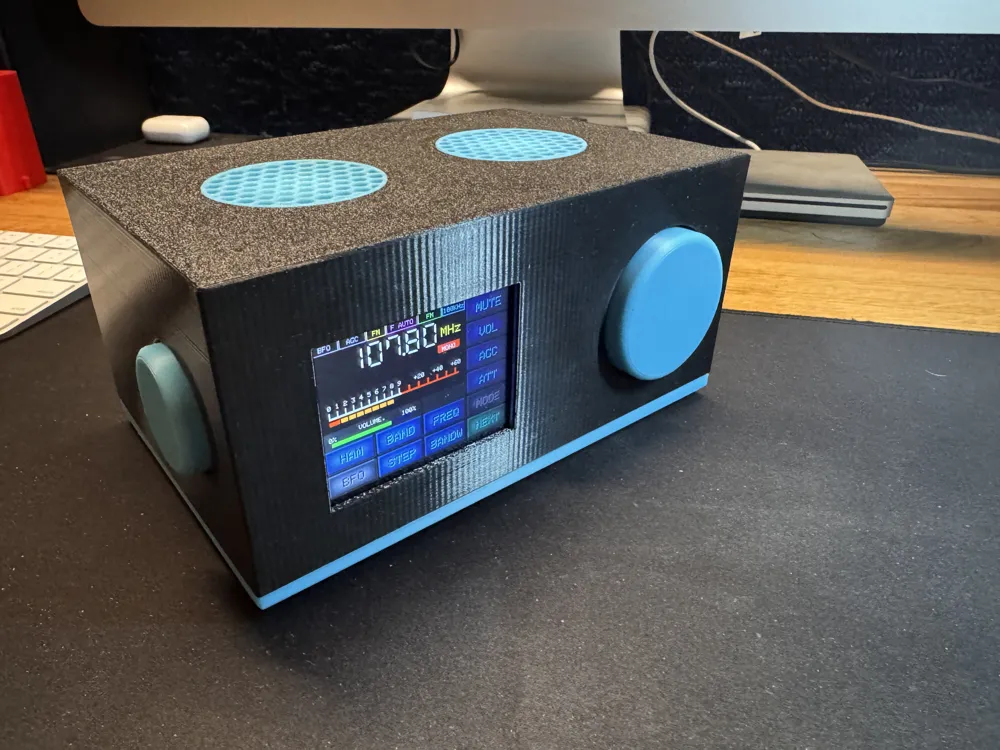

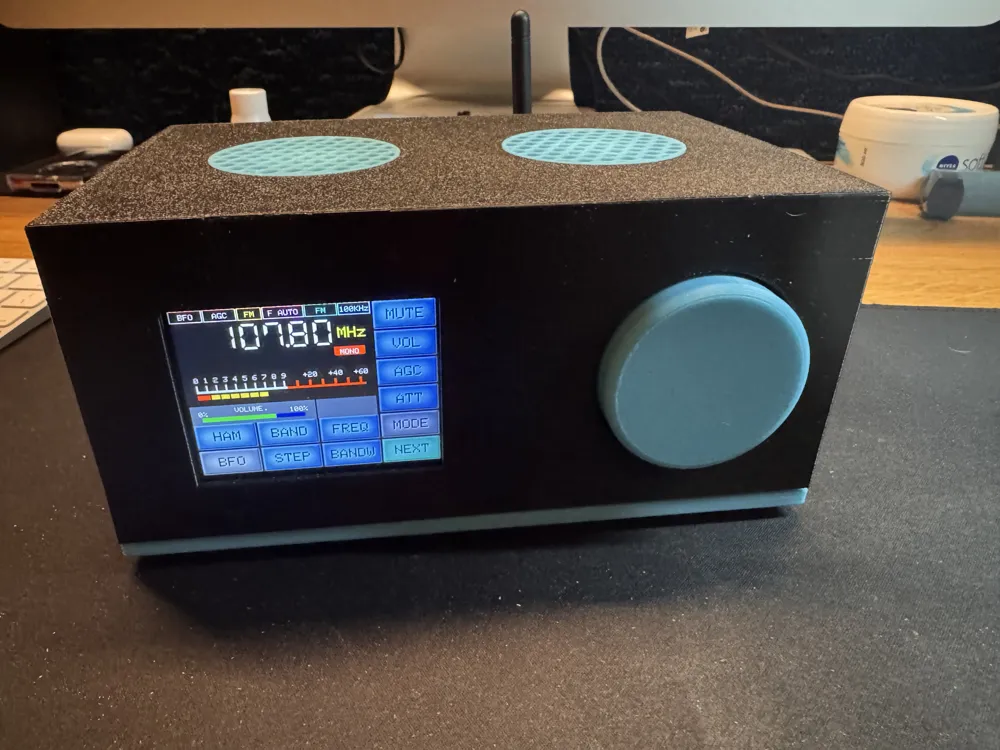

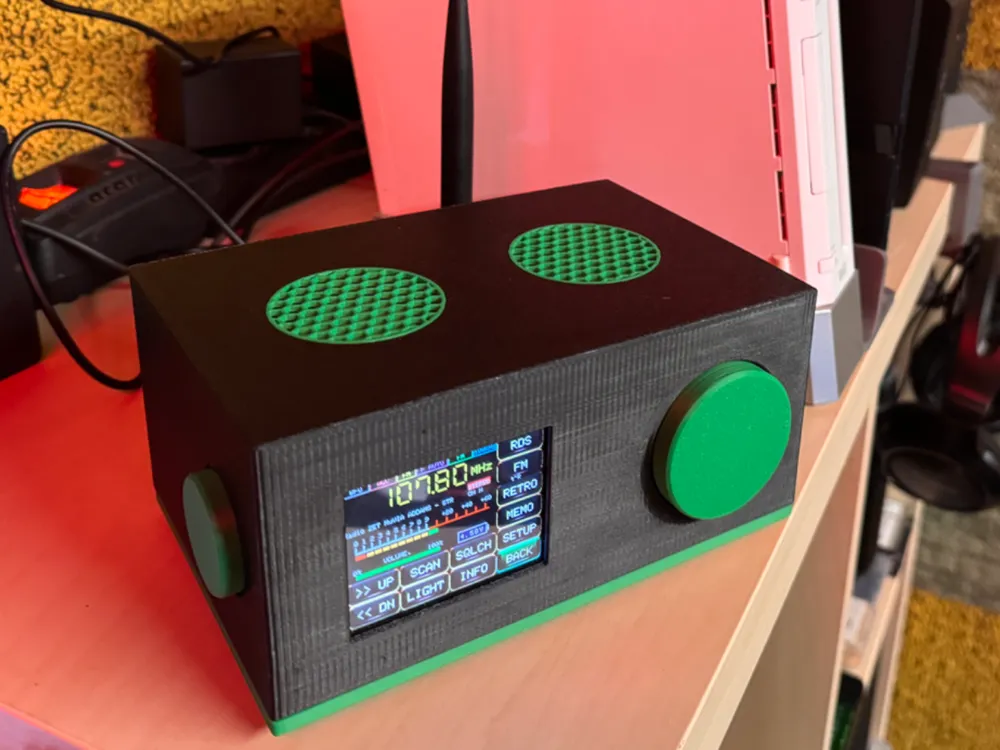

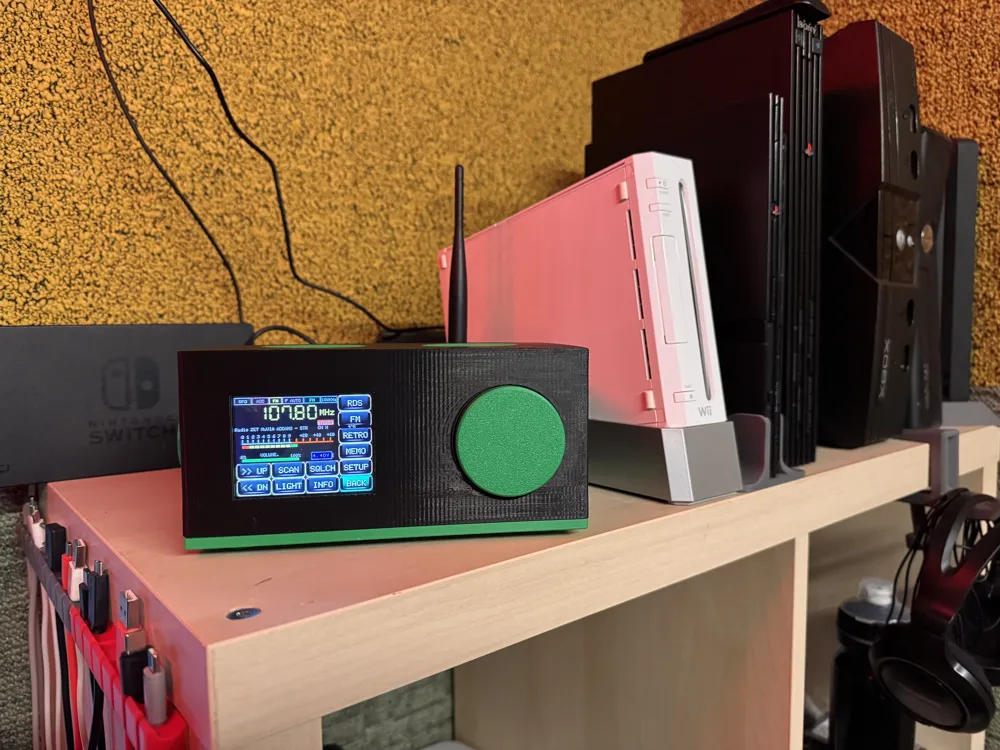

Housing for Si4735 radio and ILI9341 2.8" LCD

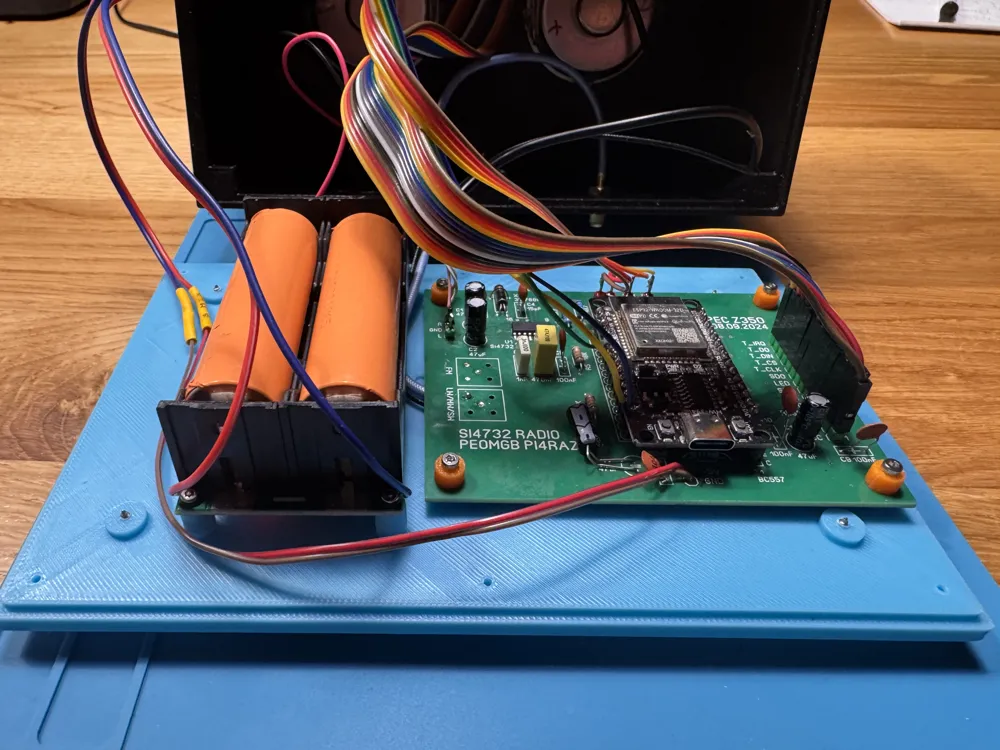

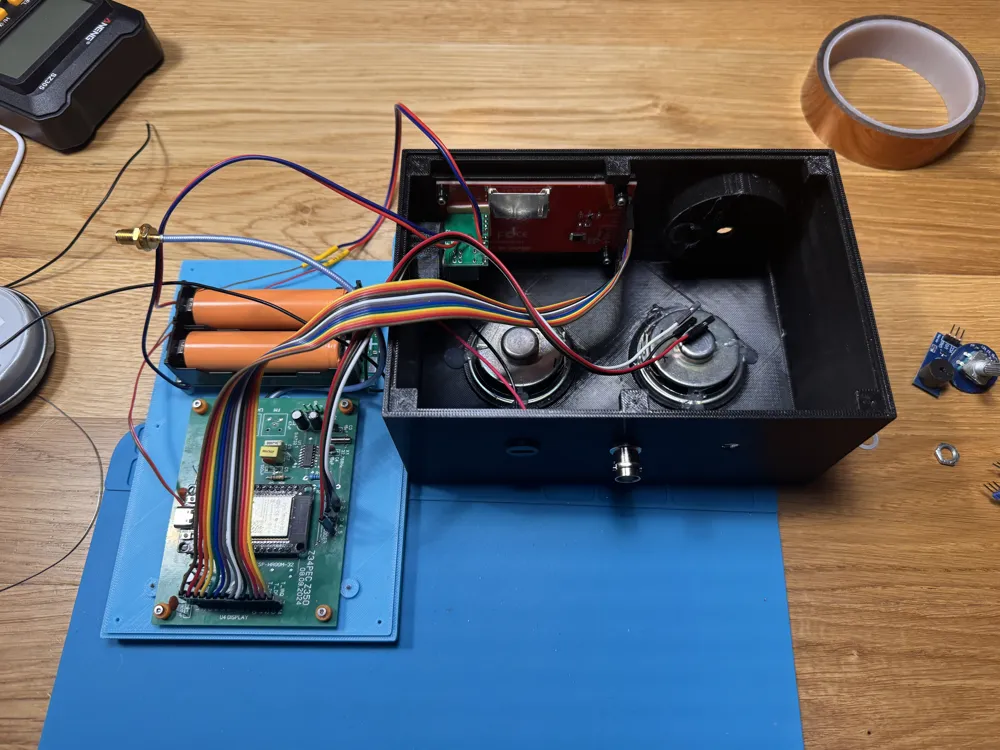

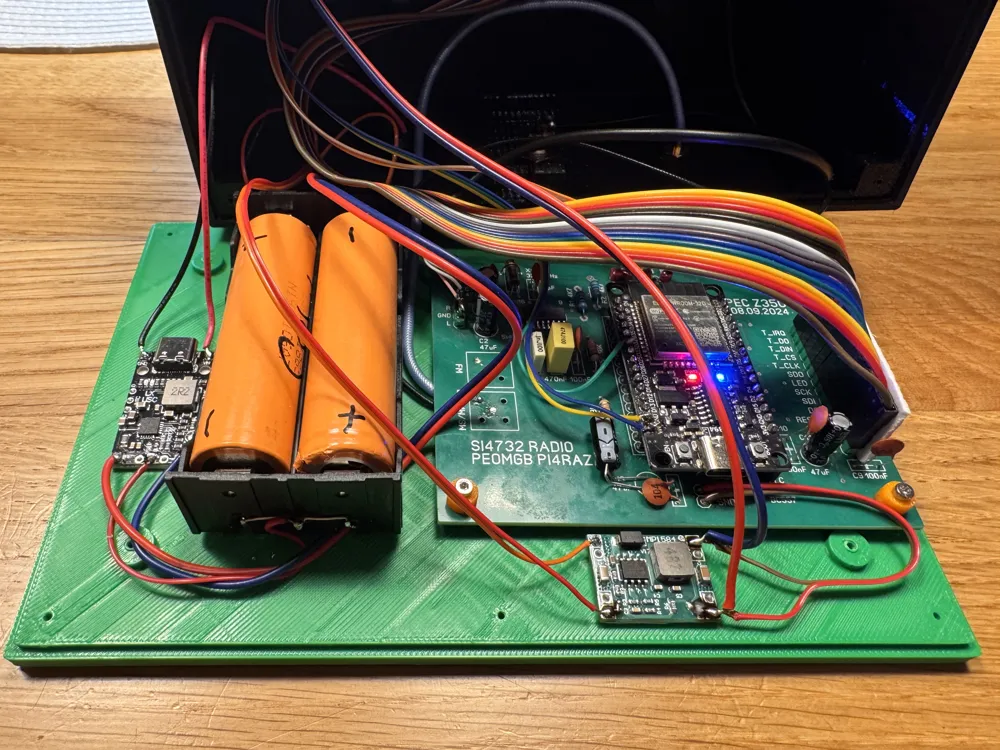

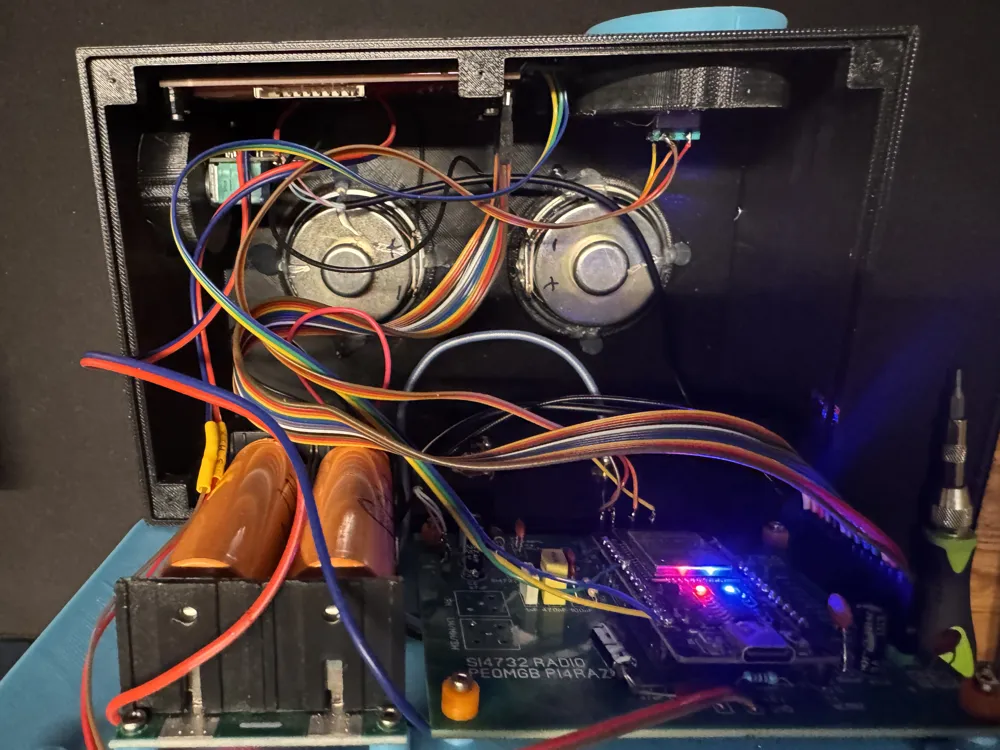

Radio enclosure designed for the ILI9341 2.8" LCD display and PE0MGB / PI4RAZ printed circuit board.
This enclosure is also suitable for the YORADIO after modifying the electronics mounting hardware.
The encoder knobs come in different sizes and need to be adjusted to the encoder or potentiometer you purchase.
I also have a second version of this enclosure, a more rounded one, for which I also post the files on this website.
If you need any modifications, e.g., for the YORADIO or other electronic components, please let me know and I will modify them for you and post them on this website.
If you need a list of the components used in this project, let me know.
