Description
🔗 Explore the full DataDisplay V1 ecosystem here: [DataDisplay Ecosystem Collection]
DataDisplay V1 – Wall Mount Edition
Take your DataDisplay V1 off the desk and put it right where you need it! This version is specifically redesigned for vertical mounting, making it the perfect companion for your workshop, smart home dashboard, or office wall.
It serves as an elegant, highly customizable information center. Unlike many other DIY projects, it features full on-device configuration—no external app or PC required after the initial flash.
Fully flashable directly through your web browser. Chrome or Edge is all you need.
Flash your CYD here: https://lachimalaif.github.io/DataDisplay-V1-instalator/
Github project page: https://github.com/lachimalaif/DataDisplay-V1-instalator
🚀 Latest Update: V1.5.0 (Apr 7, 2026)
New Version Available! This update expands your weather insights and optimizes the display for better readability and stability.
- Weather & Forecast:
- 3-Day Forecast: Extended visibility for the upcoming days.
- Min/Max Temps: Added today’s temperature range.
- Compact View: Implemented day shortcuts for a cleaner look.
- UI & Readability:
- Namedays: Removed diacritics and increased font size for better legibility.
- Time Display: Cleaned up the clock UI by removing the colon before seconds.
- Stability:
- Boot Fix: Resolved the fetchWeatherData loading issue during startup.
Boost Me (for free)
If you like this project, I would truly appreciate your likes, downloads, and especially a Boost! It helps me keep creating. Enjoy the print and DataDisplay! :)
Why Wall Mount?

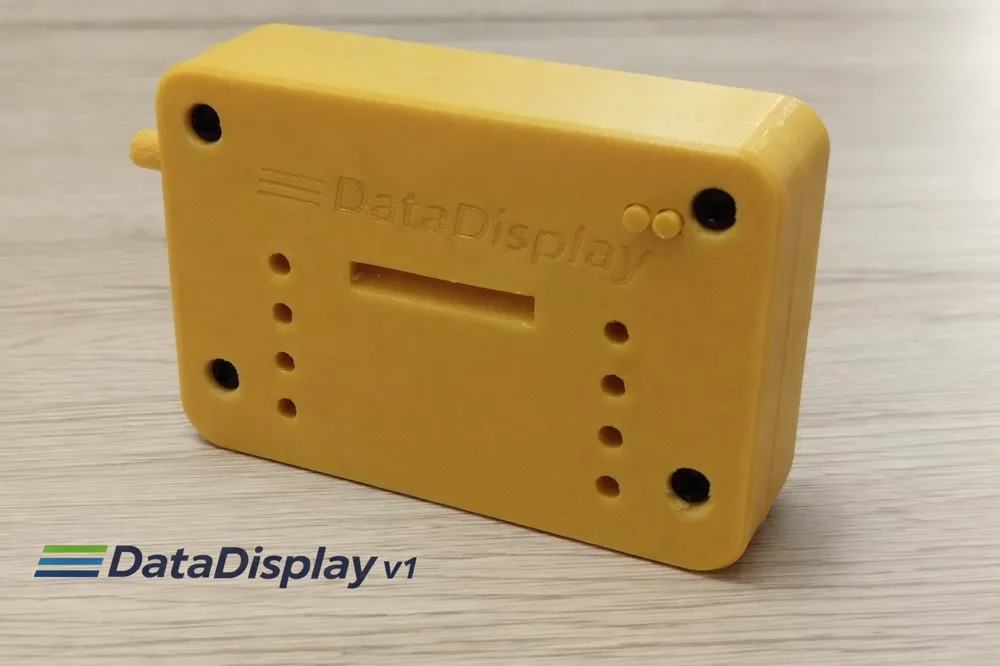

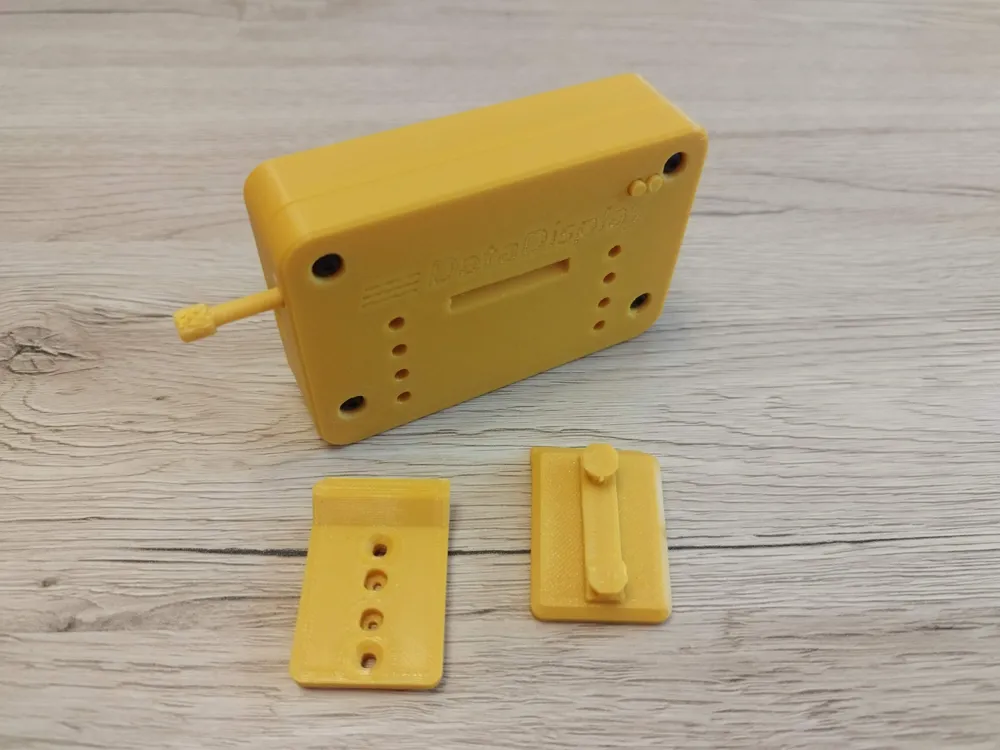

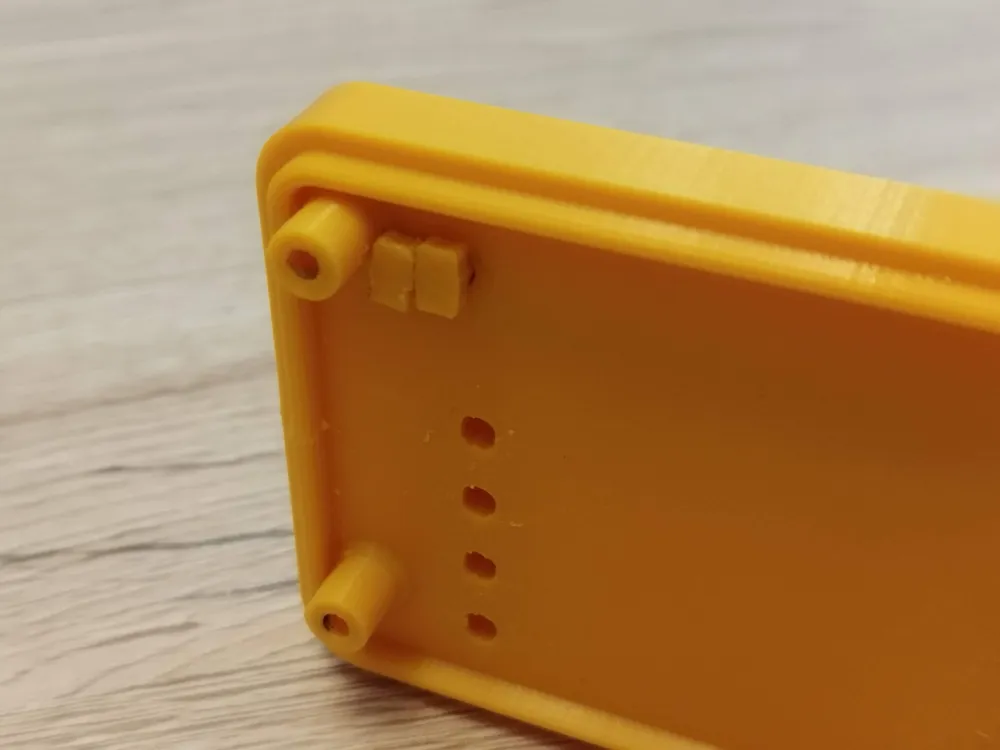

While the original version is great for desktops, this edition features a reinforced back housing designed to slide perfectly into the mounting hooks. It’s slim, sturdy, and keeps your workspace clutter-free.
Key Features:
- Easy Printing: Optimized geometry for a clean printing experience.

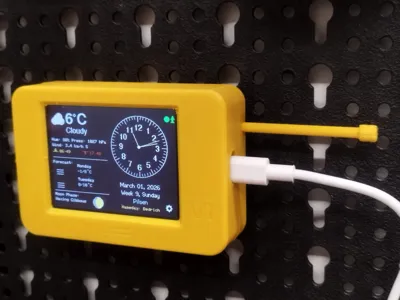

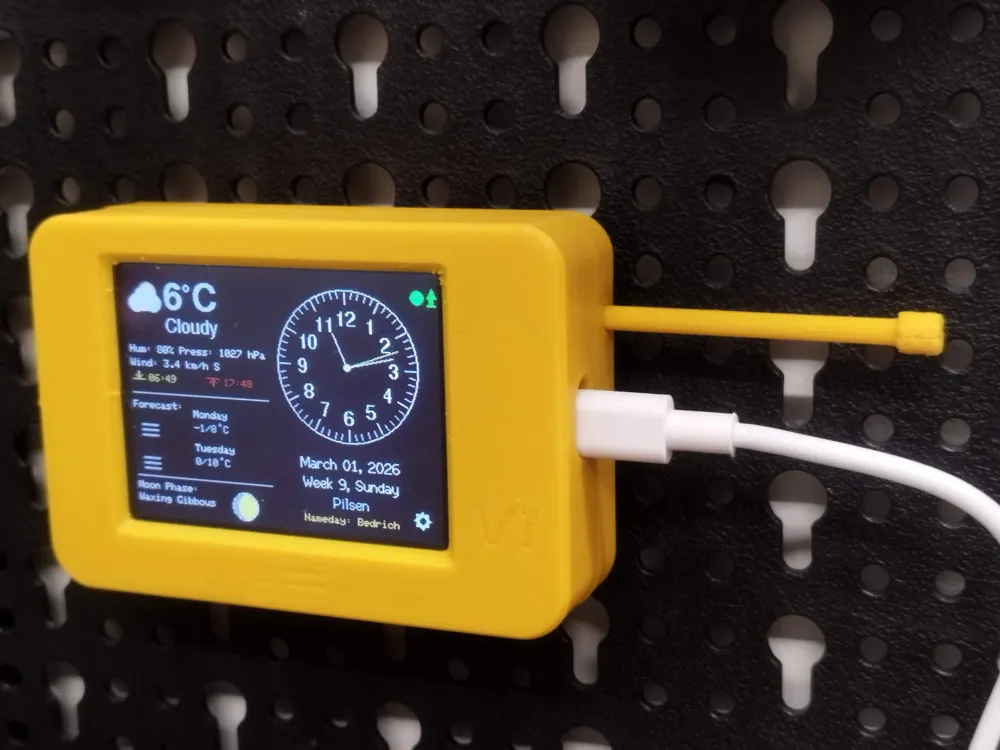

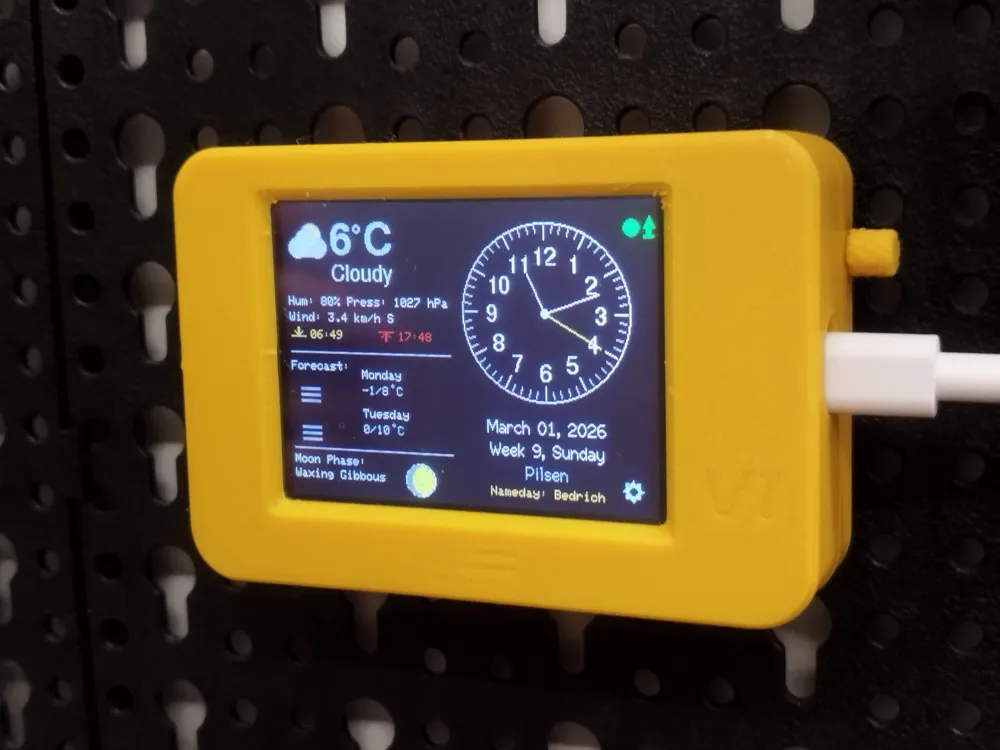

- Modular Mounting: Compatible with multiple mounting systems (Wall, Screws, or Parkside and IKEA Skadis Pegboards).
- Seamless Fit: Designed specifically for the DataDisplay internal components.
The Full DataDisplay System:
To get the most out of this model, you will need the Mounting Hooks and Stylus found in the Accessories Pack:

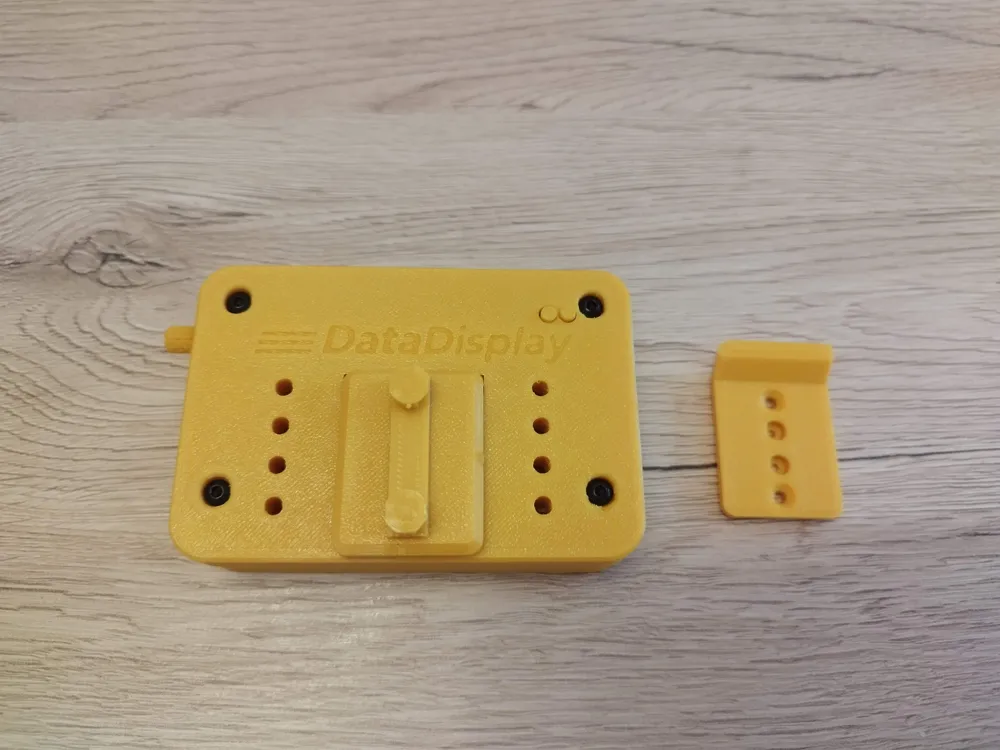

- 🛠️ REQUIRED MOUNTS: DataDisplay V1 Accessories & Mounting Pack (Includes: Flat mount, Screw-on mount, Parkside Pegboard mount, Ikea Skadis Pegboard mount, and the Original Stylus)
- 🖥️ DESKTOP VERSION: Looking for the original stand? Get the DataDisplay V1 Updated for a perfect 45° desk viewing angle.
Recommended Print Settings:
- Material: PLA
- Layer Height: 0.16mm.
- Infill: 15% (Gyroid).
- Supports: small supports recoomended (use prepared print profiles)

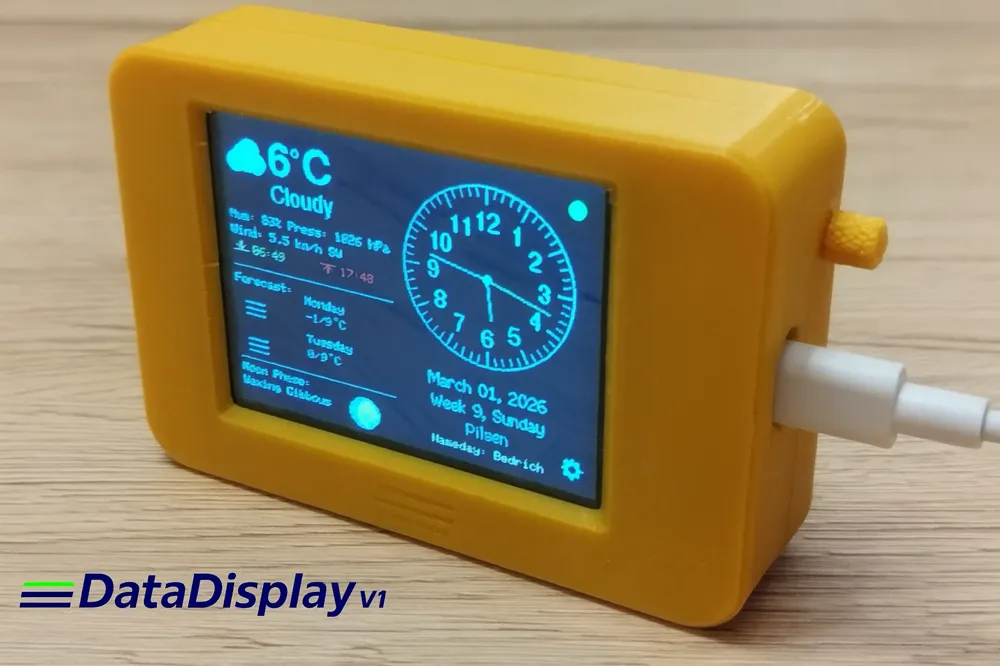

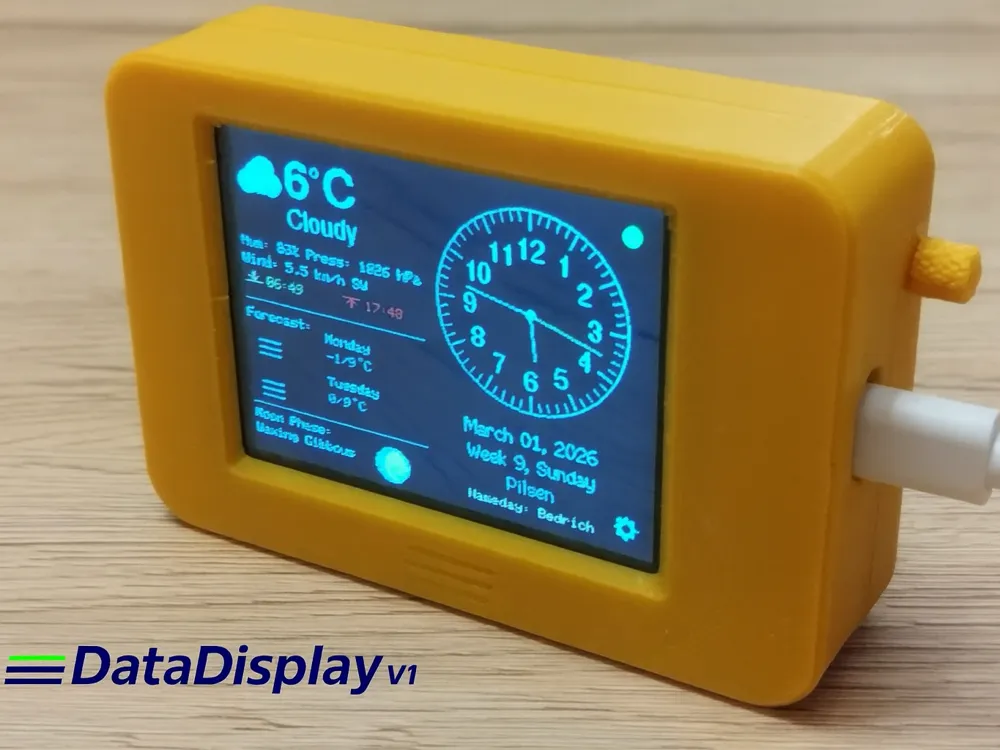

All-in-One Feature Set: - Full Device Integration: Complete settings menu accessible directly via the touchscreen.
- Easy WiFi Setup: Built-in network scanner and visual connection status indicator.
- Advanced Weather: Automatic location scan (IP-based) or manual country/city selection. Includes current conditions, forecasts, and sunrise/sunset times.
- Flexible Clock faces: Toggle between analog and digital modes (12/24h formats).
- Calendar & Name Days: Displays the current date, week number, and regional name day info.
- Moon Phases: Beautifully rendered vector icons showing the current lunar stage.
- Visual Themes: 4 distinct color themes to match your style (Black, White, Blue, Yellow).
- Automatic Dimming: Features a fully adjustable display intensity mode.
- Personalization: Manual brightness control and temperature unit switching (°C / °F).
- OTA Updates: Possibility of automatic, or semiautomatic updates over the air
- Firmware menu in settings
Why this project?
- Stand-alone Device: Once powered, it manages everything on its own via WiFi.
- User-Centric Design: Clean UI with an emphasis on readability and ease of use.
- Maker Ready: A perfect project for MakerWorld and GitHub, combining coding, electronics, and 3D printing possibilities.

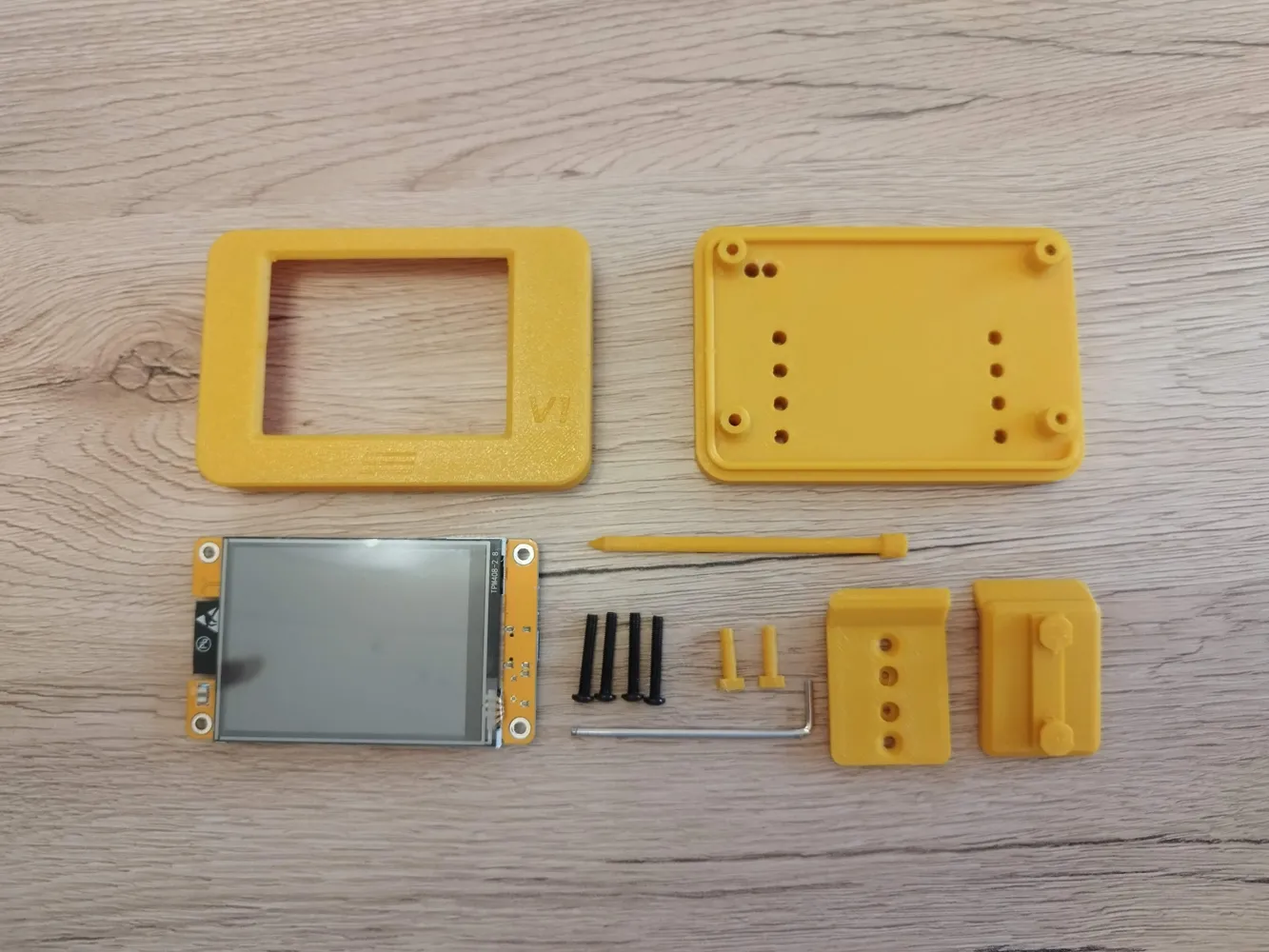

BOM (Bill of Materials) – What you need:

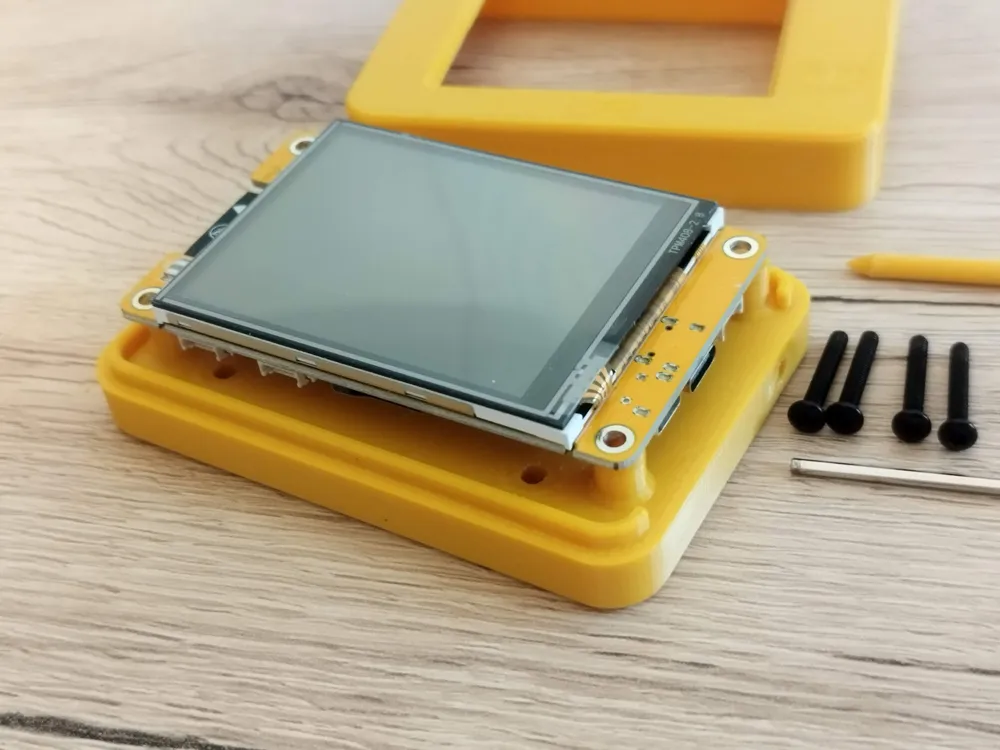

- esp32-2432s028 (CYD - Cheap Yellow Display 2.8")
- 3D printed case (Back, Lid, 2x Button)
- 4pcs M3x20 screws (Socket head / Allen key preferred)
- Choosen holder
- Stylus
I’m thrilled to share this project with you! If you enjoy the DataDisplay V1, please consider supporting my work with a 5-star rating, a Like, or even a Boost. These small gestures are incredibly important—they help the project stay visible on MakerWorld and motivate me to develop further updates and new accessories. 🚀
Don't forget to share photos of your prints and let me know your ideas for improvements in the comments. Happy printing!
Your Maker
