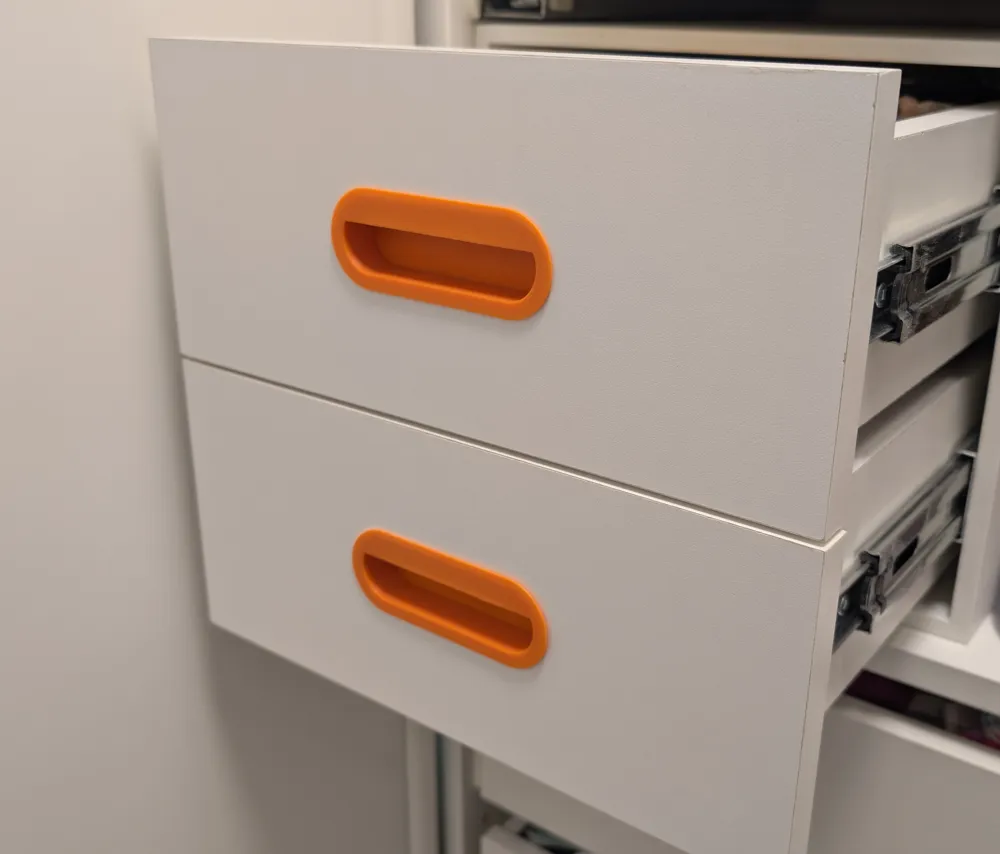

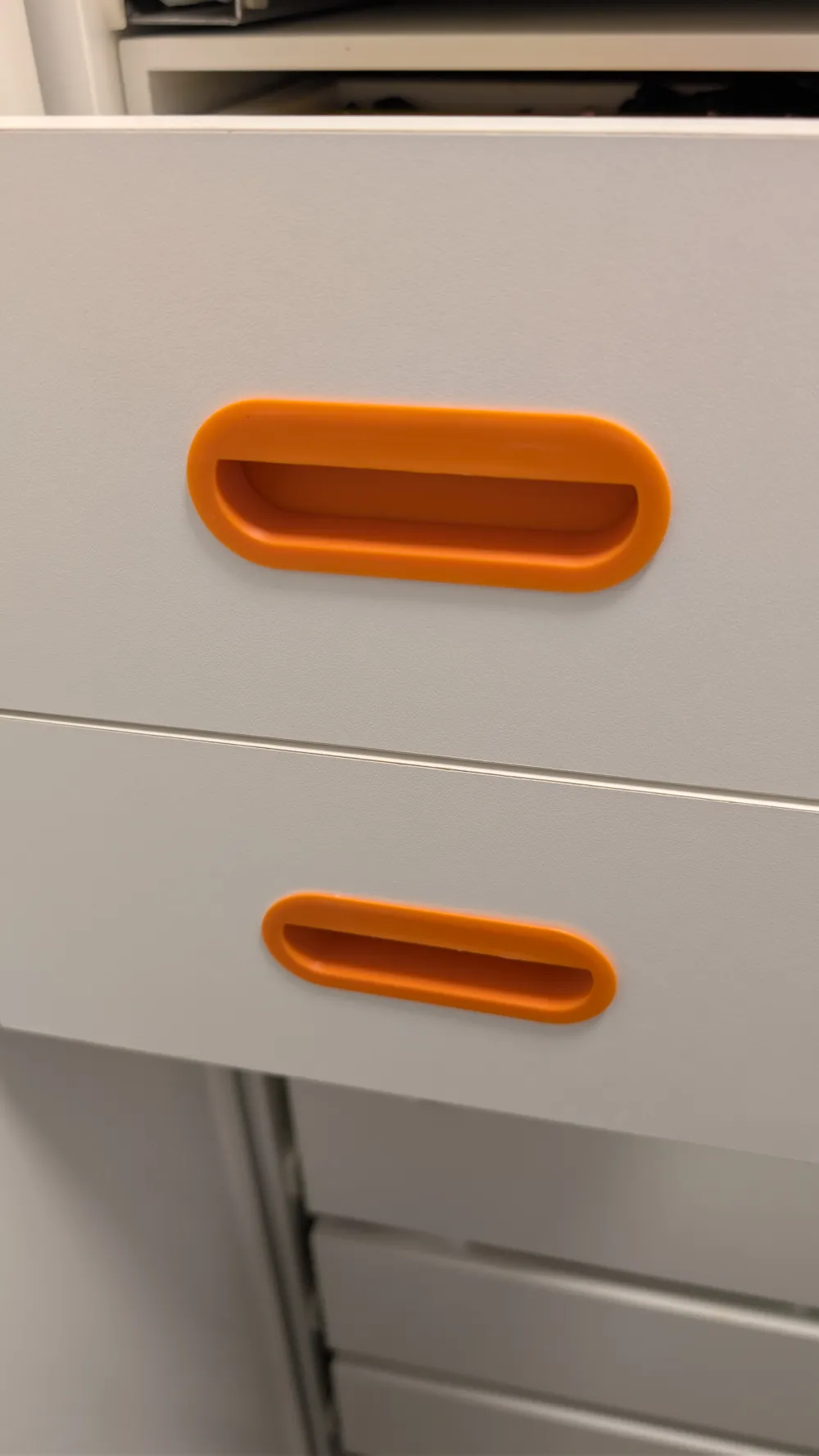

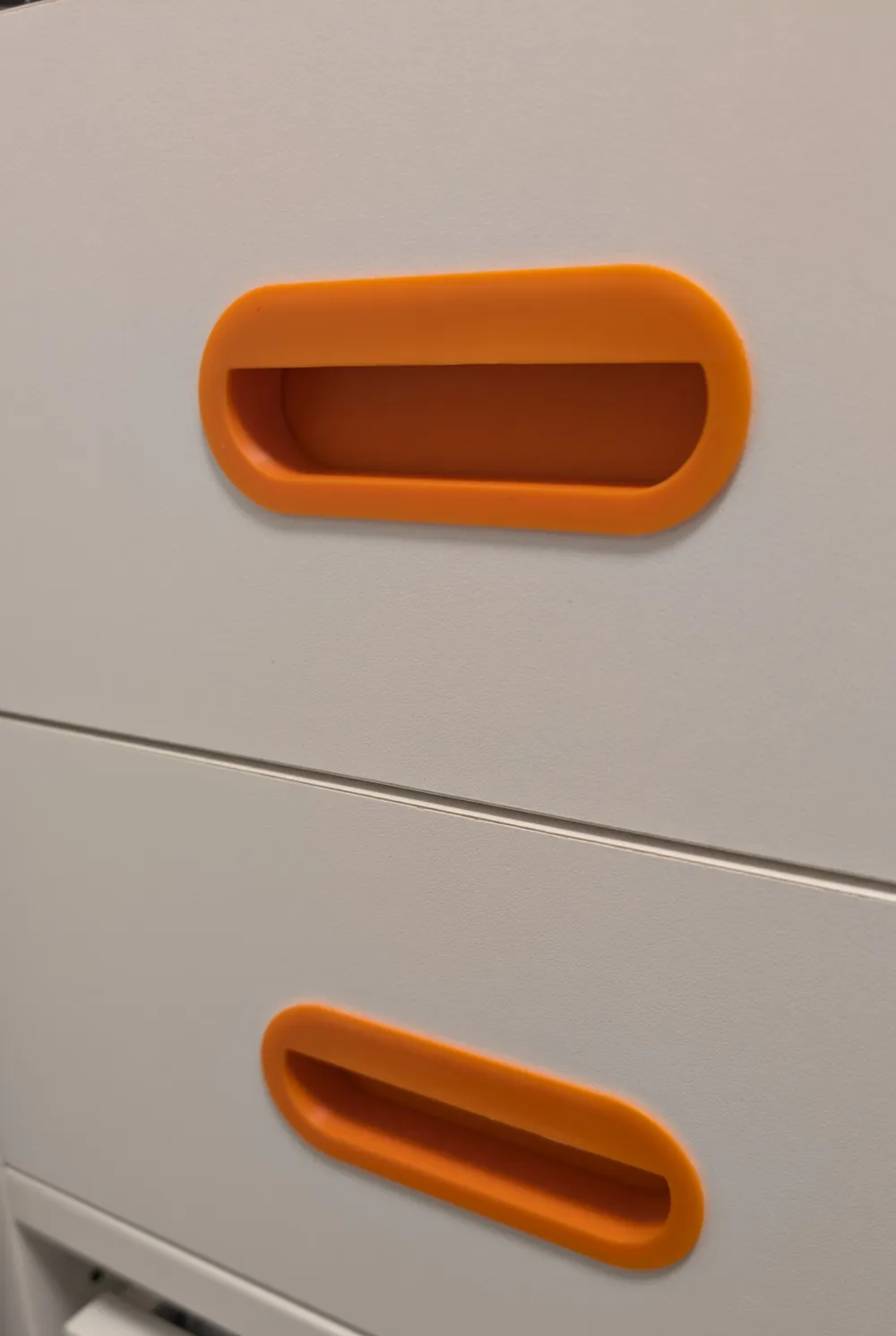

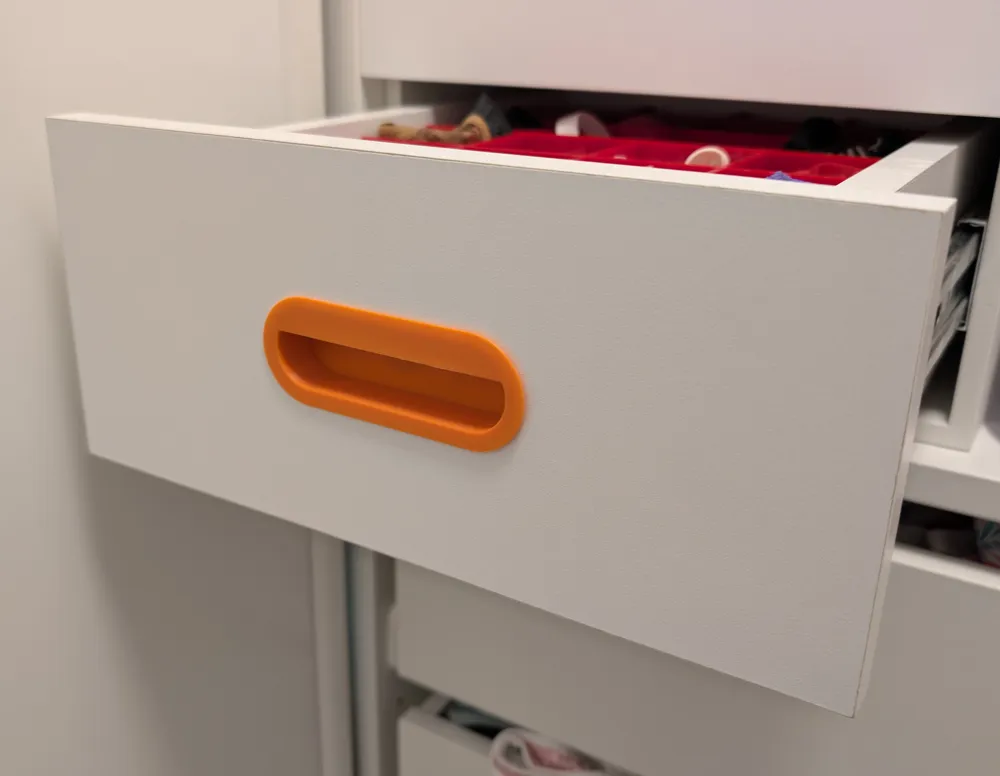

Recessed Handle for 5/8" Melamine Panel

This is a functional handle designed specifically for 5/8" (16mm) melamine panels. It provides a recessed, low-profile grip that eliminates the need for protruding hardware, making it an ideal choice for compact spaces or minimalist furniture builds.

Design Features

• Integrated Fit: Tailored for standard 5/8" sheet goods (melamine, MDF, or plywood). The depth is calibrated to sit securely within the board without compromising structural integrity.
• Pill-Shaped Geometry: The rounded, oblong "capsule" shape offers a comfortable four-finger grip and a clean, modern aesthetic.
• Low Profile: The flush-mount design prevents snagging on clothing and is safer for high-traffic areas or children's rooms.
• Customizable: As a 3D-printable file, it can be scaled slightly for different tolerances or printed in various colors to match or contrast with the cabinetry.

Technical Specs

• Mounting: Requires a routed or cut-out cavity in the drawer front.
• Retention: Designed for a press-fit installation, though a small bead of adhesive can be used for a permanent bond.
• Material Recommendation: Best printed in PETG or ASA for long-term durability and resistance to skin oils, though PLA works well for light-duty decorative use.

Installation Notes

To install, you will need to create a matching cutout in your 5/8" panel (Cutout guide included in two sizes). The flange on the handle covers the rough edges of the cut, ensuring a clean finish even if the manual routing isn't perfect.
