Lab Rax mount for Rigol DHO924 oscilloscope
Print Profile(1)
Description

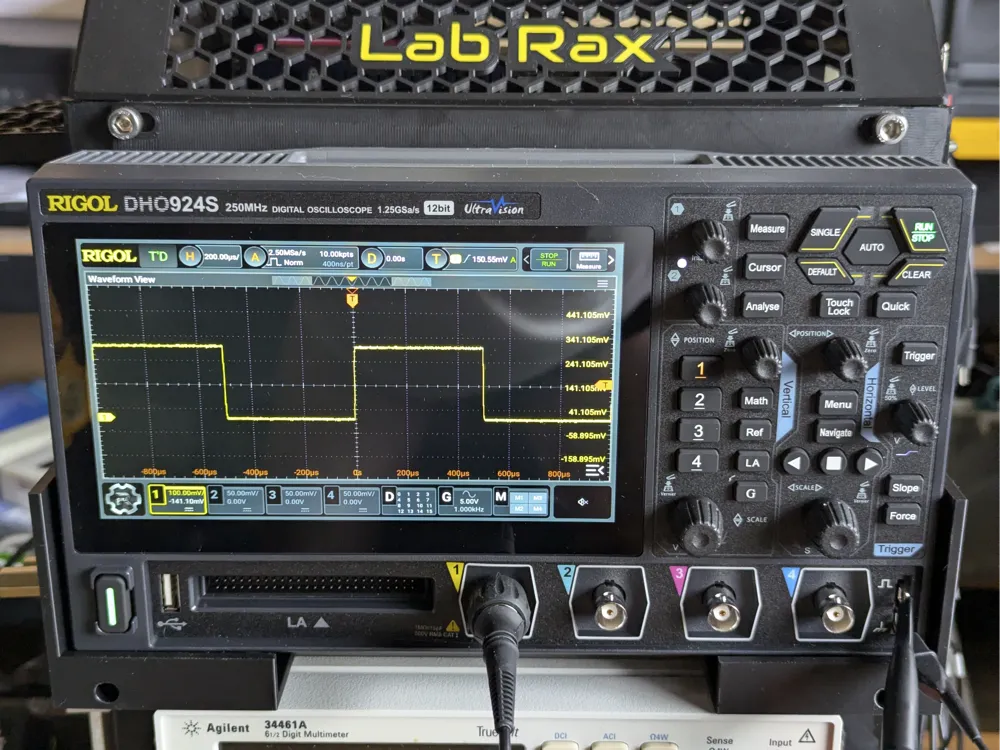

This design is for mounting a Rigol DHO924 oscilloscope on the front of a Lab Rax or other 10" rack mount system. Attaching to the rack requires 8 x M6x12 mm hex screws. It's important the screws fit entirely within the provided slots so other styles of screws with a wider head won't be suitable.
Enough clearance is provided for the power and Ethernet connections but you won't be able to access the two BNC connectors on the rear. It holds securely enough for use on a bench but I wouldn't recommend carting the rack around too much with the scope attached.
