Hello,

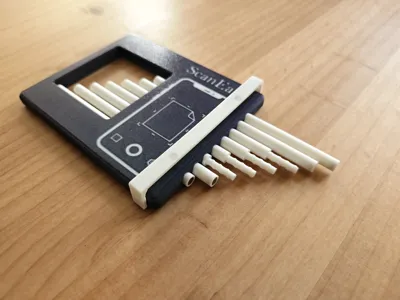

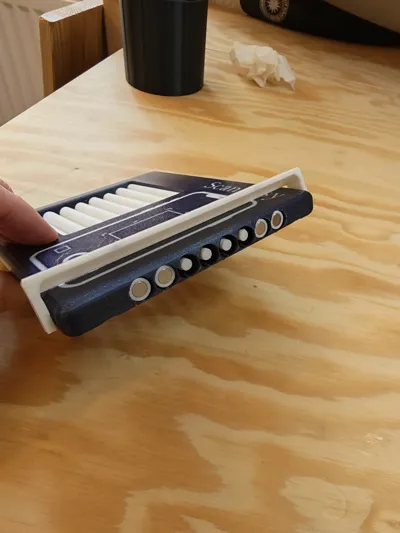

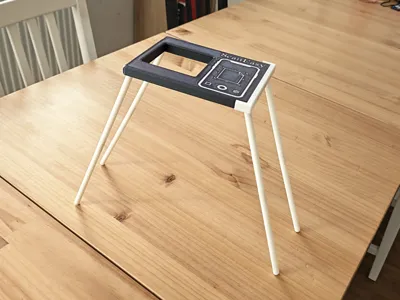

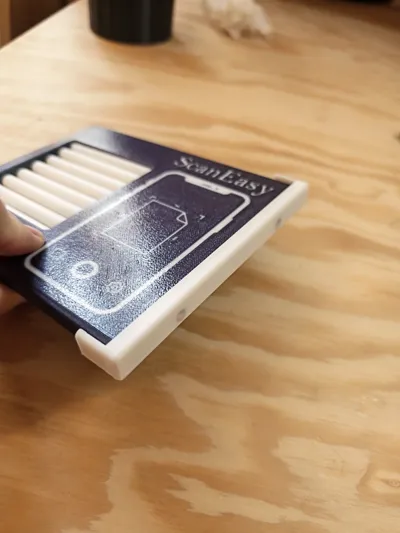

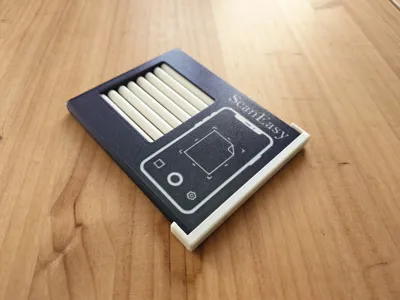

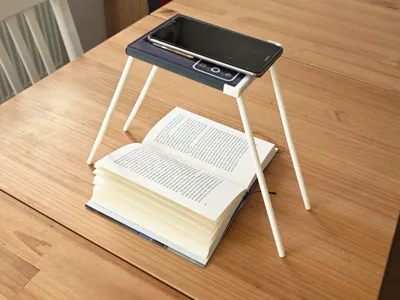

This is the third iteration of my smartphone scanner “ScanEasy”. I designed it to easily and quickly scan documents and books. You place the smartphone on top, the document underneath, and use the smartphone camera to scan. The ScanEasy V3 is the most portable version to date. As small as a book, you can easily take it to the library. The rods are simply screwed into each other and then hold magnetically to the base. It is to be printed no supports. For the rods, please pay attention, perfect print bed adhesion is necessary. If in doubt, it is better to activate brim.

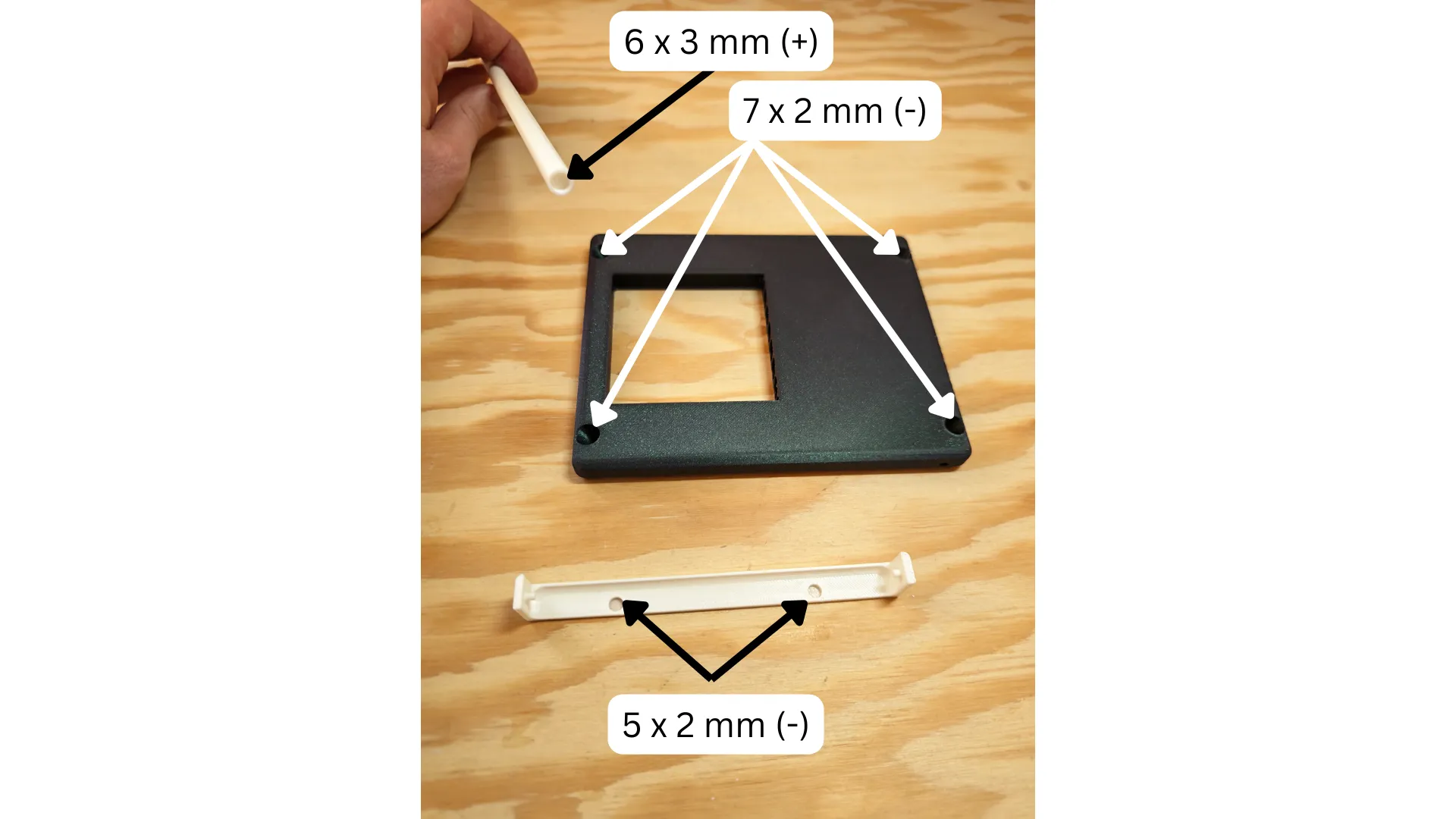

Required hardware kit:
2 x 5x2 Magnets
4 x 6x3 Magnets
4 x 7x2 Magnets (8x2 should also fit)
If you find the design helpful, I would appreciate a boost :)
Boost Me (for free)

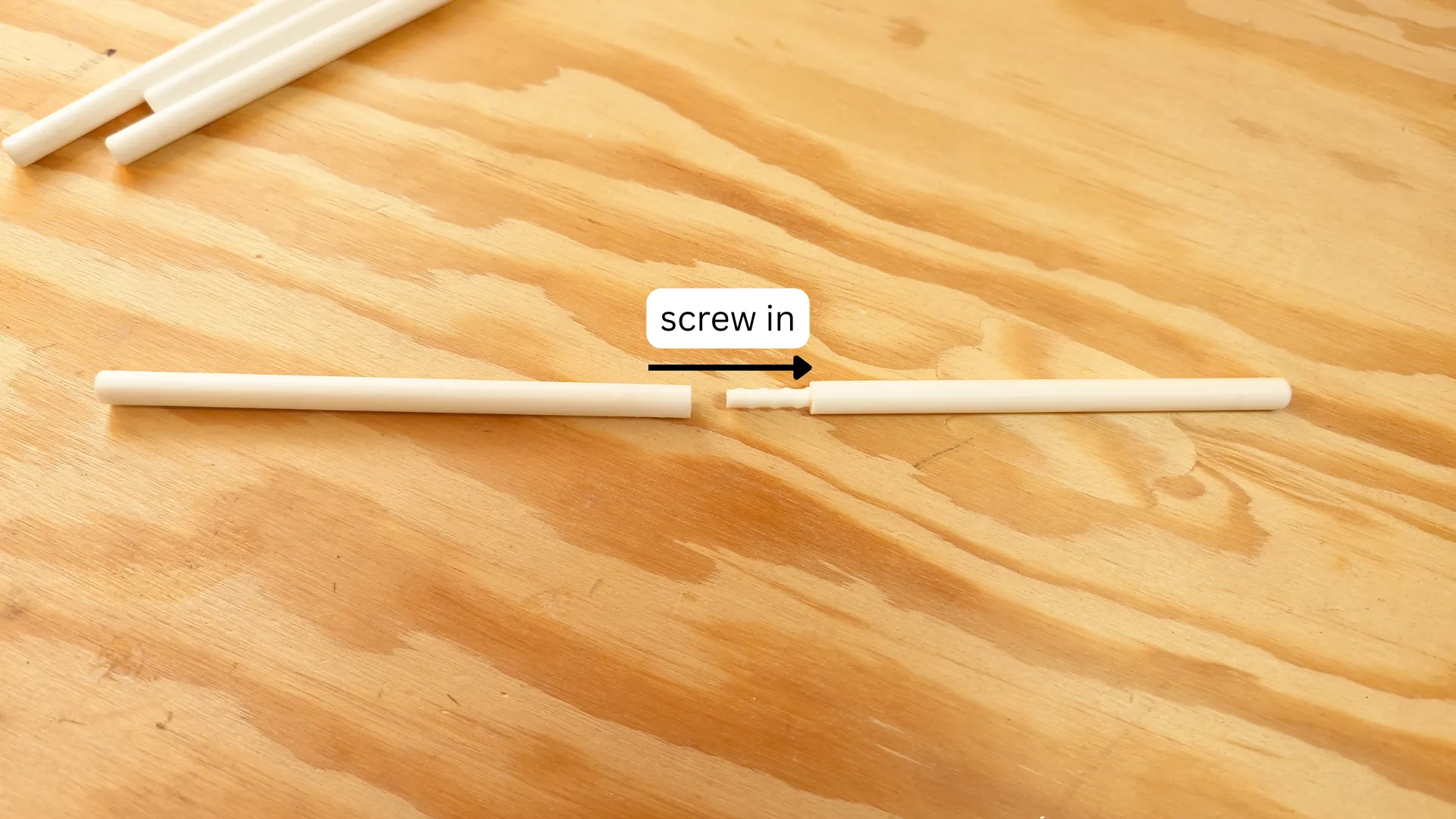

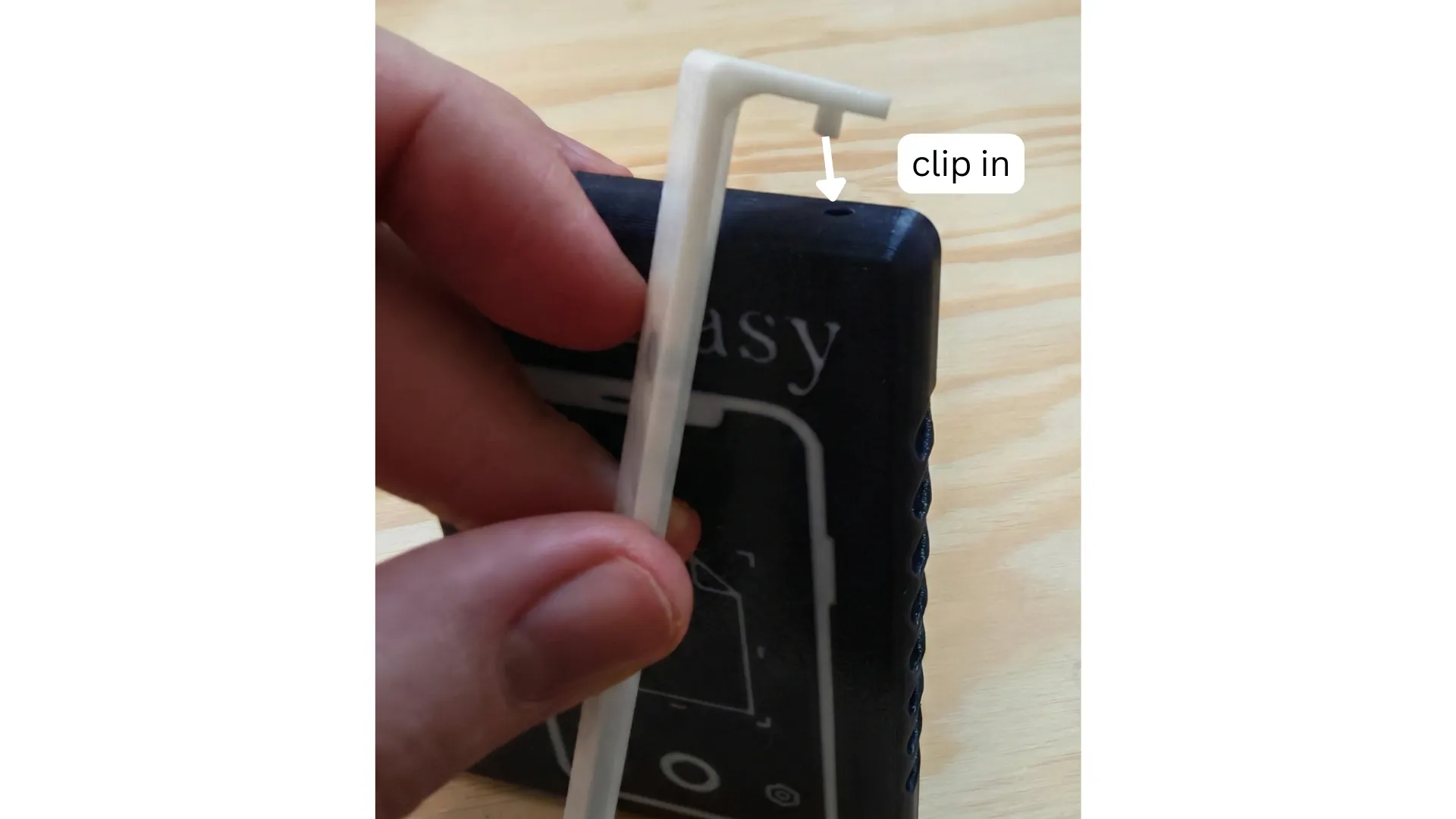

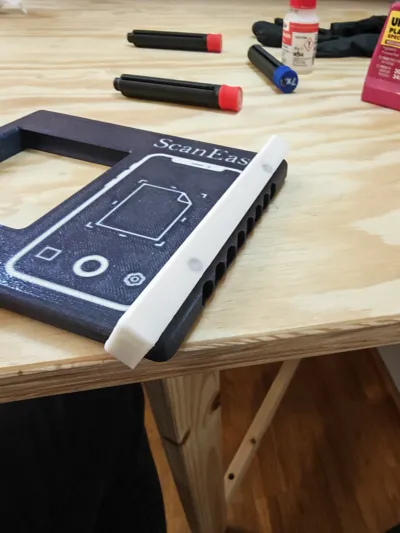

Here is a small assembly guide:
