This adapts the Nooelec GOES Satellite Dish to the DirecTV Slimline Back Assembly model number Bau4r2
The mounting hardware the Nooelec comes with is barebones at best (couple U bolts and a 90 degree metal bracket) which does not give the ability to precisely aim the satellite dish.
The cheap and common DirecTV dish mount has bolts for fine tuning the adjustment, but the bolt pattern is completely different from the GOES dish.

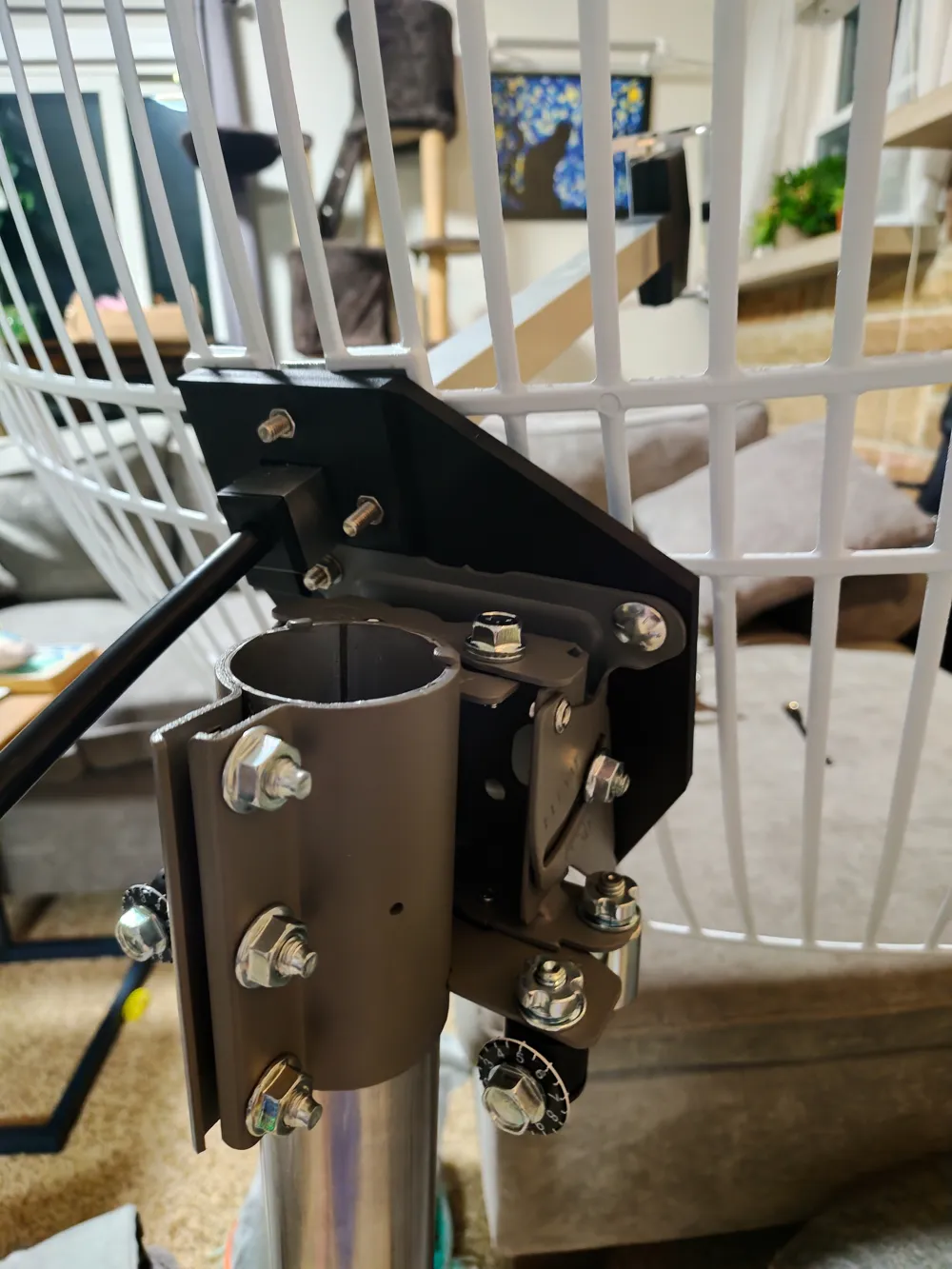

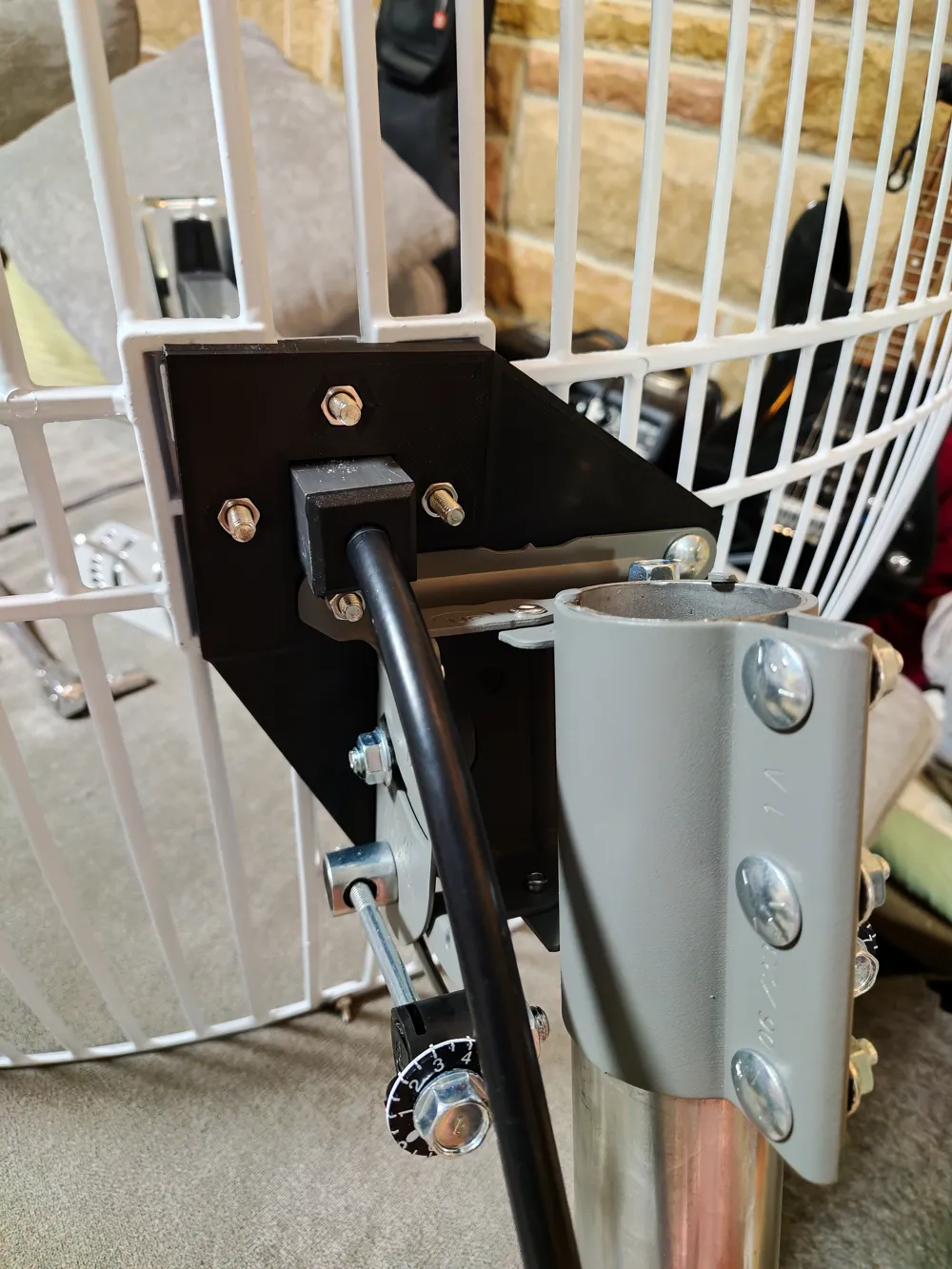

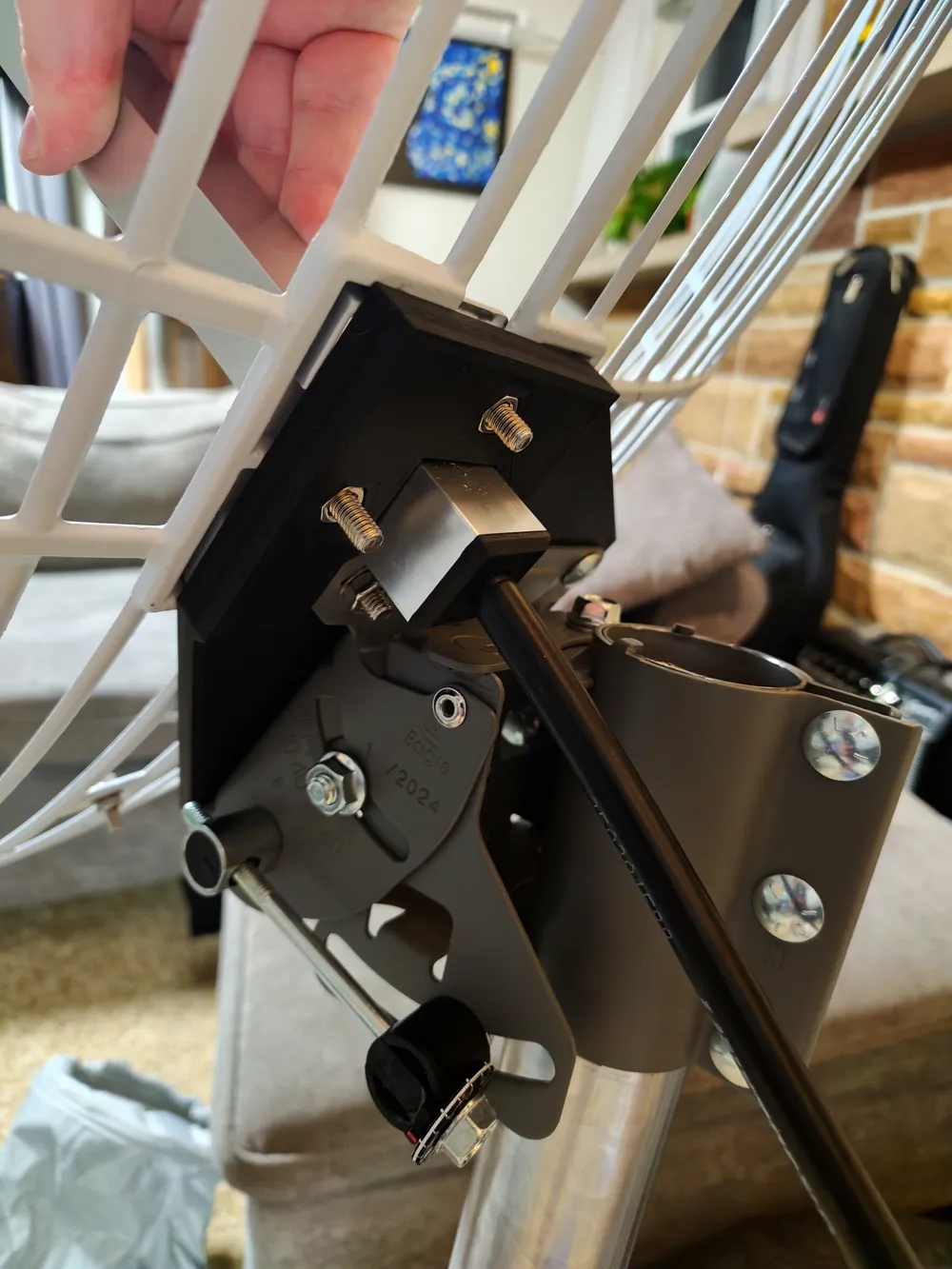

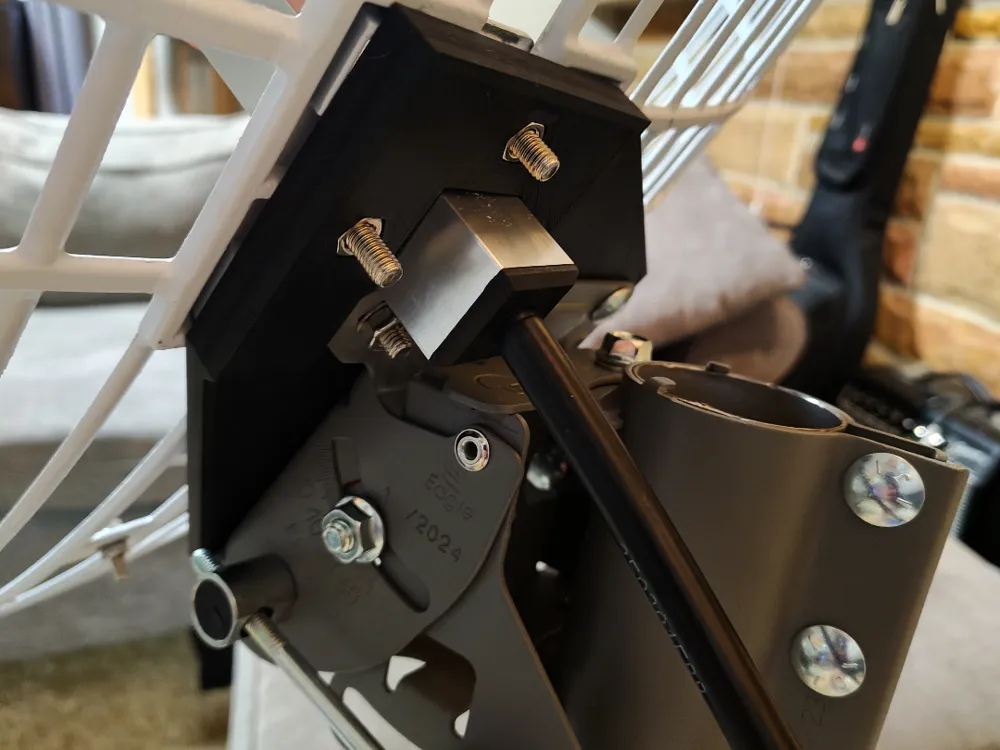

This part is an adapter that lets you use the DirectTV mount with zero modifications to both the mount and the satellite dish.
Make sure to print with a strong material - I used PETG-CF with 100% infill and 6 walls, as well as zero top and bottom layers
