TopTon Mini PC Fan Bracket Fits X2E, H15 i9-185h
Print Profile(1)
Description
Description: This is a remix of the original fan bracket model for the Topton Mini PC X2E N100/N150. In this remix, the body has been thickened to twice the original size for extra rigidity and stability. The model is also upgraded with Brass Hot Melt Nuts (M4×8×6) for more durable mounting points. Besides these enhancements, all other specifications from the original design have been maintained.
Credits to the original designer for the base model. See link

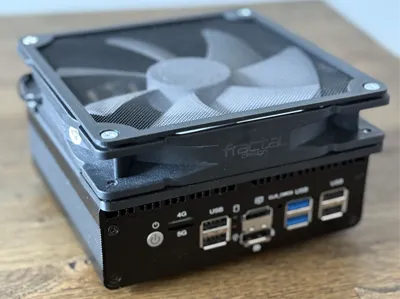

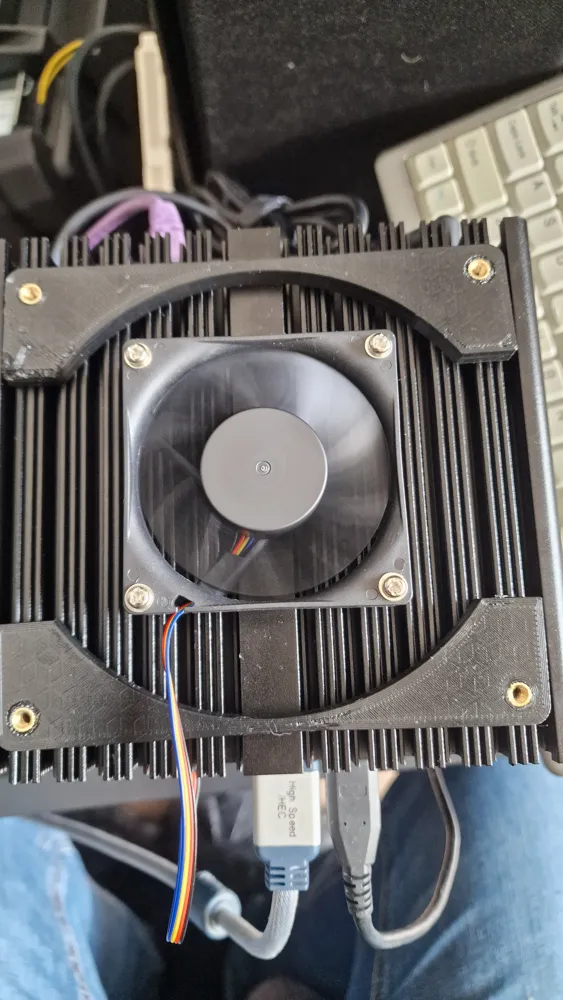

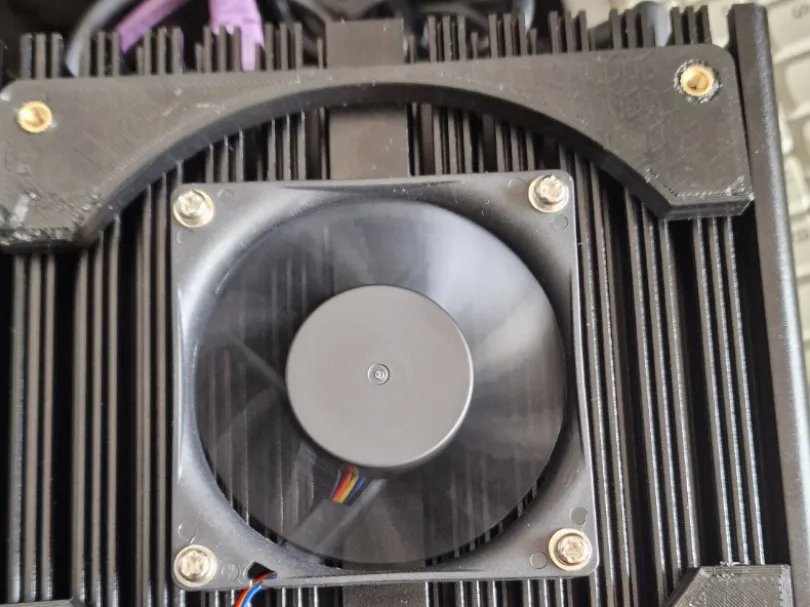

The bracket allows you to mount a 140 mm PC fan directly over the heatsink and uses standard PC fan screws.
Compatibility:
- Topton X2E N100 / N150
- Topton H15 with Intel i9‑185H or i7‑165H
Material:
Printed in PETG, which withstands the high temperatures produced by the heatsink. PLA is not advised, as it can soften or deform under the heat especially on systems with an i7 and i9 processor, where temperatures are noticeably higher.
Thermal results:
After repasting the CPU with fresh thermal paste, temperatures dropped by approximately 20 °C. Adding this fan mount achieved an additional 10–20 °C reduction, depending on the fan used. (Be Quite Pure Wings 3)

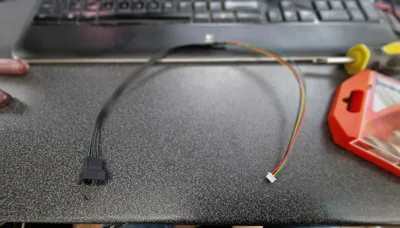

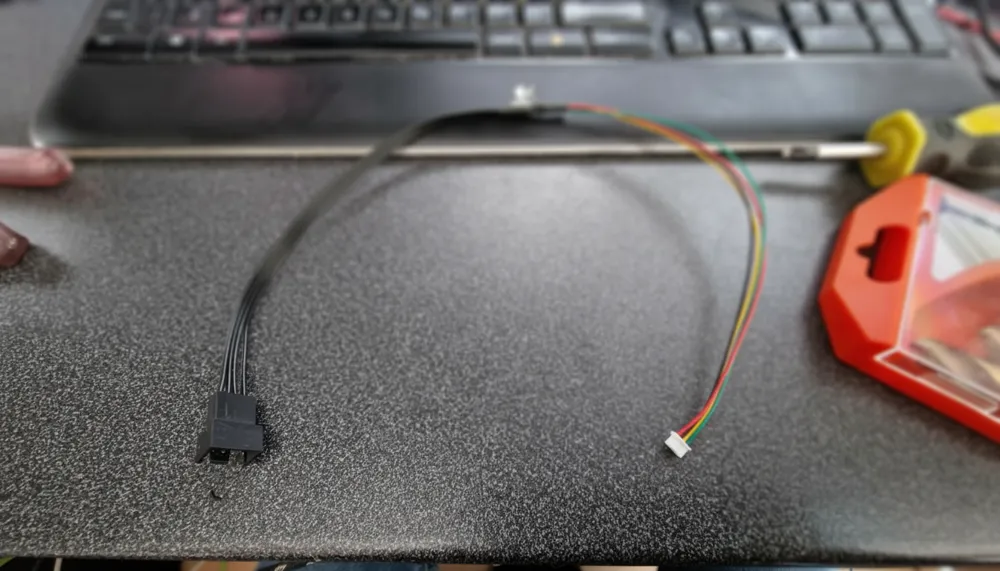

Additional remark: On the second photo, you can see the custom-made cable created by me. It features a standard male PWM connector on one side and a 4‑pin JST 1.25 connector on the other. Tip: Do not use a PH 2.0 connector, as it does not fit properly.
