Flip Pixel Art V5

Flip Pixel Art

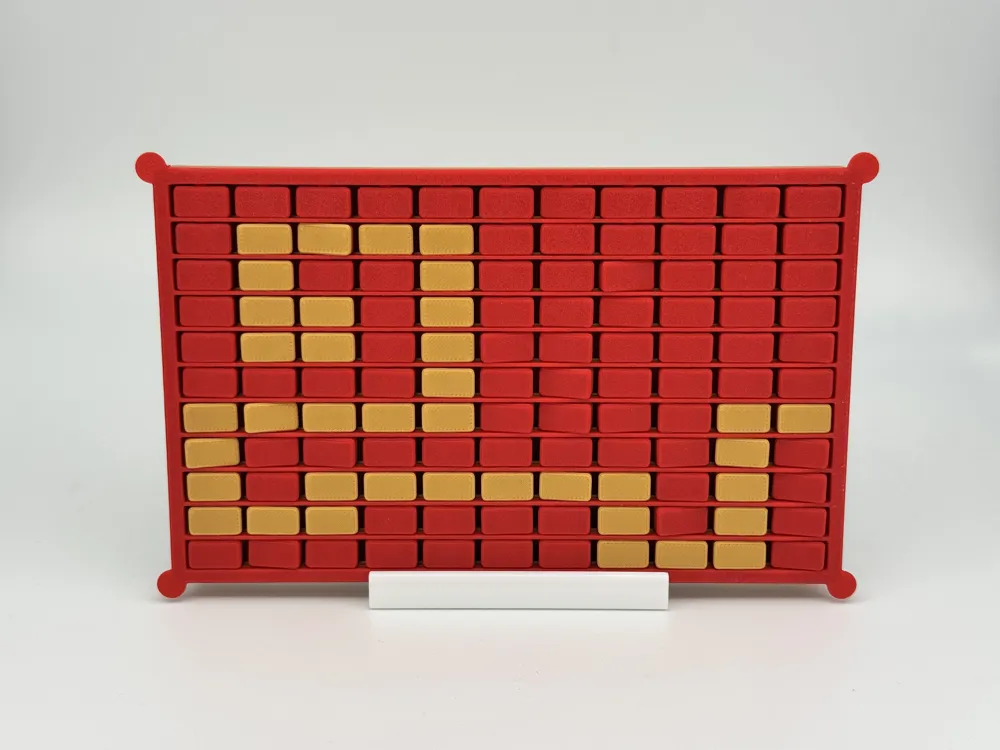

I found these flip pixel art displays in a mall to be very interesting, so I designed one using 3D printing. Many versions were tested along the way, and because the precision varies between different printer models and materials, the uploaded version's structure was ultimately chosen. Tested models: A1, P1S, H2D Tested material: Bambu Lab PLA Basic.

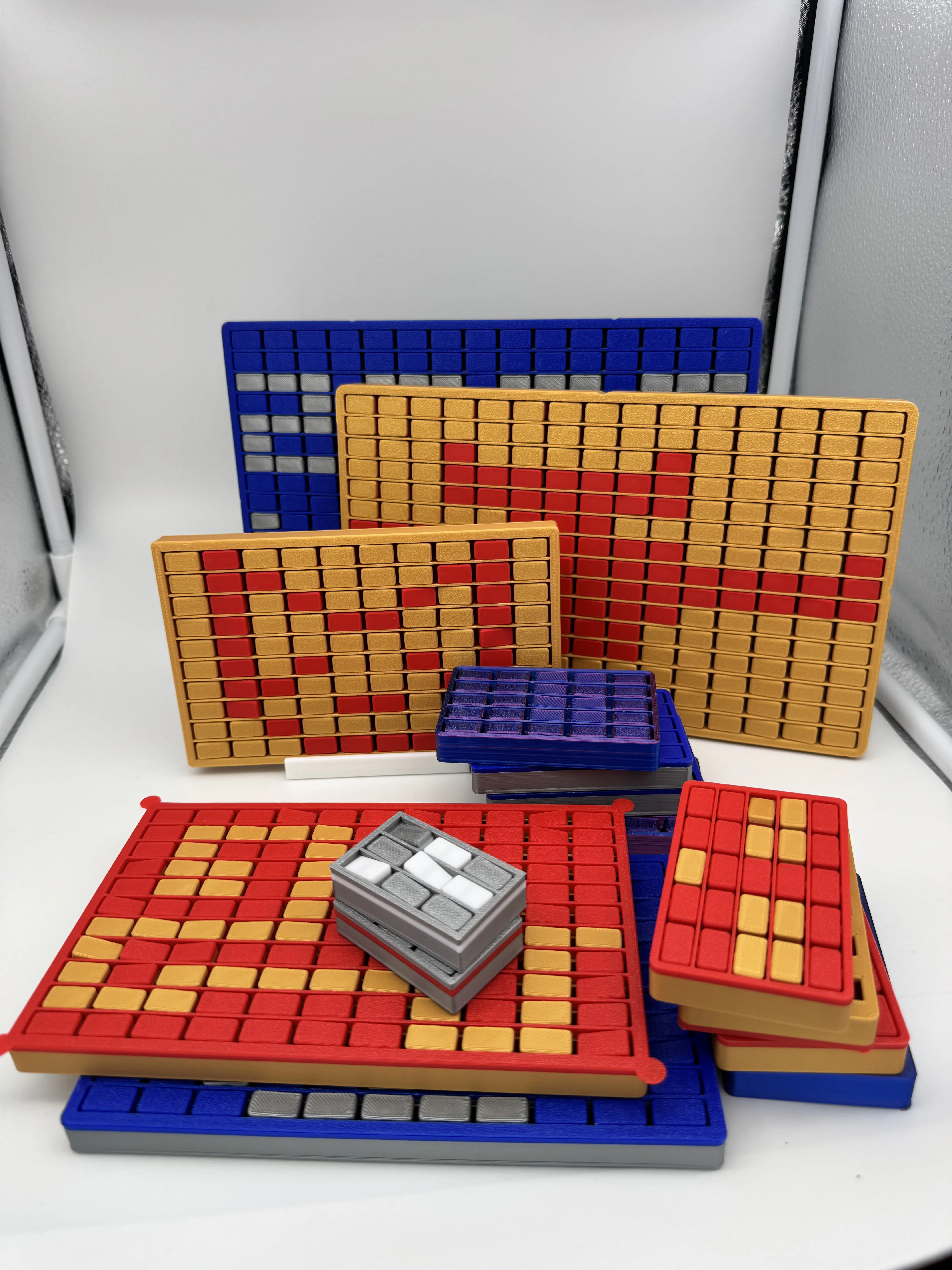

Multiple versions tested

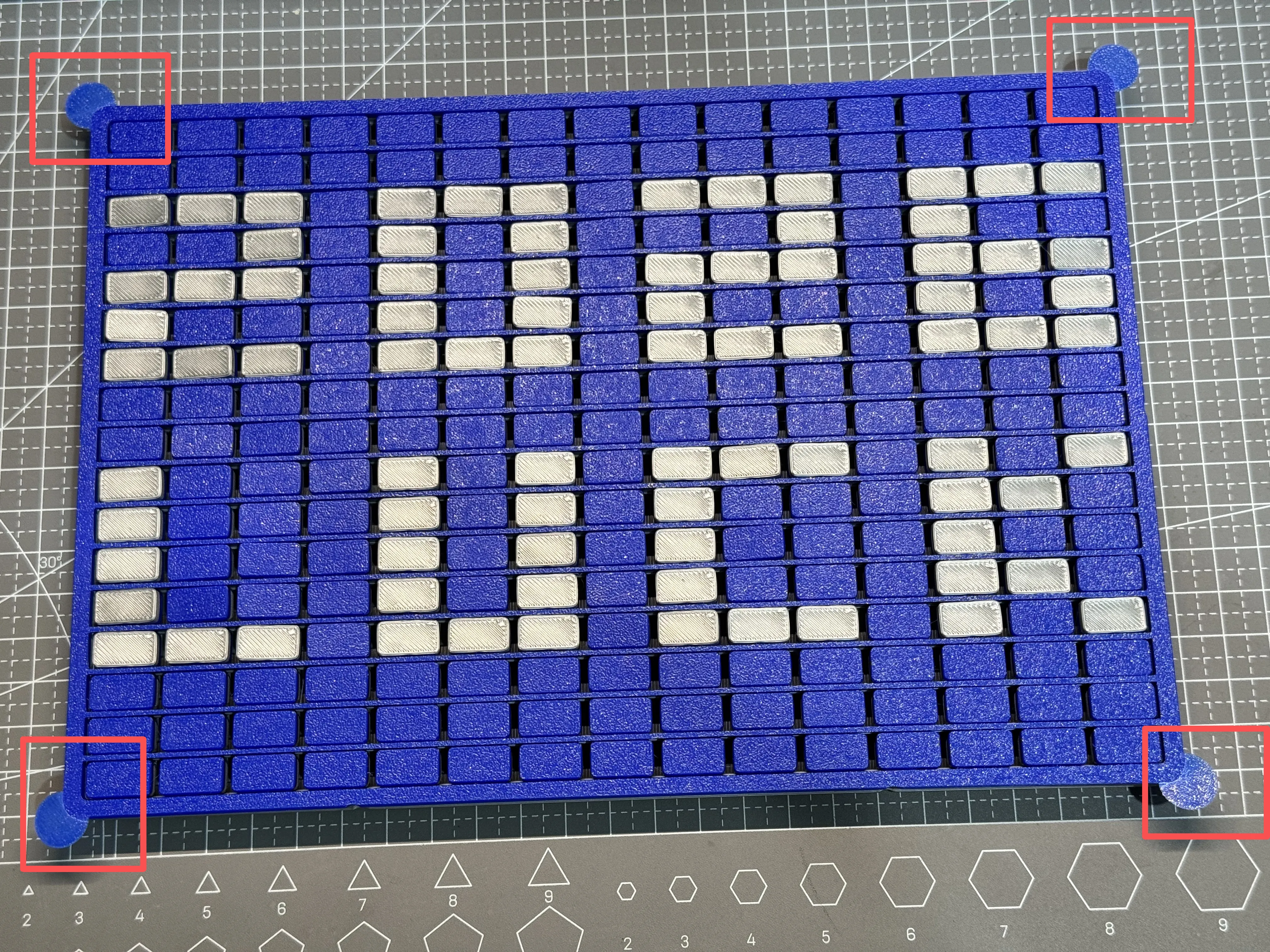

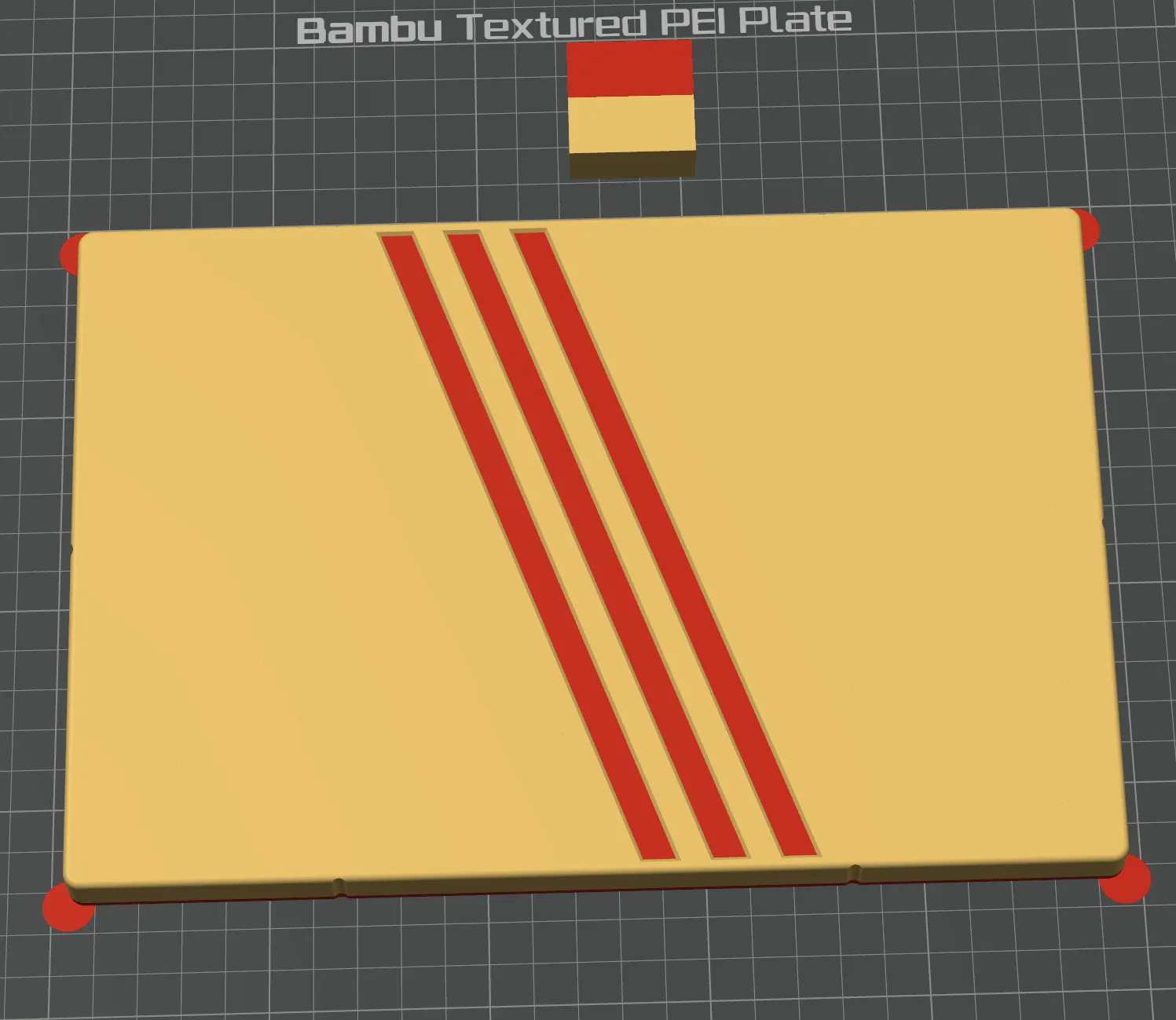

Three decorative strips were added to the back to break up large flat areas, improving print quality; grooves were added to the sides, and circular pads were added to the four feet to reduce the risk of warping;

After printing, simply trim off the four circular pads

Printing precautions:

1. Please clean the build plate before printing; if possible, apply super glue to ensure bed adhesion;

2. Before printing a large version, try to print a test version first, to ensure the clearances are viable;
