Frame Hole Cover Plug V1 – KTM Duke 790 / 890
Print Profile(1)
Description
🔧 Frame Hole Cover Plug (Decat) – KTM Duke 790 / 890- R
HERE Also available is the version with a 2-color KTM Logo

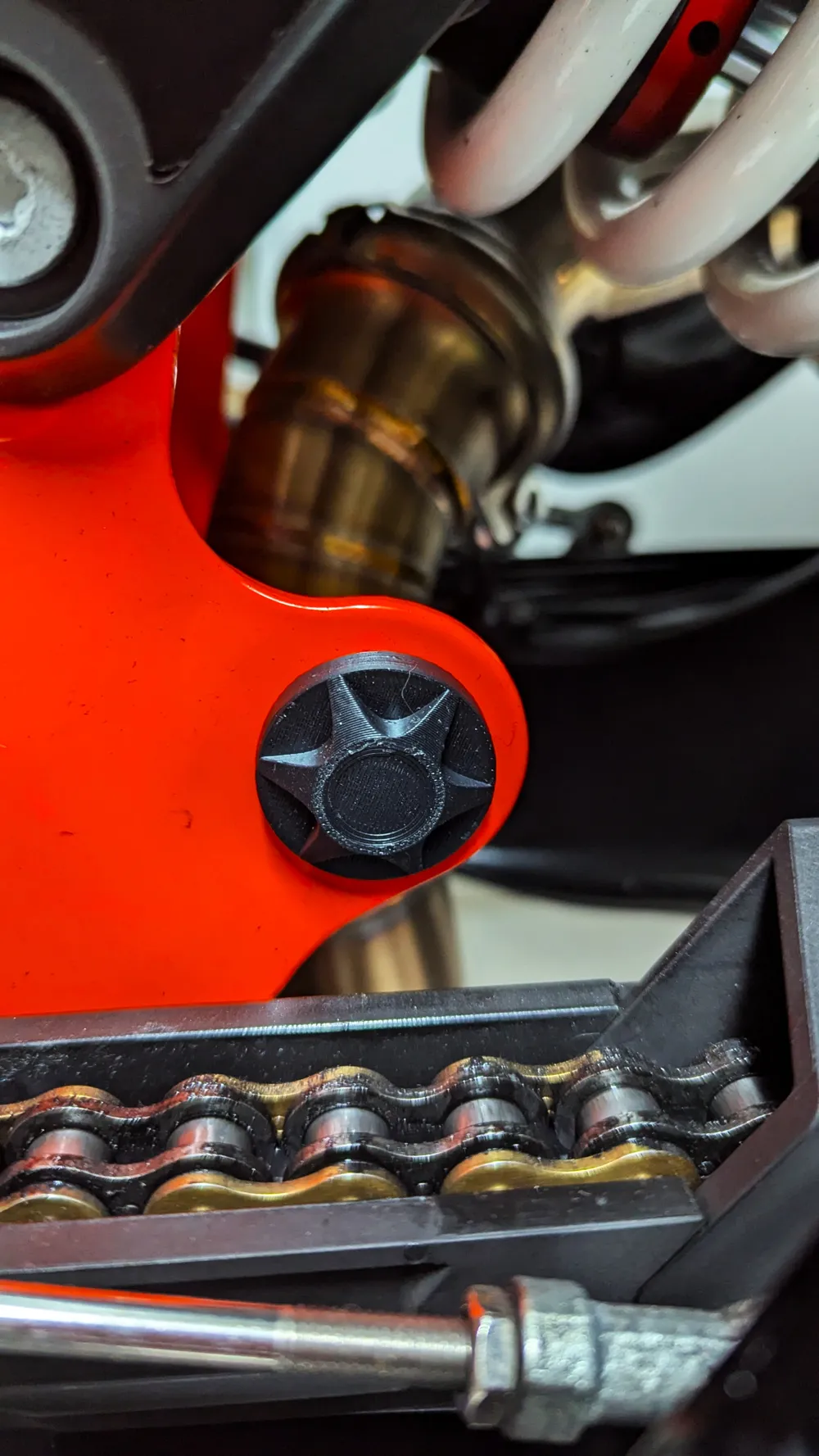

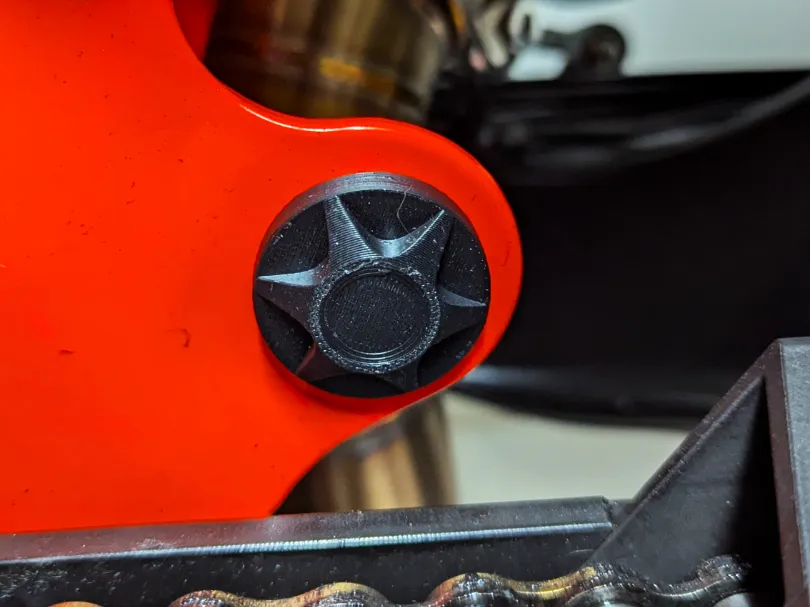

Custom-designed hole cover plug for those who remove the catalytic converter on KTM Duke 790 and 890 and wish to cleanly and neatly close the hole left open on the frame
This component allows you to
- ✅ Improve the aesthetic of the motorcycle after catalytic converter removal
- ✅ Achieve a more “OEM” and refined look
🏍 Compatibility
- KTM Duke 790
- KTM Duke 890 890-R
🧩 Model Features

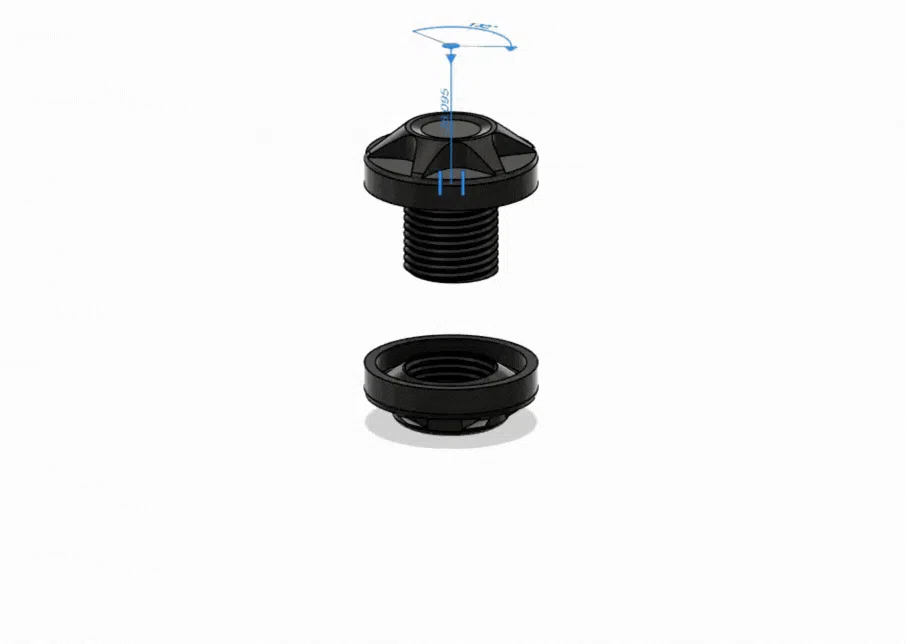

- Screw-in design with male thread + locking ring
- No Pins Nuts or Tools needed
- Simple installation, without permanent modifications
- Removable at any time
🖨 Recommended print settings
- Material: PETG, ASA or ABS (recommended for heat and weather resistance)
- Layer height: 0,16 mm
- Infill: 15%
- Orientation: print with the thread facing down
- Supports: Yes
⚠️ Avoid PLA if the motorcycle is used intensively: the area can be subject to heat
🔩 Installation
- Thoroughly clean the hole on the frame
- Screw in the plug until it stops
- Tighten by hand without forcing
If this was helpful, leave a like 👍 and share a photo of your printed part installed!
Happy printing and have fun 🏁
