8x Prefilled Syringe Case
Print Profile(2)
Description

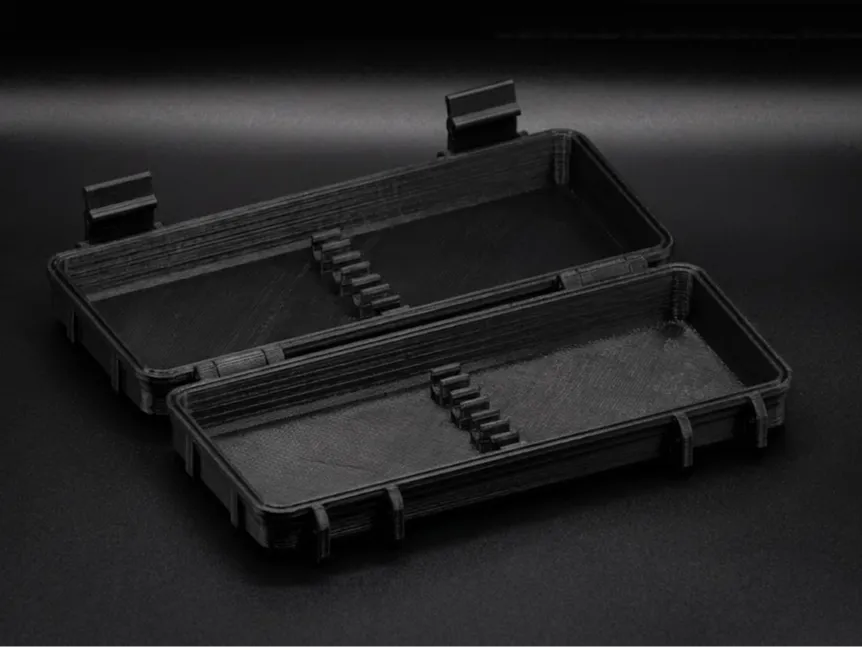

This is an 8-slot case for 1ml 31g Insulin Syringes. I modified the original concept to scale it up efficiently while keeping the overall footprint as compact as possible to save space in the fridge. Custom clips were designed to keep all syringes secure and prevent them from getting depressed.
The case uses mechanical hardware for strength and durability, making it well-suited for frequent opening and closing in a refrigerated environment.

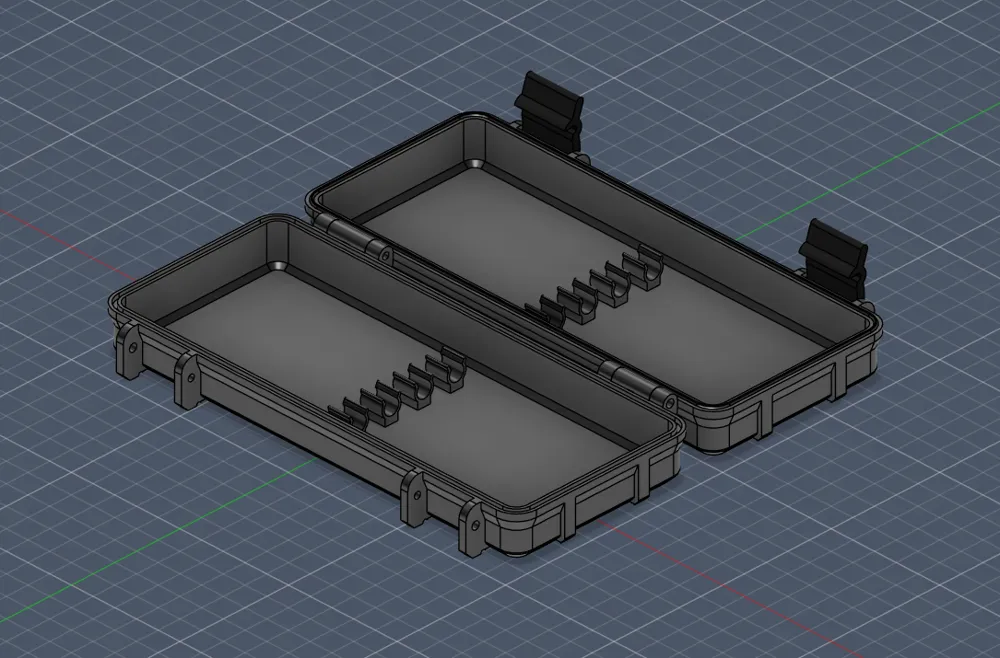

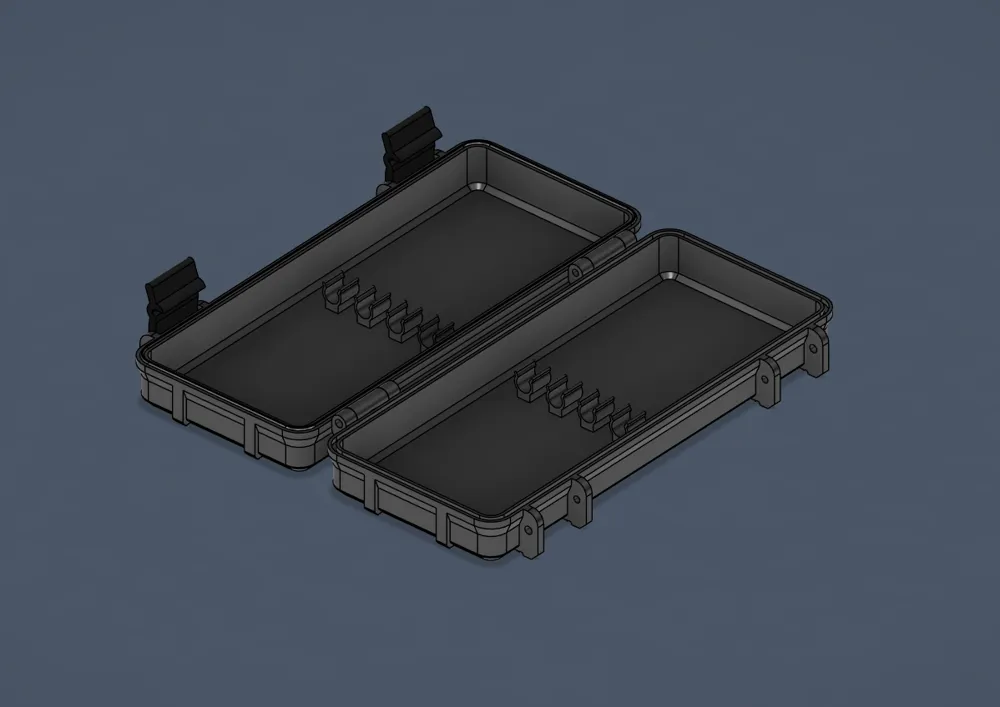

Design Details
- Fits 8 Prefilled Syringes: Designed for standard 1ml 31g Insulin Syringes (~6.6mm diameter)
- Hardware Assembly: Uses (6) M3x30 screws
- (2) screws for the hinges
- (4) screws for the latches

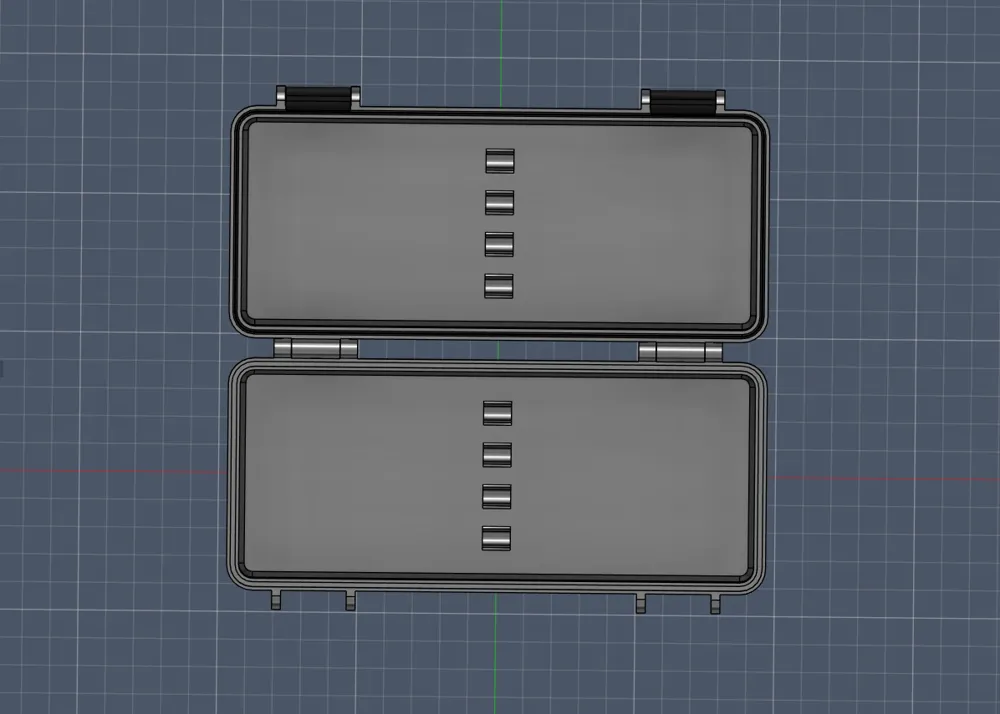

- Secure Insert: Custom internal layout keeps all syringes locked in place and evenly spaced
- Compact Scaling: Optimized to hold a large number of vials while remaining fridge-friendly
- Material: Printed in PLA+, PLA, or PETG.
- PLA+/PETG recommended for increased durability and moisture resistance.
- Regular PLA is the default profile as a baseline for beginners.
- Has an optional seal that can be printed in TPU (not required by any means, just added peace of mind).
Print Settings
- Filament: PETG, PLA+, or PLA (PLA silk not recommended), TPU for the optional seal.
- Supports: None used, tree supports can be added if any overhangs didn't print clean.
- Walls: 3 (Tolerances aren’t super tight; all mechanisms work smoothly with little friction)
- Infill: 15% (Gyroid is my preferred)
Assembly
Once printing is complete, align the lid and base at the hinge points and secure them using two M3x30 screws. Install the remaining four M3x30 screws into the latch mechanisms.
