3/4" F-F Adapter | NPT GHT BSPP Versions
Print Profile(6)
Description

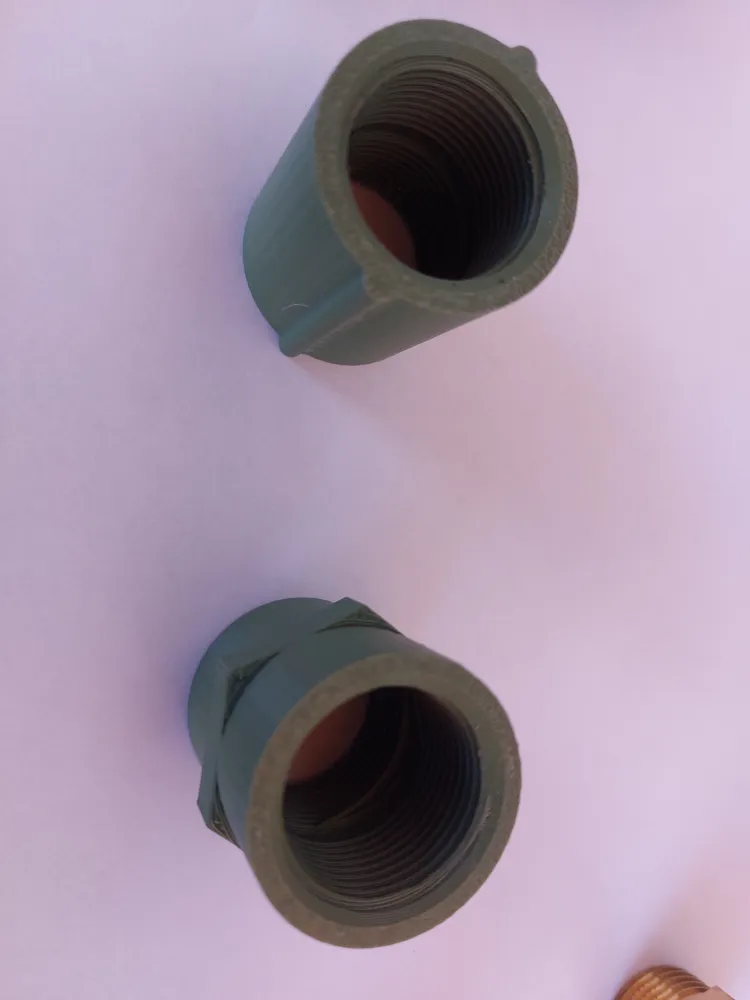

🔧 Hydraulic Adapter 3/4" Female → 3/4" Female
3D printable fitting designed to connect two 3/4" male threads.
The design includes 3 different thread profiles:
- GAS/BSPP 55° cylindrical
- NPT 60° tapered
- Gardena (GHT/NH) 60° – 11.5 TPI
All versions are available:

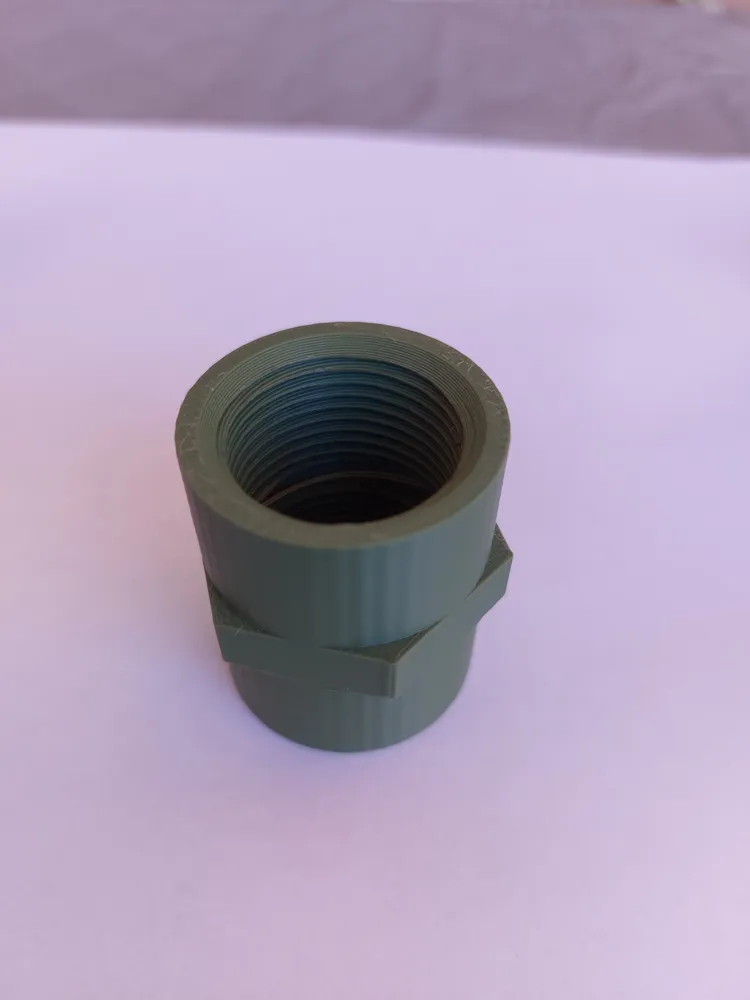

- with tightening nut
- without nut
🛠️ Ideal for
- irrigation systems
- temporary connections
- tests and prototypes
- workshop and DIY
- adaptations between different fittings
✔ Compatible with common hydraulic standards
✔ Body optimized for FDM printing
✔ Versions with and without nut included
✔ Compact and robust geometry
✔ Threads designed for good compatibility and sealing
⚠️ Important
- Not suitable for permanent high-pressure or hot water systems.
- Always use PTFE (Teflon) tape to ensure a tight seal.
📐 TECHNICAL SPECIFICATIONS
Thread side A: 3/4" Female
Thread side B: 3/4" Female
Available profiles:
- GAS/BSPP (55° – 14 TPI cylindrical)
- NPT (60° tapered 1:16)
- Gardena / GHT-NH (60° – 11.5 TPI)
Compatible with standard hydraulic fittings.
🖨️ RECOMMENDED PRINT SETTINGS
Material: PLA / PETG / ASA / Nylon
Layer height: 0.2 mm
Infill: 40%
Orientation: vertical
For maximum strength, 100% infill is recommended.

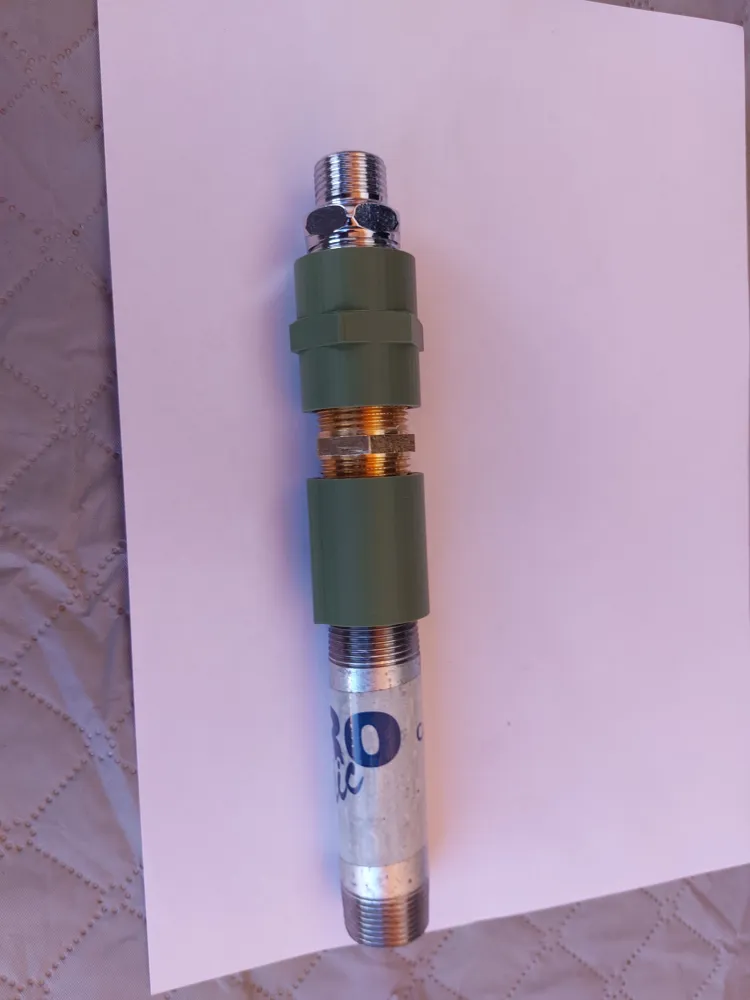

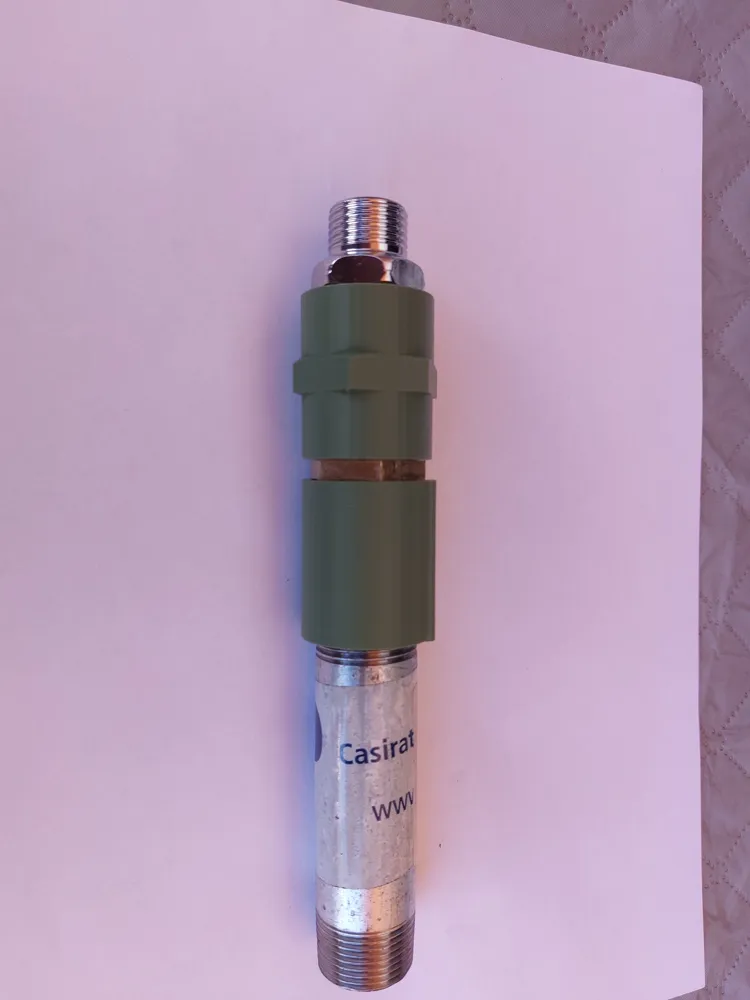

⚠️ All models created by me have been tested by coupling them with commercial metal fittings.
I guarantee their full compatibility and effective sealing under correct usage conditions.
