Heltec V4 case h1iv

Version 2 is up now.  This version is compatible with GPS.

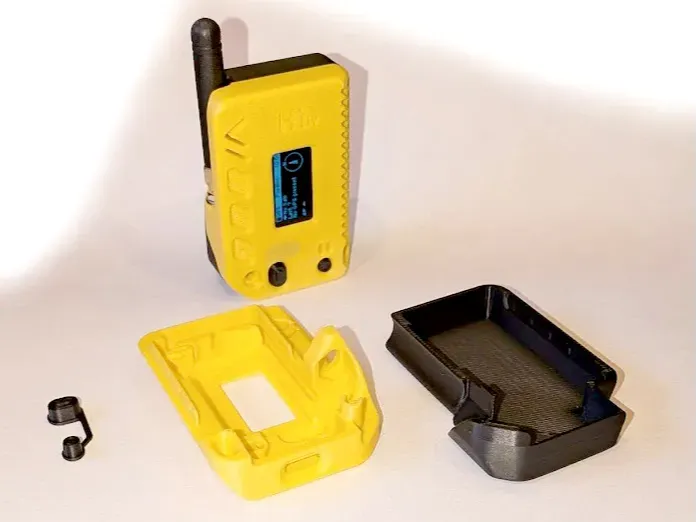

Heltec v4 case h1iv with gps


This model was created by tehspiah on printables. The printables link is: https://www.printables.com/model/1455664-h1-iv-case-for-heltec-v4-modified-muzi-works-h1

I printed with no supports and had zero issues.

 Original model for the Heltec V3 by Muziworks: https://www.printables.com/model/741974-h1-case-for-heltec-v3-running-meshtastic

This is a modified version of the original H1 case by Muziworks. I wanted to play around with a Heltec V4 because of the higher transmit power, but the relocated power and GPS plugs made it not entirely compatible with the H1.

Other people have remixed larger versions of the H1 case to fit larger batteries, but I like the small minimalist size of the H1.

Unfortunately because of the GPS/GNSS pins, a thin 8mm battery would not sit flush with the original case backing, so I had to extend it by 2.7mm to fit the GNSS pins against the battery.

Not compatable with GPS modules

Bill of Materials:

1. Heltec v4 https://www.amazon.com/Heltec-Development-ESP32-S3-Meshtastic-Communication/dp/B0FS1R4HXH
2. U.FL to SMA adapter https://muzi.works/products/u-fl-to-sma-pigtail-cable-10cm
3. 915 Mhz Antenna https://muzi.works/products/stubby-antenna or https://muzi.works/products/whip-antenna-17cm
4. 1000-1200 mAh battery that is 8mm thick with a 1.25mm Molex PicoBlade connector https://muzi.works/products/h1-battery
5. M3x16 screw

Print with tree supports, with the flattest faces against the bed. Pictured is Elegoo Yellow and Black PLA.
