Central Clock Connector with electronics mount

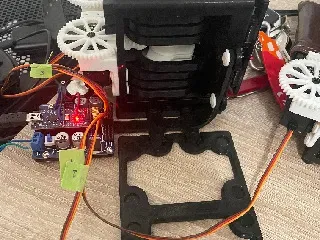

Intended to replace the Central Clock Connector on Engineezy/JBV Creative's Rack Driven 7 Segment Display. Includes bracket for mounting the suggested Servo Control Board Wireless Version for Arduino Nano and NRF24L01 and DS3231 Real Time Clock Module High Precision AT24C32 IIC RTC Sensor.

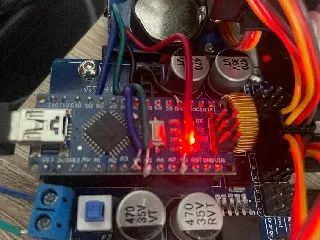

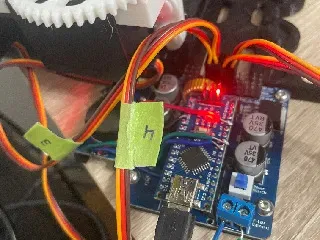

I mounted the Servo Control Board with 4x M3 screws and the RTC module with 3x M2 screws. I opted to mount the RTC with the battery side up and removed the originally soldered pins in favor of the holes on the opposite side. The screw lengths don't matter as long as the modules are secure however I do recommend keeping them consistent so the whole thing doesn't wobble. Some of the screws are definitely a tight fit so you may have to angle them into the hole when screwing them in.

Please note that this is just my own modification to the original file created by Engineezy/JBV Creative. I do not have any connection with Engineezy/JBV Creative and cannot / will not provide any of the original files from this project without their consent or knowledge.
