Vortex Venom Parallax Adjustment Wheel
Print Profile(0)
Description
Summary

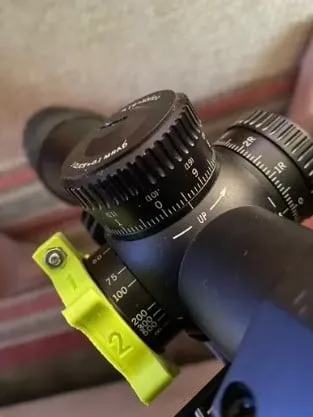

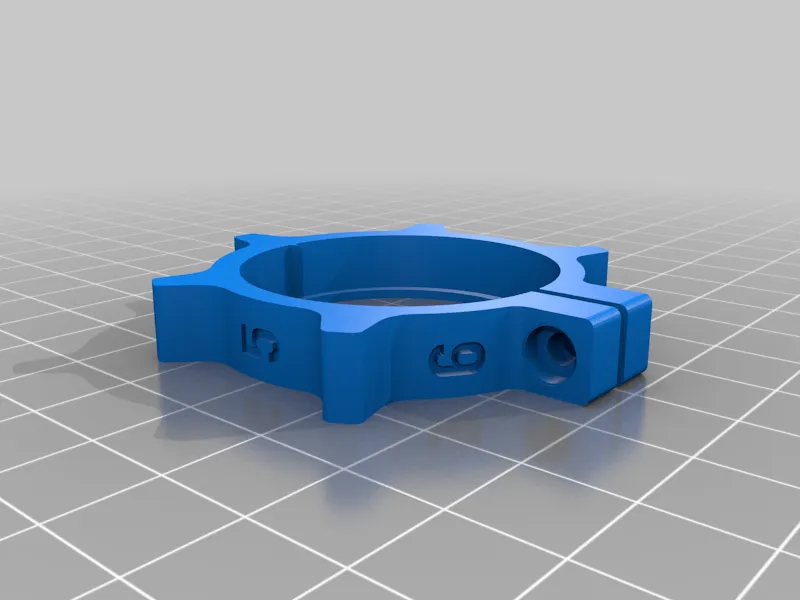

This is a parallax adjustment wheel for the Vortex Venom 5x-25x rifle scope. Good chance it will fit any in Venom line. It has an outer lip that stops how far it can be pushed onto the turret. This leaves the yardage numbers easily seen. Mounting is sized for an m3 screw and nut. The inner diameter is about 36.3mm The Venoms turret knob is about 36.6mm. Mounting the knob, I used a piece of Teflon pipe tape folded double as a shim. Alternatively, you could file a very small amount of material from the two "ears” the screw/nut draw together.
The numbers on the wheel are just a quick reference. I set the “1” at 100yds and ignore the rest. You could set any number to align with whatever yardage you want to have a quick reference to.
Boost Me (for free)
I'm just a geezer doing 3D printing and design to keep my brain active until I start CTD or become DRT. A little positive attention keeps me going. For you non old school emergency personnel, or those who only know modern approved abbreviations:
CTD is Circling the Drain and DRT is Dead Right There
Cheers!
Print Settings
Supports:
No
Resolution:
.2
Infill:
100
Filament: Overture PETG Grass Green
This remix is based on
