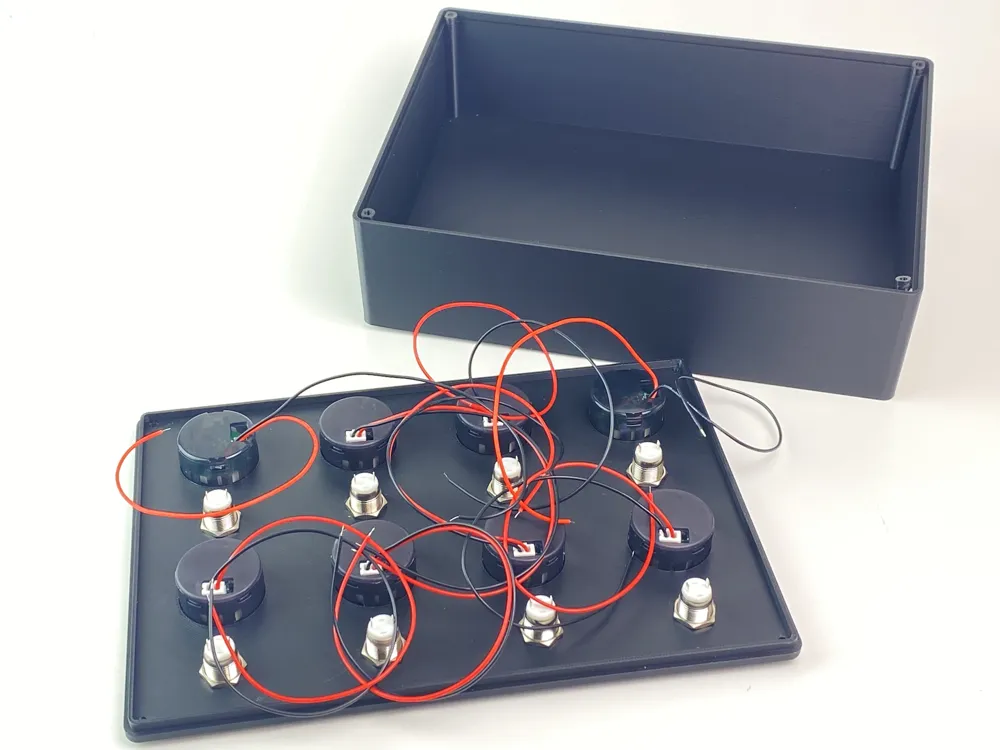

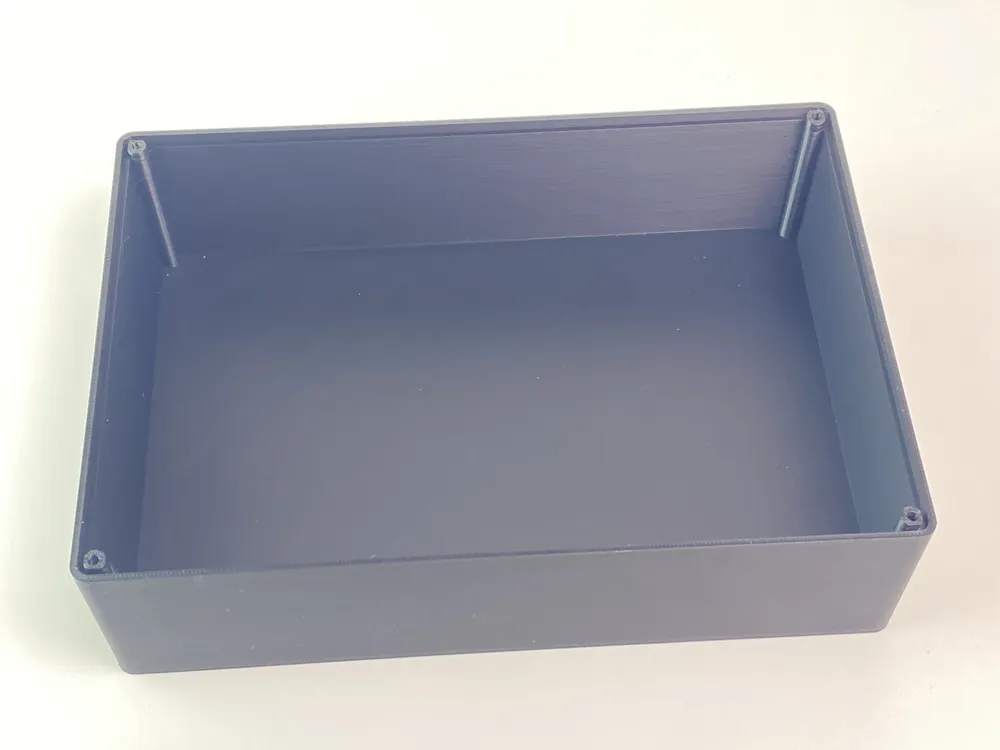

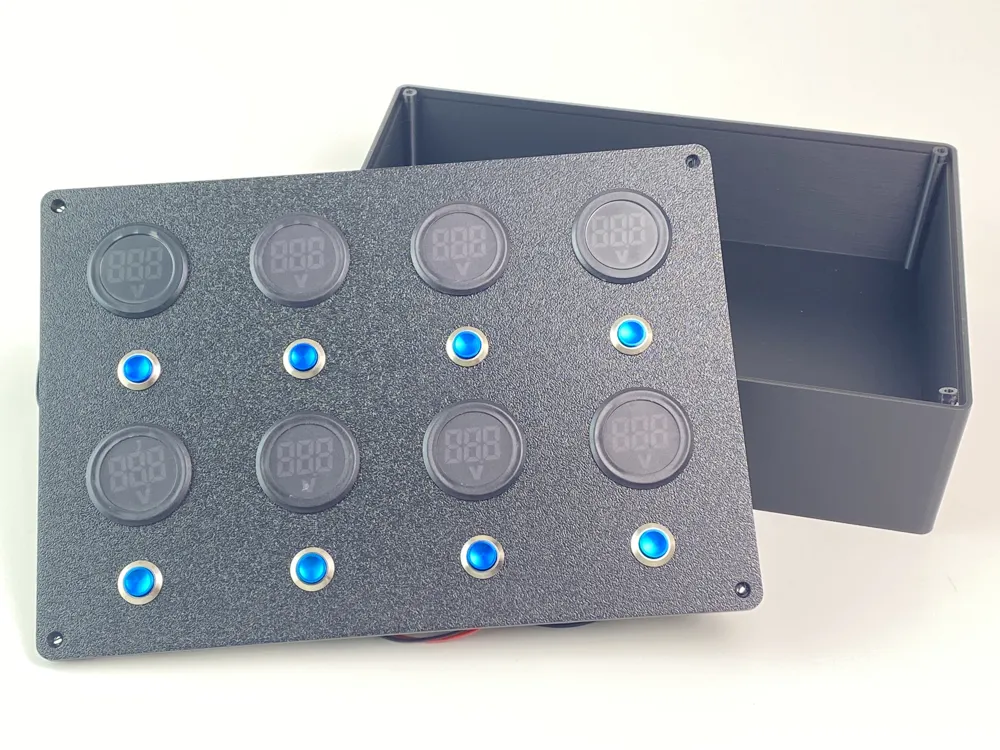

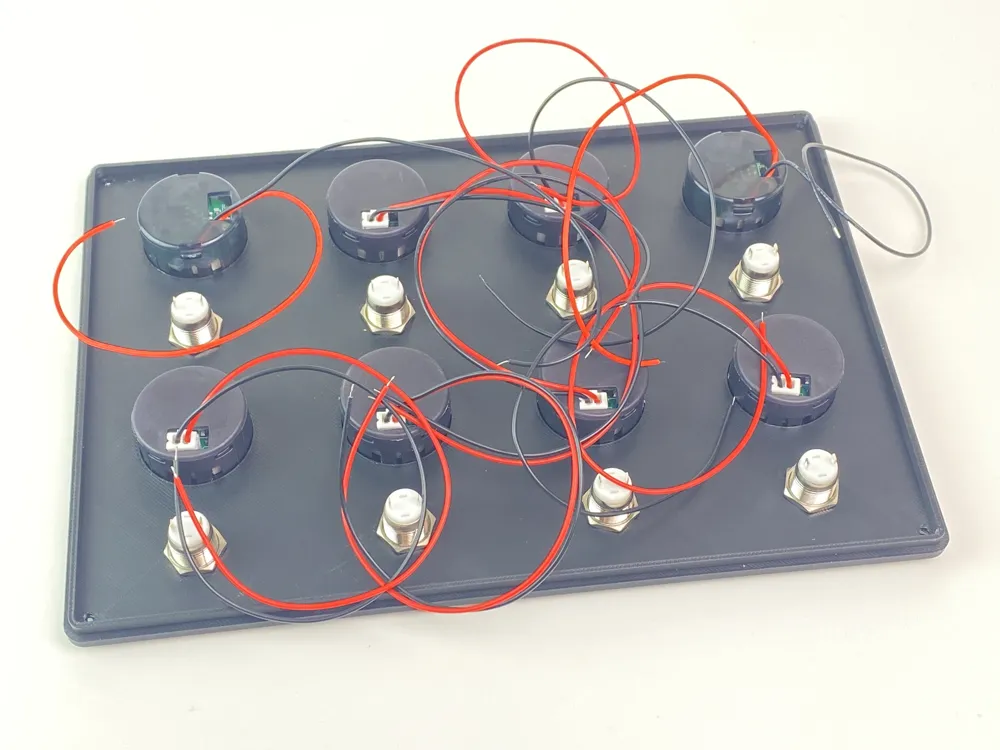

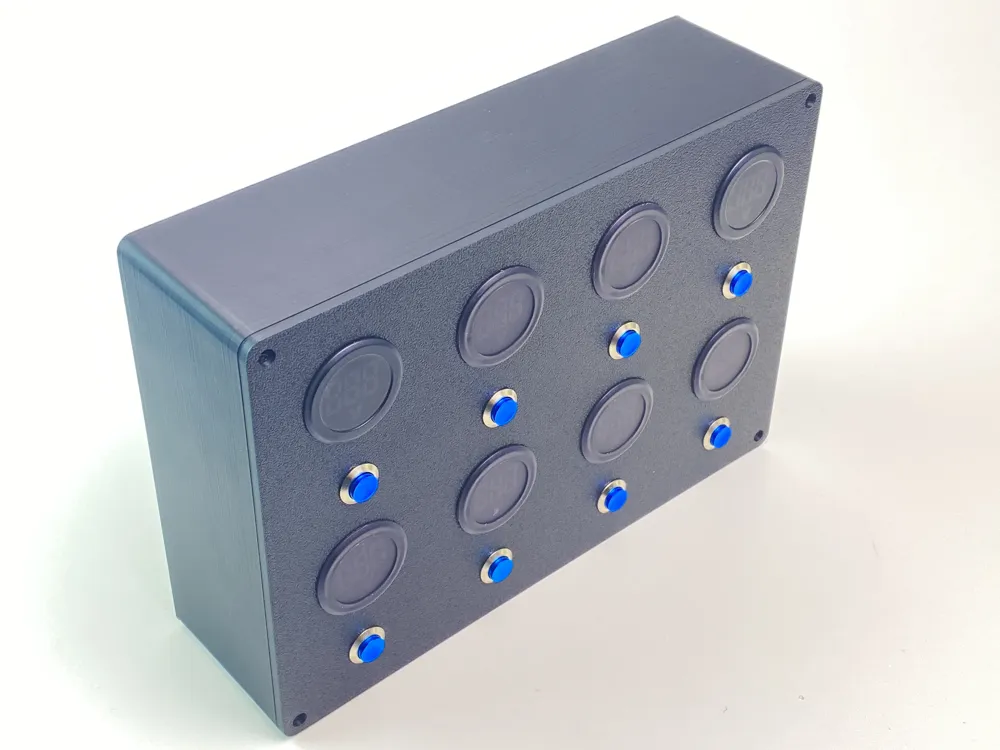

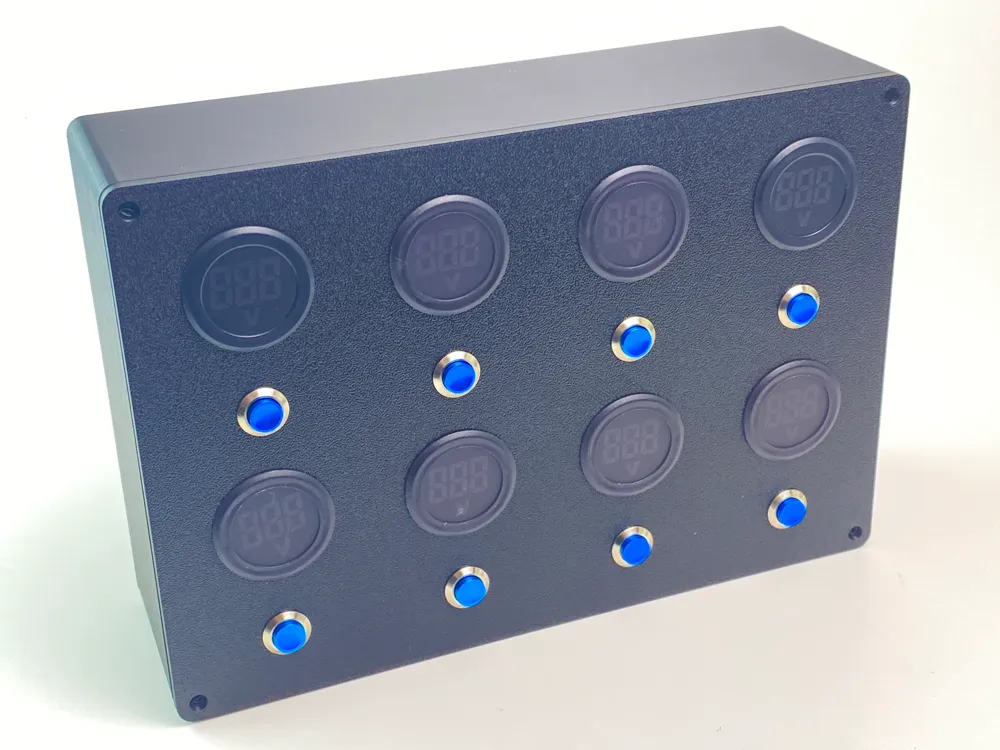

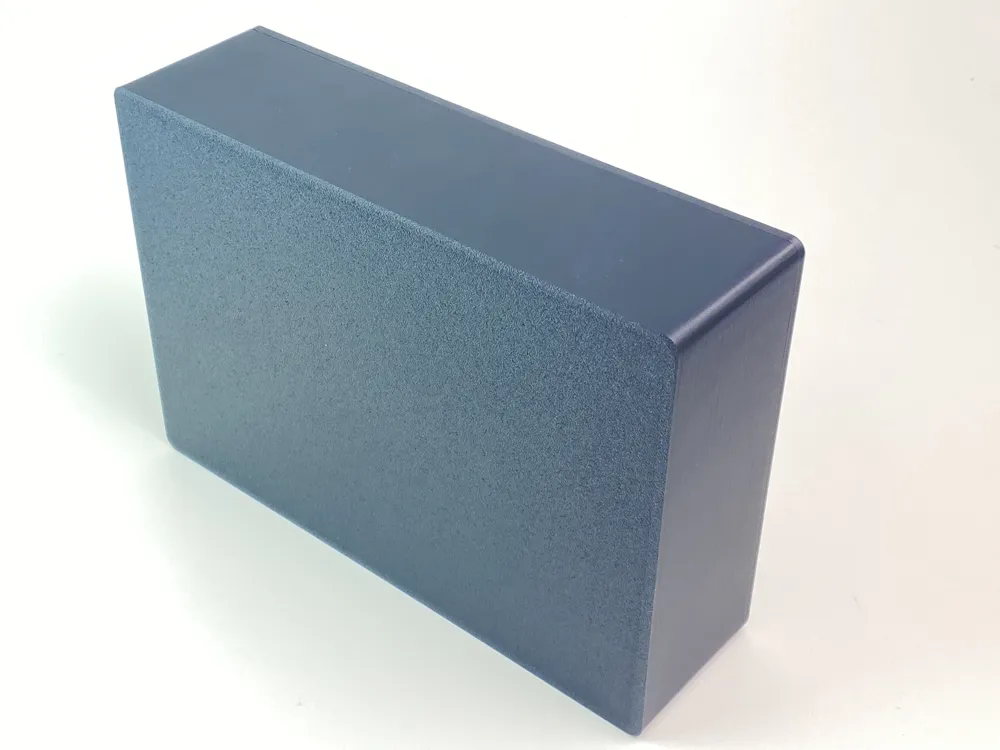

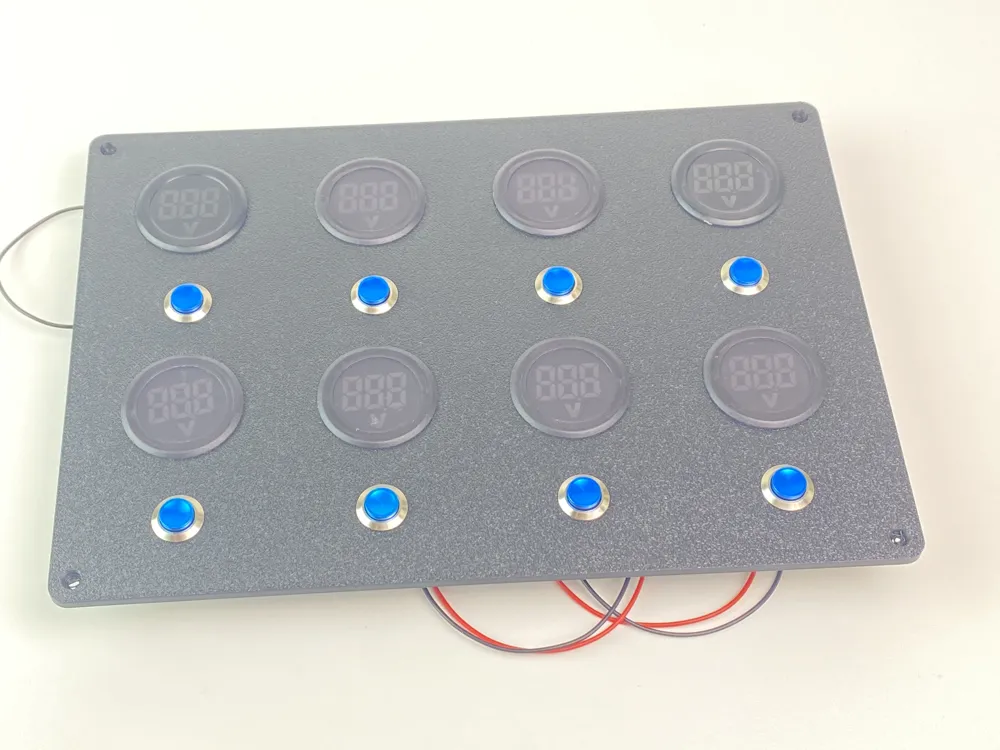

<p><strong>Boost Me - Boosts help keep free models coming — thank you for the support! 🙌 and for visiting Beast-Lab</strong></p><h2>🔋 Off-Grid Solar Battery Gauge Box – 8 Battery Monitor Panel | 30mm Volt Meters | 12/22mm Push Button Ready</h2><p>Designed for serious off-grid builders, van lifers, cabin owners, and DIY solar enthusiasts, this <strong>Battery Gauge Box</strong> from <strong>@Beast-Lab</strong> is a clean, modular monitoring solution for multi-battery solar systems.</p><p>Built to house <strong>up to 8 individual batteries</strong>, this enclosure supports:</p><ul><li>🔘 <strong>30mm round voltage gauges</strong></li><li>🔴 <strong>12mm or 22mm push buttons</strong></li><li>⚡ Ideal for 12V, 24V, or 48V off-grid solar setups</li><li>🏕️ Perfect for RVs, vans, boats, cabins, and backup power systems</li></ul><h2>⚙️ Features</h2><h3>🔋 Supports Up to 8 Batteries</h3><p>Monitor each battery independently. Perfect for:</p><ul><li>Parallel battery banks</li><li>Series configurations</li><li>Separate lithium / AGM / lead acid banks</li><li>Backup reserve systems</li></ul><h3>📏 Standard Component Fitment</h3><ul><li><strong>30mm panel gauge openings</strong></li><li><strong>12mm push button compatible</strong></li></ul><h3>🧱 Modular &amp; Clean Layout</h3><ul><li>Organized front panel layout</li><li>Professional install appearance</li><li>Easy wire routing inside enclosure</li></ul><h3>🛠️ DIY Friendly Design</h3><ul><li>Optimized for FDM printing</li><li>Strong wall thickness</li><li>Easy print orientation</li><li>Minimal supports required (depending on slicer settings)</li></ul><h2>🔌 Ideal Use Cases</h2><ul><li>Off-grid cabin battery monitoring</li><li>Van life solar setups</li><li>Marine battery banks</li><li>Workshop backup systems</li><li>Emergency power walls</li><li>DIY solar generators</li><li>Homestead energy systems</li></ul><h2>🖨️ Printing Recommendations</h2><ul><li>Material: PETG, ASA, or ABS recommended for heat resistance</li><li>Infill: 20–40%</li><li>4-6 wall perimeters for durability</li></ul><h2>📐 Customization</h2><p>Want:</p><ul><li>Fewer battery slots?</li><li>Different gauge size?</li><li>Toggle switches instead of push buttons?</li><li>Custom branding or labels?</li></ul><p>Let me know — I can design variations.</p>

Battery Gauge Box 0.2mm layer, 4 walls, 100% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<h2>🔋 Off-Grid Solar Battery Gauge Box – 8 Battery Monitor Panel | 30mm Volt Meters | 12/22mm Push Button Ready</h2><p>Designed for serious off-grid builders, van lifers, cabin owners, and DIY solar enthusiasts, this <strong>Battery Gauge Box</strong> from <strong>@Beast-Lab</strong> is a clean, modular monitoring solution for multi-battery solar systems.</p><p>Built to house <strong>up to 8 individual batteries</strong>, this enclosure supports:</p><ul><li>🔘 <strong>30mm round voltage gauges</strong></li><li>🔴 <strong>12mm or 22mm push buttons</strong></li><li>⚡ Ideal for 12V, 24V, or 48V off-grid solar setups</li><li>🏕️ Perfect for RVs, vans, boats, cabins, and backup power systems</li></ul><h2>⚙️ Features</h2><h3>🔋 Supports Up to 8 Batteries</h3><p>Monitor each battery independently. Perfect for:</p><ul><li>Parallel battery banks</li><li>Series configurations</li><li>Separate lithium / AGM / lead acid banks</li><li>Backup reserve systems</li></ul><h3>📏 Standard Component Fitment</h3><ul><li><strong>30mm panel gauge openings</strong></li><li><strong>12mm push button compatible</strong></li></ul><h3>🧱 Modular &amp; Clean Layout</h3><ul><li>Organized front panel layout</li><li>Professional install appearance</li><li>Easy wire routing inside enclosure</li></ul><h3>🛠️ DIY Friendly Design</h3><ul><li>Optimized for FDM printing</li><li>Strong wall thickness</li><li>Easy print orientation</li><li>Minimal supports required (depending on slicer settings)</li></ul><h2>🔌 Ideal Use Cases</h2><ul><li>Off-grid cabin battery monitoring</li><li>Van life solar setups</li><li>Marine battery banks</li><li>Workshop backup systems</li><li>Emergency power walls</li><li>DIY solar generators</li><li>Homestead energy systems</li></ul><h2>🖨️ Printing Recommendations</h2><ul><li>Material: PETG, ASA, or ABS recommended for heat resistance</li><li>Infill: 20–40%</li><li>4-6 wall perimeters for durability</li></ul><h2>📐 Customization</h2><p>Want:</p><ul><li>Fewer battery slots?</li><li>Different gauge size?</li><li>Toggle switches instead of push buttons?</li><li>Custom branding or labels?</li></ul><p>Let me know — I can design variations.</p>

Off-Grid Solar Monitoring Panel 8x Battery Gauge
