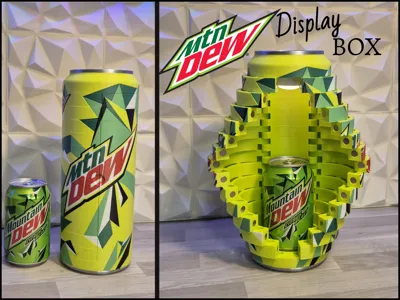

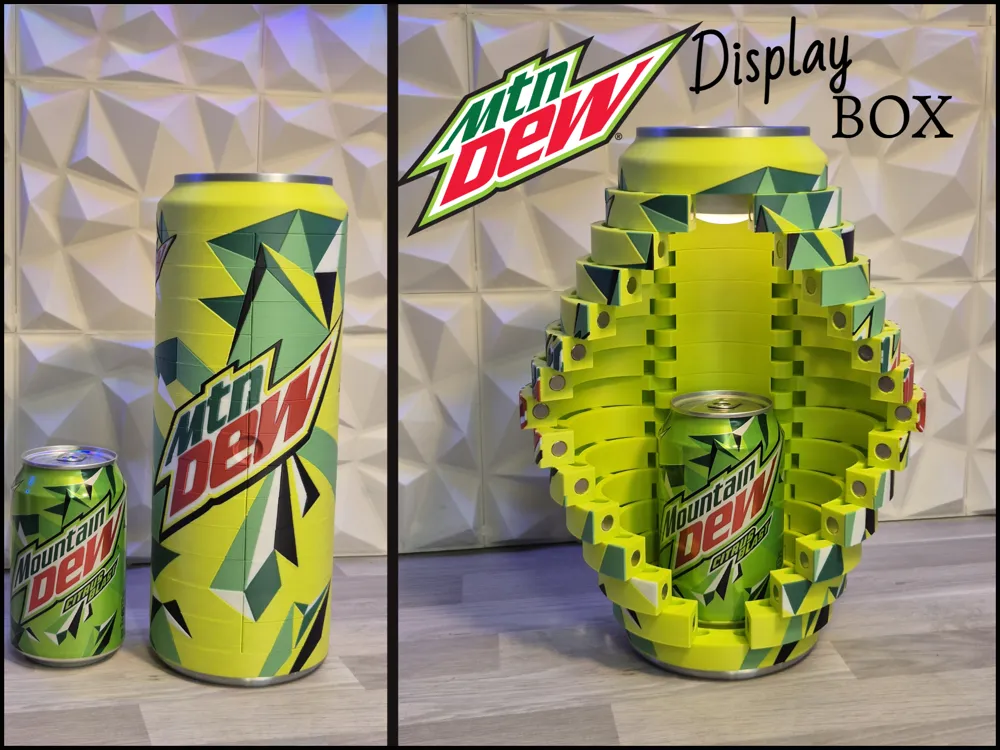

Mountain Dew Folding Door Box

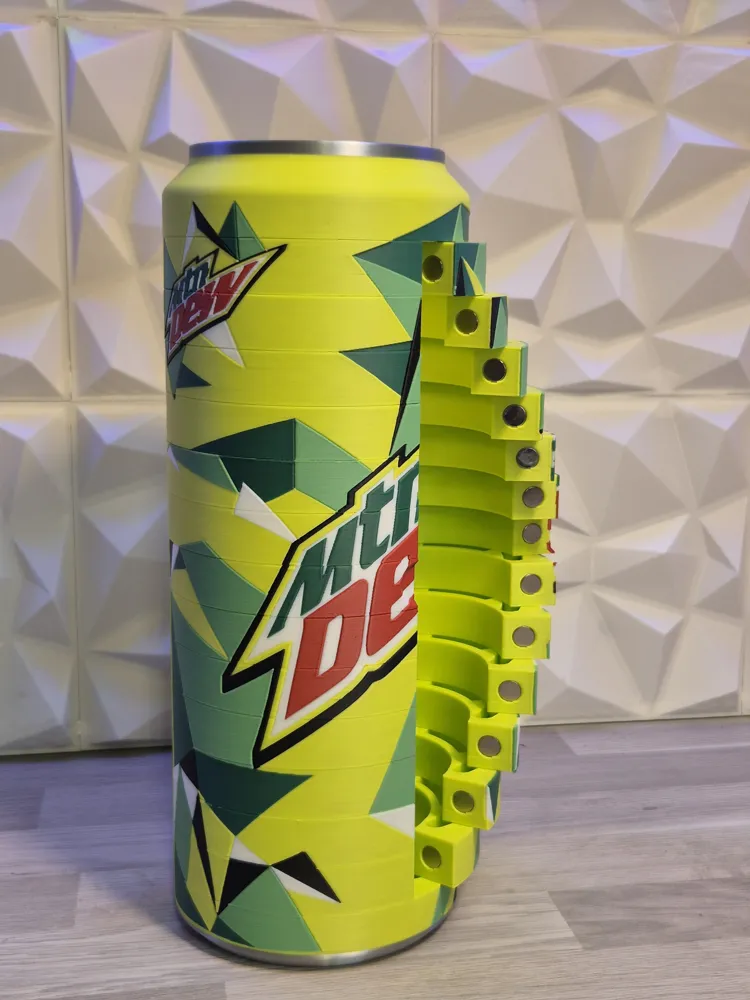

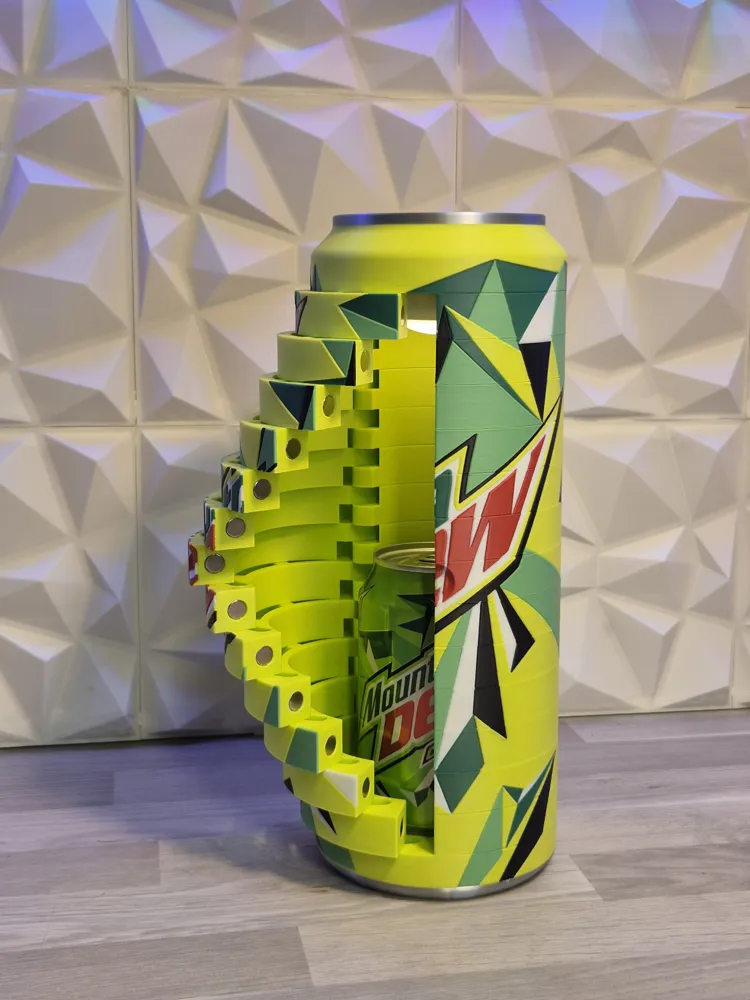

This is the Mountain Dew version of my folding display box. I wanted to capture that high-energy, classic citrus look while keeping the mechanism just as smooth as the original. It uses the same segmented folding door system as my other designs—opening from the center and tucking away to show off the can. The structure is solid, easy to assemble, and features those precision hinge points for a satisfying snap every time you open it. The dimensions are dialed in for standard Dew cans and it's perfect as a desk piece or a gift. Just like the rest of the series, the lid is swappable if you want to use the LED-ready version for that neon glow.
Want it to look just like my printed model? Use these filaments. Buy through BOM.
- Bambu Bright green PLA Basic
- Bambu Grass green PLA Matte
- Bambu Mistletoe green PLA Basic
- Bambu Black PLA Basic
- Bambu Jade White PLA Basic
- Bambu Dark red PLA Matte
- Bambu Silver PLA Silk+
3D printed parts :

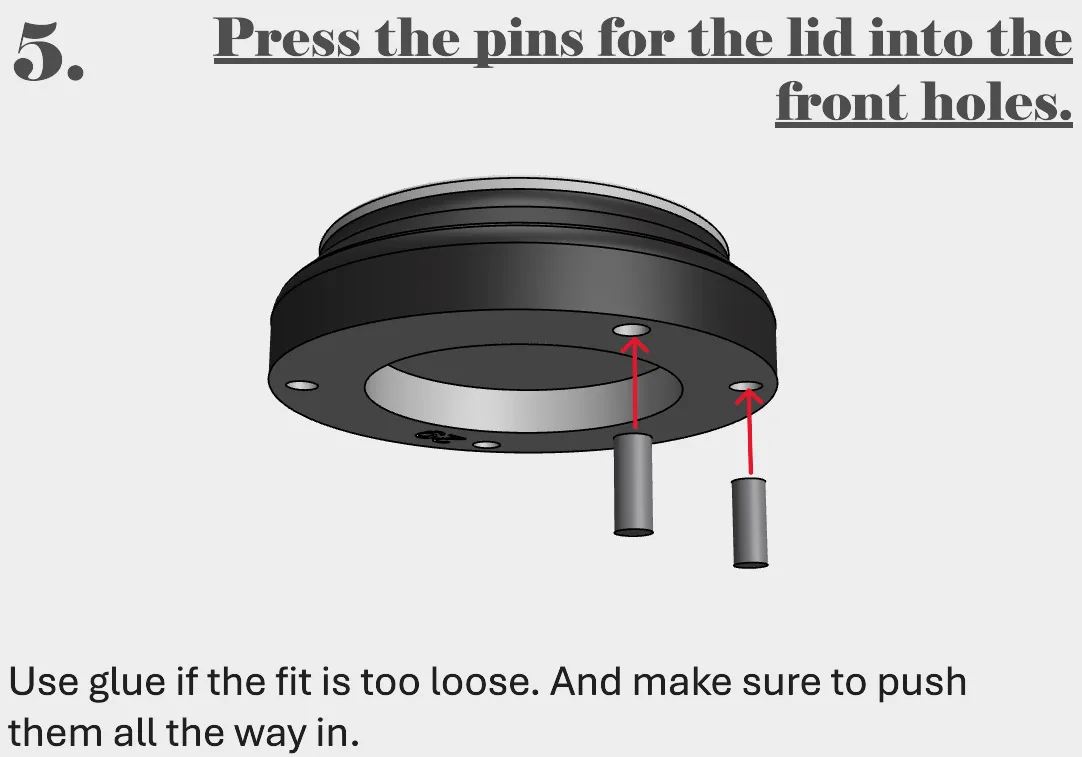

- Top pins x 2
- Base x 1
- Top x 1
- Back pcs x 13
- Door parts x 26
- (Alternative tops for LED)
Other parts required :

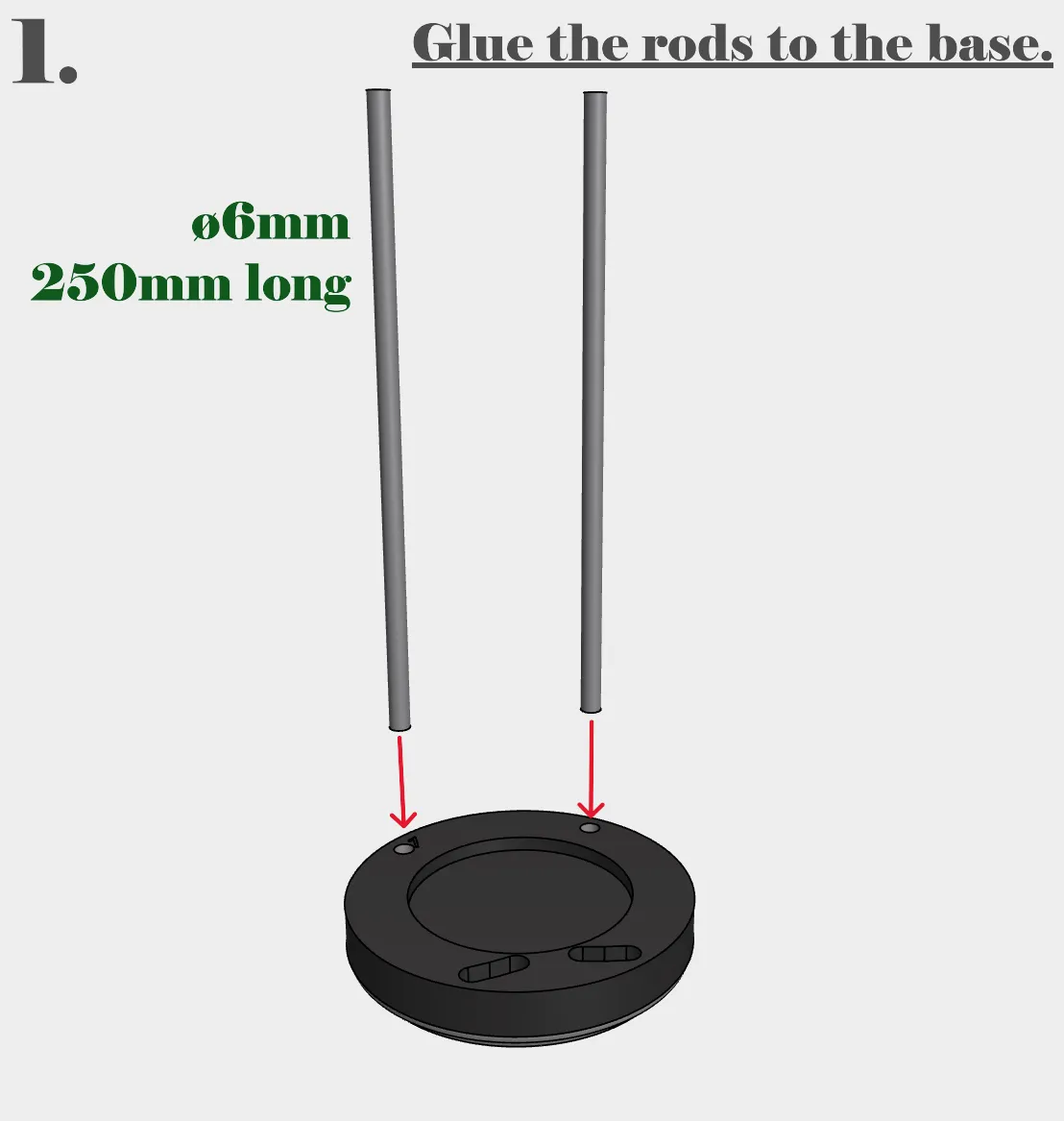

- 2 pcs Steel/alu rods ø6mm x 250mm long. !!Link bellow!!

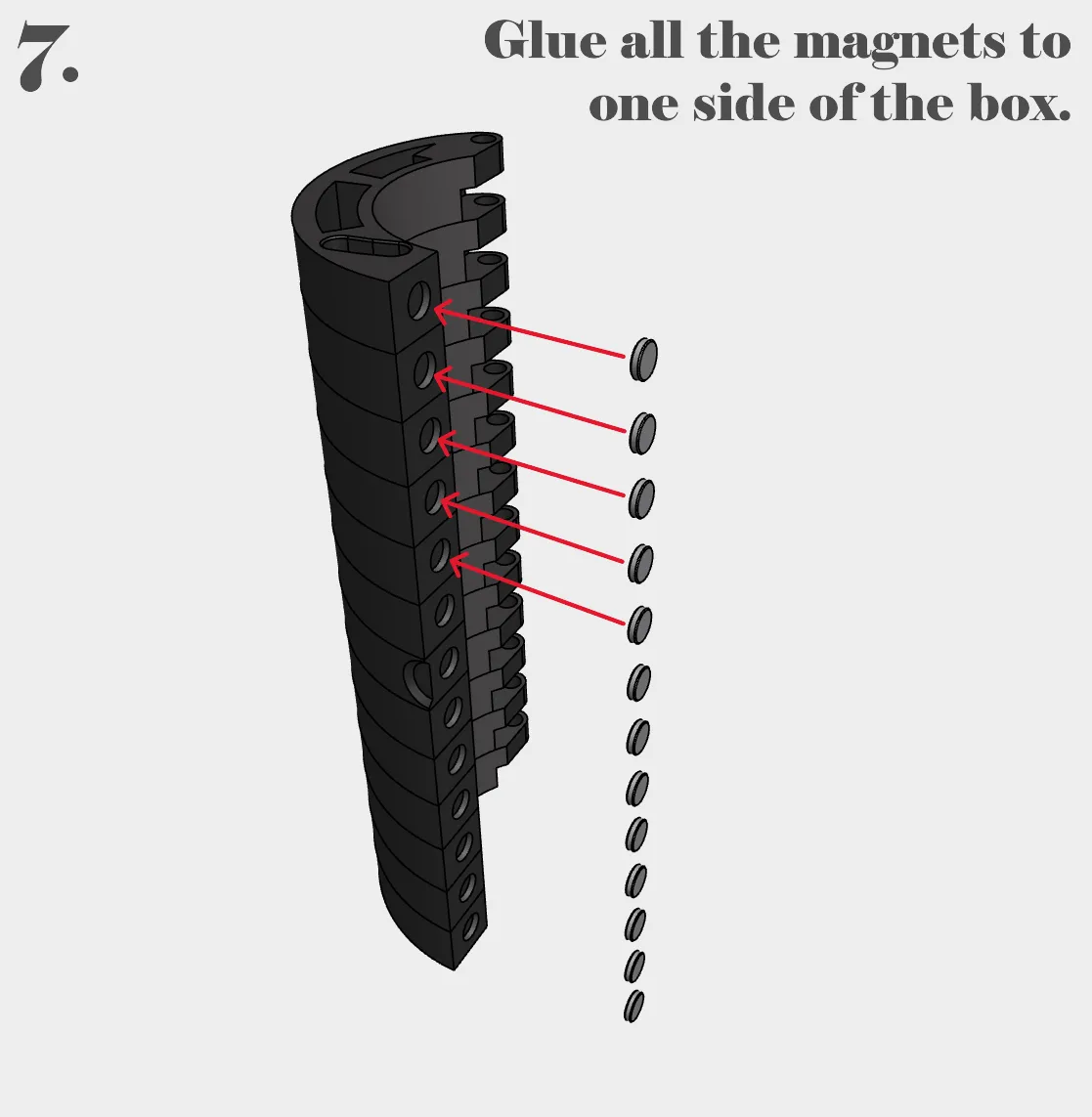

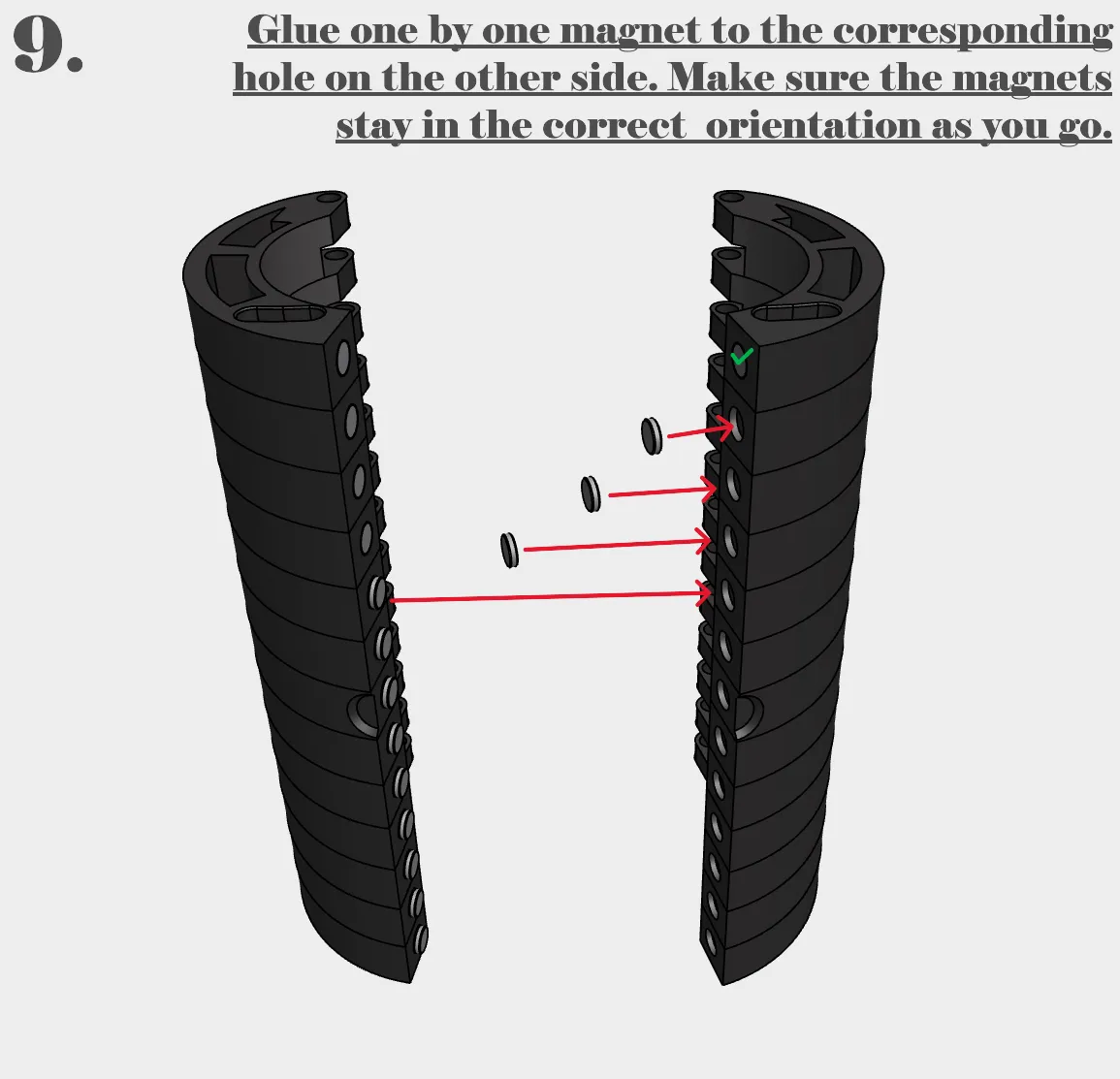

- 26 pcs Round Magnets 8x2mm
- Ca glue.

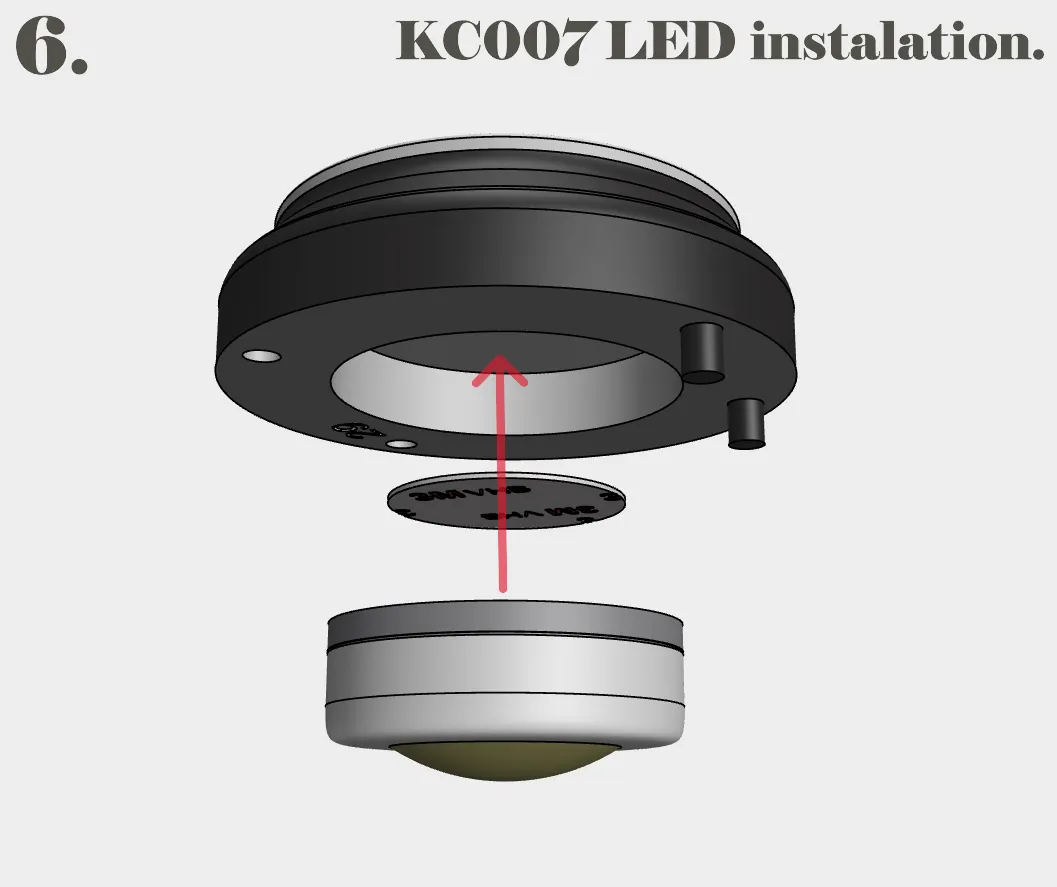

Optional : Led Lamp Kit 001 or KC007
You can find the steel rods you need here → (affiliate link)
If Bambu i out of stock, buy LED here → (affiliate link)
(Everything you buy through these links give me a small commission, so thank you for using them)
⚠️ IMPORTANT QUALITY NOTE: This model was engineered specifically for steel or aluminium rods to ensure structural stability and smooth mechanical movement. Using 3D-printed plastic rods will cause the mechanism to flex, feel unstable, and likely snap over time, ruining the premium feel of the box. Use third-party plastic rod profiles at your own risk!

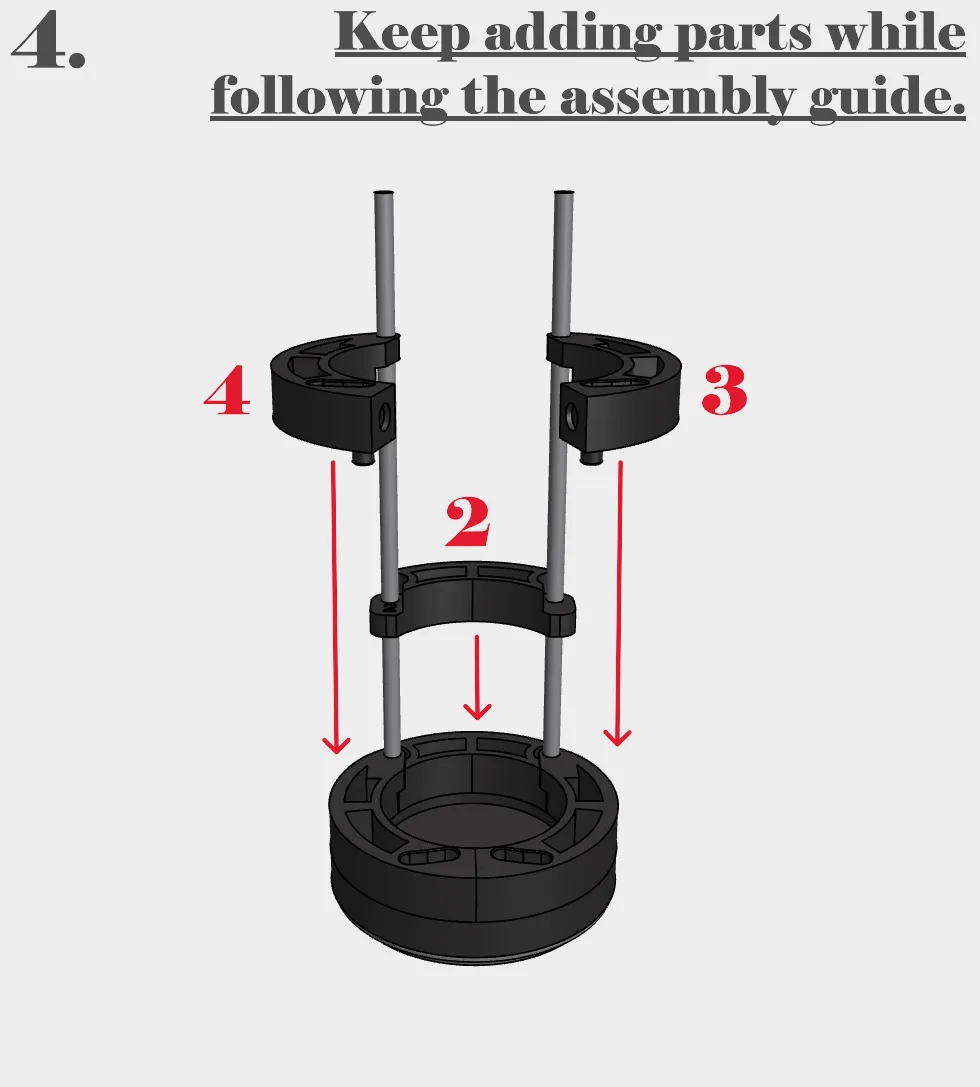

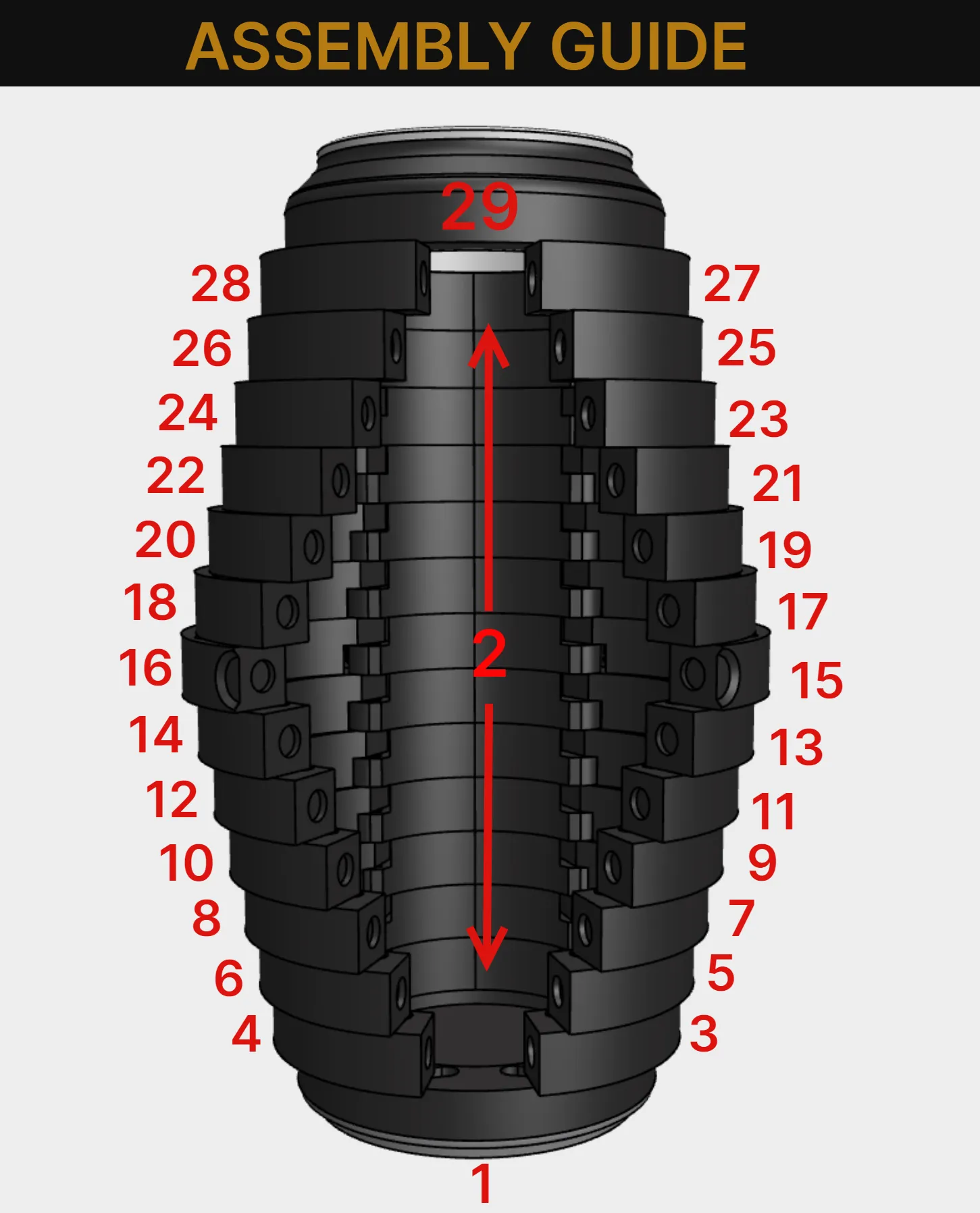

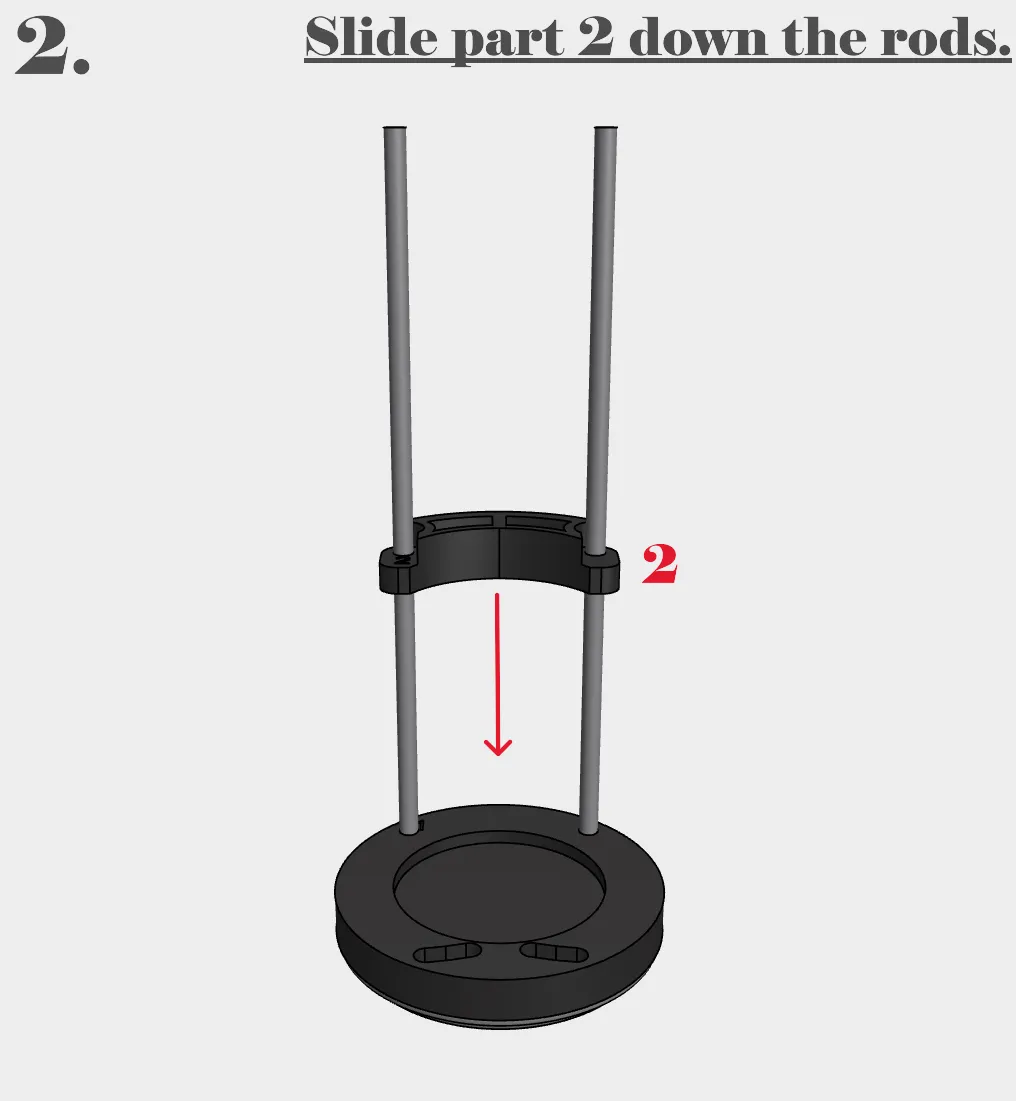

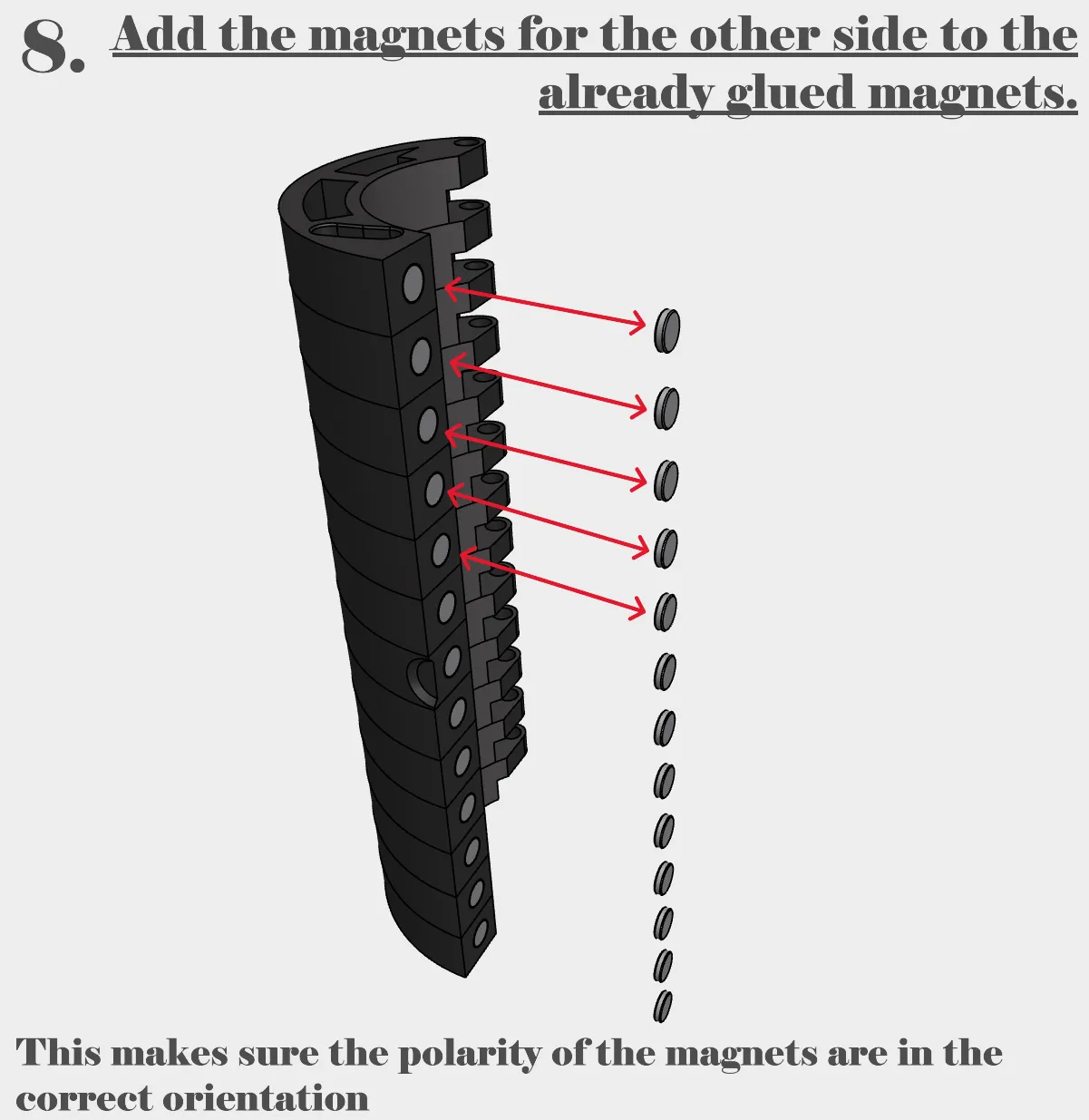

One's you have printed all the parts and acquired the accessories you need, just follow the assembly guide down below.

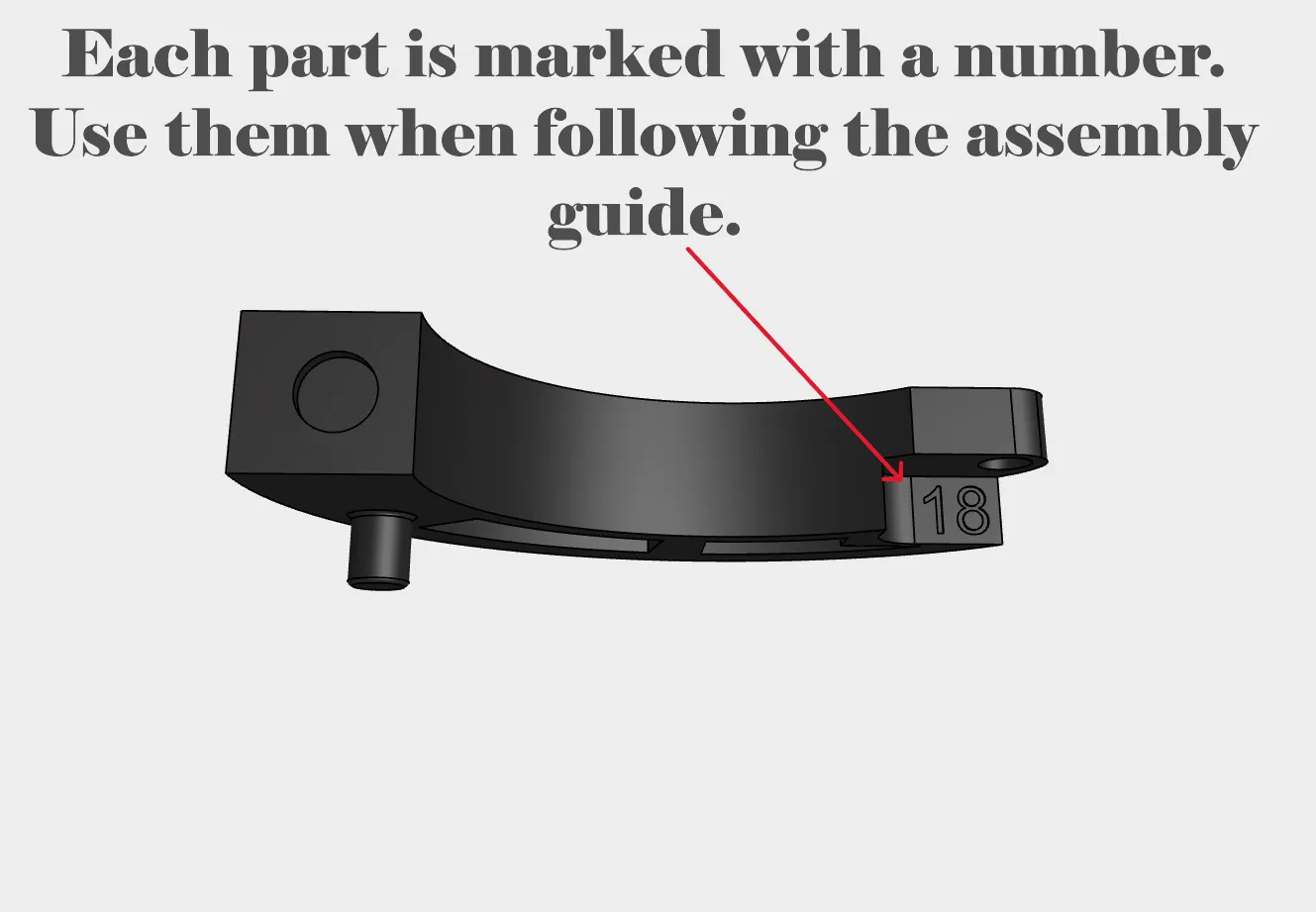

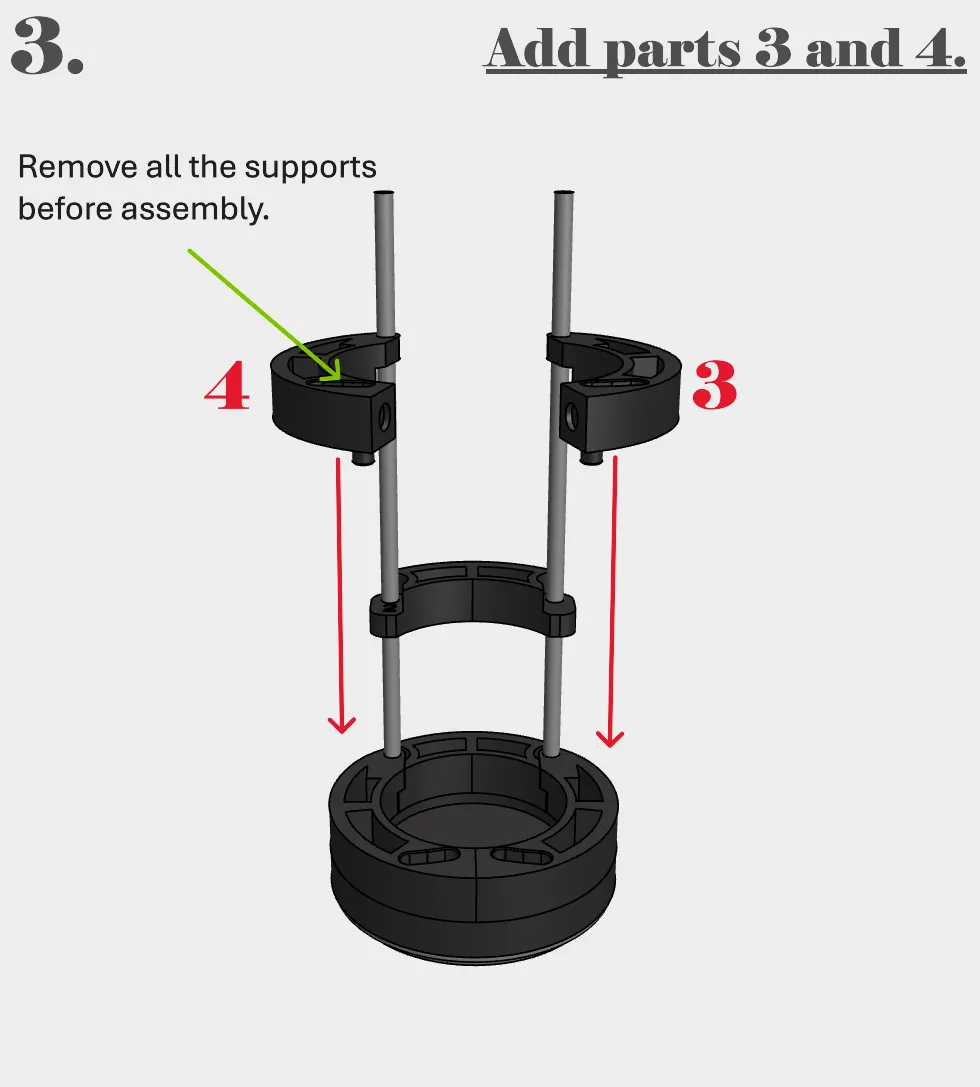

Each individual part is marked with a number, making it very easy to assemble.

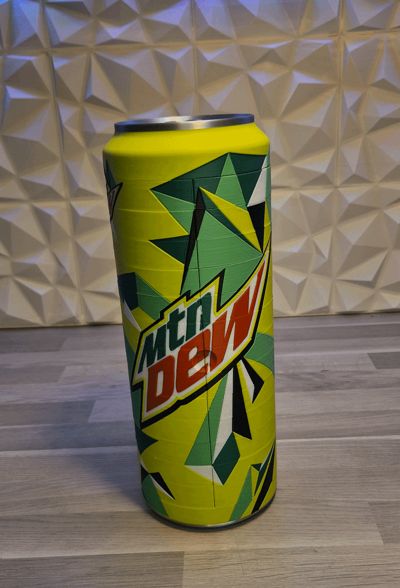

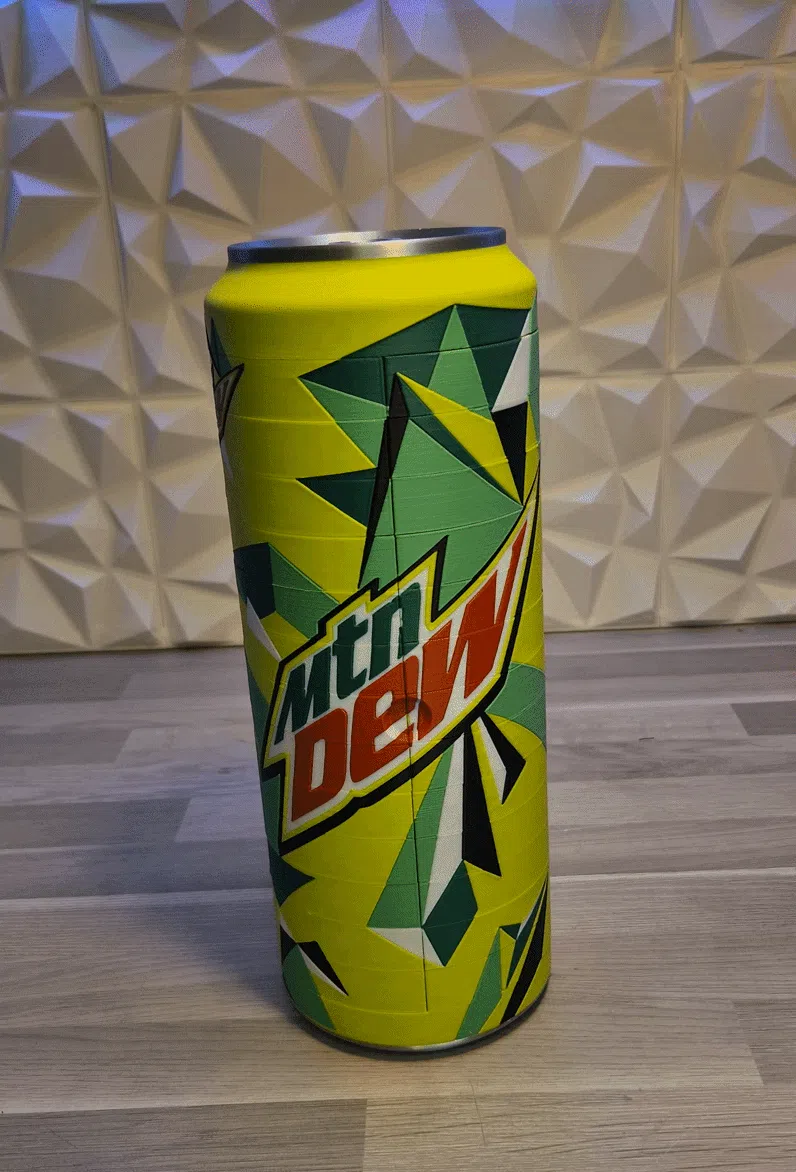

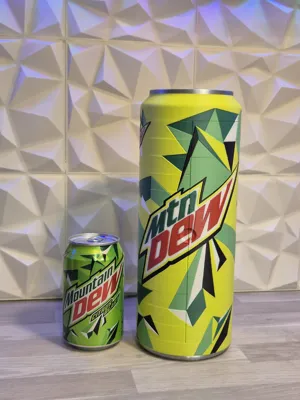

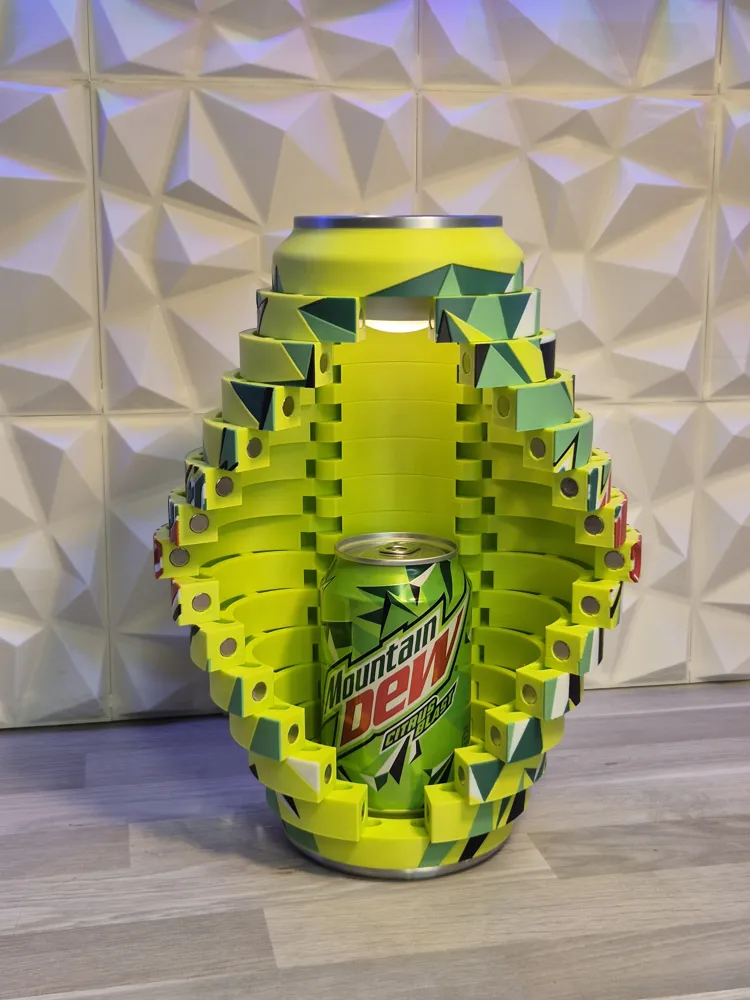

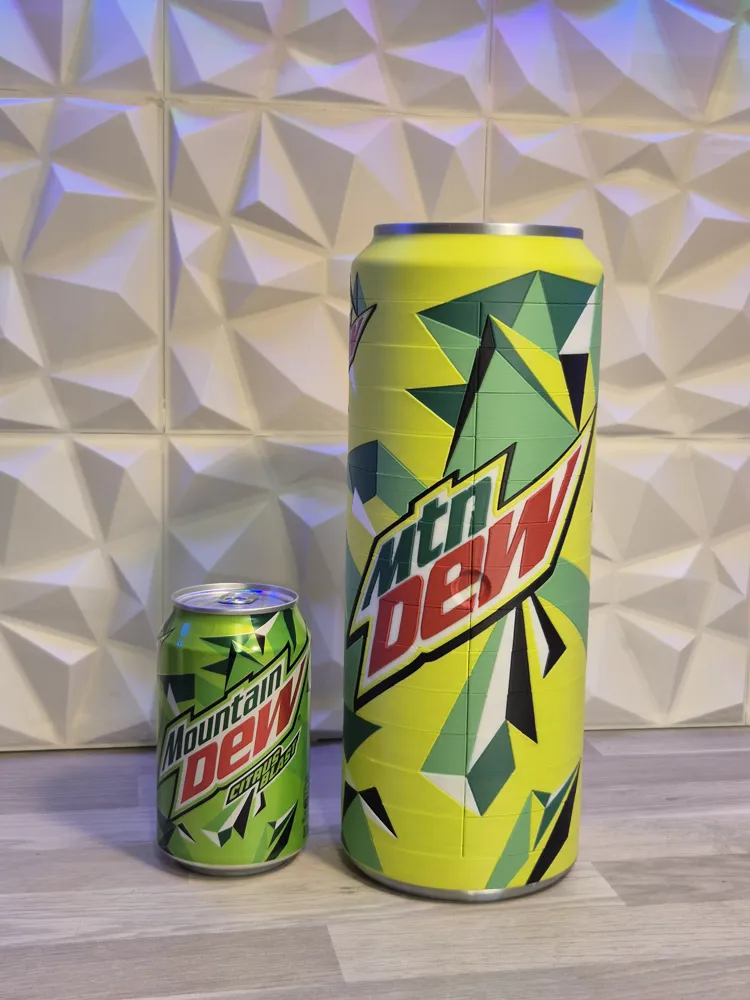

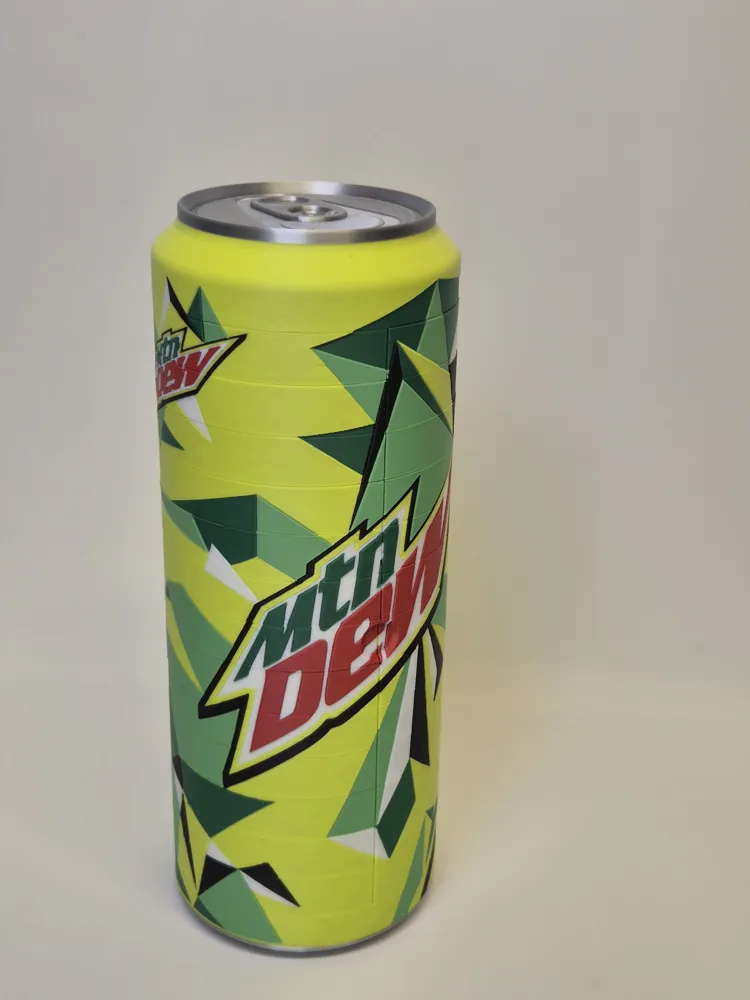

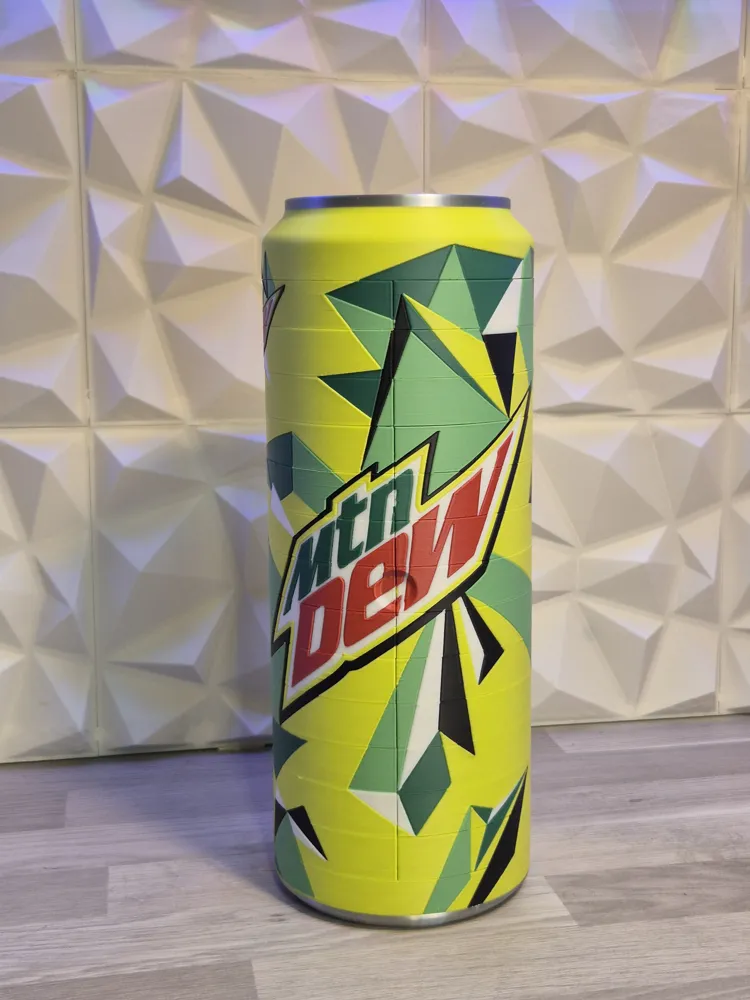

When you're done, it should look something like this…
Follow me if you want to see more of my designs in the future!
