Green Horizon Cadets: #8 ~ Junior Wildlife Photog.

Green Horizon Cadets: #8 ~ Junior Wildlife Photographer

Unified Team Mission Statement

We study the wild seriously.

We protect it responsibly.

We explore it curiously.

The Green Horizon Cadets combine science, fieldwork, compassion, and a healthy sense of adventure to better understand and safeguard the natural world. Whether tracking wildlife, restoring habitats, documenting ecosystems, or rescuing strays, they believe conservation begins with curiosity — and sometimes with stopping mid-step because something extraordinary just happened.

Their guiding principle:

Learn deeply. Care fiercely. Leave no trace… except better knowledge.

Official Team Reminder:

If you become completely absorbed in a discovery, please notify the rest of the team before they hike two miles ahead.

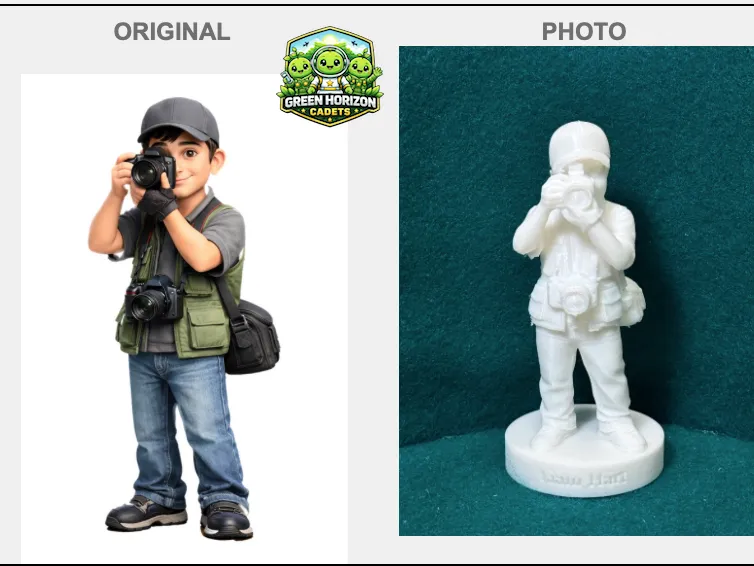

Junior Wildlife Photographer

Name: Liam Hart
Area of Study: Conservation Photography & Habitat Documentation
Focus: Visual storytelling, species documentation, environmental awareness campaigns

Liam tells nature’s story through his lens. By documenting wildlife behavior and fragile habitats, he raises awareness and inspires action. His camera doesn’t just capture images — it captures purpose.

OTHER MODELS AVAILABLE

When I have all uploaded. . .

Green Horizon Cadets: #1 ~ Field Journal Scout: Ethan Vale

Green Horizon Cadets: #2 ~ Junior Naturalist: Lucas Reed

Green Horizon Cadets: #3 ~ Patrol Leader: Mason Crowe

Green Horizon Cadets: #4 ~ Wildlife Rescue Cadet: Ava Monroe

Green Horizon Cadets: #5 ~ Envir. Field Technician: Harper Quinn

Green Horizon Cadets: #6 ~ Young Trail Explorer: Caleb Stone

Green Horizon Cadets: #7 ~ Animal Outreach Amb.: Noah Bennett

Green Horizon Cadets: #8 ~ Junior Wildlife Photog.: Liam Hart

Printer Settings:

Take time to use these settings for optimal prints. Note: Smartphones and tablets cannot print with Tree supports, so use a PC for these settings.

Bambu Studio Settings

Printer Settings

• Nozzle Diameter → 0.4 mm

• Compatible Material → PLA+

Filament Settings

• Nozzle Temperature (first layer) → 205 °C

• Nozzle Temperature (others) → 200 °C

• Bed Temperature (first layer) → 60 °C

• Bed Temperature (others) → 50–55 °C

• Cooling Fan:

◦ Layer 1–2 → OFF

◦ Layer 3+ → 100%

Quality

• Layer Height (Standard) → 0.20 mm

• Initial Layer Height → 0.20 mm

• Line Width → 0.45 mm

• Elephant Foot Compensation → 0.15 mm

Speed

• First Layer Speed → 20 mm/s

• Outer Wall Speed → 35 mm/s

• Inner Wall Speed → 50 mm/s

• Infill Speed → 50 mm/s

• Travel Speed → 120 mm/s

Acceleration / Jerk

• Default Acceleration → 1000 mm/s²

• Outer Wall Acceleration → 500 mm/s²

• First Layer Acceleration → 300 mm/s²

• Travel Acceleration → 2500 mm/s²

• Jerk (XY) → 8 mm/s

Strength / Infill

• Wall Loops → 3

• Top Layers → 4

• Bottom Layers → 4

• Infill Density → 20%

• Infill Pattern → Gyroid

• Sparse Infill Anchor Length → 5 mm (🔔 Note: increase to 10 mm if you see weak infill connections)

Skirt & Brim

• Skirt Loops → 3

• Skirt Distance → 2 mm

• Skirt Layers → 1

Retraction

• Retraction Distance → 4 mm

• Retraction Speed → 40 mm/s

• Z-Hop → 0.2 mm

• Wipe While Retracting → Enabled

• Retract on Layer Change → Disabled

• Minimum Travel Before Retraction → 1.0 mm

Supports

• Support Style → Tree

• Top Contact Z Distance → 0.25 mm (detachable, fixed)

• Support Density → 15%

• Support Interface Pattern → Grid

• XY Distance → 0.5 mm

• First Layer Support Gap → 0.3 mm

Consider 'Annealing' your chess set.

Annealing your PLA models can improve strength by 10–20%. If you plan to use the set regularly, I highly recommend it. For display or occasional play, annealing is optional, and the appearance and finish remain unchanged.

🔗 More info: [Annealing PLA Prints for Strength — Easy Ways (All3DP)]

https://all3dp.com/2/annealing-pla-prints-for-strength-easy-ways/

Educational Use Option:

This model is also suitable for classroom, homeschool, or youth group use. The Green Horizon Cadets can support lessons in environmental science, wildlife conservation, ecosystem awareness, and responsible outdoor practices. Use them as discussion prompts, storytelling aids, or project-based learning figures.

Liam Hart – Conservation Photographer

Lesson: “The Power of an Image”

Objective:
Understand storytelling in conservation.

Activity:
Students take one photograph (or draw one image) that shows:

• A habitat
• A plant
• A sign of environmental change

They write one caption explaining why it matters.

Key Learning:
Visual storytelling drives awareness and action.
