Customizable Milwaukee Packout Handle Labels

⚡ Stop Hunting for STLs — Generate Your Own!

“The ultimate heavy-duty label generator for your Packout stack—fully customizable with 50+ icons and optimized for professional ironing results.”

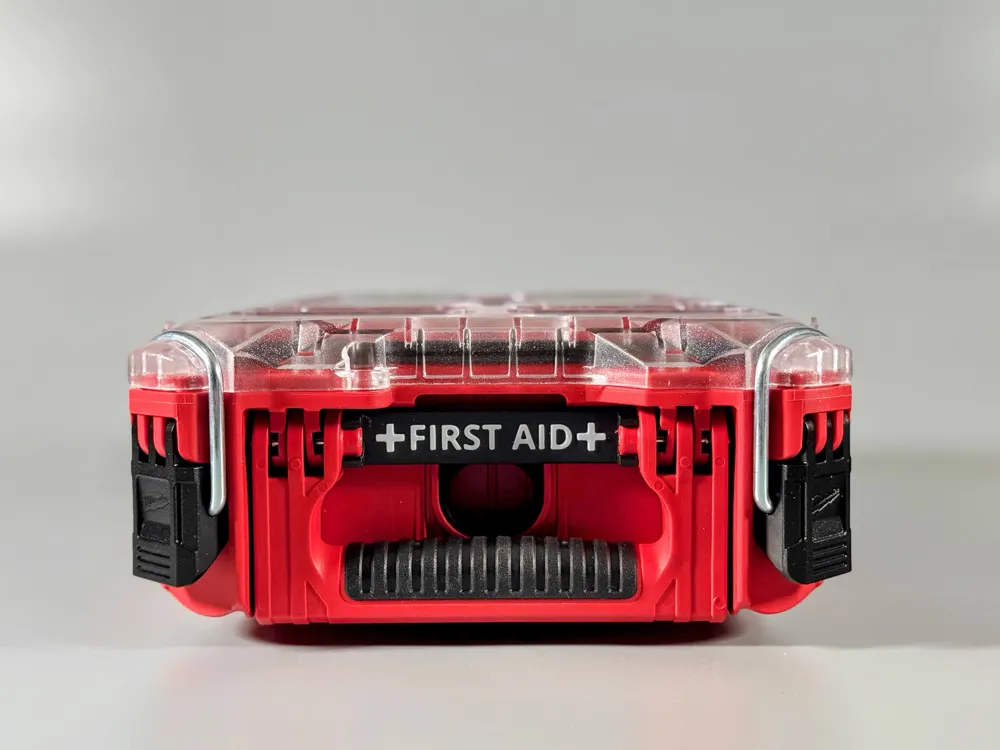

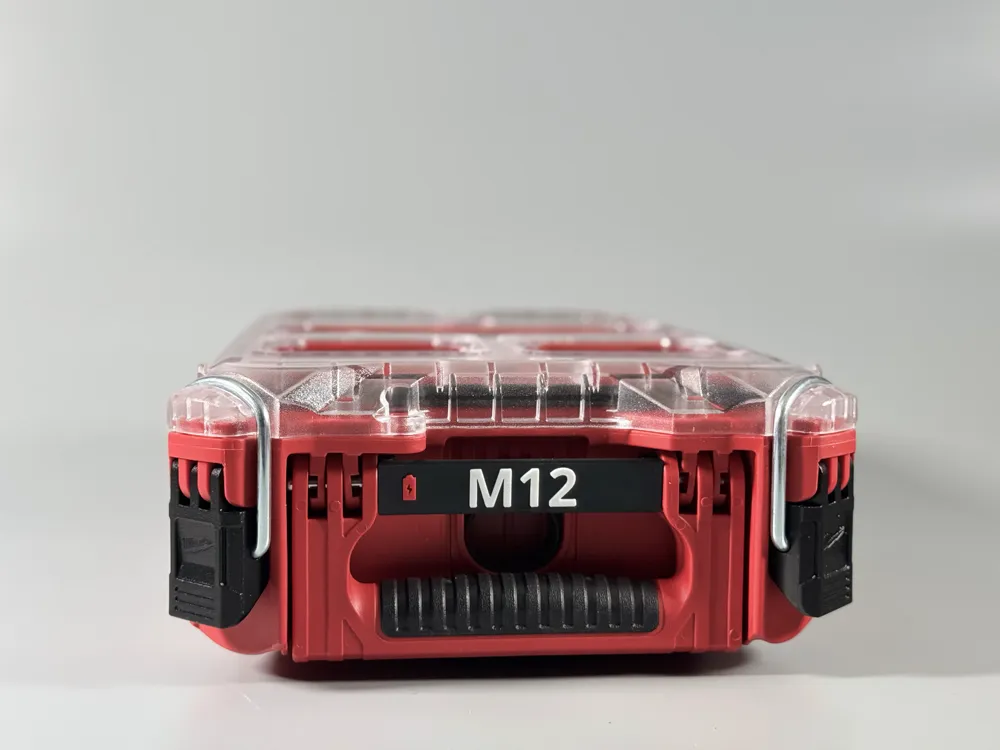

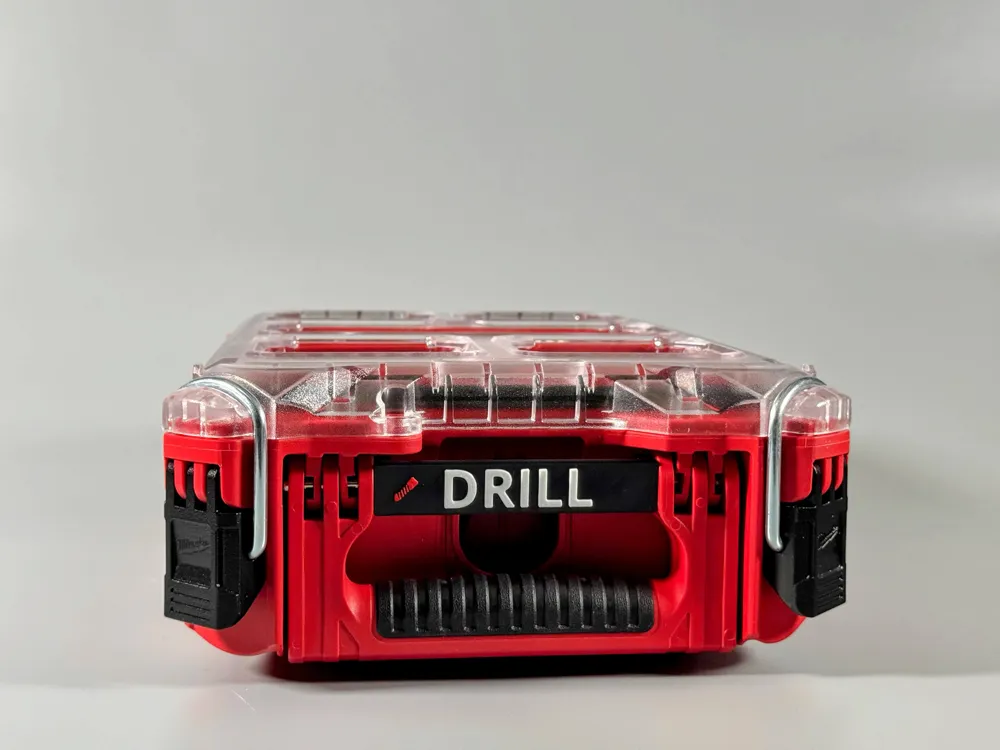

Unlock the full potential of your Milwaukee Packout stack. Instead of searching for a specific “M3 Screws” label or waiting for someone to upload it, generate exactly what you need in seconds. This OpenSCAD generator creates professional, heavy-duty handle labels for every standard Packout Organizer and Tool Box size.

✨ Features

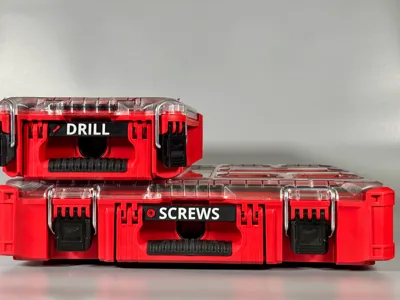

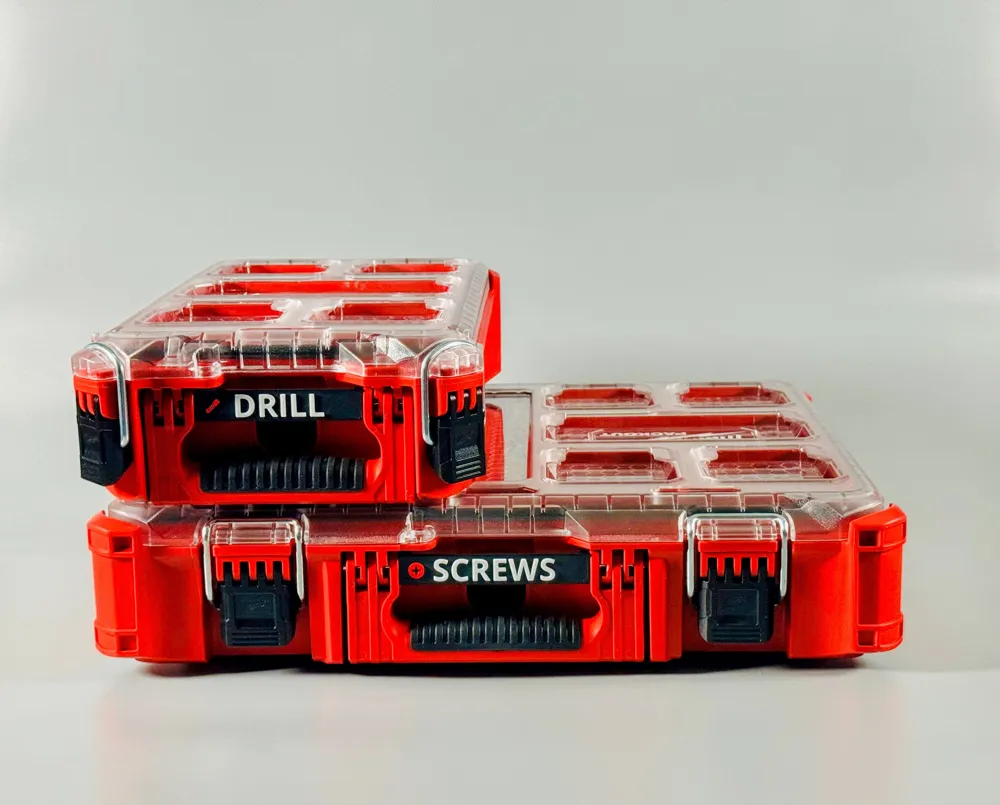

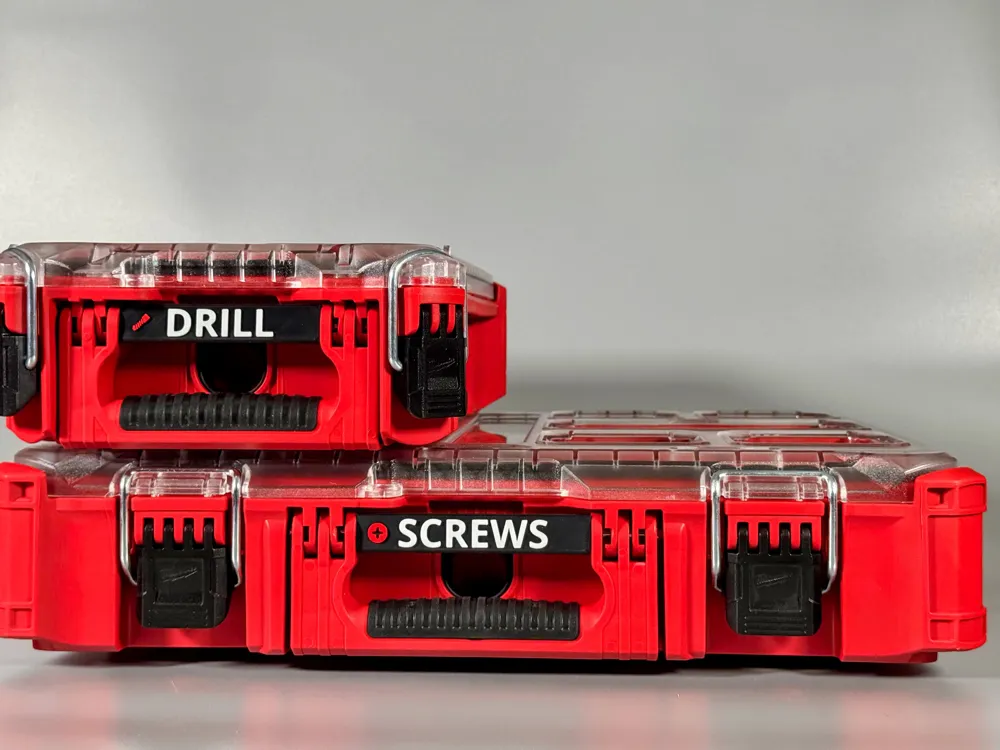

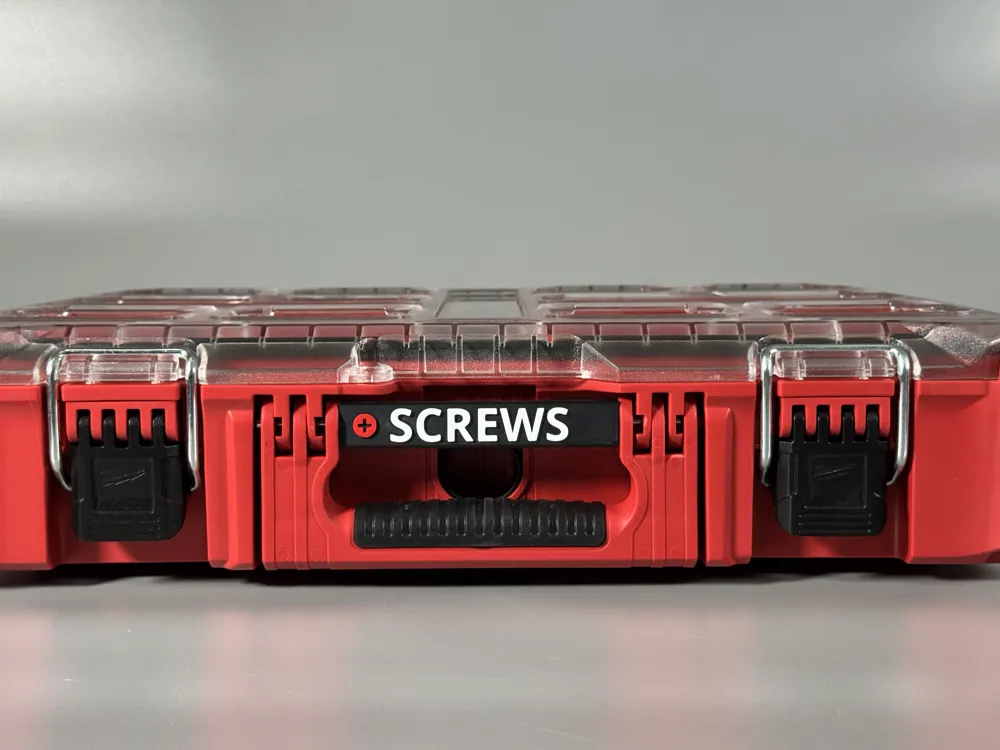

• 📐 Multi-Size Support: One model fits the Compact (8435), Standard (8430), Deep (8432), and Tool Boxes (8424/8425). Just select your size!
• 🧠 Smart Auto-Scaling: Never worry about your text being too long. The generator “measures” your words and shrinks them to fit the handle perfectly every time.

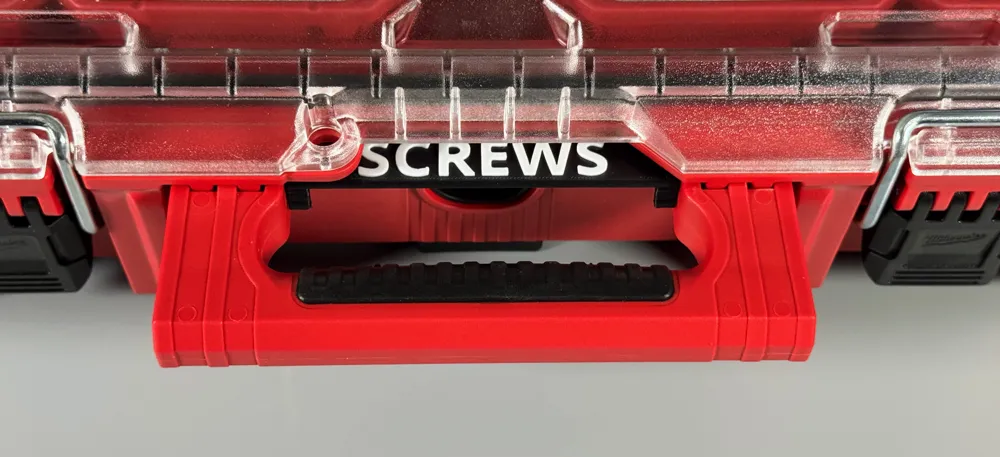

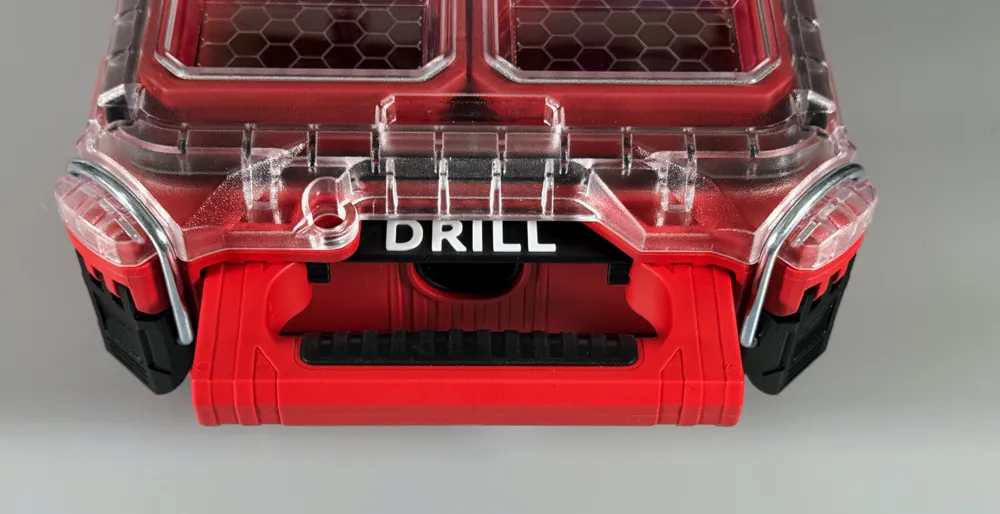

• 🧱 Heavy-Duty “Job-Site” Build: Featuring reinforced 3mm walls and custom-engineered stabilizer clips designed to stay secure even when your cases are being tossed around.
• 🌱 Zero-Waste Printing: No AMS? Use Press-Fit Mode to print professional two-color labels with no filament waste (no purge towers or “poop”).
• 🧩 Perfect-Fit Technology: Includes a “Climate Calibration” setting to account for plastic shrinkage, ensuring a satisfying snap-fit whether you print in PLA, PETG, or ASA.
• ♾️ Unlimited Icon Library: Choose from over 50 built-in trade tools, paste any Emoji, or upload your own SVG Logos.
• ♨️ Ironing Optimized: New Chamfered Edge and Size Compensation settings ensuring your labels look factory-molded smooth without squashed edges or tight fits.

🚀 Customize Instantly (Website Only)

This model is MakerWorld Customizer Compatible!

Customization is currently only available through the MakerWorld website. If you are using the Bambu Handy app, please switch to a web browser to access the “Customize” button.

1. Click “Customize” on this page.
2. Select your Case Size, Icon, and Text.
3. For Press-Fit: Change Layout Mode to Print View (Separated parts) to move pieces side-by-side for easier slicing.
4. Click “Generate” to create your custom label.
5. Export as 3MF to retain color information.

📚 Need Help? Read the Guide!

I have included a comprehensive PDF Customization Guide in the model files. It covers every single setting, advanced tuning for ironing, and 2-color printing tricks!

🛠️ The Icon Library

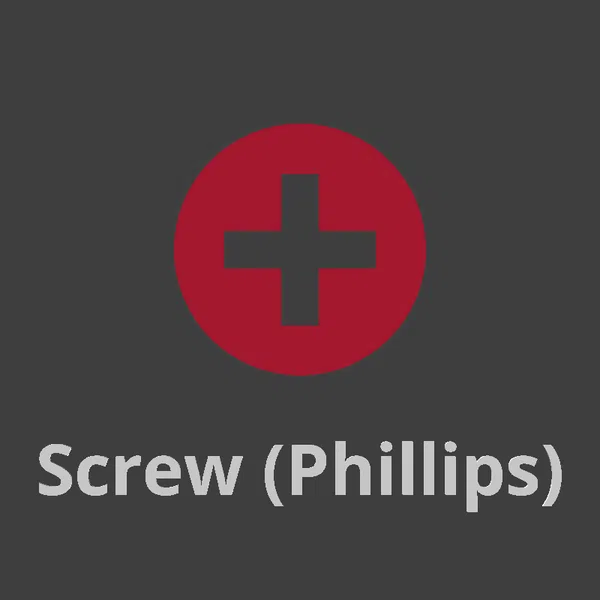

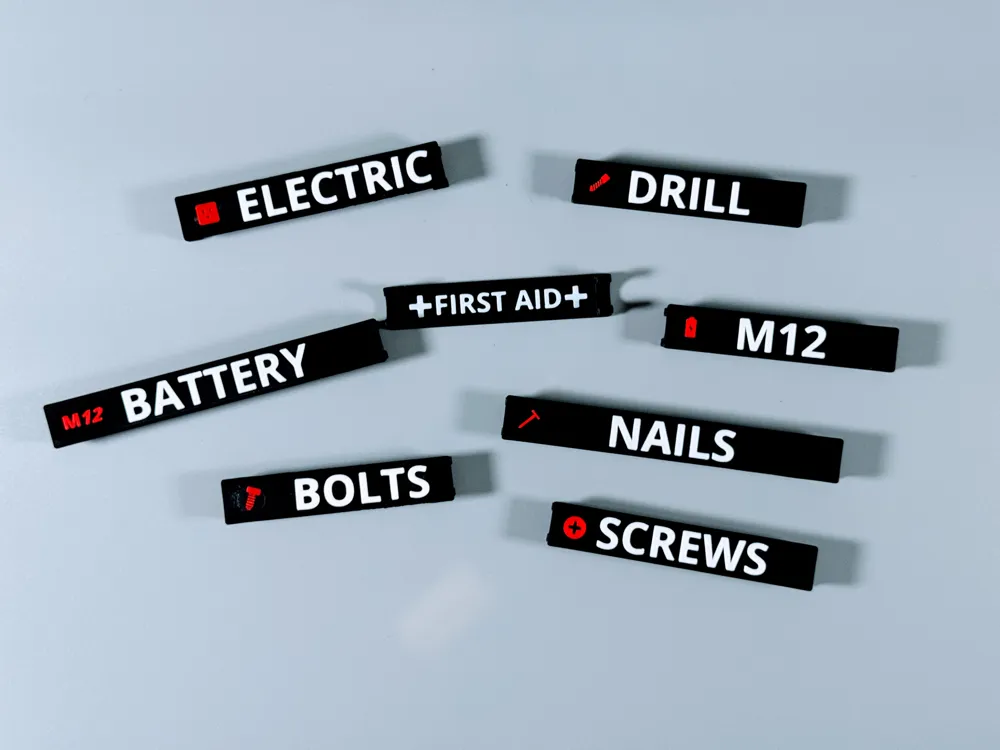

Organize your entire workshop with specialized icons for every trade. The generator includes 50+ built-in icons, plus support for Custom SVGs and Emojis:

📏 Compatibility Table

Help the Community! If you verify the fit for one of the “Likely” models, please post a photo and comment so I can officially update the list!

🔗 Looking for Low-Profile?

If you have the Compact Low-Profile (8436) or Low-Profile Organizer (8431), check out the sister model:

🖨️ Printing Recommendations

• Supports: Required for both Face Up and Face Down orientations. Use Tree (Slim) supports for the best results on the latch hooks and handle clips.
• Orientation Options:
• Face Down: Best for Multi-Color (AMS). Yields a perfect plate-textured finish with zero ironing required. For Press-Fit, use a sharp point or small pick to pry support material out of the text and icon negatives before assembly.
• Face Up: Works well for both AMS and Press-Fit. Looks great printed normally!
• 💡 Optional: If you prefer a glassy-smooth finish, you can enable Ironing. Set Handle Edge Style to Chamfer and Handle Size Compensation to 0.1mm for cleaner edges! Note: Ironing works best with the Monotonic top surface pattern.
• Walls: Use 4-6 Loops for maximum clip strength.
• Wall Generator: Arachne is highly recommended for small text and icon detail.
• Bed Adhesion: Do NOT use a Raft. It will ruin the bottom surface finish which is critical for the press-fit tolerances.
• Brim: Recommended for the long clips. Use Outer Brim Only (5-10mm width, 0.15mm gap) to prevent corner lifting.

📝 Release Notes - v1.1.0

• Customizable Icon Badges: Added backing shapes (Circle, Hexagon, Shield, or Square) with adjustable padding.
• "Mixed Mode" Printing: Support for combining print methods (e.g., Multi-Color text with Press-Fit icon inserts).
• Expanded Icon Library: Library expanded to include over 50 trade-specific icons including Nails, Screwdrivers, Pipe Wrenches, Pliers, and Bubble Levels.
• Structural Improvements: Re-engineered clip profile with integrated Stabilizer and Grip Points for a zero-wobble fit.
• Mechanical Alignment: Added Blind Alignment Key (Hidden) — ensures Press-Fit badges are perfectly centered without visible pegs on the face.
• Ironing Optimization: Added Handle Edge Style (Chamfer) and Size Compensation for perfect ironing results.

⚙️ Engineering Specifications

This generator is built on a custom OpenSCAD framework using the BOSL2 library.

• Dynamic Measurement: Uses textmetrics to manage real-time font scaling.
• Mechanical Optimization: Clips include integrated Stabilizer Profiles and Grip Points calibrated for specific Packout handle geometries.
• Complex Booleans: Correctly handles multi-material separation for AMS and applies precision tolerances (0.15mm) for press-fit components with Blind Triangle Keys for alignment.
