Description

DataDisplay V1… What is it?

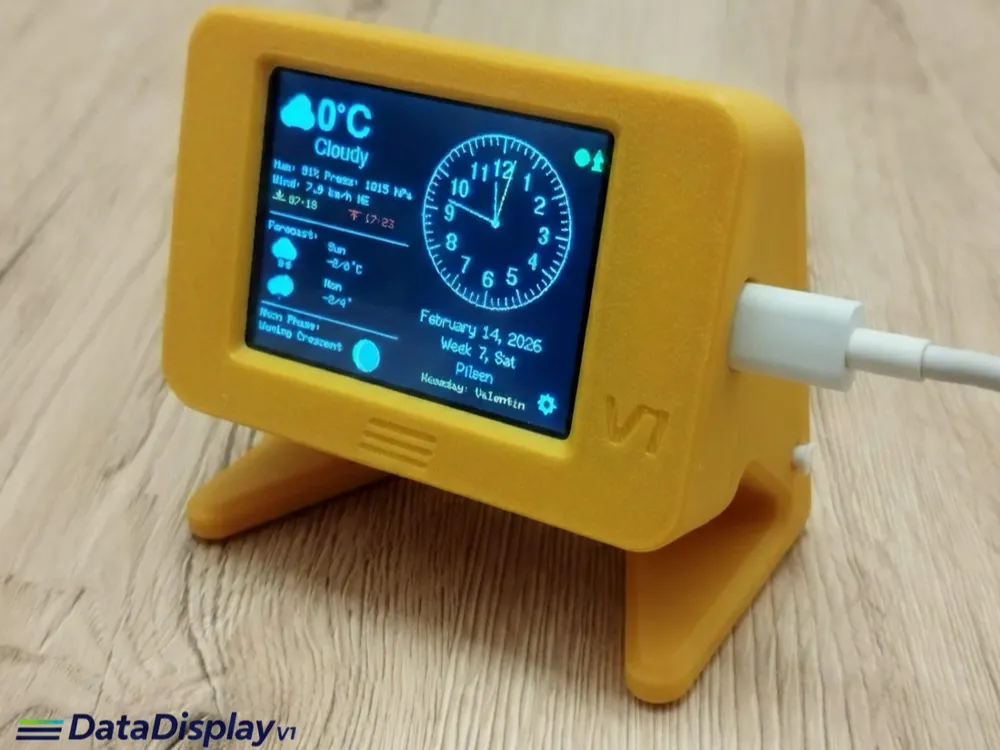

The ESP32 DataDisplay is a multifunctional desktop terminal powered by an ESP32 and a touch TFT screen (CYD - esp32-2432s028).

The version for wall mounting, Skadis/Parkside pegboards, or other surfaces is also available.

For this version, follow the link: 🔗 Wall Mount Base: DataDisplay V1 Wallmount

It serves as an elegant, highly customizable information center. Unlike many other DIY projects, it features full on-device configuration—no external app or PC required after the initial flash.

Fully flashable directly through your web browser. Chrome or Edge is all you need.

Flash your CYD here: https://lachimalaif.github.io/DataDisplay-V1-instalator/

Github project page: https://github.com/lachimalaif/DataDisplay-V1-instalator

🚀 Latest Update: V1.5.0 (Apr 7, 2026)

New Version Available! This update expands your weather insights and optimizes the display for better readability and stability.

• Weather & Forecast:
  • 3-Day Forecast: Extended visibility for the upcoming days.
  • Min/Max Temps: Added today’s temperature range.
  • Compact View: Implemented day shortcuts for a cleaner look.
• UI & Readability:
  • Namedays: Removed diacritics and increased font size for better legibility.
  • Time Display: Cleaned up the clock UI by removing the colon before seconds.
• Stability:
  • Boot Fix: Resolved the fetchWeatherData loading issue during startup.

What is new in this version:

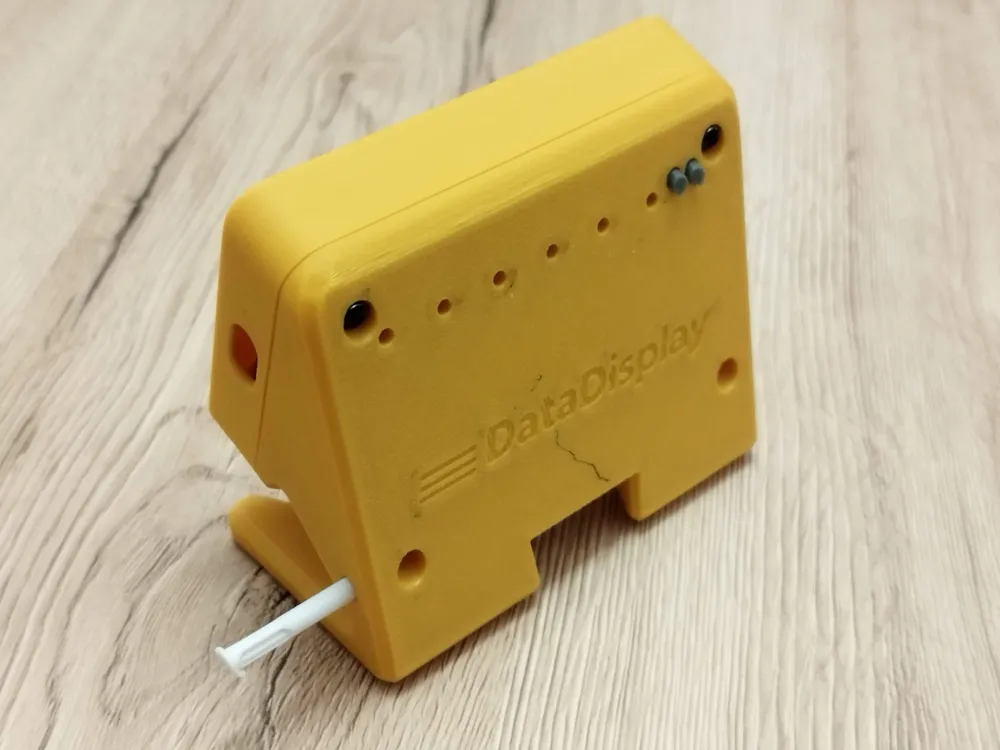

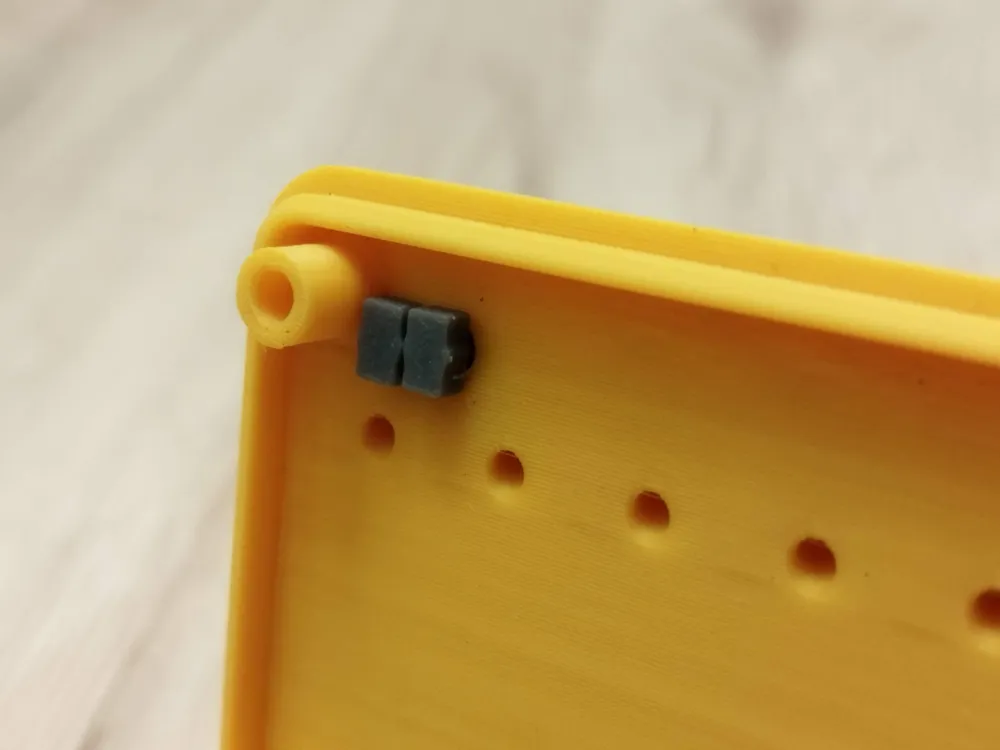

• Added buttons for reset and boot of device to case
• Added stylus holder

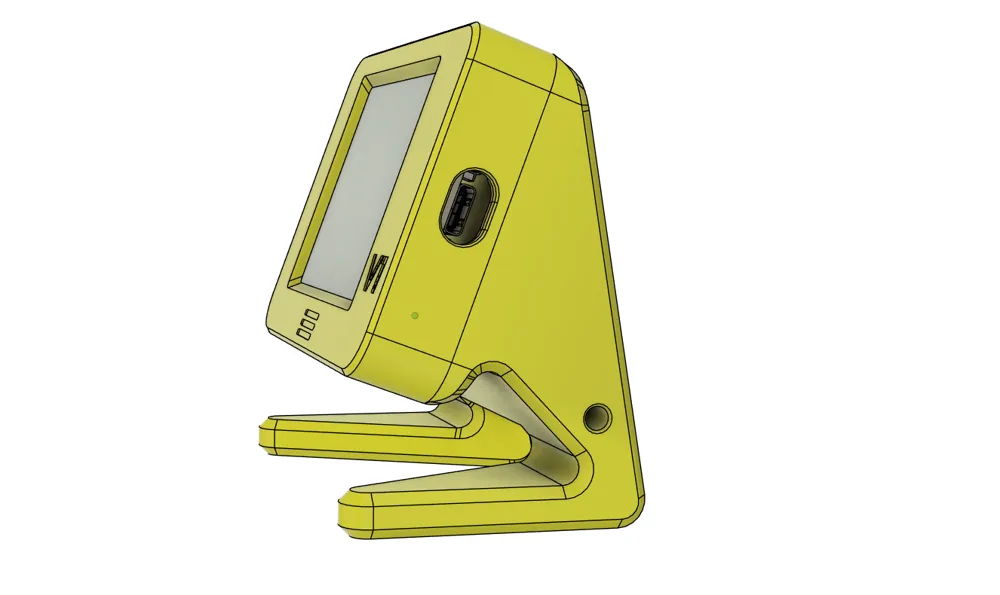

• Adjusted USB-C cable hole

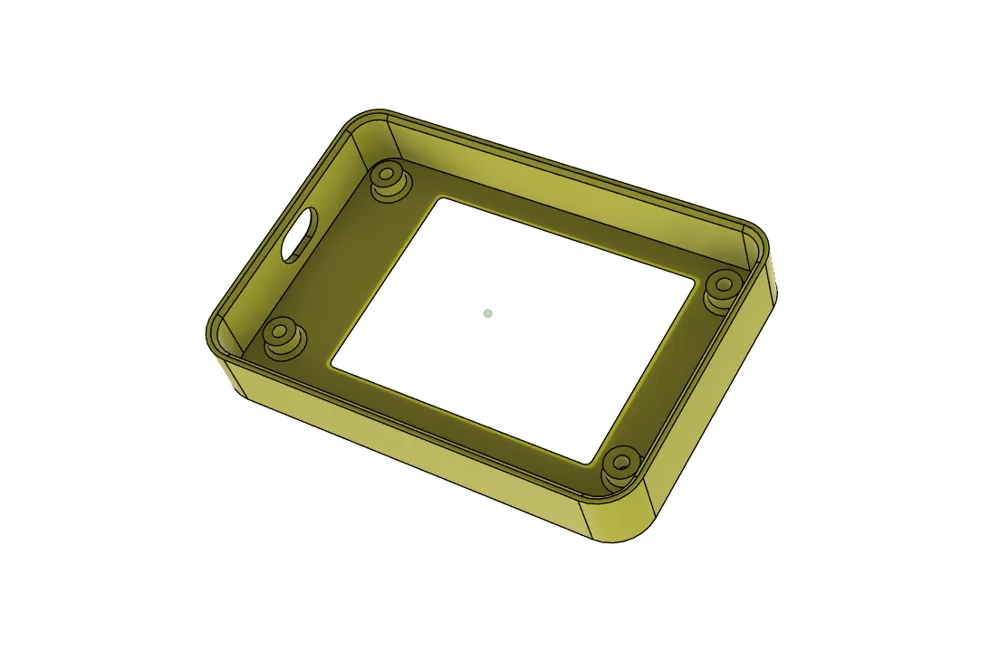

• Adjusted frame of lid


📢 Expansion Pack is here!

I’ve just released the official Accessories & Mounting Pack for the DataDisplay V1.

What’s inside?

• ✍️ Custom Stylus (Split design for perfect surface finish).
• 🖨️ Optimized for easy printing – just a drop of superglue!
• New Lid part (Lid with extended hole for more connectors)

Get it here: DataDisplay Accessories


All-in-One Feature Set:

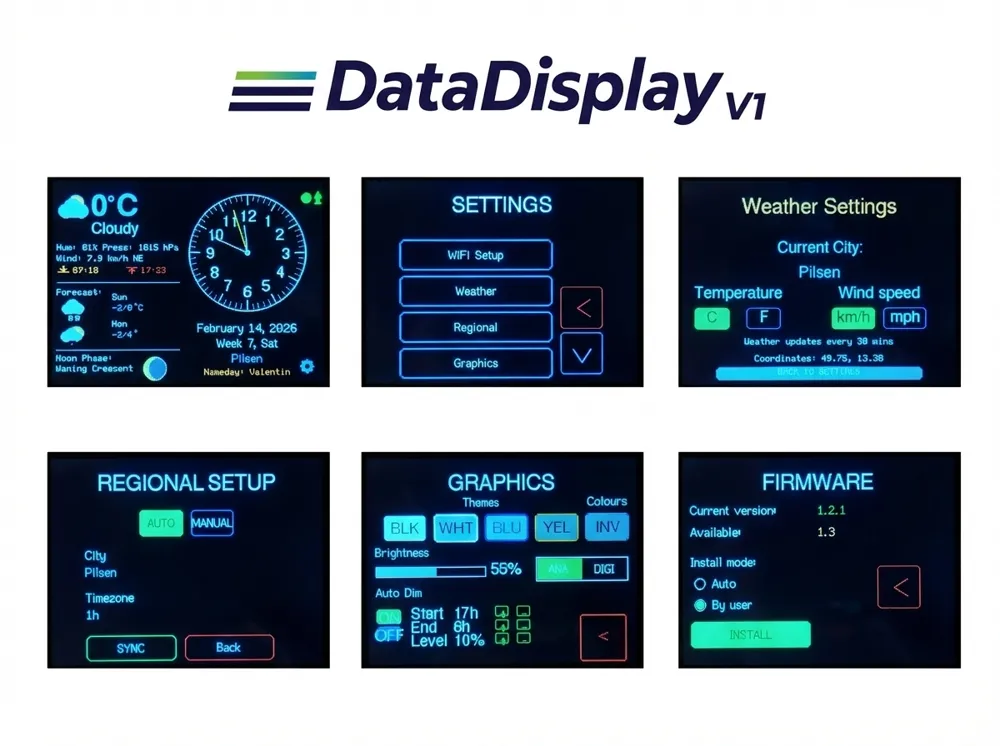

• Full Device Integration: Complete settings menu accessible directly via the touchscreen.
• Easy WiFi Setup: Built-in network scanner and visual connection status indicator.
• Advanced Weather: Automatic location scan (IP-based) or manual country/city selection. Includes current conditions, forecasts, and sunrise/sunset times.
• Flexible Clock faces: Toggle between analog and digital modes (12/24h formats).
• Calendar & Name Days: Displays the current date, week number, and regional name day info.
• Moon Phases: Beautifully rendered vector icons showing the current lunar stage.
• Visual Themes: 4 distinct color themes to match your style (Black, White, Blue, Yellow).
• Automatic Dimming: Features a fully adjustable display intensity mode.
• Personalization: Manual brightness control and temperature unit switching (°C / °F).
• OTA Updates: Possibility of automatic, or semiautomatic updates over the air
  • Firmware menu in settings

Why this project?

• Stand-alone Device: Once powered, it manages everything on its own via WiFi.
• User-Centric Design: Clean UI with an emphasis on readability and ease of use.
• Maker Ready: A perfect project for MakerWorld and GitHub, combining coding, electronics, and 3D printing possibilities.

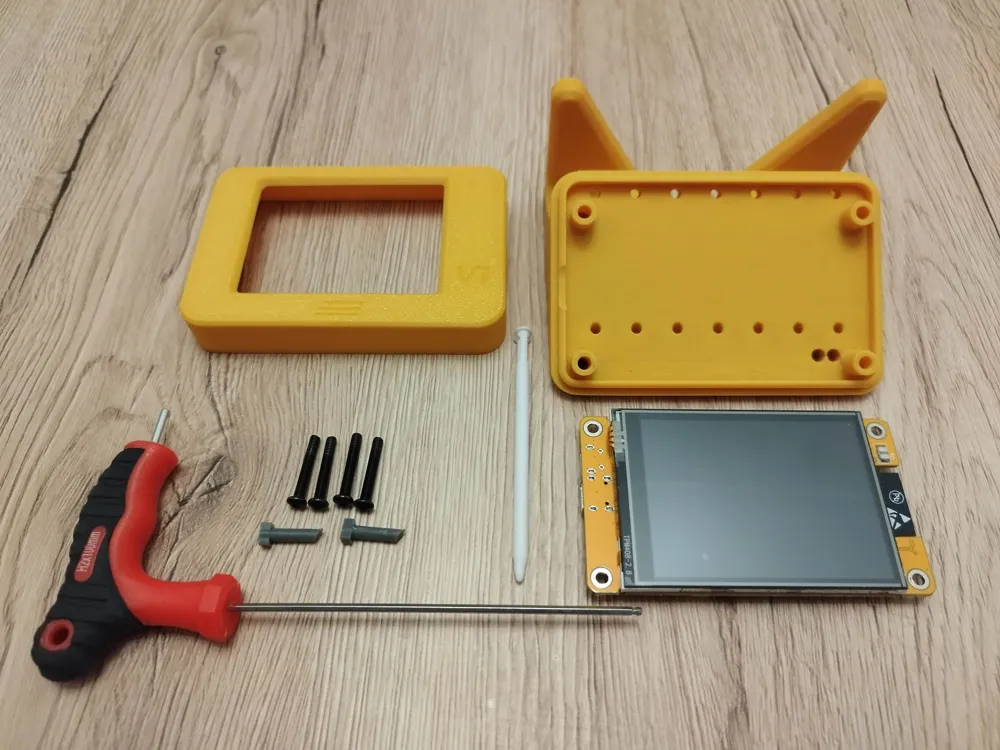

BOM (Bill of Materials) – What you need:

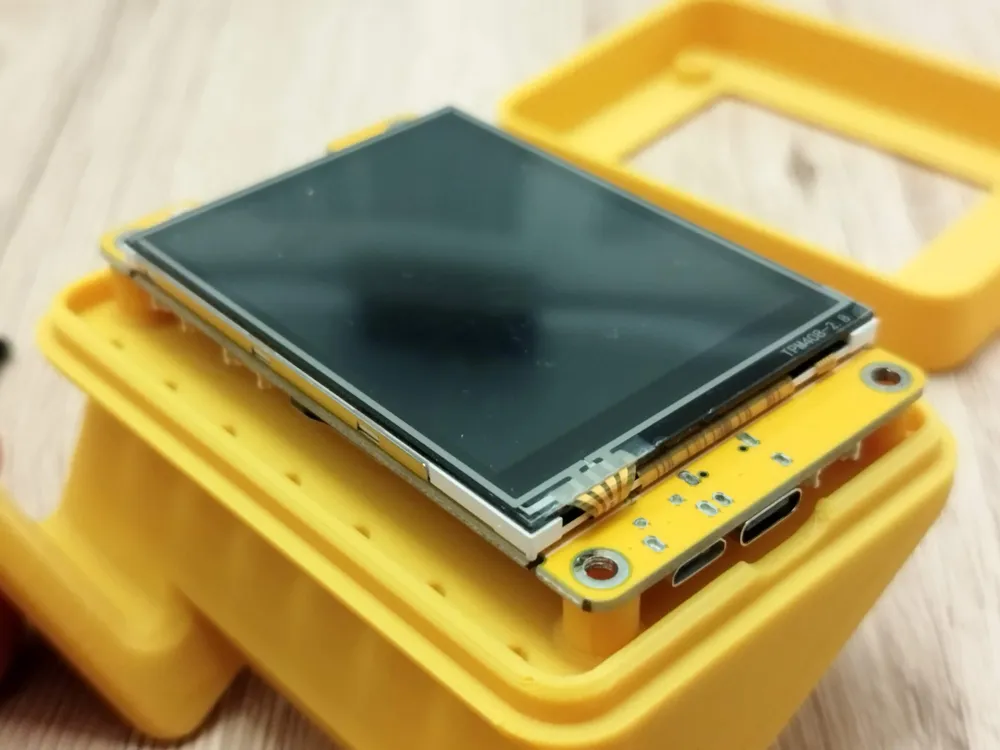

• esp32-2432s028 (CYD - Cheap Yellow Display 2.8")

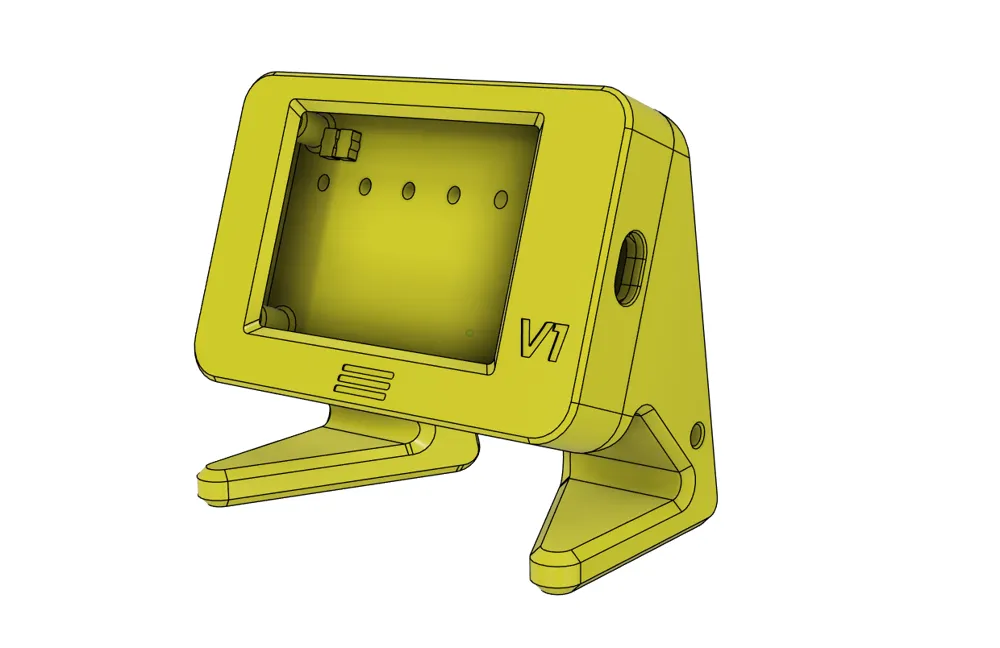

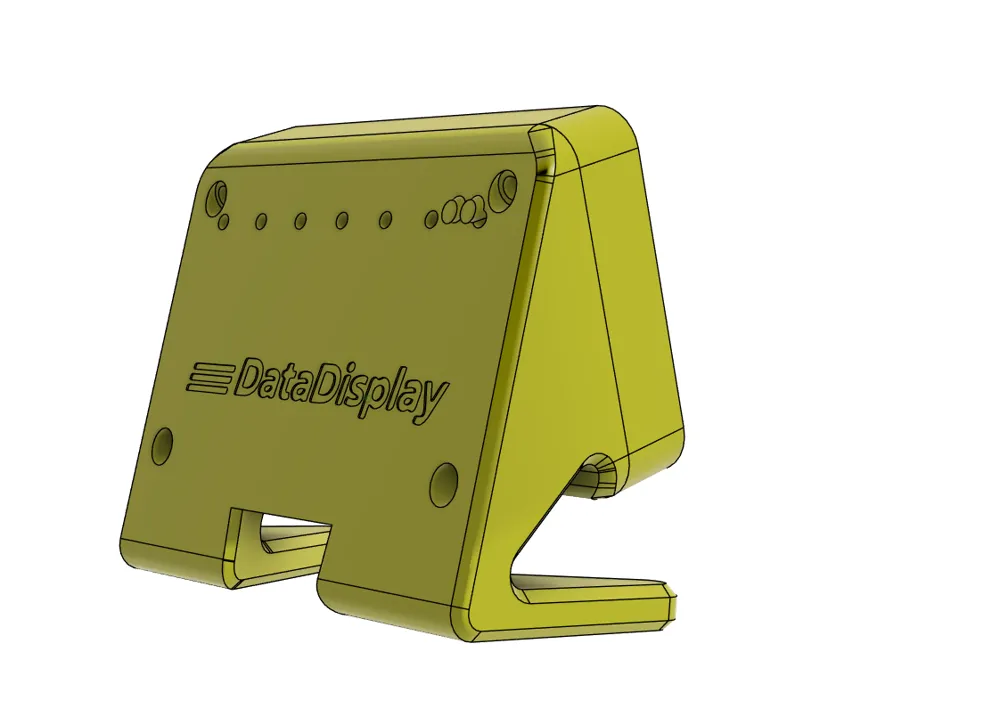

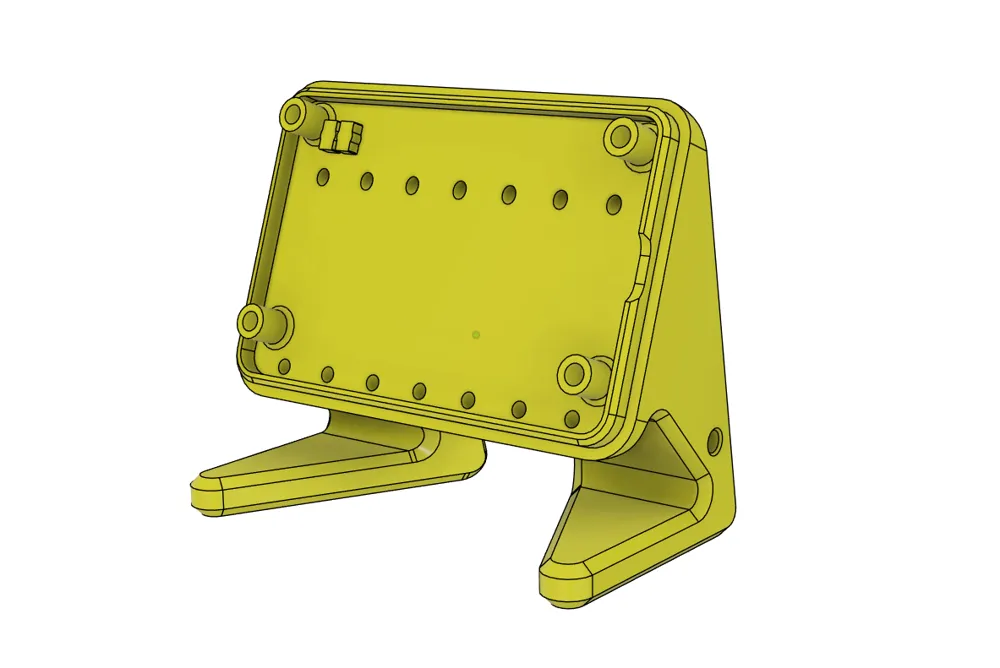

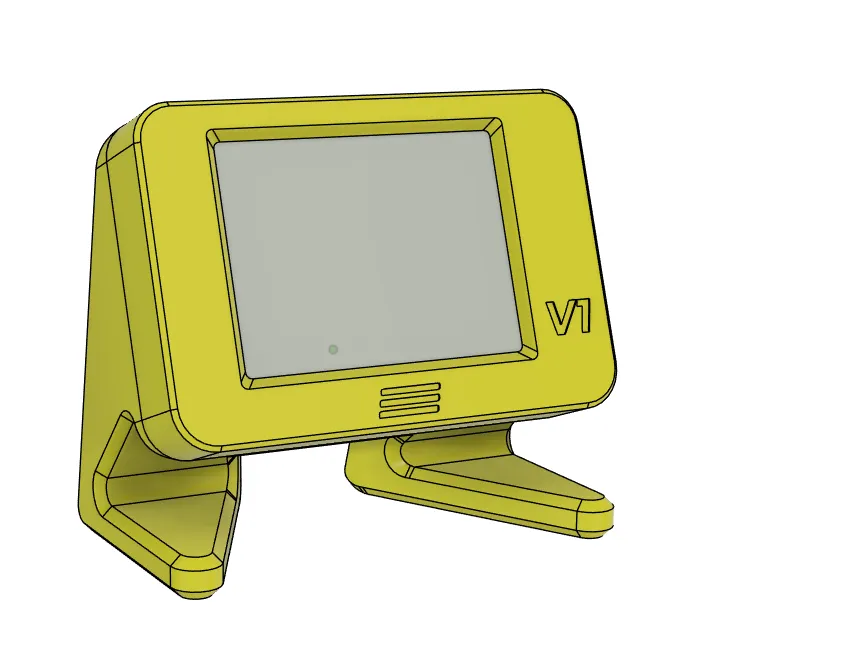

• 3D printed case (Foot, Lid, 2x Button)
• 4pcs M3x20 screws (Socket head / Allen key preferred)
