Dupont Adapter Plug Connector 2,3,4 or 6-pin
Print Profile(2)
Description

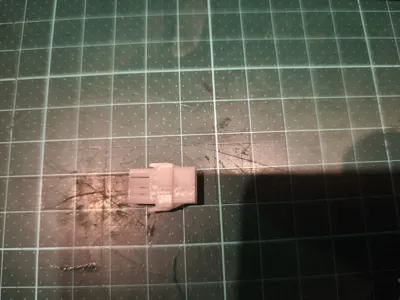

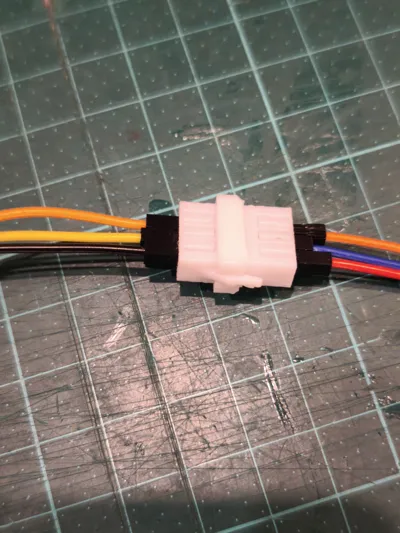

New Version, now with an additional clamp for locking!!
After some feedback that the lock sometimes breaks, I have slightly modified the version. Now you can use an additional clamp in addition to the fasteners. If the fasteners break, you can also just use the clamp.
New Version, now with thicker fasteners!!
For all Arduino, ESP32, or Raspberry Pi fans
Since I work a lot with Arduinos and ESP32s, I have developed adapter housings for Dupont connectors here.

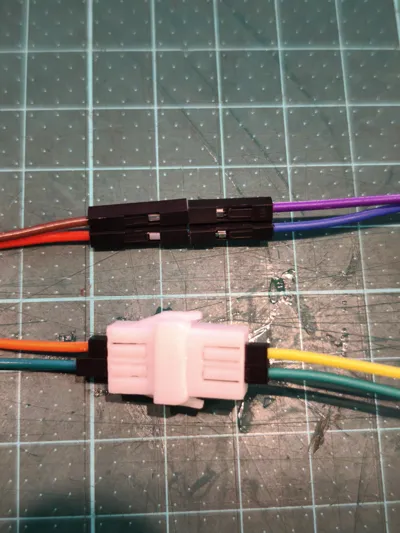

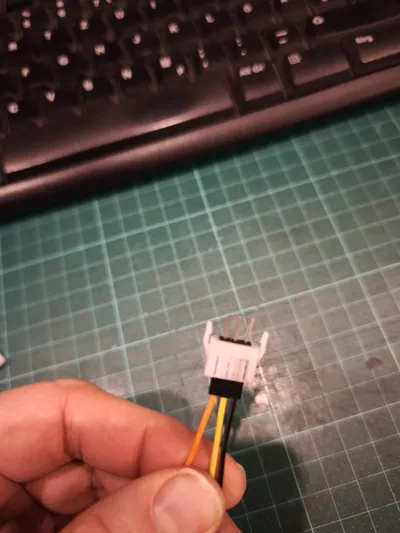

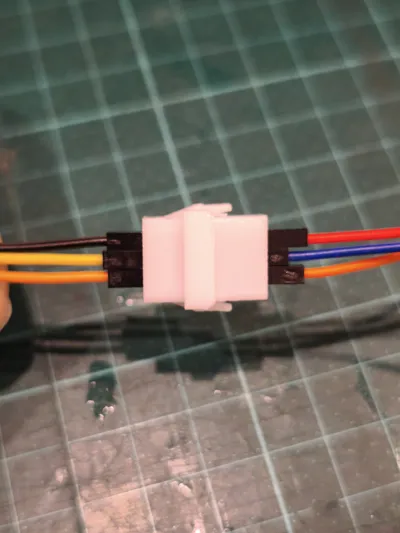

You can simply push the Dupont connectors into these adapters (male and female) and finally connect them to each other without them coming loose again.
No more soldering necessary and easily replaceable in case of a defect
Furthermore, the connectors hold together optimally.

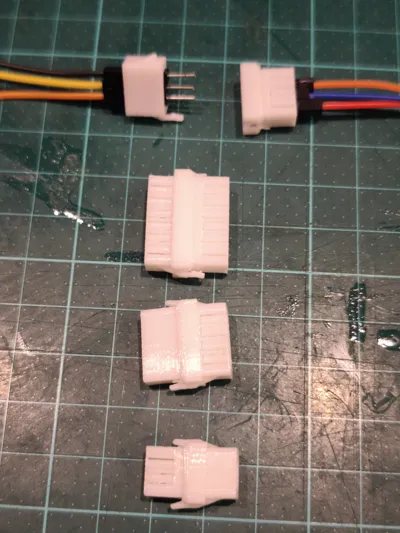

I designed them to form 2, 3, 4, or 6-pin connectors.
Important!!

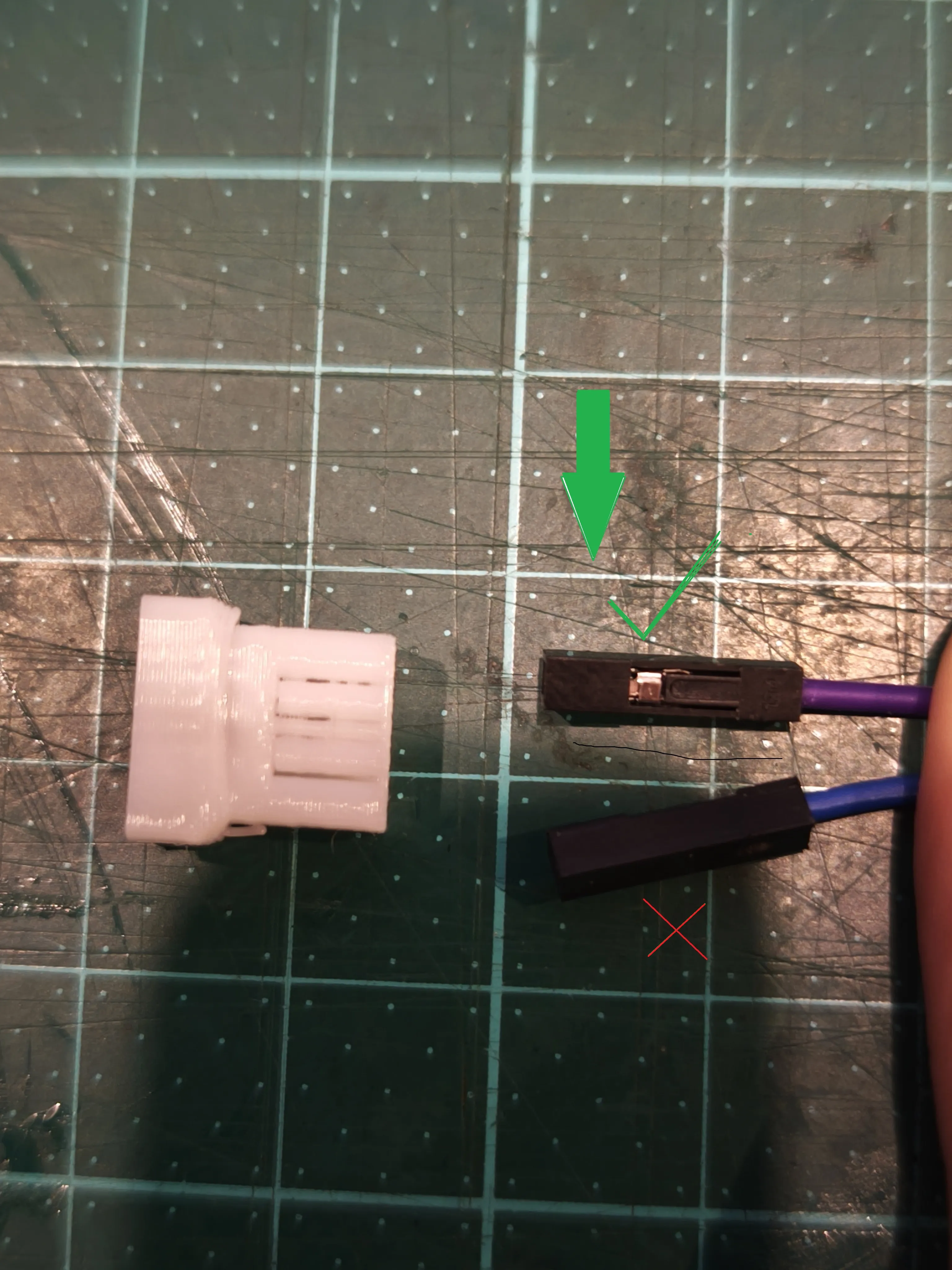

Insert the Dupont connectors with the recess into the adapter pins so that they are on the same side as the releases of the adapter pins, so that they hold

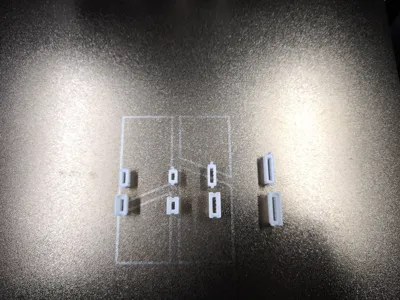

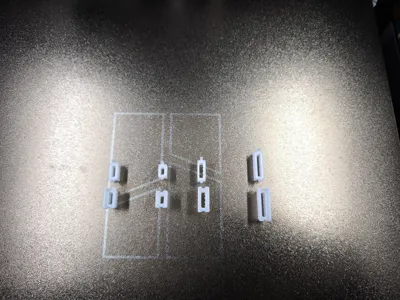

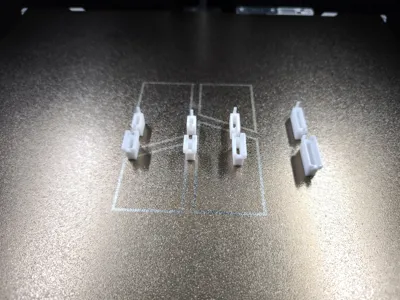

You will get the best results with a 0.2 hotend. However, it also works with a 0.4.
Boost Me (for free)
Feel free to leave a boost here. ;-) Thank you
