🔹 Description
Modular dispenser with compartments for cups, sugar, stirrers, and accessories.
Ideal for bars, offices, kitchens, break areas, or coffee stations.
Compact, functional design optimized for support-free 3D printing.
🔹 Technical Notes
Two models are available:

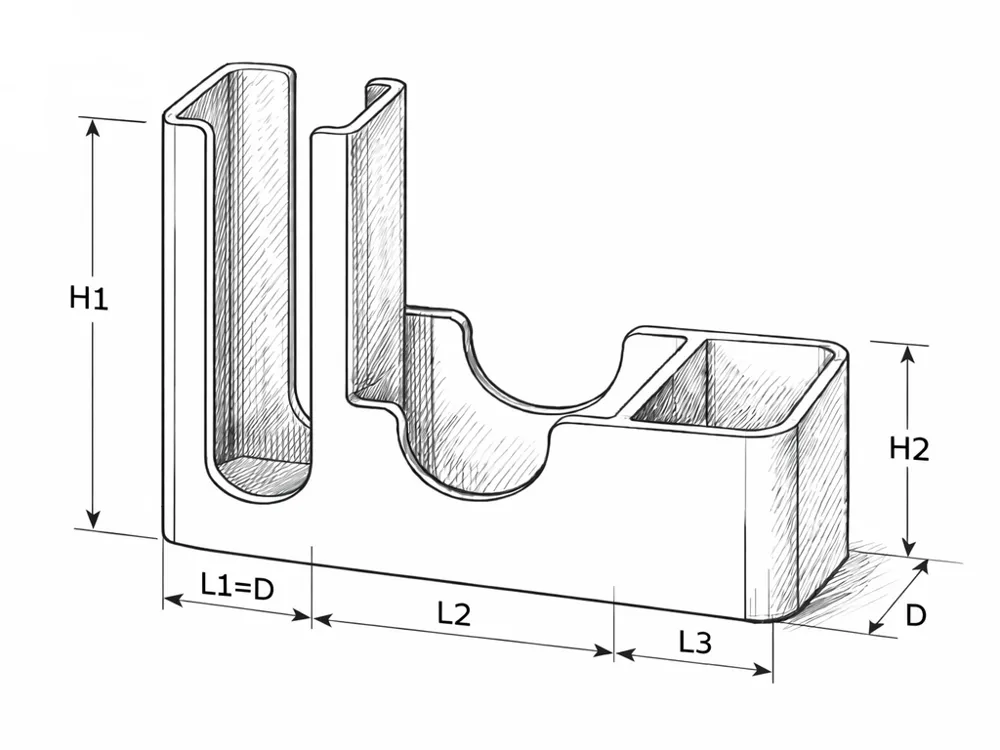

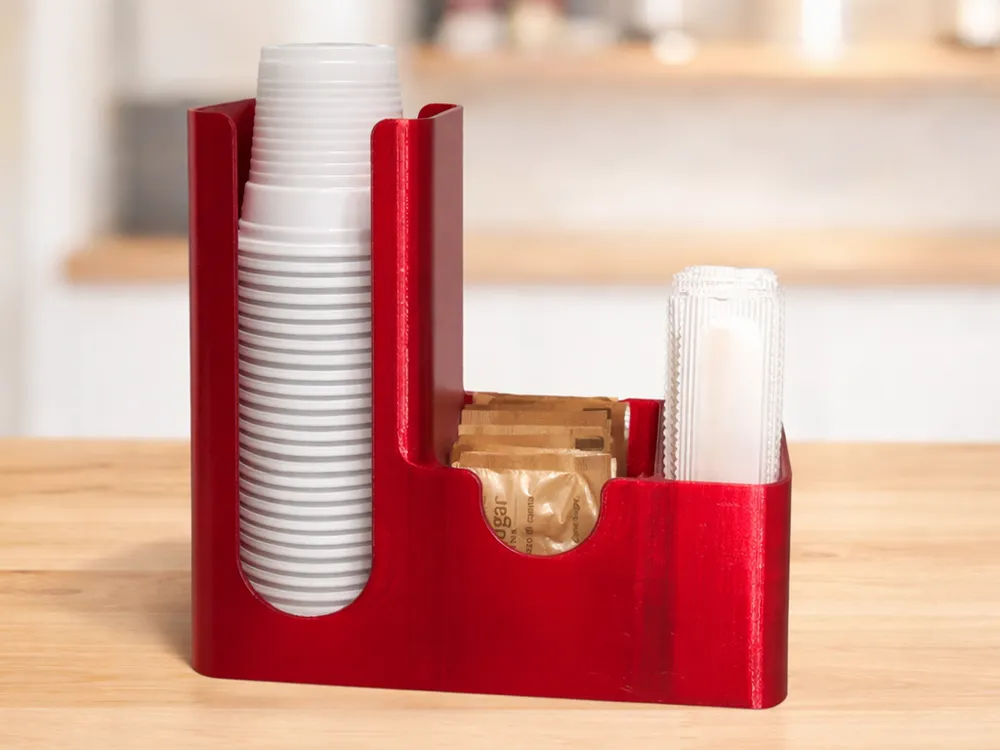

- 3P = Three-compartment model

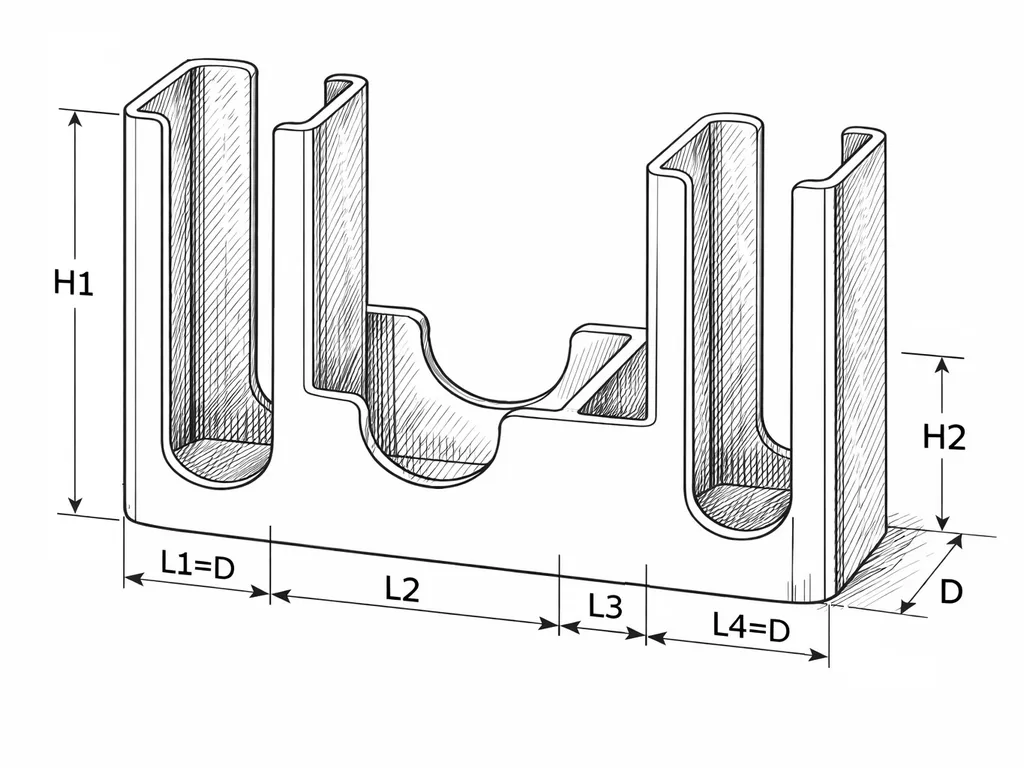

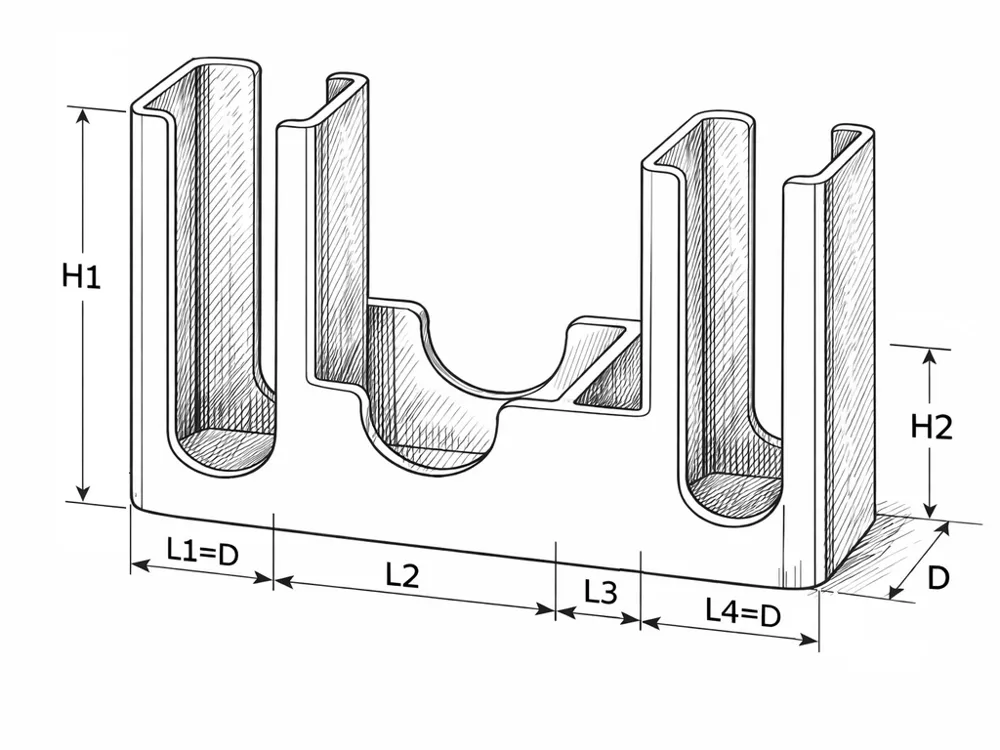

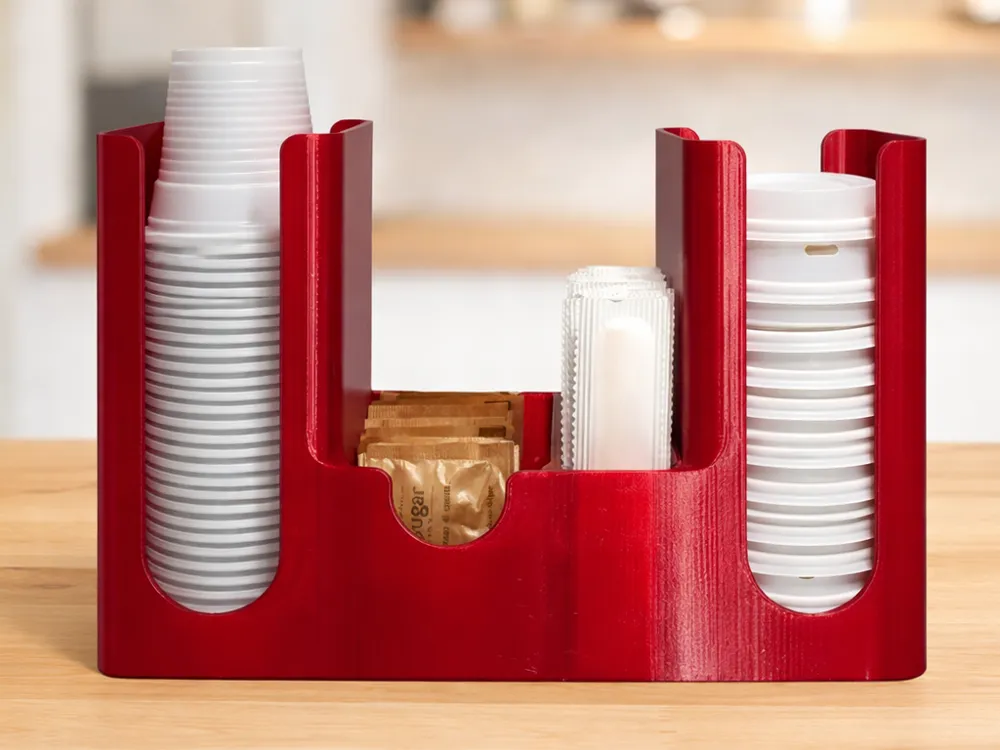

- 4P = Four-compartment model
The models are fully parametric, designed to fit any cup diameter.
You can customize:
D = Cup diameter (for 3P model) or Cup lid diameter (for 4P model) (minimum 50mm)
An automatic +3mm tolerance is added to ensure smooth cup sliding.
- H1 = Greater height (minimum H2 + 15mm)
- H2 = Lower height (minimum 25mm)
- Thickness = Wall thickness (recommended at least 1.2mm, ideally 2mm)
- L1 = Automatically set equal to D
- L2 = Width of the second compartment (minimum 45mm)
- L3 = Width of the third compartment (minimum 35mm)
L4 = Automatically set equal to D (in the 4P model)
| Four downloadable STL files and four print profiles with the most common dimensions are also included: 3-Slot Dispenser D60 H150 = Cup diameter 60mm and total height 150mm 3-Slot Dispenser D70 H170 = Cup diameter 70mm and total height 170mm 4-Slot Dispenser D60 H150 = Lid diameter 60mm and total height 150mm 4-Slot Dispenser D70 H170 = Lid diameter 70mm and total height 170mm |
