Carp Feeder Sinker - Tunable Scalable

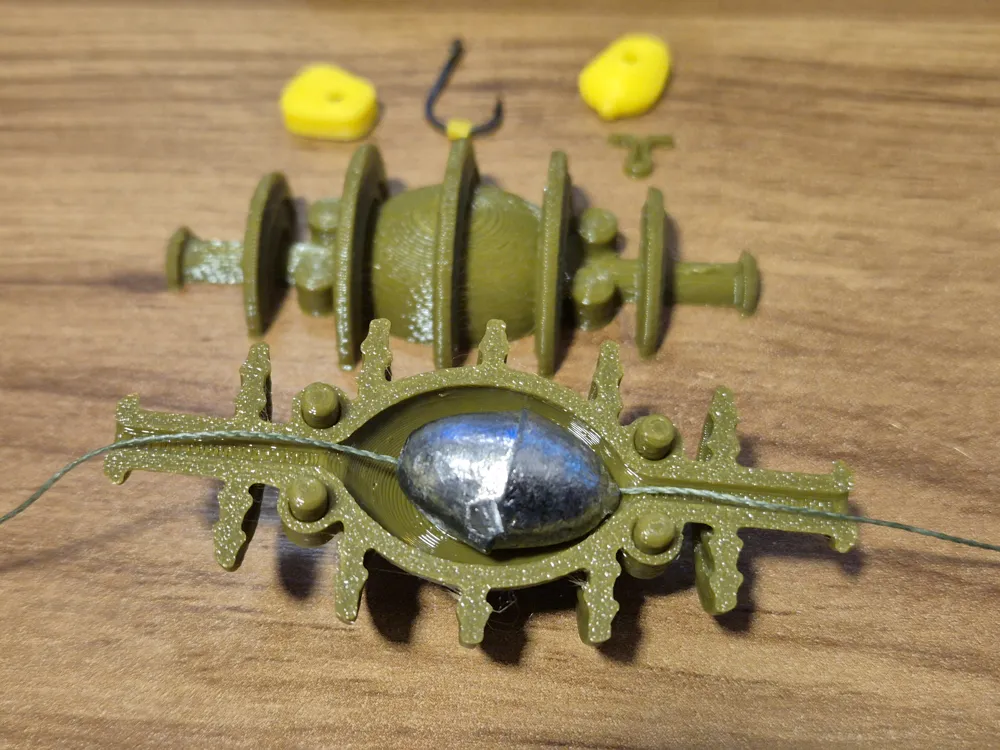

Designed for carp fishing, allowing anglers to fully customize weight, size, and setup according to their fishing conditions. The feeder is printed in two halves and features an internal housing for a sinker, making it easy to adapt to different casting distances and water conditions.

The feeder accepts olive or spherical sinkers with a through hole, and the sinker weight can be freely chosen based on the angler’s needs. The model is scalable, allowing you to resize it proportionally for different bait volumes or fishing styles.

Assembly Recommendations (Important):

1. After printing, first pass the line / leader / steel wire through the sinker.
   • This step is critical, as replacing the line after assembly will be very difficult.
2. Insert 4x dowel pins into one half of the feeder.
3. Position the sinker with the line inside this half.
4. Apply superglue to the flat mating surface
   • Avoid getting glue on the line, leader, or wire.
5. Carefully align and press the second half onto the feeder.
6. Hold firmly until fully bonded.

It is recommended to use stoppers on the line at both the entry and exit of the feeder. This allows easy tuning of feeder position and fishing depth.
