AirTag Key Fob for Kaba Keys 23mm Runner's Edition
Print Profile(1)
Description
Boost Me (for free)
Fueling my next design with your Boosts – much appreciated! ☕⚡
💡 The Concept
Tired of jingling keychains while running or looking for an extremely compact tracking solution This holder combines your Kaba key (23mm diameter) directly with an Apple AirTag. The result is arguably the smallest and most secure AirTag keychain in the world
✨ Highlights
- Minimalist Design: Barely larger than the AirTag itself
- Secure Hold: The AirTag simultaneously serves as the locking mechanism for the key. Losing it is almost impossible
- Integrated Eyelet: Perfect for attaching to a single ring or carabiner
- No Tools Needed: Simple click system
🔧 Print Settings
- Material: PLA, PETG
- Walls: 3-4 (for maximum clamp stability)
- Infill: 100%
- Support: for optimal results - yes
- Layer Height: 0.16mm or 0.20mm for a clean fit
🛠 Assembly Instructions

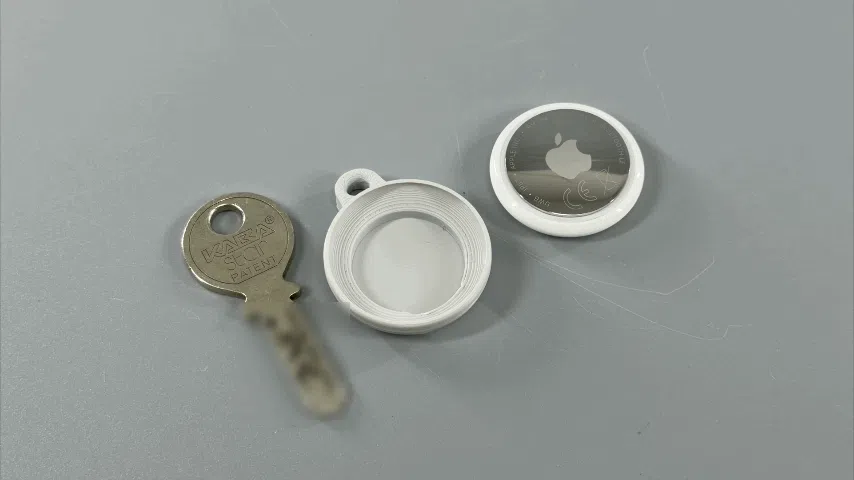

- Place your Kaba key into the precisely fitting recess of the holder
- Press the AirTag firmly into the holder with the silver side facing up until it clicks into place
- Disassembly: From below, gently press the key diagonally against the AirTag to pry it out of the locking mechanism
