Geya 320A 2 Pole MCCB Lower Terminal Cover
Print Profile(1)
Bill of Materials
Description
Boost Me (for free)
Boosts help to keep FREE models coming — THANK YOU for the support! 🙌 and for visiting @Beastlab
Built for Serious Off-Grid DC Solar Installations
When running high-current DC solar systems, terminal protection is not optional — it’s essential.

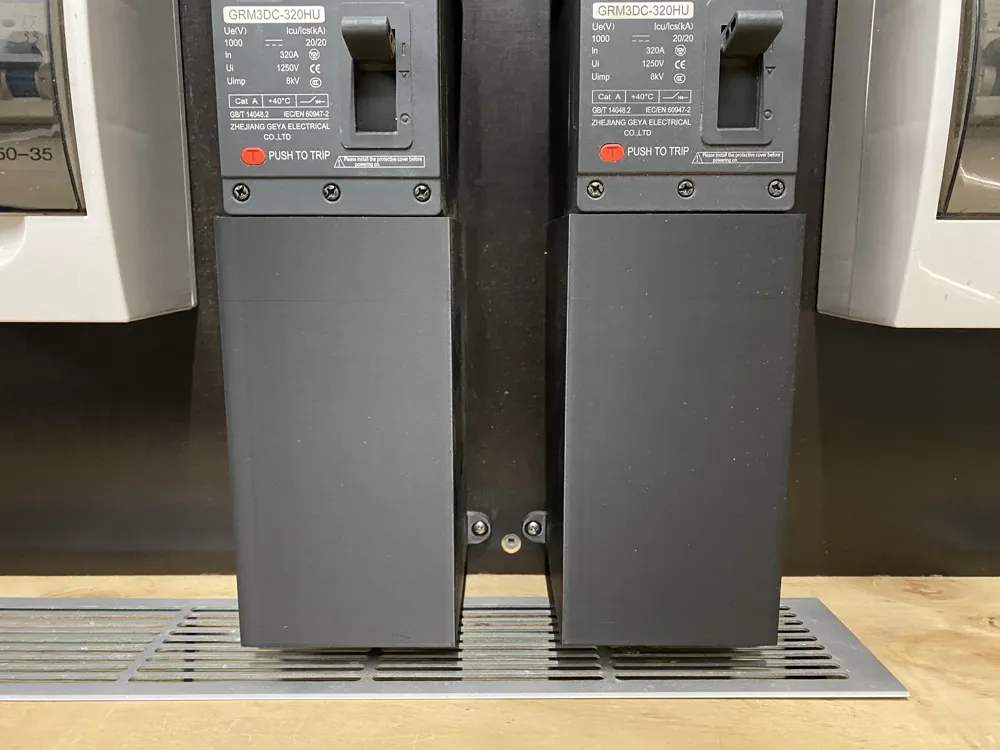

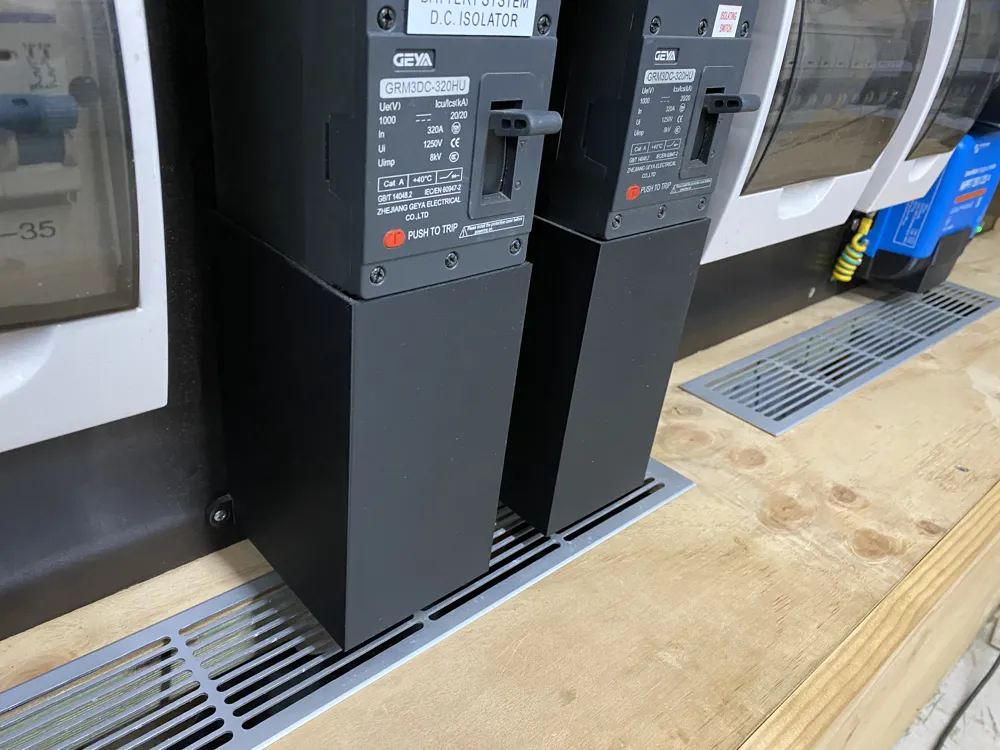

This Bottom Cover for the Geya 320A 2P MCCB is engineered to shield the lower cable entry and terminal connections in demanding off-grid solar power environments.
Designed and tested by @Beast-Lab, this part enhances safety, improves system presentation, and helps protect critical high-amperage connections from accidental contact or debris intrusion.

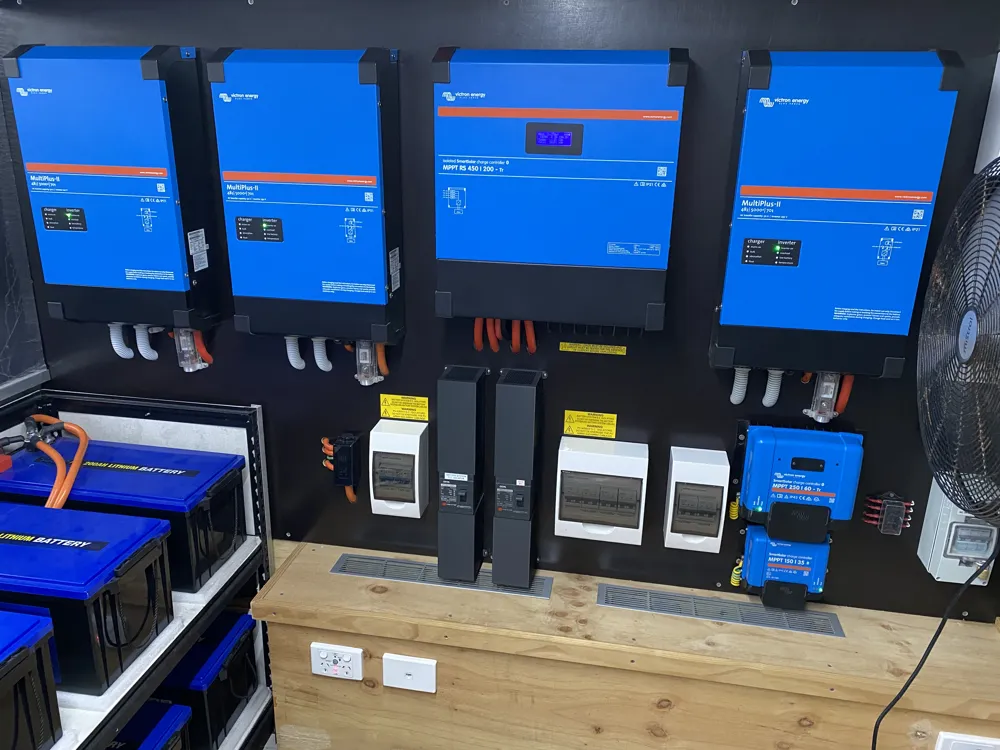

Whether you're running a 48V battery bank, 24V inverter feed, or a large 12V system, this cover adds a professional layer of protection where it matters most.
⚡ Why a Mechanical Protection Is Critical in DC Systems
Unlike AC systems, DC solar setups maintain continuous current flow and often operate at very high amperage. The lower terminals on a 320A breaker typically connect to:
- Battery bank outputs
- Busbars
- Inverter feeds
- Main DC disconnect lines
Exposed lower terminals can create risks such as:
- Accidental shorting with tools
- Dropped hardware contacting live lugs
- Dust buildup inside enclosures
- Increased arc risk in tight installs
This bottom cover helps reduce those risks while maintaining clean cable routing.
🛠 Design Highlights
- Precision fit for Geya 320A 2P MCCB
- Covers lower terminal/lug area
- Clean cable exit clearance
- Reinforced structure for durability
- Compact profile for tight solar enclosures
- Designed for real-world off-grid installations
- Strong wall thickness for long-term reliability
Engineered with practical solar installs in mind — not just cosmetic improvement.
🔋 Perfect For
- Off-grid solar power systems
- High-current DC battery banks
- 48V lithium battery systems
- 24V off-grid cabins
- 12V mobile solar setups
- Solar generator builds
- DIY power walls
- Vanlife and overland solar installs
- Workshop and remote power systems
🧱 Recommended Print Materials
For high-current DC environments, choose materials that handle heat well:
- ASA – Best for heat + UV resistance
- ABS – Strong and durable
- PETG – Good balance of strength and ease
- Polycarbonate (PC) – Maximum durability
⚠️ PLA is not recommended for enclosed electrical panels exposed to heat.
Suggested Settings:
- 0.2mm layer height
- No supports required (verify in slicer)
🔧 Installation Reminder
- Disconnect all power sources before installing
- Confirm fit before energizing system
- This is a mechanical protective cover only
- Does not modify breaker rating or performance
Always follow proper DC safety practices when working with high-amperage battery systems.
🧠 Designed by @Beast-Lab
Created for builders who take their off-grid solar systems seriously.
This model is part of an expanding lineup of functional, safety-focused solar accessories built for real-world power systems.
Follow @Beast-Lab for more rugged, practical upgrades for DC solar and battery installations ⚡
