Motorized Base For Wave Generator by Aditya Patel
Print Profile(1)
Description

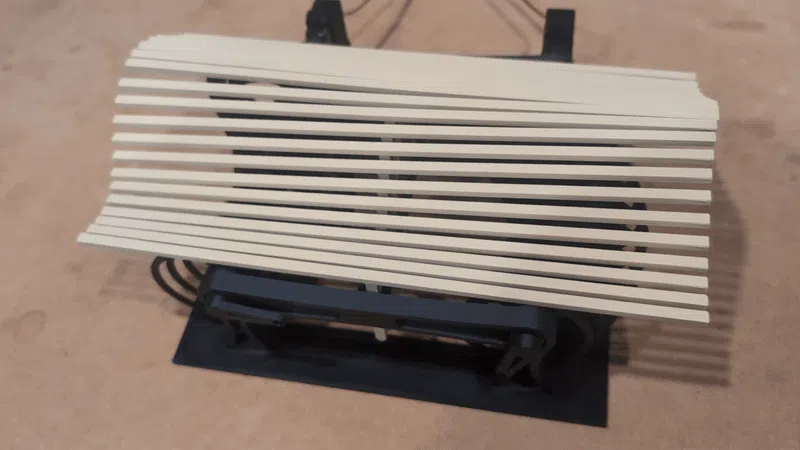

This is a base I designed for Aditya Patel's Kinetic Wave Generator. I really wanted to automate the wave generator, and it's much more captivating once you do.

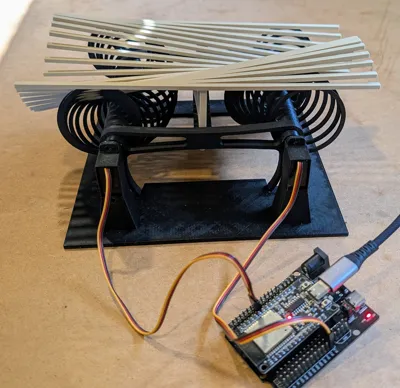

The model has 2 caps that push connect to the rear of the cams on his model, then they connect to 2 MG90S servo motors, which are housed in the risers on the base plate. There's a gap in the base plate so you can slide the servo's into the housing. You just need to connect the servos to a board and program the rotations.
I wasn't able to post it in the comments of his design, so I just threw it here. Hopefully you find this if you want to print his wave generator.
I'll try and check the post periodically. But the setup is pretty simple.
