Foldable Bag in the Box Juice Stand

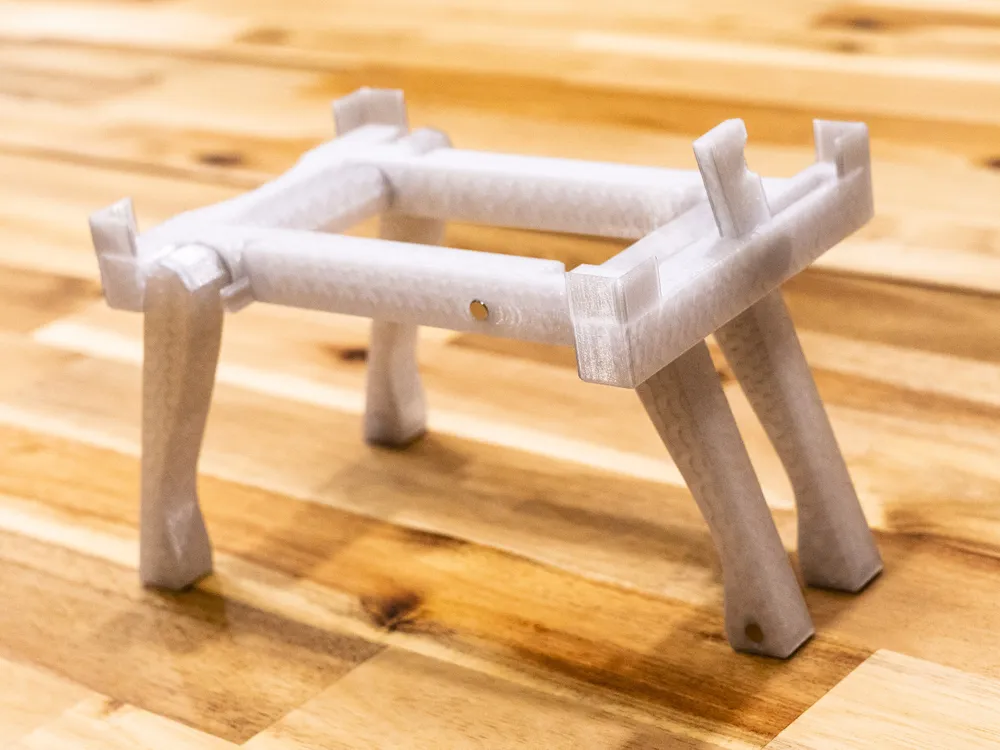

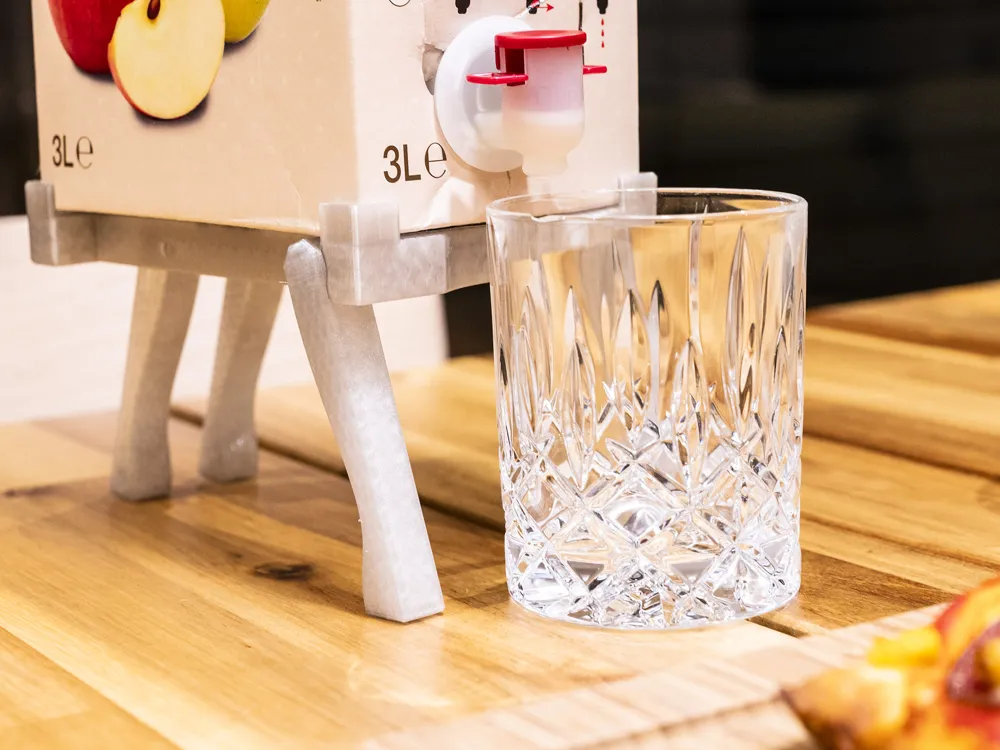

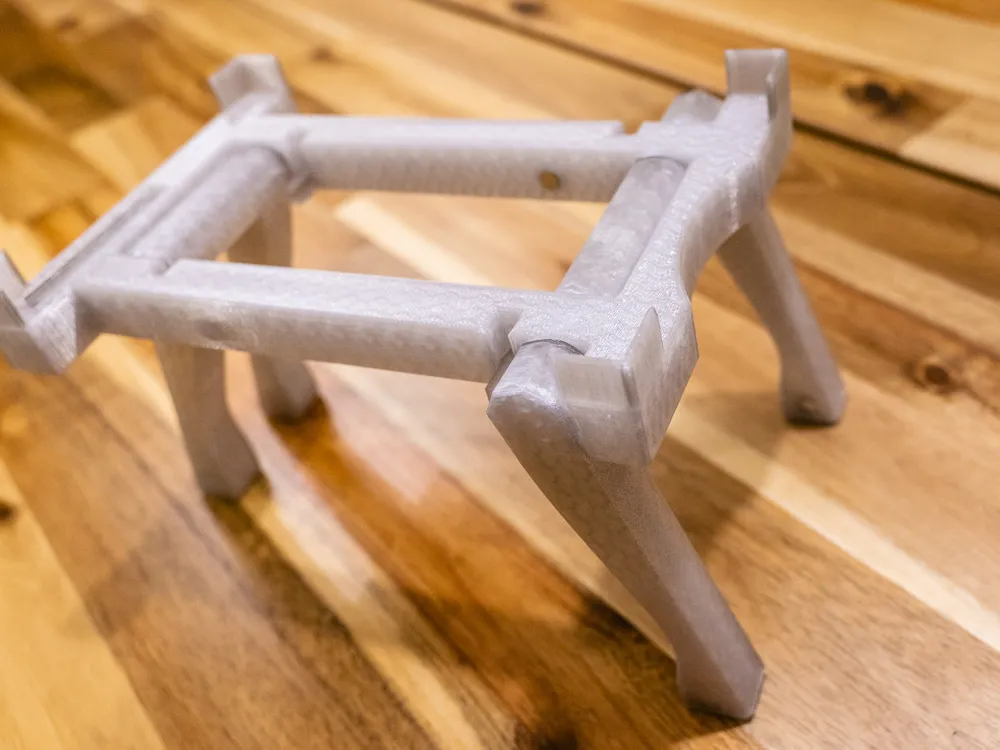

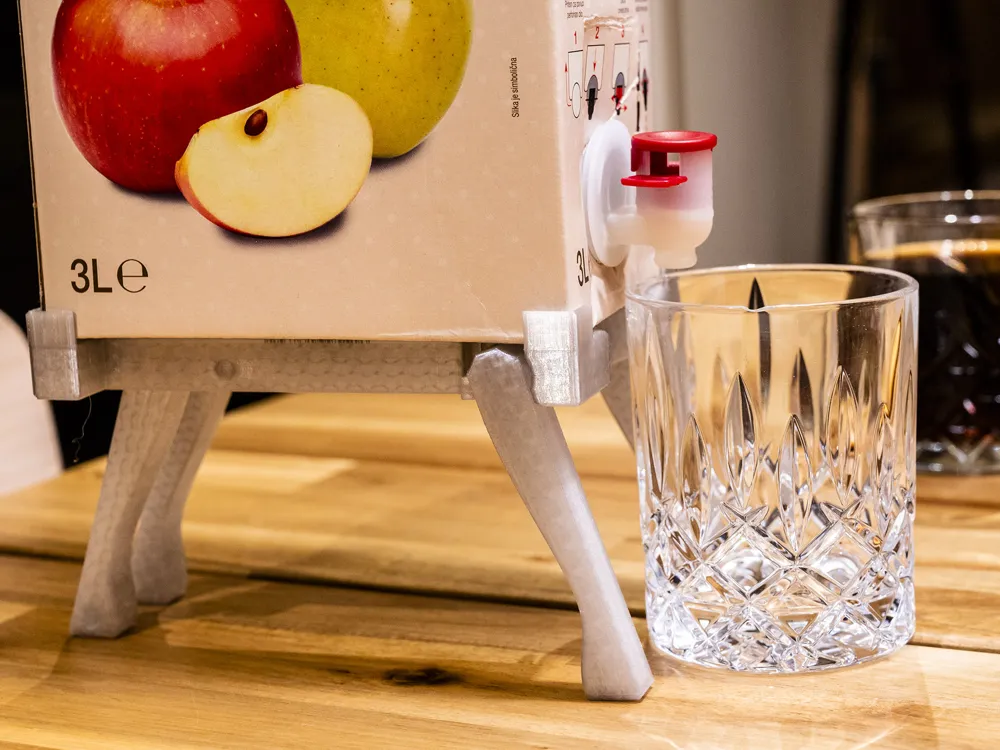

Sturdy juice in a bag or bag in the box beverage packaging foldable stand lifts the carton 9,5 cm high (+ the faucet height) to make pouring of beverages easier directly on the countertop or a table. You don't to place it on the edge any more - your juice or wine can be a star of the table.

Print profiles have bottom box dimensions listed.

• Profile 1)
  • fits package with 105 x 155 mm dimension (3L)
  • Height of the stand: 9,5 cm.
• Profile 2)
  • fits package with 160 x 250 mm dimension (5L)
  • Height of the stand: 9,5 cm.

I designed the model with adjustable parameters so it's easy for me to publish different sizes and also heights (leg length). Let me know your needs and I'll upload a new profile with dimensions that fit the packaging you use as long as you specify what product that is to help others identify the fit.

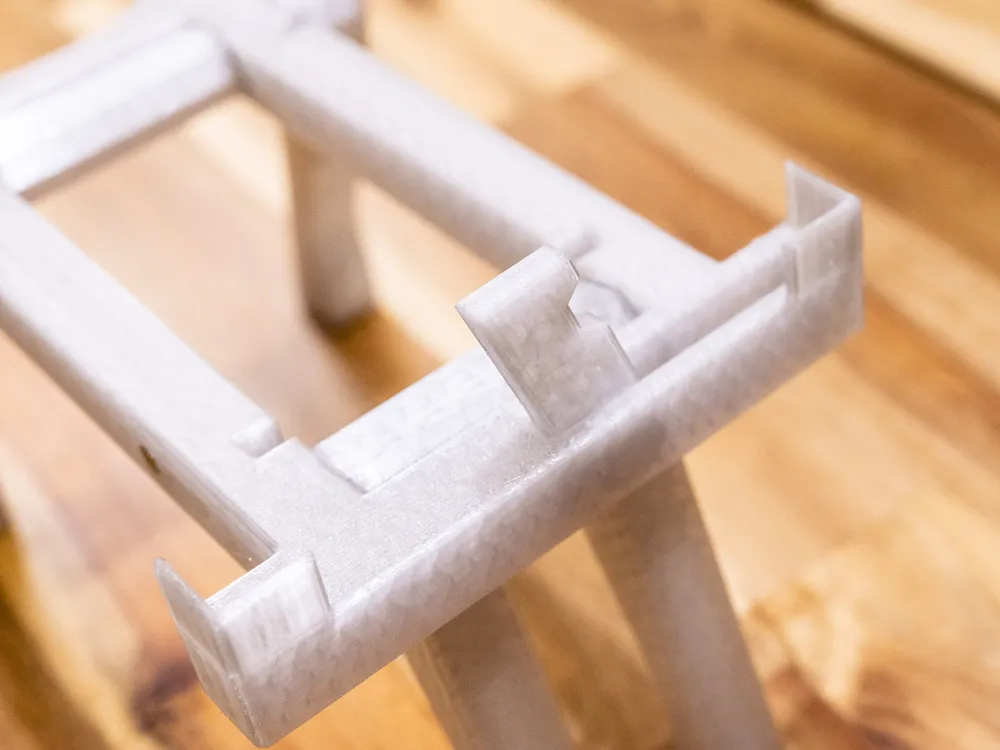

A built-in rear lifting lever improves pouring efficiency when the carton is nearly empty. With a simple motion, the back of the box can be tilted upward to help drain the remaining liquid—no need to lift or prop up the carton manually. The mechanism is fully integrated and printed in place, requiring no assembly.

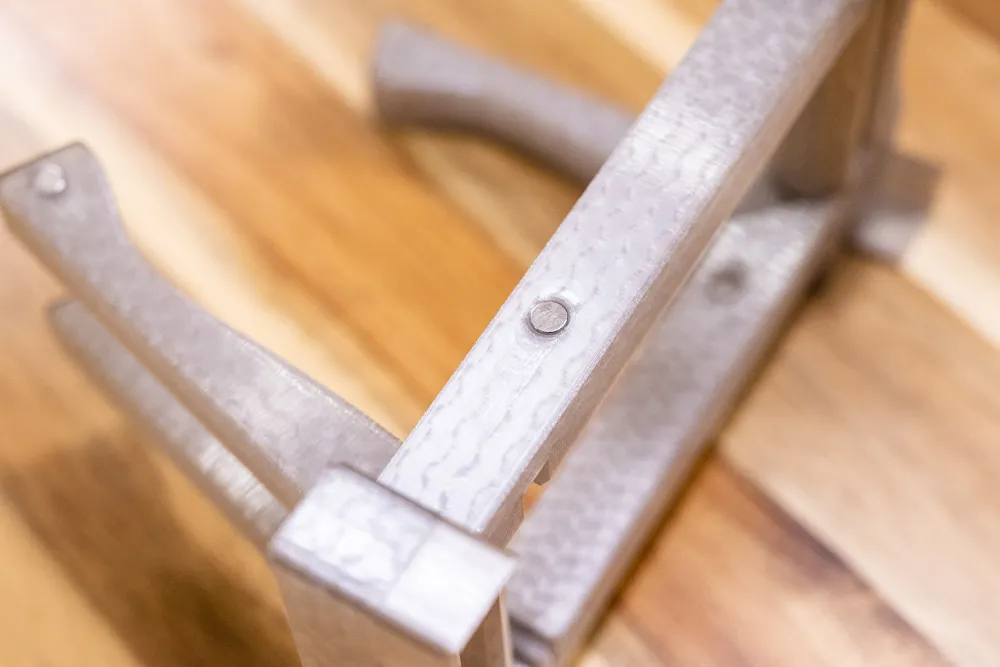

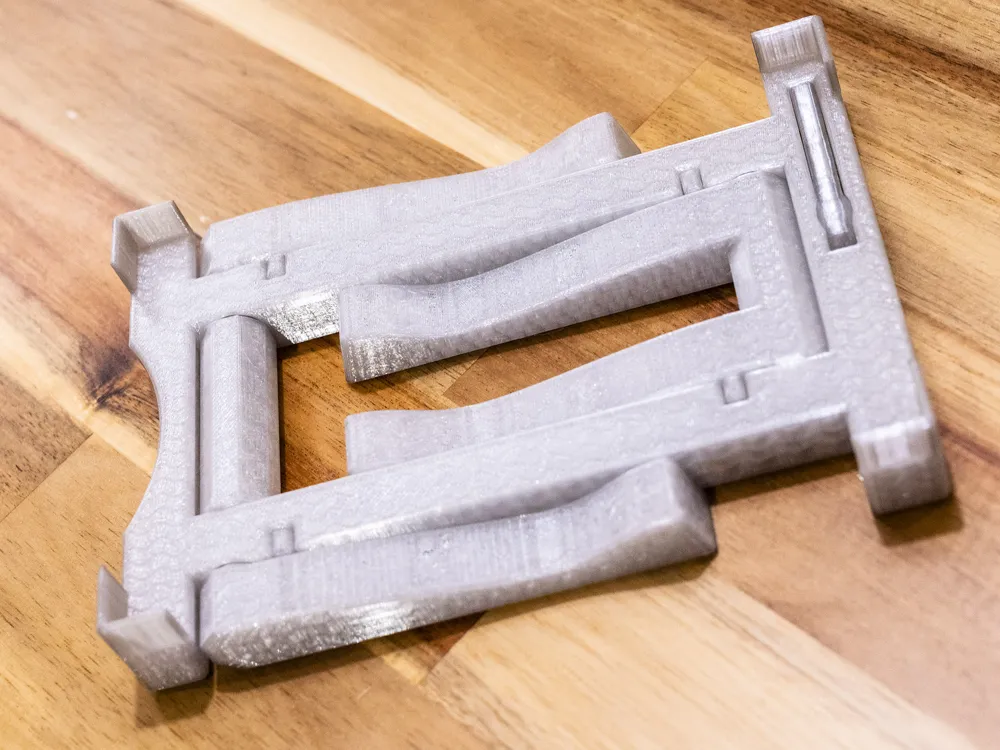

When not in use, the stand folds flat to minimize storage space. Optional slots in the legs allow the insertion of 5 × 2 mm magnets, helping keep the stand securely folded during storage or transport.

The entire model prints as a single piece with integrated moving parts. No additional hardware is required beyond the optional magnets. It is designed as a practical, functional print that prints in place.
