ModulAir L - 120mm Fan Adapter Mount
Print Profile(1)
Description
Boost Me (for free)
Love my models? Help them grow - your support matters! đ đ¸ Share your prints - seeing real results drives better designs đ Hit Boost - helps new models reach more makers đ§ Post a make - your builds inspire the community Every bit of support matters!
Â
Part Number: MA-L-FAN-120
Female adapter for mounting standard 120mm fans to the ModulAir Large system. Universal 4-hole pattern compatible with most 120mm PC and industrial fans.
đ ModulAir Collection
This part is part of the ModulAir modular air system, a comprehensive ecosystem of quick-connect adapters for workshop air handling.
Browse the full collection: https://makerworld.com/en/collections/7342813-modulair-modular-air-system
Find all Large compatible parts: https://makerworld.com/en/collections/7342813-modulair-modular-air-system?query=MA-L
đ§ Model Overview
- Interface Size: Large (female - accepts ModulAir Large male parts)Â

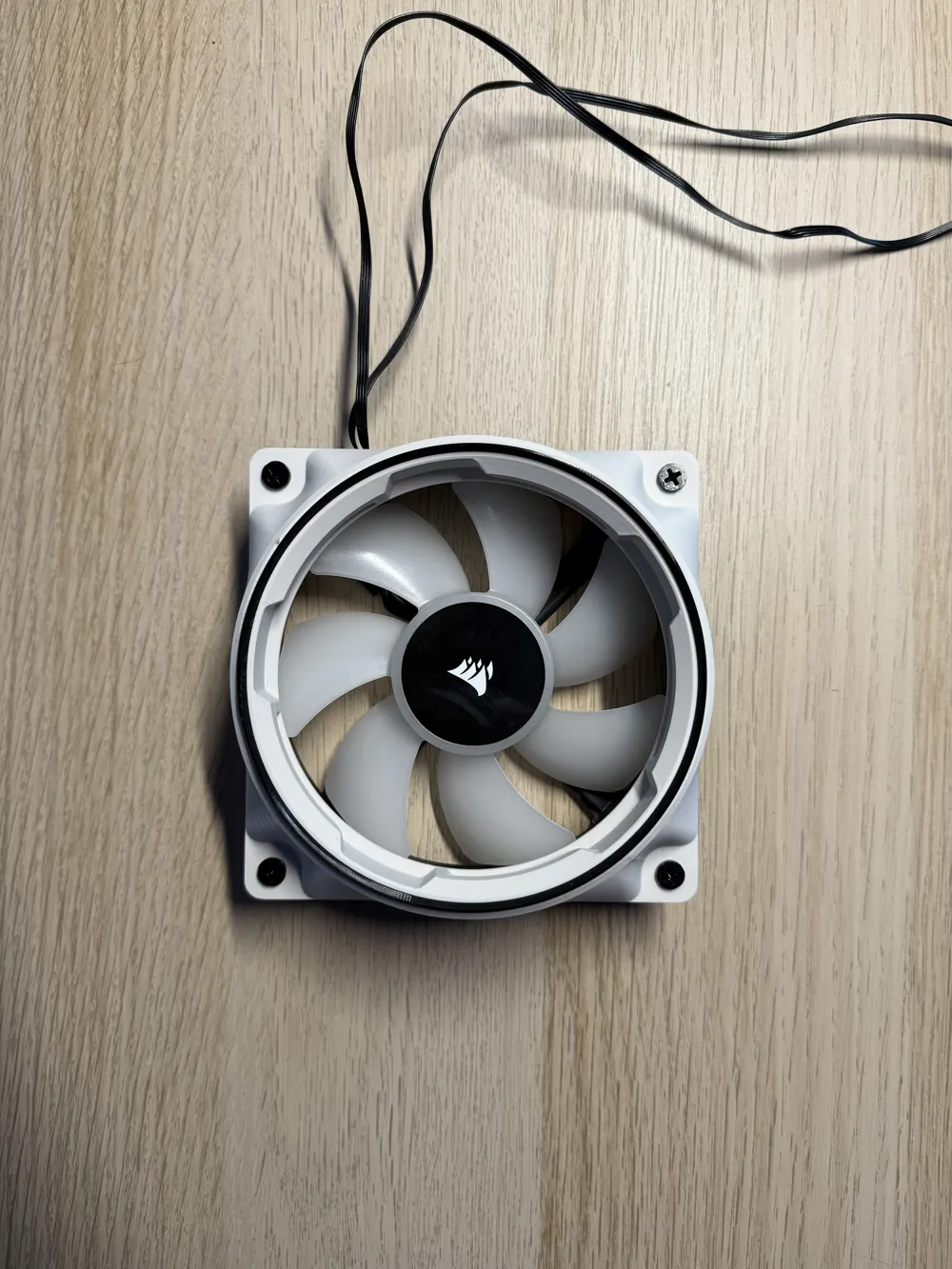

- Fan Size: 120mm x 120mm (standard PC fan)Â
- Mounting Pattern: 105mm diagonal hole spacing (4x M4 screws)
- ModulAir Connection: QuickLock bayonet (1/10 turn )Â
- Fan Connection: 4-hole mount with M4 screw holes - Seal Required: MA-L-SEAL (for airtight connection to male adapters)Â

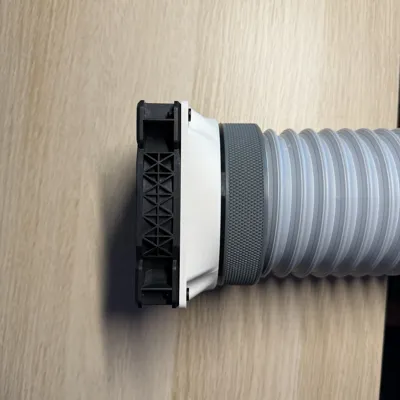

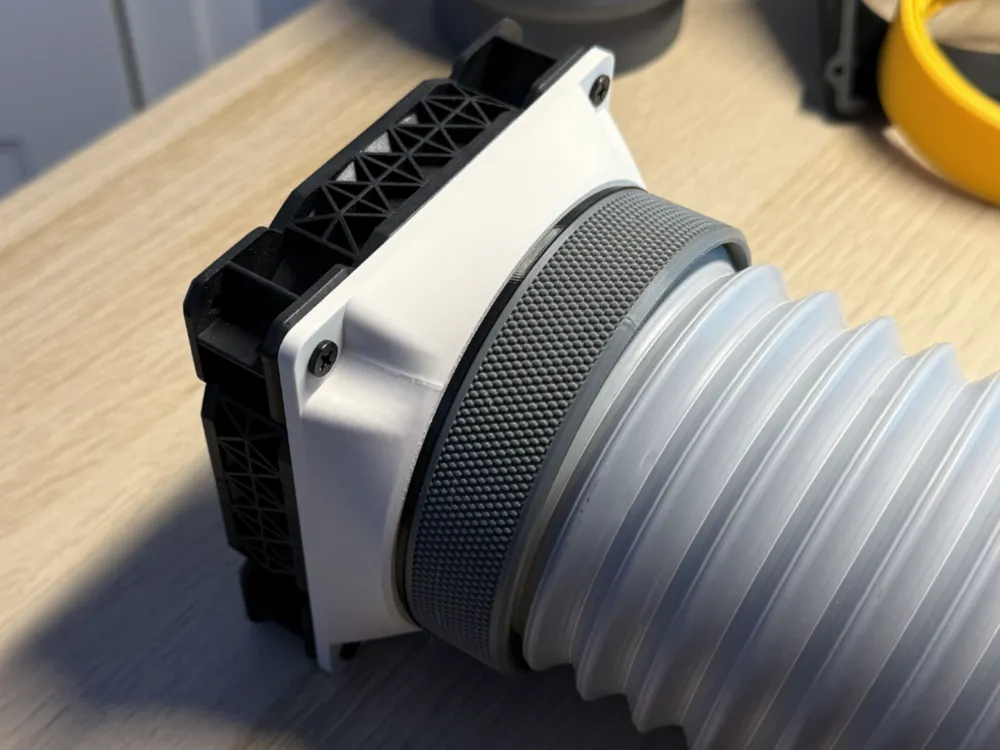

- Configuration: Fan â Fan Adapter â L Male Adapter â Hose
đĄ RecommendationsÂ
- Compatible with standard 120mm PC fans and industrial blowersÂ
- Use 4 screws for fan mounting
- MA-L-SEAL gasket recommended for airtight seal to hose adaptersÂ
- Perfect for active ventilation, fume extraction, or air filtration setupsÂ
- Connect to 100mm (4") hose via MA-L100 screw-on adaptersÂ
- PETG, ABS, or ASA recommended for durability with continuous fan operation - PLA acceptable for low-temperature applications
Â
Â
⨠CAD-designed and test-printed for reliable real-world useÂ
đ ď¸ Every model is refined before releaseÂ
Â
đŹ Have a custom request or question? Feel free to reach out!Â
đŚ Browse my full collection: @DASTERLIER
Â
