Chevrolet Silverado Switch Panel (2014-2018)
Print Profile(1)
Description

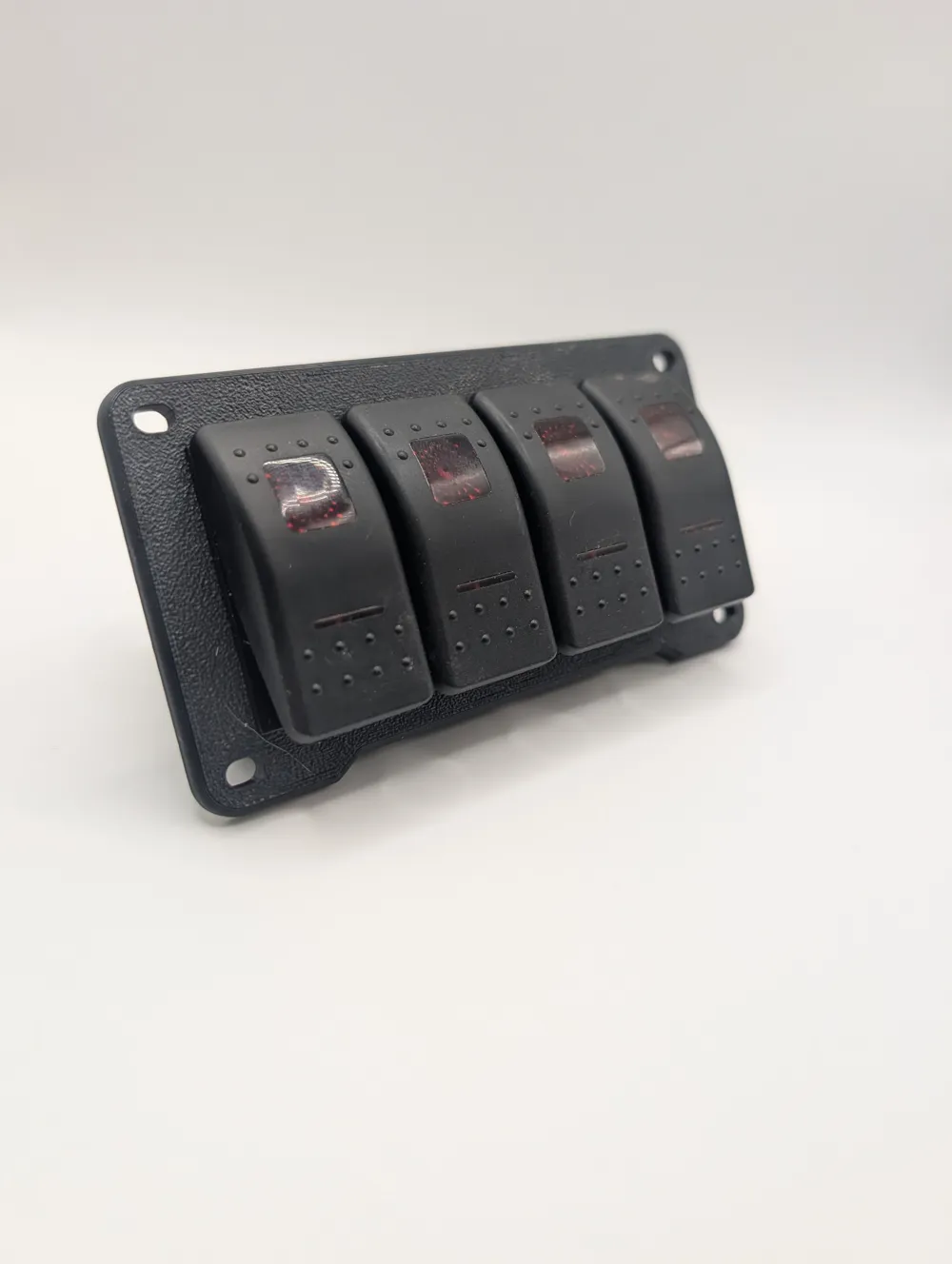

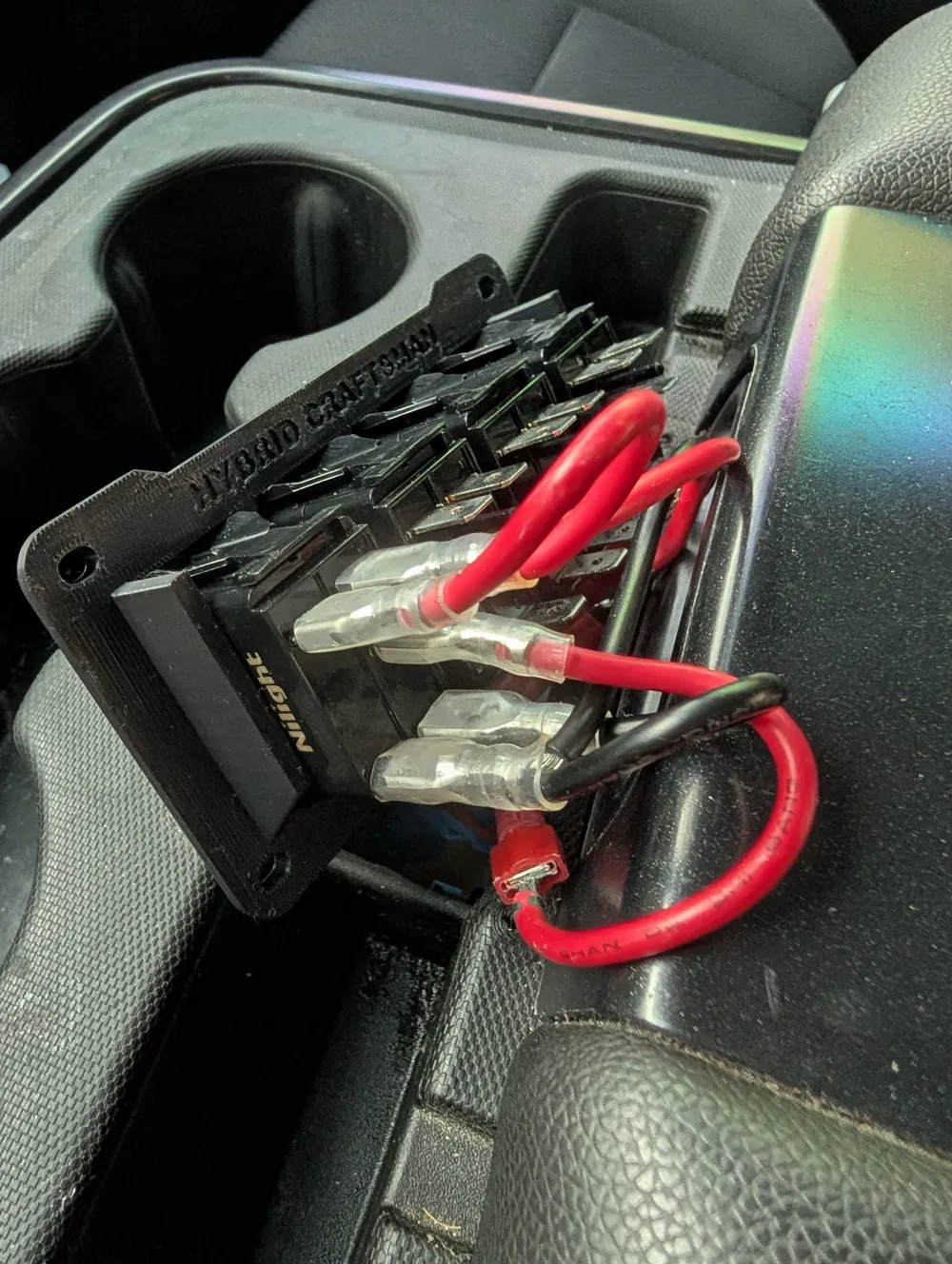

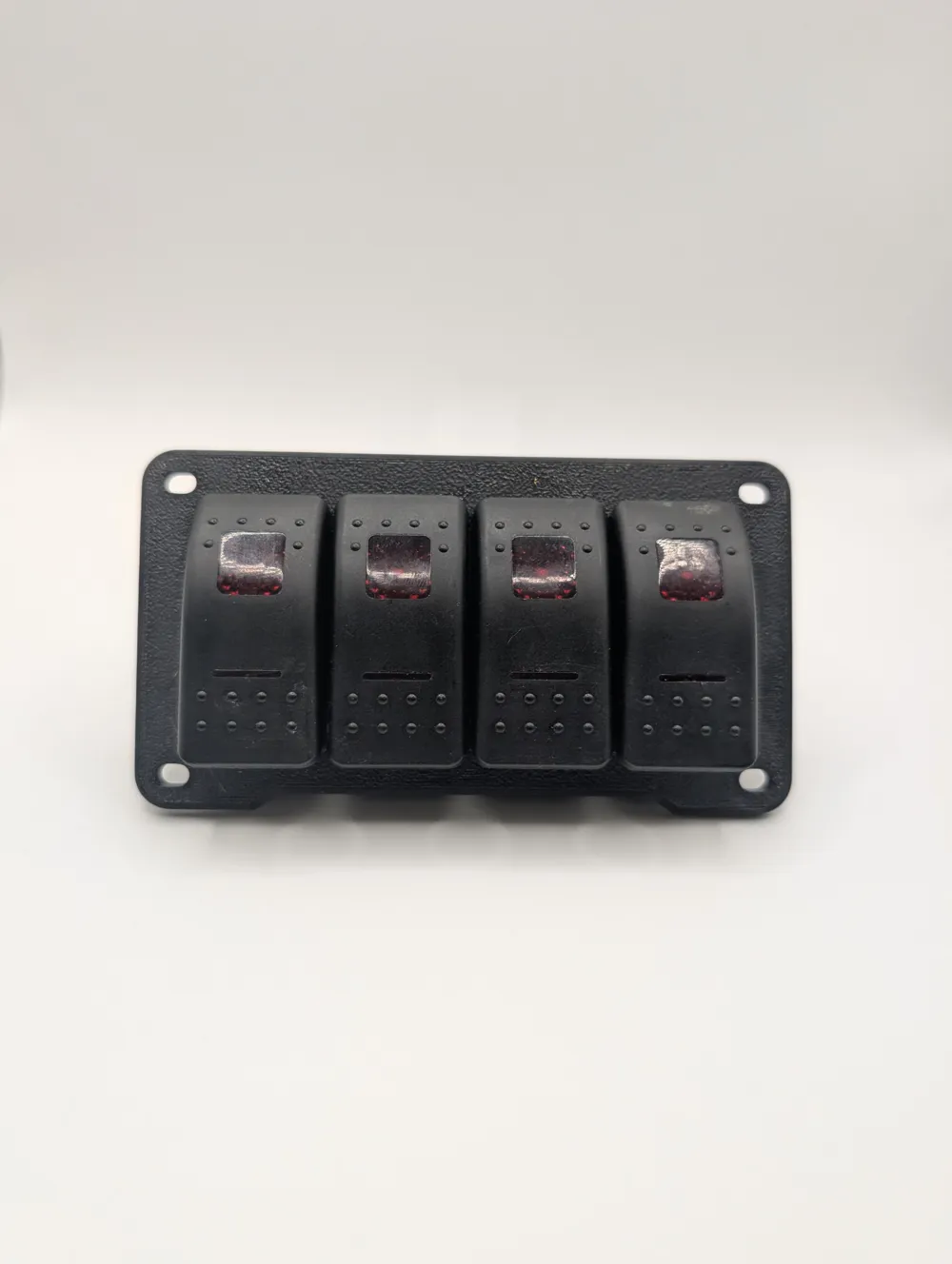

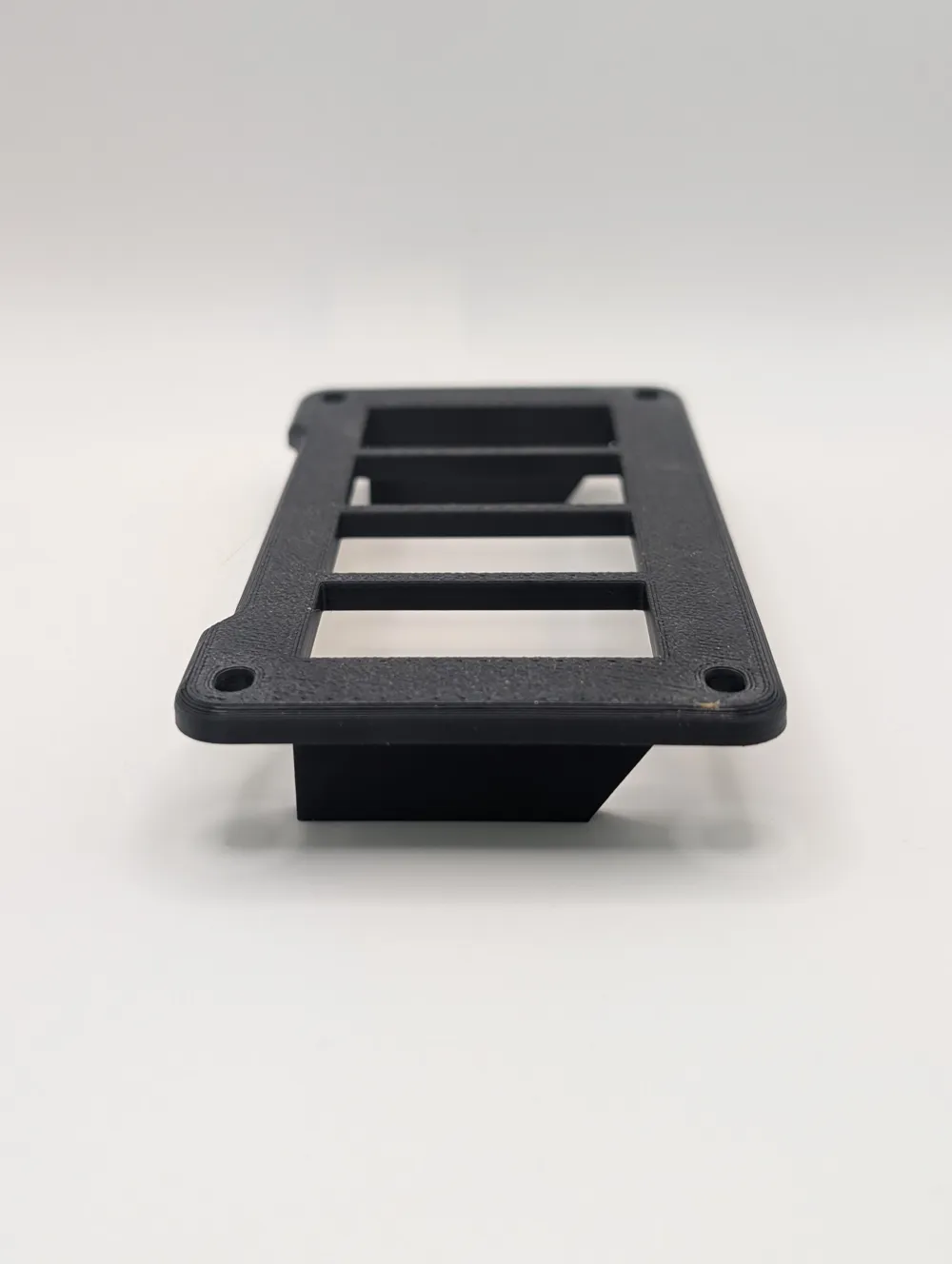

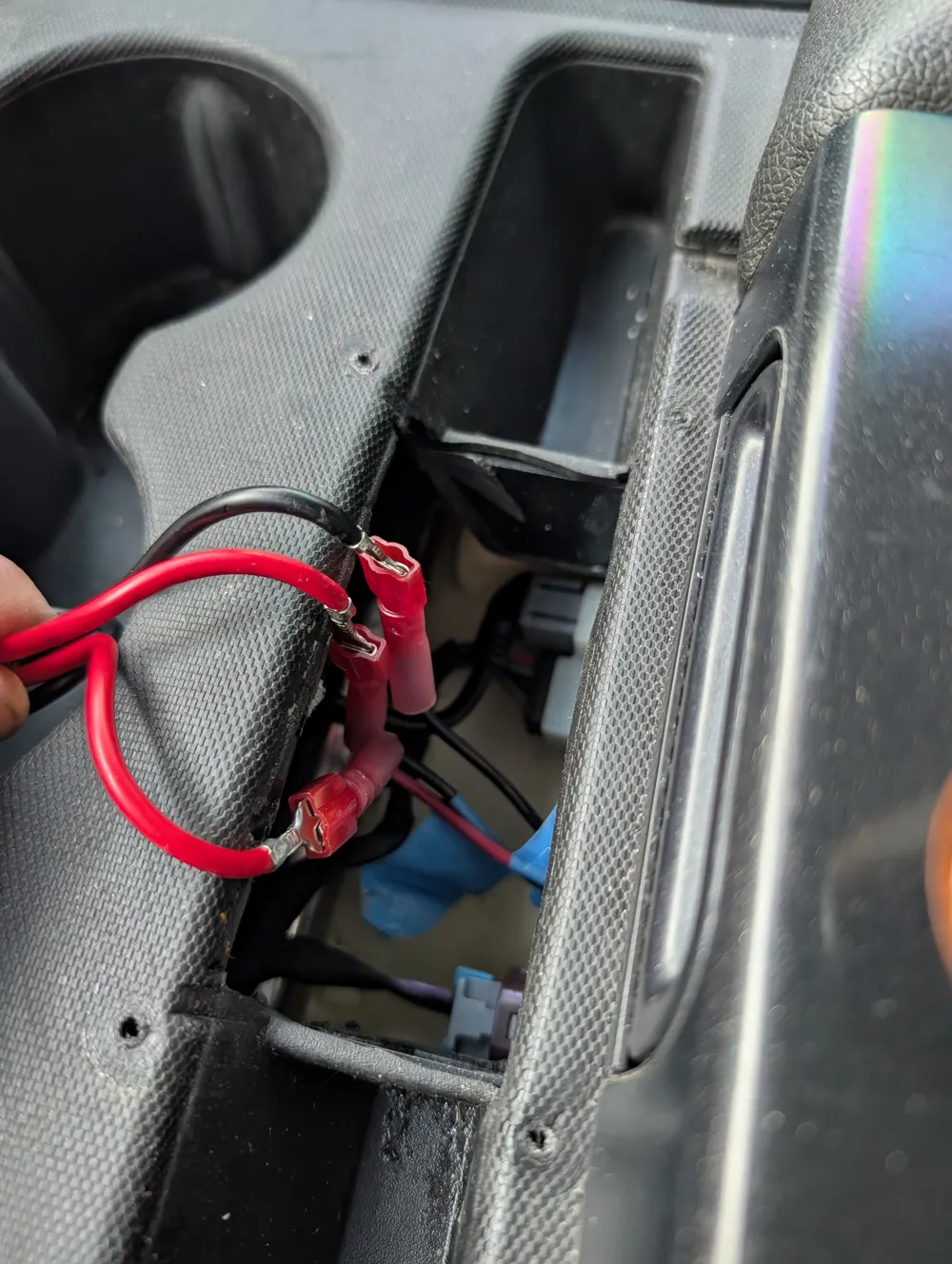

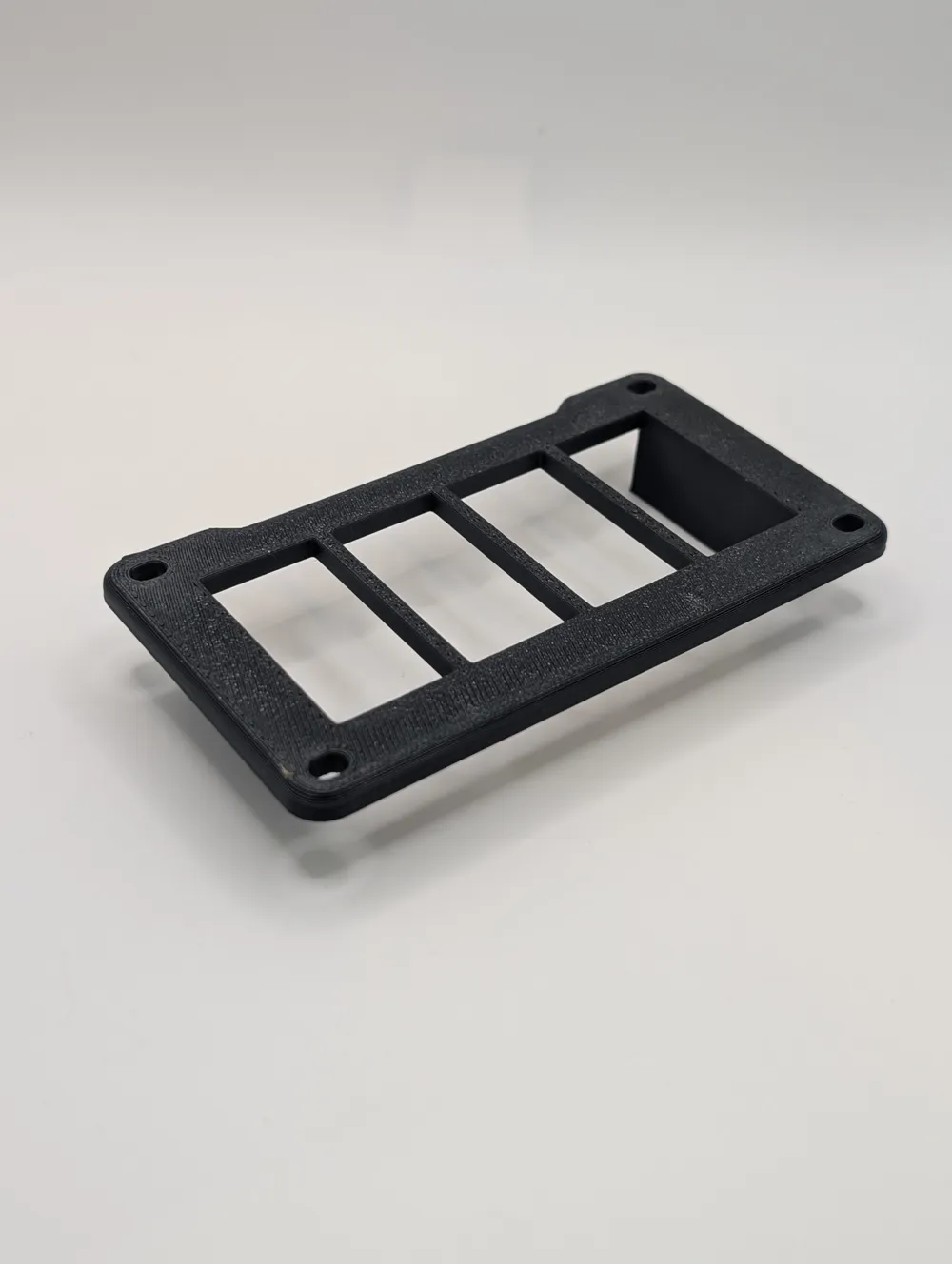

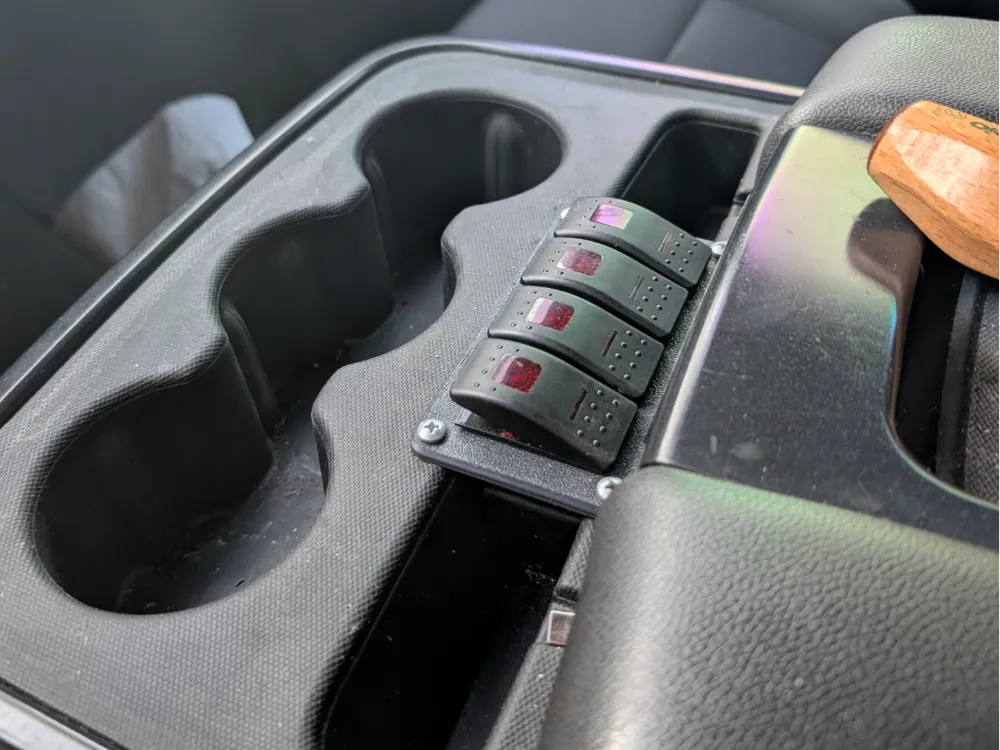

A small switch panel that fits 2014-2018 Chevy Silverado center consoles. Light modification to the center console is required. The center pocket of the triple-pocket behind the cupholder needs to be removed to make room for the wiring on the underside of the switches.
Required Components:

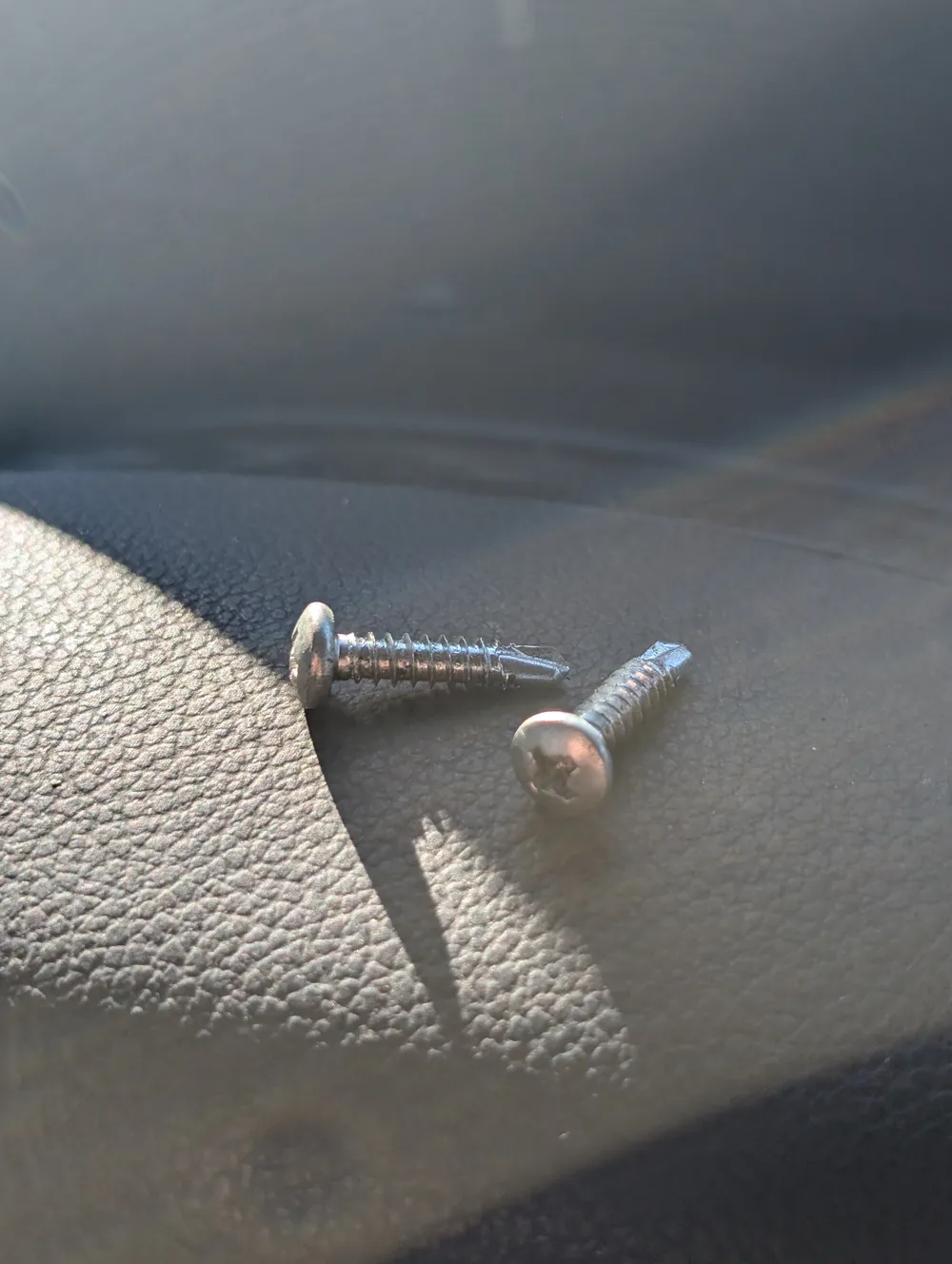

- (4) Screws of your choice. I used buttonhead Phillips sheet metal screws with a coarse thread and gently ran them directly into the plastic of the center console. This kept me from having to disassemble the console to put a nut on the bottom.

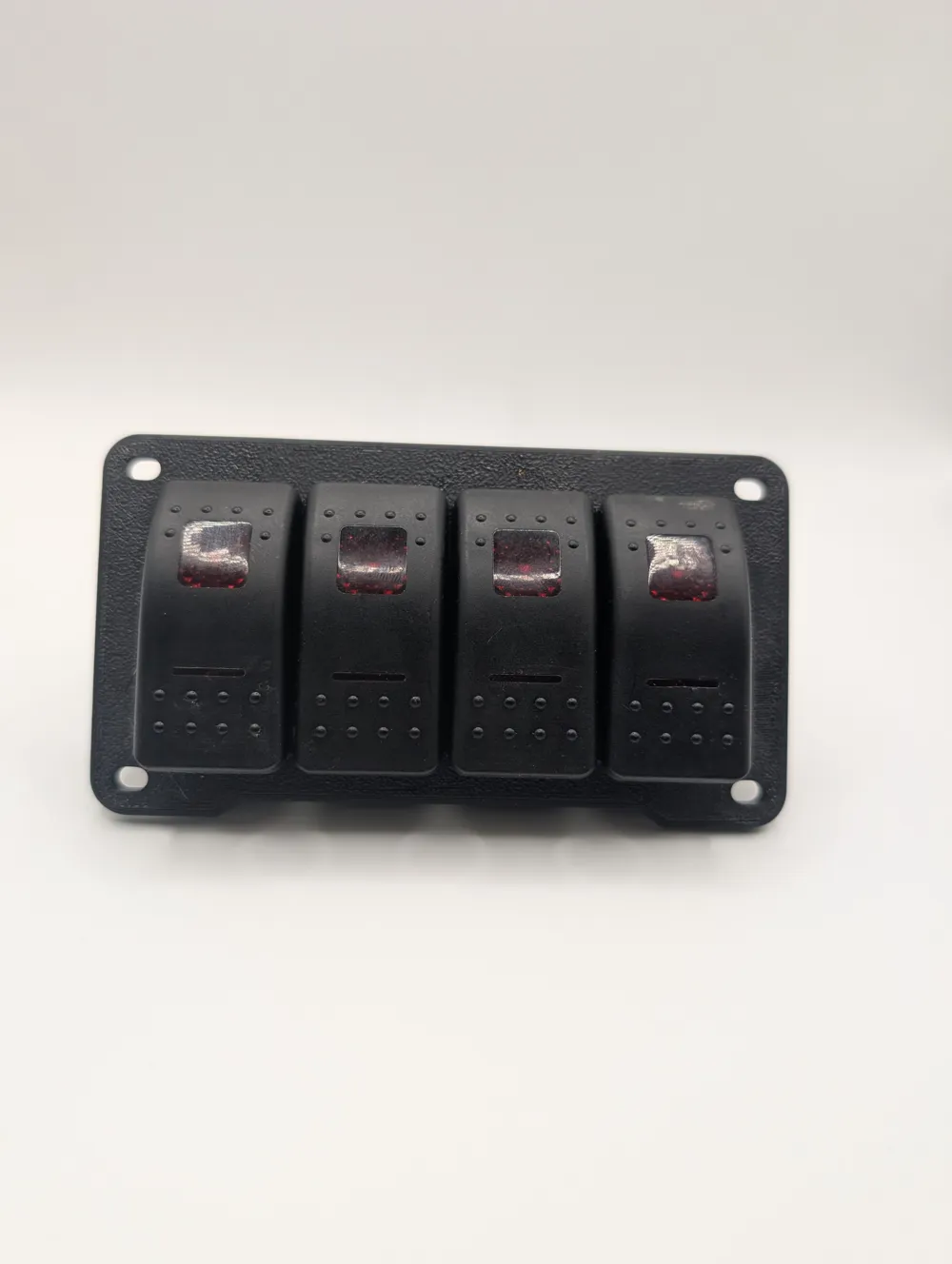

- (4) Switches

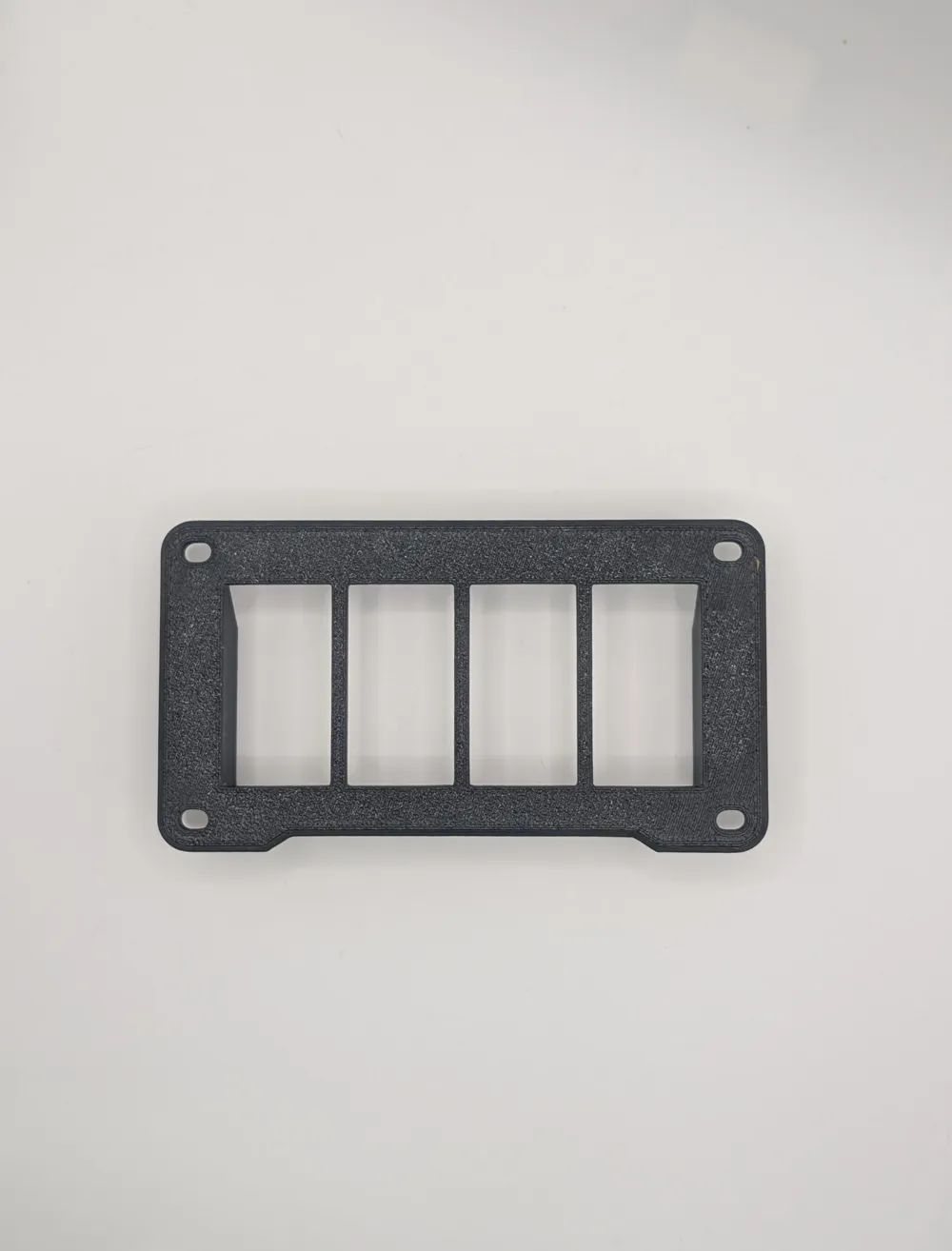

The mounting holes are now elongated to make install a bit easier (you don't have to be as precise with your hole pattern on the console).
Filament Choice:
Printed in Polylite ASA to prevent warping/sagging in a hot vehicle. Keep in mind this is going in a vehicle that may experience a good deal of heat inside. That being said, I had originally printed this in PETG it worked well until I replaced it with the ASA variant.
I hope you enjoy this design! If you find this useful, please consider boosting this model, or “buying me a coffee.”
