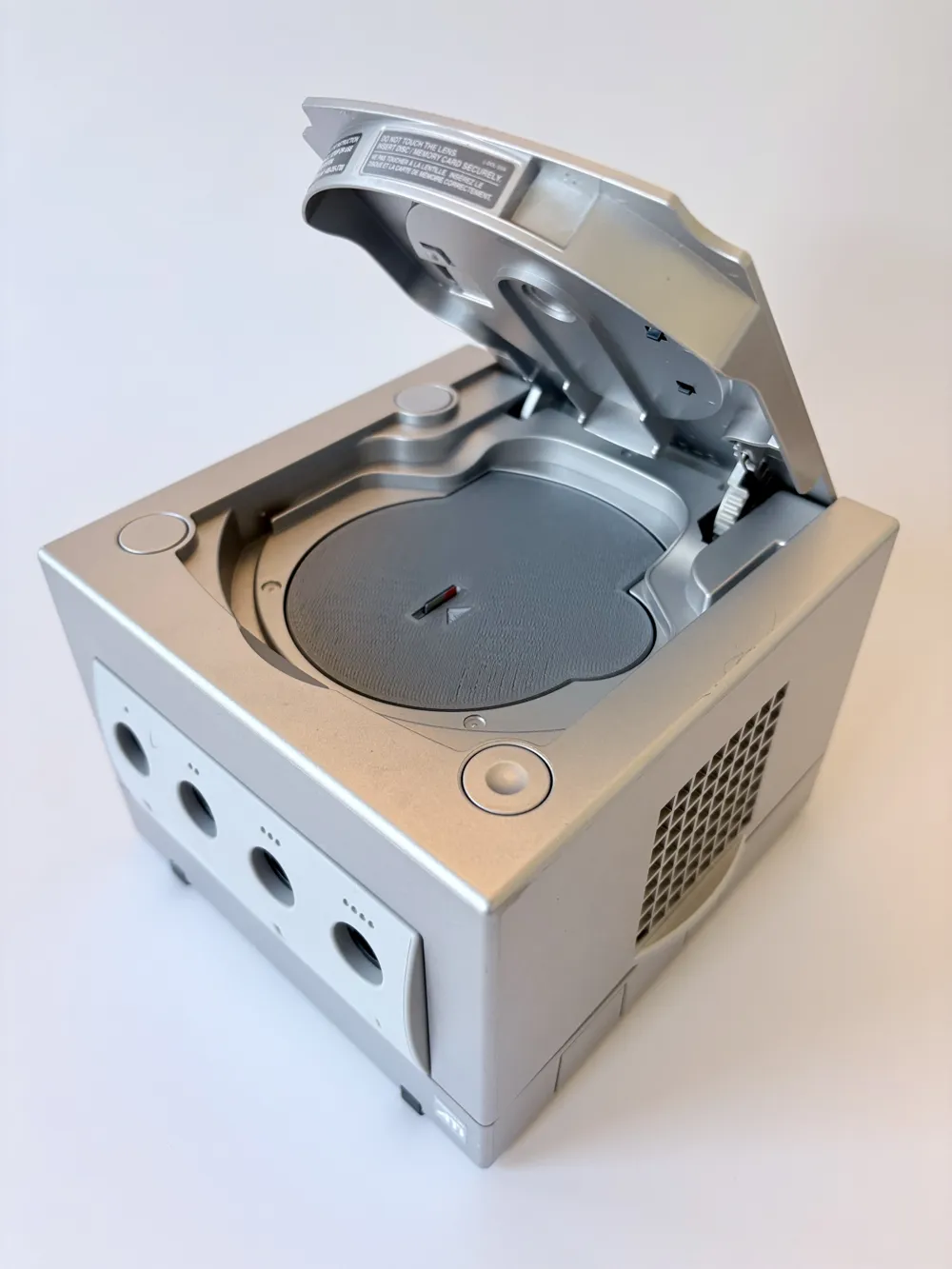

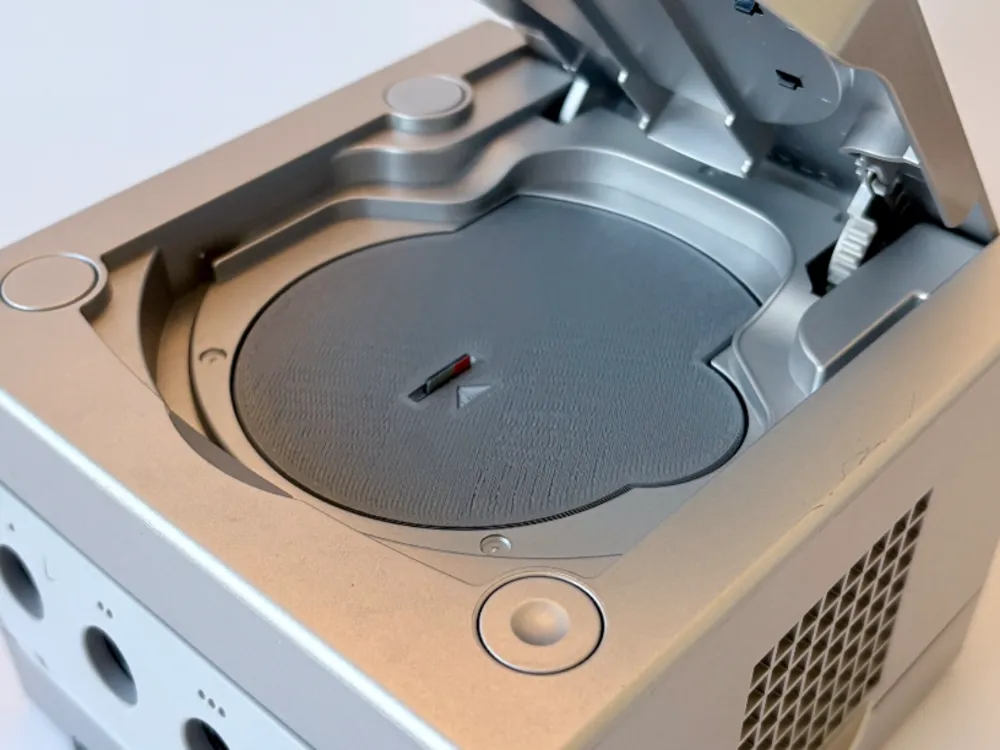

GameCube disc drive replacement / cover as a replacement for non-functional drive.

Works great with PicoBoot / FlippyDrive / PicoLoader modification.

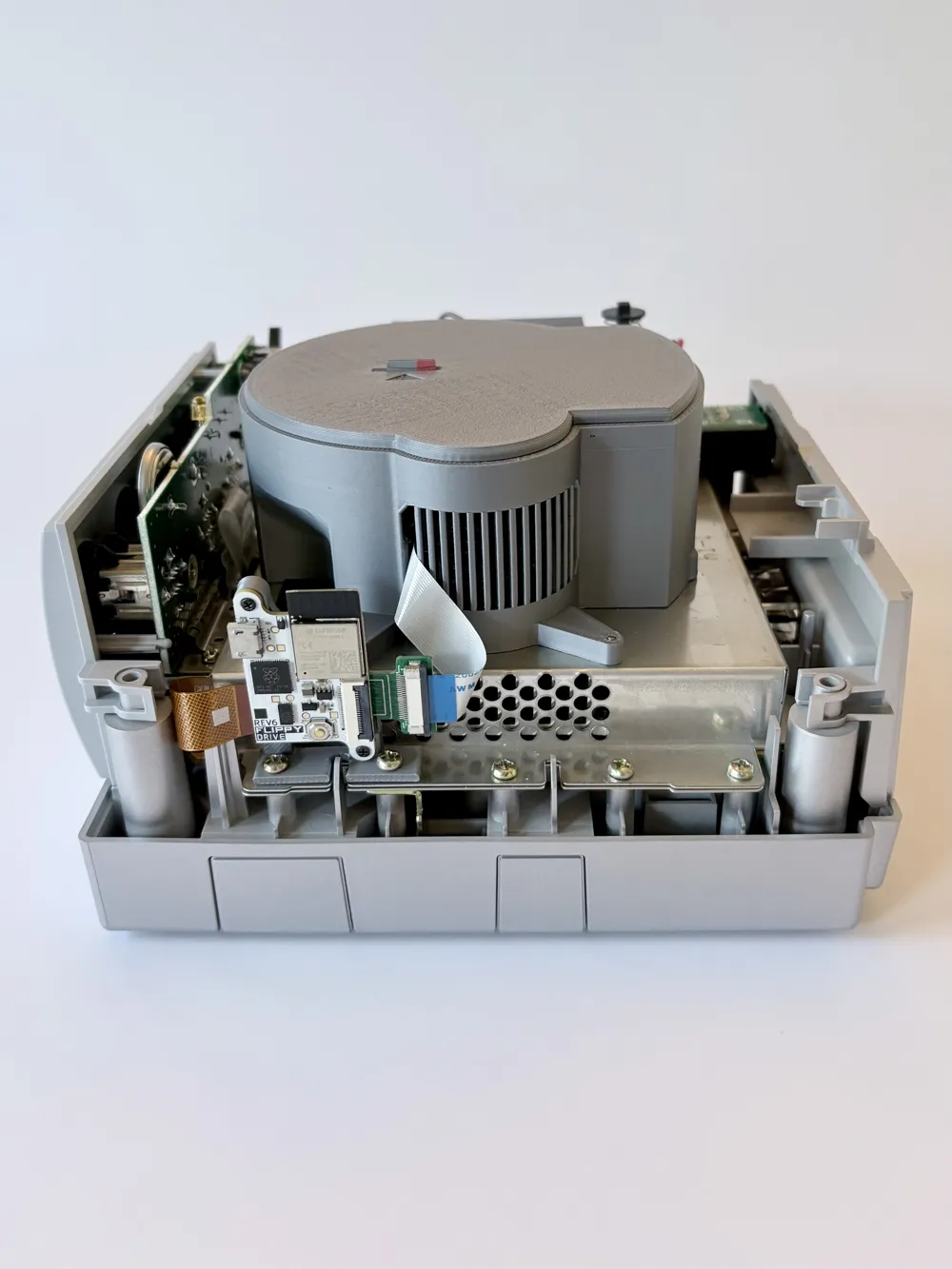

Prints in 2 parts with no supports needed. Uses the original GameCube disc drive screws to mount to the RF shield in place of the disc drive. Should also work with any M2 screws.

Includes 2 versions:

Without micro SD card mount / slot
With micro SD card mount / slot
1. For FlippyDrive mod (pictured), use with modified mounting bracket that removes the spare screw holder.
2. Recommended micro SD card extension cable; though should work with any with a circuit board / micro SD card mount measuring 28mm x 28mm
