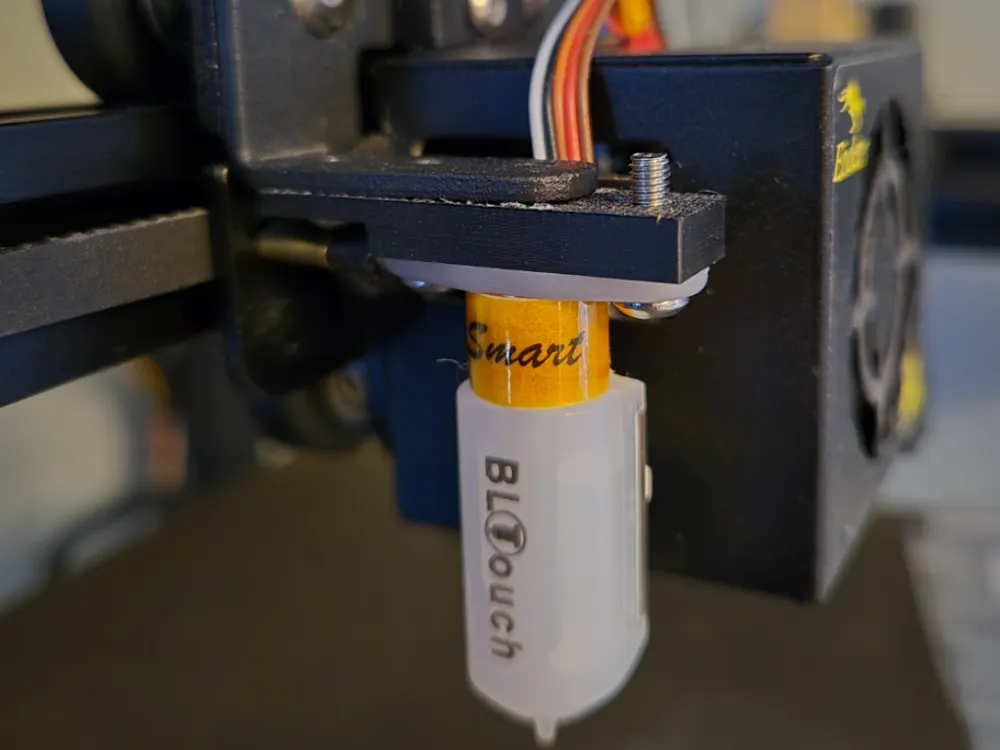

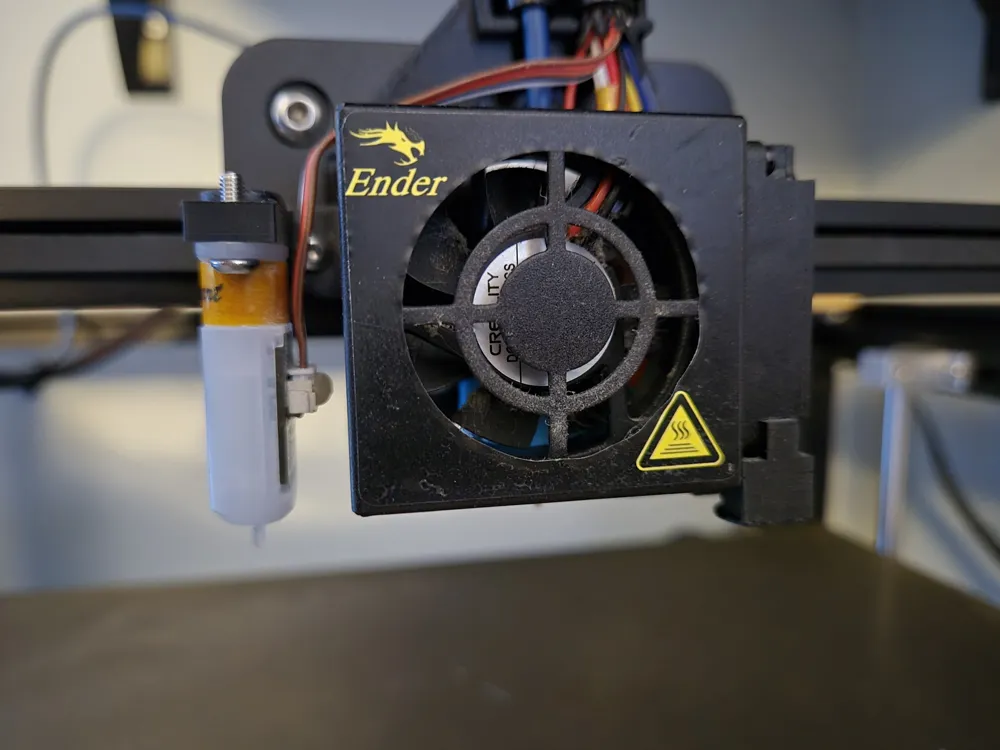

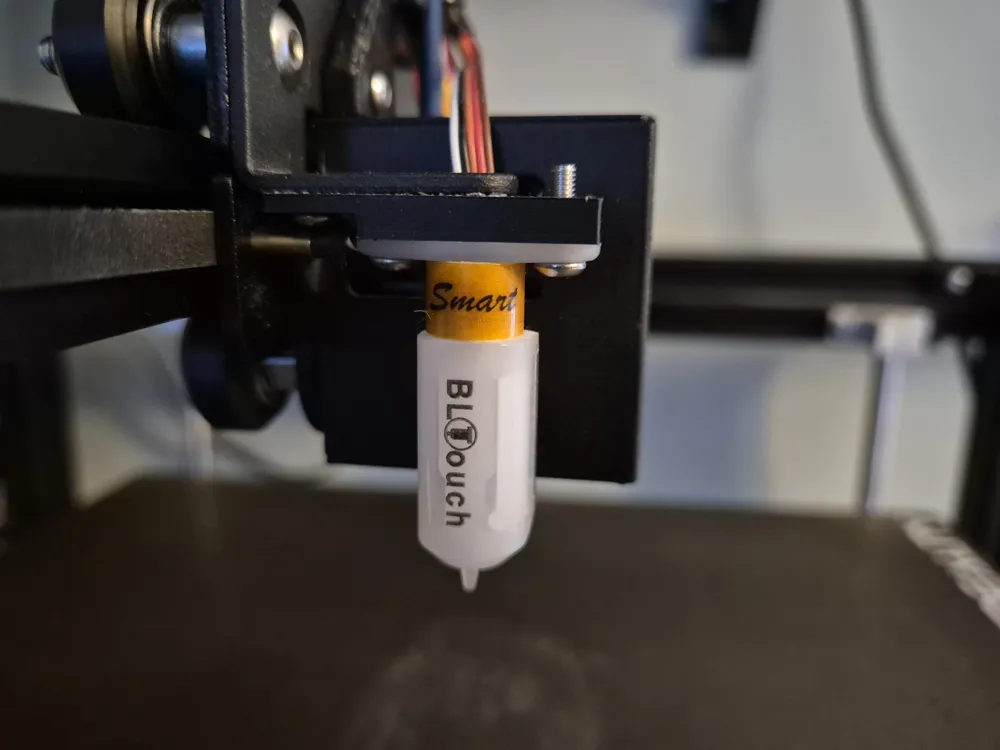

BLTouch Offset Mount for Creality Ender Series

This BLTouch offset mount is designed for Creality Ender printers using the original hotend and stock hotend shroud.

The mount repositions the BLTouch 9 mm forward (Y-axis) and 4 mm downward (Z-axis) compared to the original mounting position.


This makes it suitable for longer nozzles or setups where the stock BLTouch position no longer triggers reliably.

The mount is printed as a single solid body and uses standard M3 hardware.

Compatible with the following Creality Ender models (stock hotend):
– Ender 3
– Ender 3 Pro
– Ender 3 V2
– Ender 5
– Ender 5 Plus

No supports required.

PLA works well, PETG is recommended for higher temperature environments.

Important: Z-offset must be re-calibrated after installation.

Feedback and suggestions are welcome!
